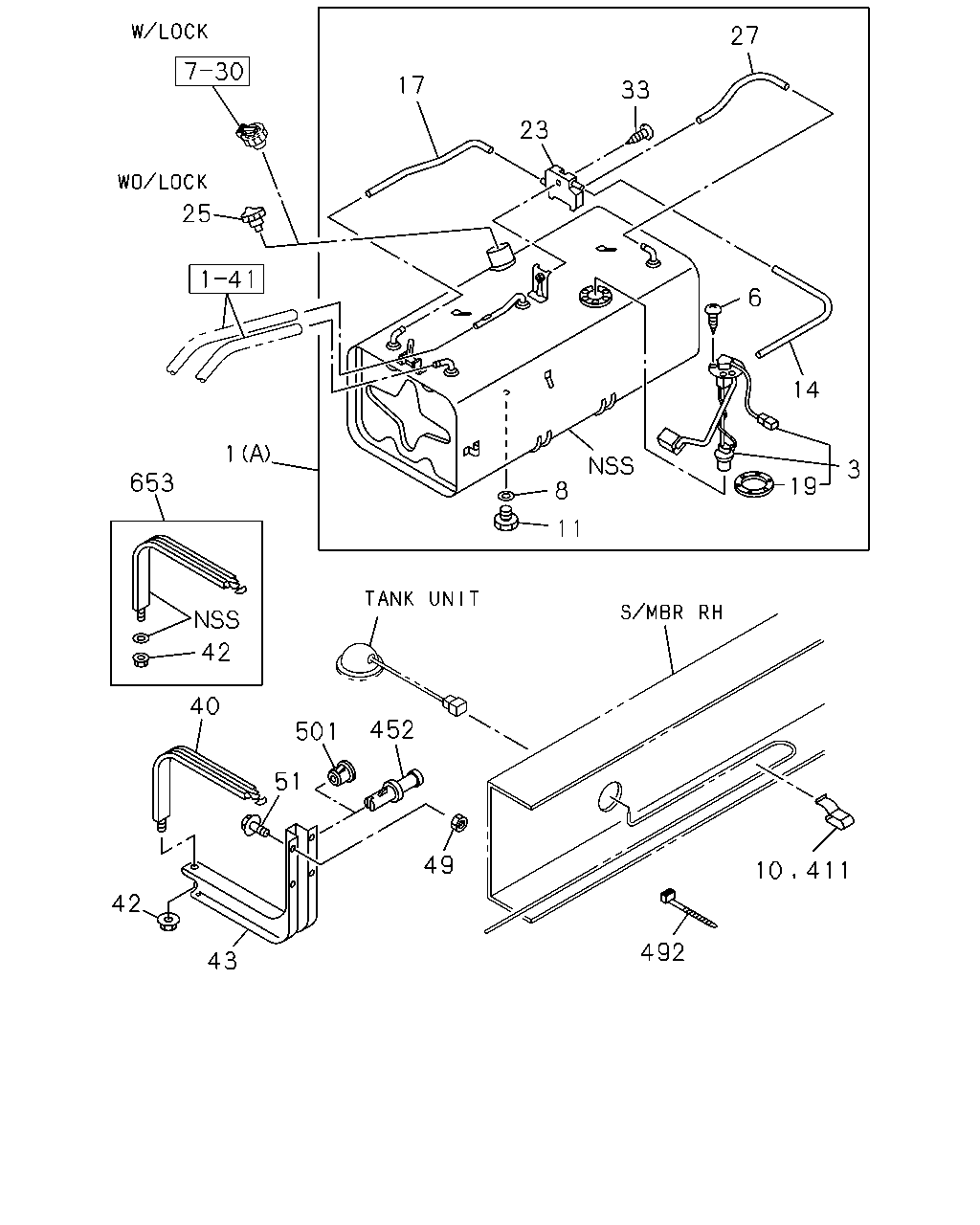

1-40 — FUEL TANK (#80055) — 116 parça

411 10 492 49 452 501 51 43 42 40 42 658 1 25 17 23 33 27 6 14 3 19 11 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.001 TANK; FUEL PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 732X375X375 75L IDN	8-98280-475-0	01	1	1411-
1	03.001 TANK; FUEL (A) 753X340X327 75L	8-97350-987-0	01	1	0211-0212
1	03.001 TANK; FUEL EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) 753X340X327 75L	8-97350-987-1	01	1	0301-
1	03.001 TANK; FUEL FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 732X375X375 75L IDN	8-97356-868-0	01	1	0301-0401
1	03.001 TANK; FUEL FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 732X375X375 75L IDN	8-97375-633-4	01	1	0402-1410
1	03.001 TANK; FUEL FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 732X375X375 75L IDN	8-97375-633-4	01	1	1411-
3	03.107 UNIT; FUEL TANK,SUB PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 75 LITTER "NON BOX TYPE"<7GX>	8-98278-777-0	01	1	1411-
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	0211-0212
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.001	8-94316-190-0	01	1	0301-
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 75 LITTER "NON BOX TYPE"<7GX>	8-97363-006-0	01	1	0301-1410
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97363-006-0	01	1	1411-
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0604
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0211-0212
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0301-0603
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0604-0604
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 01.550 IDN	1-21729-043-0	01	1	0211-0212
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.550 IDN	1-21729-043-0	01	1	0301-0301
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.107 ID=14.2 OD=23.0 IDN	9-09572-014-0	01	1	0302-
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 08.955 ID=8.2 OD=17 IDN	9-09572-008-0	01	1	0301-
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 01.240 T=5.5 IDN	5-09709-047-0	03	1	0211-0501
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0212
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0301-0301
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.453 M14X14 IDN	9-09862-156-0	01	1	0302-
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0301-0512
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> L=320	8-98157-805-0	01	1	1004-
14	03.163 HOSE; BREATHER,OUTLET 00.034 L=320 SERVICED BY L=10000	9-09914-701-0	01	1	0211-0212
14	03.163 HOSE; BREATHER,OUTLET EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 00.034 L=320 SERVICED BY L=10000	9-09914-701-0	01	1	0301-
17	03.163 HOSE; BREATHER L=430 SERVICED BY L=3000	8-94128-826-0	01	1	0211-0212
17	03.163 HOSE; BREATHER EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> L=430 SERVICED BY L=3000	8-94128-826-0	01	1	0301-
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0211-0212
19	03.112 GASKET; FUEL TANK UNIT EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> ID=42 OD=71	5-83148-001-0	01	1	0301-1410
19	03.112 GASKET; FUEL TANK UNIT PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> ID=42 OD=71	5-83148-001-0	01	1	1411-
19	03.112 GASKET; FUEL TANK UNIT EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> ID=42 OD=71	5-83148-001-0	01	1	1411-
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 75 LITTER "NON BOX TYPE"<7GX>	8-97363-616-0	01	1	0301-1410
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97363-616-0	01	1	1411-
23	03.162 JOINT; BREATHER HOSE IDN	8-97077-713-1	01	1	0211-0212
23	03.162 JOINT; BREATHER HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> IDN	8-97077-713-1	01	1	0301-
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0211-
27	03.163 HOSE; BREATHER L=340 SERVICED BY L=3000	8-94128-826-0	01	1	0211-0212
27	03.163 HOSE; BREATHER EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> L=340 SERVICED BY L=3000	8-94128-826-0	01	1	0301-
33	03.162 SCREW; JOINT TO FUEL TANK 02.334 M6X20 W/LK&PL WASHER IDN	9-03920-620-0	01	1	0211-0212
33	03.162 SCREW; JOINT TO FUEL TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 02.334 M6X20 W/LK&PL WASHER IDN	9-03920-620-0	01	1	0301-0604
33	03.162 SCREW; JOINT TO FUEL TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> M6X20 W/LK&PL WASHER IDN	0-36230-620-0	01	1	0605-
40	03.022 BELT; SUPPORT,FUEL TANK IDN	8-94438-385-4	02	1	0211-0212
40	03.022 BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> IDN	8-94438-385-4	02	1	0301-
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0211-
43	03.015 BRACKET; FUEL TANK RR BODY FLAT BED(RS6) FRONT	8-97035-516-0	01	1	0502-
43	03.015 BRACKET; FUEL TANK RR BODY FLAT BED(RS6) REAR	8-97181-223-0	01	1	0502-
43	03.015 BRACKET; FUEL TANK IDN	8-97035-517-0	02	1	0211-0212
43	03.015 BRACKET; FUEL TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FRONT IDN	8-97035-517-0	01	1	0301-0501
43	03.015 BRACKET; FUEL TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. RR BODY FLAT BED(RS6) FRONT IDN	8-97035-517-0	01	1	0502-
43	03.015 BRACKET; FUEL TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> REAR IDN	8-97181-220-0	01	1	0301-0501
43	03.015 BRACKET; FUEL TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. RR BODY FLAT BED(RS6) REAR IDN	8-97181-220-0	01	1	0502-
43	03.015 BRACKET; FUEL TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> IDN	8-97035-517-0	02	1	0301-0501
43	03.015 BRACKET; FUEL TANK EXC. RR BODY FLAT BED(RS6),FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> IDN	8-97035-517-0	02	1	0502-
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	0211-0602
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	0603-
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	0211-0512
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0601-
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JB1 NA ENG(RLF) 01.240 T=5.5 IDN	5-09709-047-0	04	1	0502-0606
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 01.240 T=5.5 IDN	5-09709-047-0	04	1	0607-
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JB1 NA ENG(RLF) 01.240 T=5.5 IDN	5-09709-047-0	04	1	0607-
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 01.240 T=5.5 IDN	5-09709-047-0	05	1	0607-
452	03.028 BREATHER; FUEL TANK IDN	8-97062-954-1	01	1	0301-0301
452	03.028 BREATHER; FUEL TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> IDN	8-97062-954-1	01	1	0301-
452	03.028 BREATHER; FUEL TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> IDN	8-97357-261-0	01	1	0301-
492	03.028 CLIP; HARNESS TO VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 02.559 L=250 IDN	5-09707-030-1	02	1	0607-
501	03.028 GROMMET; BRKT IDN	8-97096-990-0	01	1	0301-0301
501	03.028 GROMMET; BRKT EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> IDN	8-97096-990-0	01	1	0301-
653	03.022 BAND KIT; FUEL TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX>	5-87411-970-0	02	1	0301-

1 6 614 19 3 14 158 159 452 25 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.001 TANK; FUEL PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 732X375X375 75L IDN	8-98280-475-0	01	1	1411-
1	03.001 TANK; FUEL (A) 753X340X327 75L	8-97350-987-0	01	1	0211-0212
1	03.001 TANK; FUEL EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) 753X340X327 75L	8-97350-987-1	01	1	0301-
1	03.001 TANK; FUEL FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 732X375X375 75L IDN	8-97356-868-0	01	1	0301-0401
1	03.001 TANK; FUEL FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 732X375X375 75L IDN	8-97375-633-4	01	1	0402-1410
1	03.001 TANK; FUEL FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 732X375X375 75L IDN	8-97375-633-4	01	1	1411-
3	03.107 UNIT; FUEL TANK,SUB PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 75 LITTER "NON BOX TYPE"<7GX>	8-98278-777-0	01	1	1411-
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	0211-0212
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.001	8-94316-190-0	01	1	0301-
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 75 LITTER "NON BOX TYPE"<7GX>	8-97363-006-0	01	1	0301-1410
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97363-006-0	01	1	1411-
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0604
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0211-0212
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0301-0603
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0604-0604
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 01.550 IDN	1-21729-043-0	01	1	0211-0212
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.550 IDN	1-21729-043-0	01	1	0301-0301
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.107 ID=14.2 OD=23.0 IDN	9-09572-014-0	01	1	0302-
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 08.955 ID=8.2 OD=17 IDN	9-09572-008-0	01	1	0301-
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0212
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0301-0301
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.453 M14X14 IDN	9-09862-156-0	01	1	0302-
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0301-0512
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> L=320	8-98157-805-0	01	1	1004-
14	03.163 HOSE; BREATHER,OUTLET 00.034 L=320 SERVICED BY L=10000	9-09914-701-0	01	1	0211-0212
14	03.163 HOSE; BREATHER,OUTLET EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 00.034 L=320 SERVICED BY L=10000	9-09914-701-0	01	1	0301-
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0211-0212
19	03.112 GASKET; FUEL TANK UNIT EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> ID=42 OD=71	5-83148-001-0	01	1	0301-1410
19	03.112 GASKET; FUEL TANK UNIT PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> ID=42 OD=71	5-83148-001-0	01	1	1411-
19	03.112 GASKET; FUEL TANK UNIT EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> ID=42 OD=71	5-83148-001-0	01	1	1411-
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 75 LITTER "NON BOX TYPE"<7GX>	8-97363-616-0	01	1	0301-1410
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97363-616-0	01	1	1411-
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0211-
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> IDN	8-97179-645-0	01	1	0301-
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> IDN	8-97326-488-0	01	1	0301-
452	03.028 BREATHER; FUEL TANK IDN	8-97062-954-1	01	1	0301-0301
452	03.028 BREATHER; FUEL TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> IDN	8-97062-954-1	01	1	0301-
452	03.028 BREATHER; FUEL TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> IDN	8-97357-261-0	01	1	0301-
614	03.028 HARNESS; FUEL PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 75 LITTER "NON BOX TYPE"<7GX>	8-98285-440-0	01	1	1411-
614	03.028 HARNESS; FUEL FUEL TANK 75 LITTER "NON BOX TYPE"<7GX>	8-97363-614-0	01	1	0301-1410
614	03.028 HARNESS; FUEL FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97363-614-0	01	1	1411-
653	03.022 BAND KIT; FUEL TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX>	5-87411-970-0	02	1	0301-
