Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#80053) — 293 parça

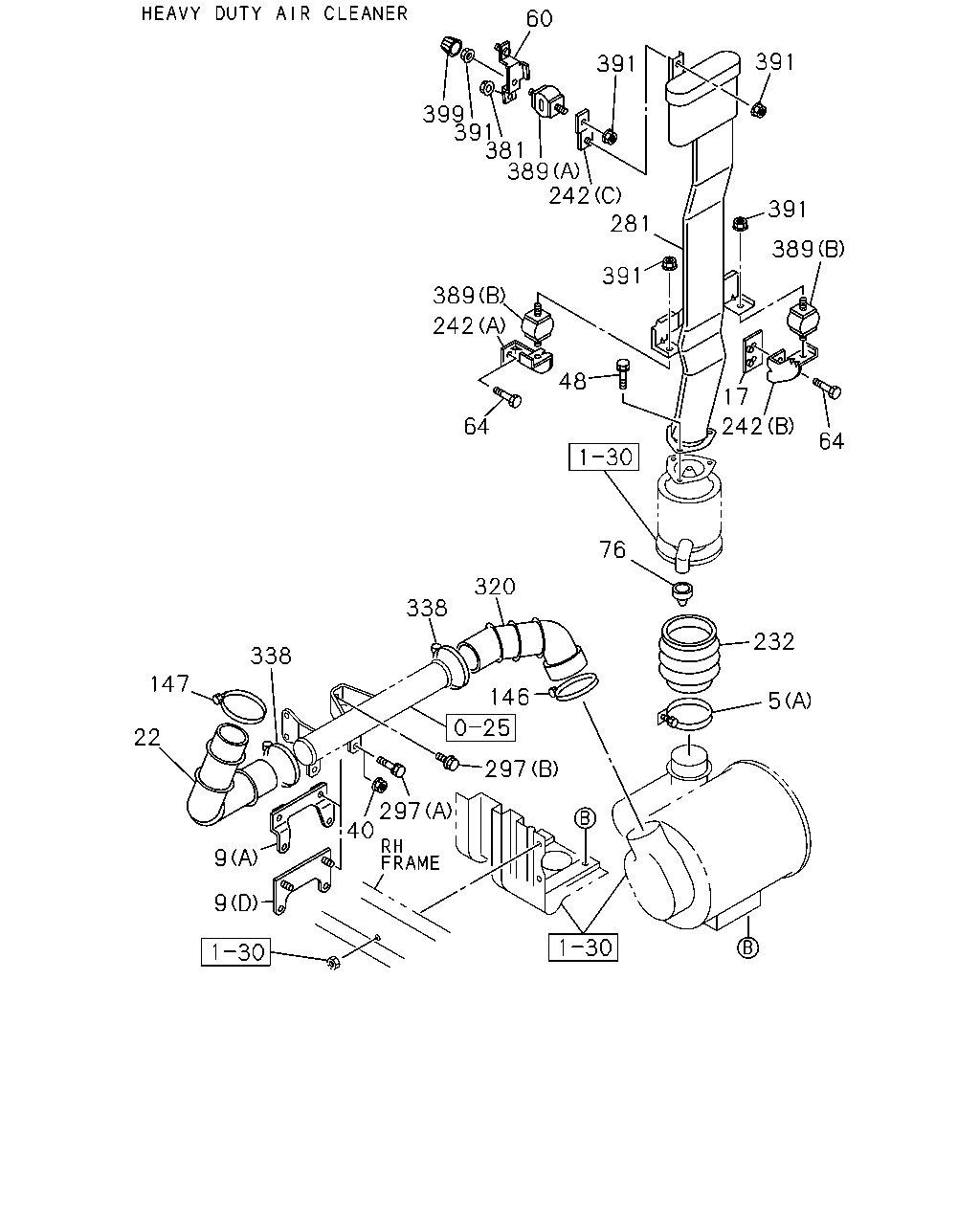

60 391 391 399 391 381 389 242 281 391 389 391 389 242 48 17 242 64 64 76 320 338 232 338 147 146 5 22 297 297 40 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	0502-
5	03.407 CLIP; AIR DUCT (A) ID=87	8-97087-432-0	01	1	0211-0501
5	03.407 CLIP; AIR DUCT 4JB1 NA ENG(RLF) (A) ID=87	8-97087-432-0	01	1	0502-0606
5	03.407 CLIP; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87	8-97087-432-0	01	1	0607-
5	03.407 CLIP; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87	8-97087-432-0	01	1	0607-
9	03.417 BRACKET; INT PIPE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98166-945-0	01	1	1107-
9	03.417 BRACKET; INT PIPE 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97089-655-0	01	1	0502-
9	03.417 BRACKET; INT PIPE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97226-059-0	01	1	0607-
9	03.417 BRACKET; INT PIPE (A) IDN	8-94155-425-1	01	1	0211-0501
9	03.417 BRACKET; INT PIPE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) IDN	8-94155-425-1	01	1	0502-1106
9	03.417 BRACKET; INT PIPE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (A) IDN	8-94155-425-1	01	1	1107-
17	03.403 GASKET; AIR DUCT IDN	8-97853-699-2	01	1	0211-0501
17	03.403 GASKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> IDN	8-97853-699-2	01	1	0502-
22	03.417 HOSE; CONNECTOR,ENG TO PIPE	8-97107-173-0	01	1	0211-0501
22	03.417 HOSE; CONNECTOR,ENG TO PIPE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97107-173-1	01	1	0502-
40	03.417 NUT; AIR INT DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.162 M10 FLANGE	0-91180-110-0	02	1	1107-
48	03.417 BOLT; AIR DUCT HEAVY DUTY AIR CLEANER(K46) 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	0211-0501
48	03.417 BOLT; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER(K46) 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	0502-0909
48	03.417 BOLT; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER(K46) 09.171 M8X18 W/LK WASHER	0-50540-818-0	03	1	0910-
60	03.417 BRACKET; AIR DUCT,UPR	8-97856-956-0	01	1	0211-0501
60	03.417 BRACKET; AIR DUCT,UPR AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-1	01	1	0502-
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0501
64	03.417 BOLT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0502-
76	03.403 VALVE; PRE ACL HEAVY DUTY AIR CLEANER(K46) 03.415	8-94447-157-0	01	1	0211-0501
76	03.403 VALVE; PRE ACL 4JB1 NA ENG(RLF) HEAVY DUTY AIR CLEANER(K46) 03.415	8-94447-157-0	01	1	0502-
146	03.417 CLIP; HOSE,ACL 03.407 ID=92	9-09915-072-1	01	1	0211-0501
146	03.417 CLIP; HOSE,ACL 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=92	9-09915-072-1	01	1	0502-
147	03.417 CLIP; HOSE TO ENG 03.407 ID=79	9-09915-734-1	01	1	0211-0501
147	03.417 CLIP; HOSE TO ENG 4JB1 NA ENG(RLF) 03.407 ID=79	9-09915-734-1	01	1	0502-
232	03.417 HOSE; CONN 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-2	01	1	0502-
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3>	8-97224-994-0	01	1	0607-
232	03.417 HOSE; CONN	5-14231-115-1	01	1	0211-0501
232	03.417 HOSE; CONN 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	0502-
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97856-932-0	01	1	0607-
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97856-933-0	01	1	0607-
242	03.417 BRACKET; AIR DUCT (B)	8-97856-935-0	01	1	0211-0501
242	03.417 BRACKET; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97856-935-0	01	1	0502-
242	03.417 BRACKET; AIR DUCT (C)	8-97856-958-0	01	1	0211-0501
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0502-
242	03.417 BRACKET; AIR DUCT (A)	8-97856-967-1	01	1	0211-0501
242	03.417 BRACKET; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97856-967-1	01	1	0502-
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3>	8-94313-520-3	01	1	0701-
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER(K46) IDN	8-97089-948-2	01	1	0211-0501
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER(K46) IDN	8-97089-948-2	01	1	0502-

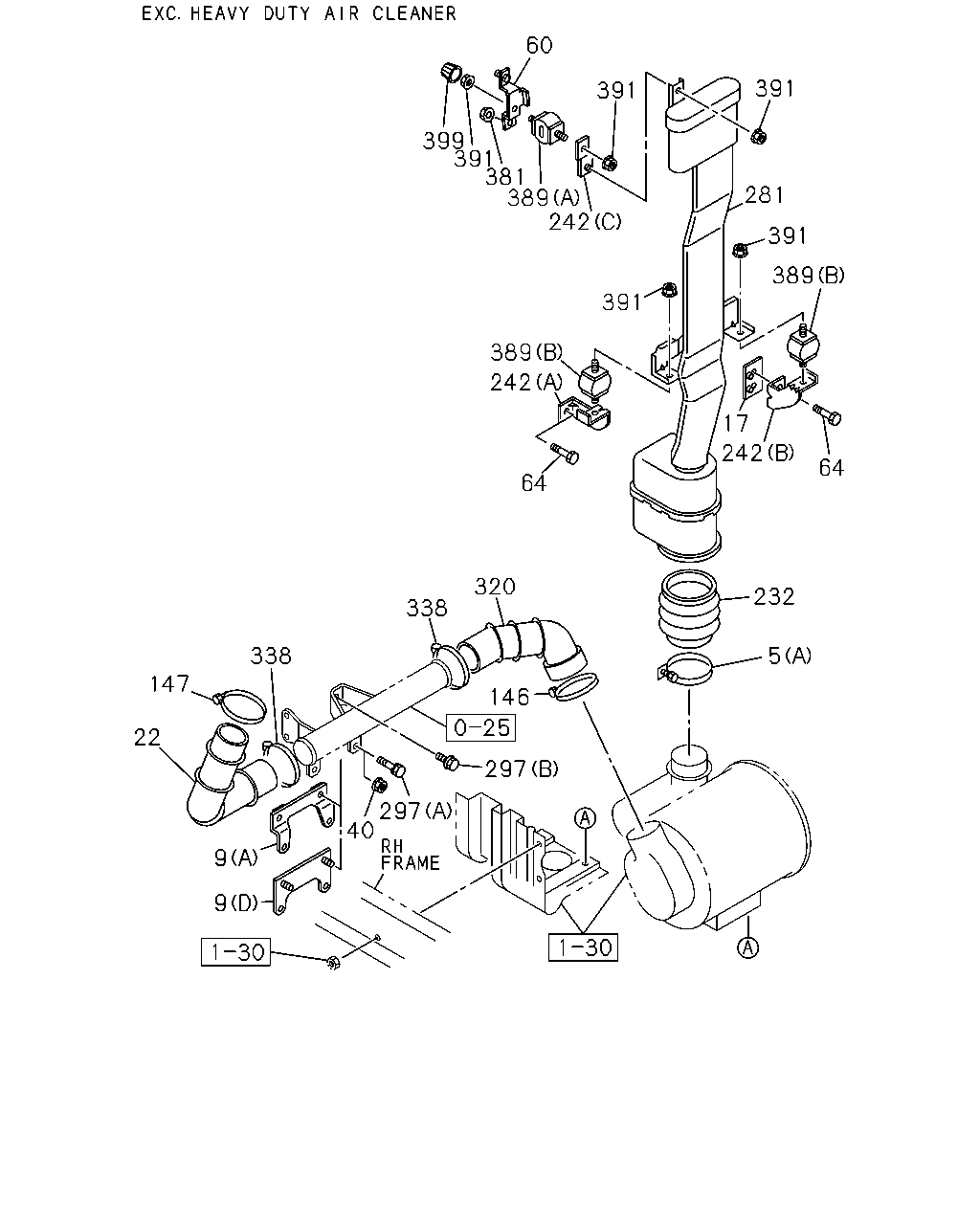

281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER(K46)	8-97076-959-2	01	1	0211-0501
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER(K46)	8-97076-959-2	01	1	0502-
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 (D) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	0502-0506
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 16.550 (C) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	0502-
297	03.417 BOLT; DUCT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 02.343 (E) M8X12 FLANGE	0-28050-812-0	02	1	0607-
297	03.417 BOLT; DUCT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 06.225 (F) M10X12 FLANGE	0-28051-012-0	01	1	0607-
297	03.417 BOLT; DUCT 11.377 (A) M10X20 W/LK WASHER IDN	0-50041-020-0	02	1	0211-0501
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 11.377 (A) M10X20 W/LK WASHER IDN	0-50041-020-0	02	1	0502-0507
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M10X16 FLANGE	0-28081-016-0	02	1	0508-0512
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.483 (A) M10X16 FLANGE	0-28051-016-0	02	1	0601-1106
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> 02.483 (A) M10X16 FLANGE	0-28051-016-0	02	1	1107-
297	03.417 BOLT; DUCT 00.206 (B) M8X14 W/LK WASHER	0-50040-814-0	01	1	0211-0501
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.206 (B) M8X14 W/LK WASHER	0-50040-814-0	01	1	0502-0507
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0508-0512
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-
320	03.417 HOSE; CONN,ACL 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3>	8-97205-771-0	01	1	0607-
320	03.417 HOSE; CONN,ACL	8-94110-075-2	01	1	0211-0501
320	03.417 HOSE; CONN,ACL 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94110-075-3	01	1	0502-
338	03.417 CLIP; PIPE 03.407 ID=79	9-09915-734-1	02	1	0211-0501
338	03.417 CLIP; PIPE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=79	9-09915-734-1	02	1	0502-
381	03.417 NUT; BRKT,AIR DUCT 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0211-0501
381	03.417 NUT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0502-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (A) IDN	8-97080-149-0	01	1	0211-0501
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A) IDN	8-97080-149-0	01	1	0502-0606
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A) IDN	8-97080-149-0	01	1	0607-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B) IDN	8-97081-886-0	02	1	0211-0501
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B) IDN	8-97081-886-0	02	1	0502-0606
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B) IDN	8-97081-886-0	02	1	0607-
391	03.417 NUT; SUPPORT RUBBER,UPR M8 FLANGE IDN	8-94279-517-0	07	1	0211-0501
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE IDN	8-94279-517-0	07	1	0502-0606
391	03.417 NUT; SUPPORT RUBBER,UPR AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE IDN	8-94279-517-0	07	1	0607-0910
391	03.417 NUT; SUPPORT RUBBER,UPR AIR INTAKE REAR VERTICAL<KJ3> M8 W/LK WASHER IDN	8-97581-234-0	07	1	0911-
399	03.417 CAP; BRKT,AIR DUCT IDN	8-94273-605-0	02	1	0211-0501
399	03.417 CAP; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> IDN	8-94273-605-0	02	1	0502-

60 391 391 399 391 381 389 242 281 391 389 391 389 242 17 242 64 64 320 232 338 338 5 147 146 22 297 297 40 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	0502-
5	03.407 CLIP; AIR DUCT (A) ID=87	8-97087-432-0	01	1	0211-0501
5	03.407 CLIP; AIR DUCT 4JB1 NA ENG(RLF) (A) ID=87	8-97087-432-0	01	1	0502-0606
5	03.407 CLIP; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87	8-97087-432-0	01	1	0607-
5	03.407 CLIP; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87	8-97087-432-0	01	1	0607-
9	03.417 BRACKET; INT PIPE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98166-945-0	01	1	1107-
9	03.417 BRACKET; INT PIPE 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97089-655-0	01	1	0502-
9	03.417 BRACKET; INT PIPE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97226-059-0	01	1	0607-
9	03.417 BRACKET; INT PIPE (A) IDN	8-94155-425-1	01	1	0211-0501
9	03.417 BRACKET; INT PIPE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) IDN	8-94155-425-1	01	1	0502-1106
9	03.417 BRACKET; INT PIPE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (A) IDN	8-94155-425-1	01	1	1107-
17	03.403 GASKET; AIR DUCT IDN	8-97853-699-2	01	1	0211-0501
17	03.403 GASKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> IDN	8-97853-699-2	01	1	0502-
22	03.417 HOSE; CONNECTOR,ENG TO PIPE	8-97107-173-0	01	1	0211-0501
22	03.417 HOSE; CONNECTOR,ENG TO PIPE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97107-173-1	01	1	0502-
40	03.417 NUT; AIR INT DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.162 M10 FLANGE	0-91180-110-0	02	1	1107-
60	03.417 BRACKET; AIR DUCT,UPR	8-97856-956-0	01	1	0211-0501
60	03.417 BRACKET; AIR DUCT,UPR AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-1	01	1	0502-
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0501
64	03.417 BOLT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0502-
146	03.417 CLIP; HOSE,ACL 03.407 ID=92	9-09915-072-1	01	1	0211-0501
146	03.417 CLIP; HOSE,ACL 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=92	9-09915-072-1	01	1	0502-
147	03.417 CLIP; HOSE TO ENG 03.407 ID=79	9-09915-734-1	01	1	0211-0501
147	03.417 CLIP; HOSE TO ENG 4JB1 NA ENG(RLF) 03.407 ID=79	9-09915-734-1	01	1	0502-
232	03.417 HOSE; CONN 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-2	01	1	0502-
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3>	8-97224-994-0	01	1	0607-
232	03.417 HOSE; CONN	5-14231-115-1	01	1	0211-0501
232	03.417 HOSE; CONN 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	0502-
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97856-932-0	01	1	0607-
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97856-933-0	01	1	0607-
242	03.417 BRACKET; AIR DUCT (B)	8-97856-935-0	01	1	0211-0501
242	03.417 BRACKET; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97856-935-0	01	1	0502-
242	03.417 BRACKET; AIR DUCT (C)	8-97856-958-0	01	1	0211-0501
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0502-
242	03.417 BRACKET; AIR DUCT (A)	8-97856-967-1	01	1	0211-0501
242	03.417 BRACKET; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97856-967-1	01	1	0502-
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3>	8-94313-520-3	01	1	0701-
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER(K46) IDN	8-97089-948-2	01	1	0211-0501
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER(K46) IDN	8-97089-948-2	01	1	0502-
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER(K46)	8-97076-959-2	01	1	0211-0501
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER(K46)	8-97076-959-2	01	1	0502-
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 (D) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	0502-0506
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 16.550 (C) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	0502-
297	03.417 BOLT; DUCT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 02.343 (E) M8X12 FLANGE	0-28050-812-0	02	1	0607-
297	03.417 BOLT; DUCT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 06.225 (F) M10X12 FLANGE	0-28051-012-0	01	1	0607-
297	03.417 BOLT; DUCT 11.377 (A) M10X20 W/LK WASHER IDN	0-50041-020-0	02	1	0211-0501
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 11.377 (A) M10X20 W/LK WASHER IDN	0-50041-020-0	02	1	0502-0507
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M10X16 FLANGE	0-28081-016-0	02	1	0508-0512
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.483 (A) M10X16 FLANGE	0-28051-016-0	02	1	0601-1106
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> 02.483 (A) M10X16 FLANGE	0-28051-016-0	02	1	1107-
297	03.417 BOLT; DUCT 00.206 (B) M8X14 W/LK WASHER	0-50040-814-0	01	1	0211-0501
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.206 (B) M8X14 W/LK WASHER	0-50040-814-0	01	1	0502-0507
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0508-0512
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-
320	03.417 HOSE; CONN,ACL 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3>	8-97205-771-0	01	1	0607-
320	03.417 HOSE; CONN,ACL	8-94110-075-2	01	1	0211-0501
320	03.417 HOSE; CONN,ACL 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94110-075-3	01	1	0502-
338	03.417 CLIP; PIPE 03.407 ID=79	9-09915-734-1	02	1	0211-0501
338	03.417 CLIP; PIPE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=79	9-09915-734-1	02	1	0502-
381	03.417 NUT; BRKT,AIR DUCT 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0211-0501
381	03.417 NUT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0502-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (A) IDN	8-97080-149-0	01	1	0211-0501
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A) IDN	8-97080-149-0	01	1	0502-0606
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A) IDN	8-97080-149-0	01	1	0607-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B) IDN	8-97081-886-0	02	1	0211-0501
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B) IDN	8-97081-886-0	02	1	0502-0606
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B) IDN	8-97081-886-0	02	1	0607-
391	03.417 NUT; SUPPORT RUBBER,UPR M8 FLANGE IDN	8-94279-517-0	07	1	0211-0501
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE IDN	8-94279-517-0	07	1	0502-0606
391	03.417 NUT; SUPPORT RUBBER,UPR AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE IDN	8-94279-517-0	07	1	0607-0910
391	03.417 NUT; SUPPORT RUBBER,UPR AIR INTAKE REAR VERTICAL<KJ3> M8 W/LK WASHER IDN	8-97581-234-0	07	1	0911-
399	03.417 CAP; BRKT,AIR DUCT IDN	8-94273-605-0	02	1	0211-0501
399	03.417 CAP; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> IDN	8-94273-605-0	02	1	0502-

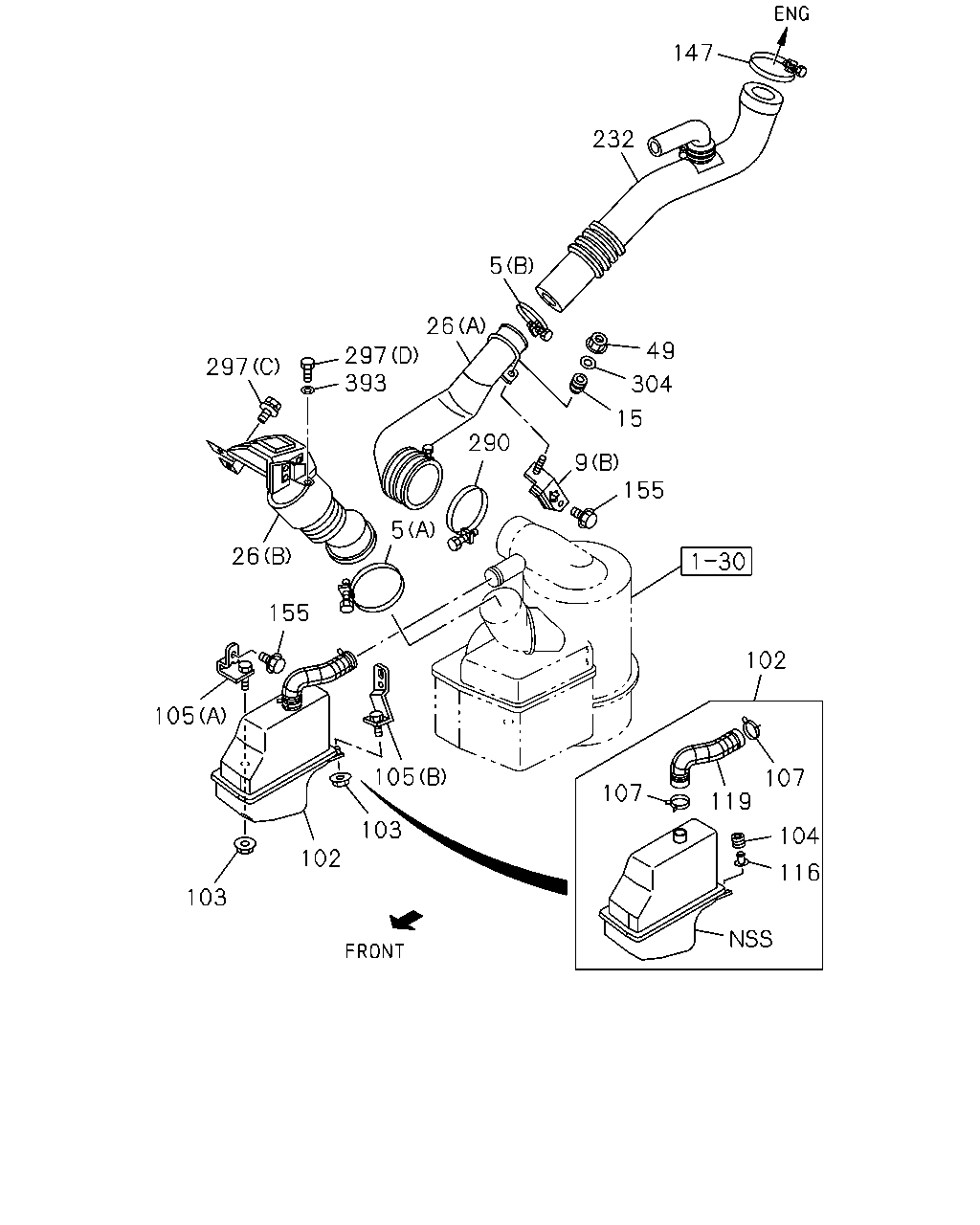

147 232 5 26 49 297 393 297 304 15 290 9 155 5 26 155 102 105 105 107 107 119 103 104 102 116 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	0502-
5	03.407 CLIP; AIR DUCT (A) ID=87	8-97087-432-0	01	1	0211-0501
5	03.407 CLIP; AIR DUCT 4JB1 NA ENG(RLF) (A) ID=87	8-97087-432-0	01	1	0502-0606
5	03.407 CLIP; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87	8-97087-432-0	01	1	0607-
5	03.407 CLIP; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87	8-97087-432-0	01	1	0607-
9	03.417 BRACKET; INT PIPE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98166-945-0	01	1	1107-
9	03.417 BRACKET; INT PIPE 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97089-655-0	01	1	0502-
9	03.417 BRACKET; INT PIPE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97226-059-0	01	1	0607-
9	03.417 BRACKET; INT PIPE (A) IDN	8-94155-425-1	01	1	0211-0501
9	03.417 BRACKET; INT PIPE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) IDN	8-94155-425-1	01	1	0502-1106
9	03.417 BRACKET; INT PIPE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (A) IDN	8-94155-425-1	01	1	1107-
15	03.417 INSULATOR 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	0502-
26	03.417 DUCT; AIR INT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97089-951-2	01	1	0502-
26	03.417 DUCT; AIR INT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97091-273-1	01	1	0502-
49	03.417 NUT; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602
49	03.417 NUT; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
102	03.402 RESONATOR; AIR INT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97103-541-1	01	1	0502-
103	03.402 NUT; RESONATOR 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602
103	03.402 NUT; RESONATOR 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
104	03.417 RUBBER; MOUNTING,RESONATOR 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97095-600-0	02	1	0502-
105	03.403 BRACKET; RESONATOR 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97092-039-1	01	1	0502-
105	03.403 BRACKET; RESONATOR 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97174-754-0	01	1	0502-
107	03.417 CLIP; PROTECTOR 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97095-785-0	02	1	0502-
116	01.745 RETAINER; RESONATOR 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97105-842-0	02	1	0502-
119	03.403 HOSE; RESONATOR 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97109-542-0	01	1	0502-
147	03.417 CLIP; HOSE TO ENG 03.407 ID=79	9-09915-734-1	01	1	0211-0501
147	03.417 CLIP; HOSE TO ENG 4JB1 NA ENG(RLF) 03.407 ID=79	9-09915-734-1	01	1	0502-
155	03.417 BOLT; BRKT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE IDN	0-28680-825-0	02	1	0502-0512
155	03.417 BOLT; BRKT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	0601-
232	03.417 HOSE; CONN 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-2	01	1	0502-
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3>	8-97224-994-0	01	1	0607-
232	03.417 HOSE; CONN	5-14231-115-1	01	1	0211-0501
232	03.417 HOSE; CONN 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	0502-
290	03.374 CLIP; ACL TO AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	0502-
290	03.374 CLIP; ACL TO AIR DUCT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=87	8-97087-432-0	01	1	0607-
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 (D) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	0502-0506
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 16.550 (C) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	0502-
297	03.417 BOLT; DUCT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 02.343 (E) M8X12 FLANGE	0-28050-812-0	02	1	0607-
297	03.417 BOLT; DUCT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 06.225 (F) M10X12 FLANGE	0-28051-012-0	01	1	0607-
297	03.417 BOLT; DUCT 11.377 (A) M10X20 W/LK WASHER IDN	0-50041-020-0	02	1	0211-0501
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 11.377 (A) M10X20 W/LK WASHER IDN	0-50041-020-0	02	1	0502-0507
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M10X16 FLANGE	0-28081-016-0	02	1	0508-0512
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.483 (A) M10X16 FLANGE	0-28051-016-0	02	1	0601-1106
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> 02.483 (A) M10X16 FLANGE	0-28051-016-0	02	1	1107-
297	03.417 BOLT; DUCT 00.206 (B) M8X14 W/LK WASHER	0-50040-814-0	01	1	0211-0501
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.206 (B) M8X14 W/LK WASHER	0-50040-814-0	01	1	0502-0507
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0508-0512
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-
304	03.417 WASHER; PL,CONN PIPE BRKT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0502-0605
304	03.417 WASHER; PL,CONN PIPE BRKT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.706 ID=8.4 OD=26 IDN	0-91614-808-0	01	1	0606-
393	03.417 WASHER; LK,AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 01.270 ID=10.5 OD=36	8-97031-437-0	01	1	0502-0506

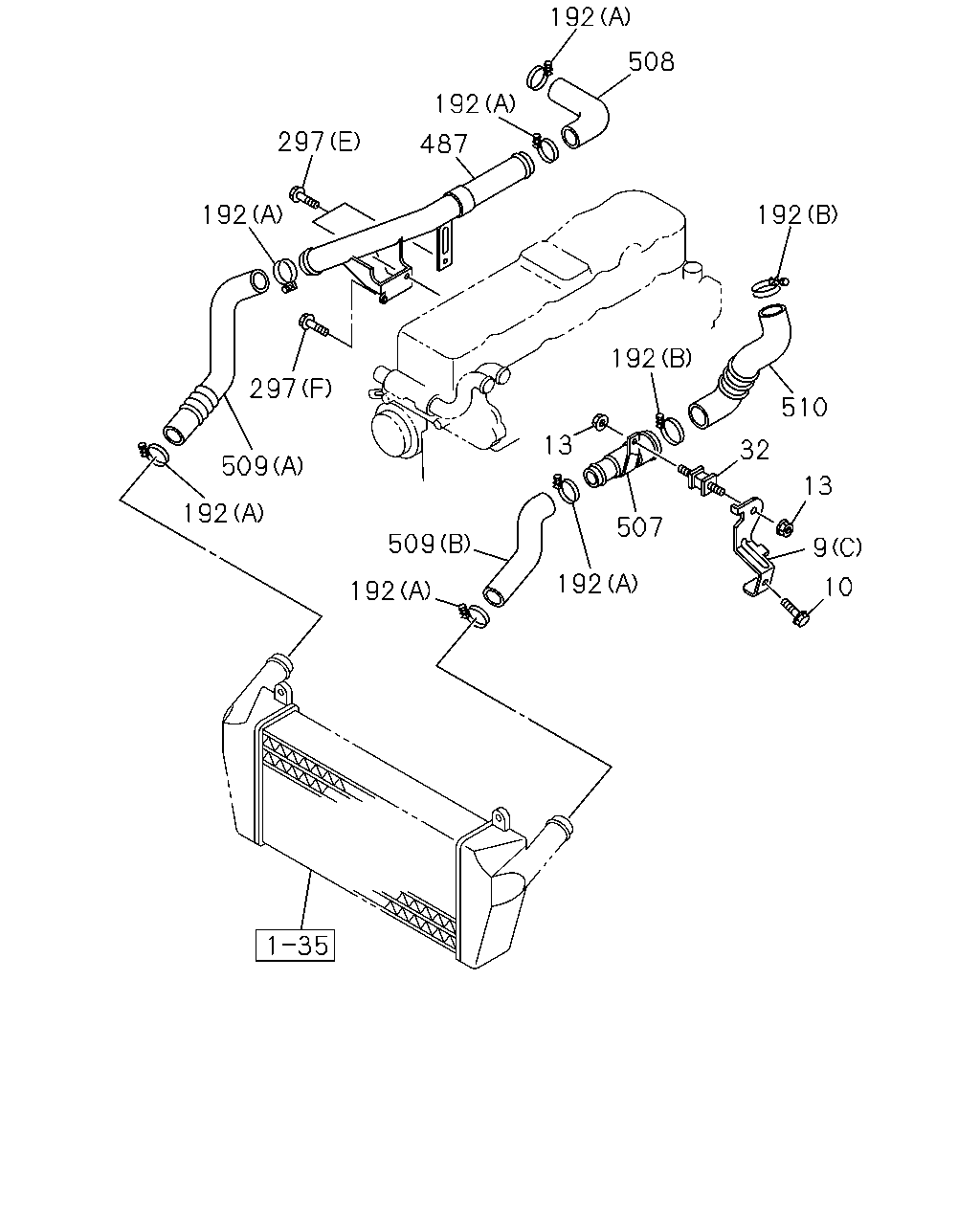

192 508 192 297 487 192 192 192 297 510 13 32 509 13 192 507 509 9 192 10 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	03.417 BRACKET; INT PIPE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98166-945-0	01	1	1107-
9	03.417 BRACKET; INT PIPE 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97089-655-0	01	1	0502-
9	03.417 BRACKET; INT PIPE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97226-059-0	01	1	0607-
9	03.417 BRACKET; INT PIPE (A) IDN	8-94155-425-1	01	1	0211-0501
9	03.417 BRACKET; INT PIPE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) IDN	8-94155-425-1	01	1	0502-1106
9	03.417 BRACKET; INT PIPE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (A) IDN	8-94155-425-1	01	1	1107-
10	03.417 BOLT; BRKT FIX 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-
13	03.417 NUT; BRKT FIX 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	02	1	0607-
32	03.417 RUBBER; AIR DUCT MTG 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 03.405	8-94158-155-1	01	1	0607-
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=44-57	1-09707-207-0	07	1	0607-0810
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A) ID=40-50	8-98133-347-0	07	1	0811-1001
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> 03.417 (A) ID=40-50	8-98133-347-0	07	1	1002-
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 01.159 (B) ID=58-76	1-09707-203-0	02	1	0607-0811
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=55-75	8-98133-349-0	02	1	0812-1001
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	02	1	1002-
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	02	1	1002-
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (A) ID=44-60	8-94175-940-0	07	1	1002-
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 (D) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	0502-0506
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 16.550 (C) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	0502-
297	03.417 BOLT; DUCT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 02.343 (E) M8X12 FLANGE	0-28050-812-0	02	1	0607-
297	03.417 BOLT; DUCT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 06.225 (F) M10X12 FLANGE	0-28051-012-0	01	1	0607-
297	03.417 BOLT; DUCT 11.377 (A) M10X20 W/LK WASHER IDN	0-50041-020-0	02	1	0211-0501
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 11.377 (A) M10X20 W/LK WASHER IDN	0-50041-020-0	02	1	0502-0507
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M10X16 FLANGE	0-28081-016-0	02	1	0508-0512
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.483 (A) M10X16 FLANGE	0-28051-016-0	02	1	0601-1106
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> 02.483 (A) M10X16 FLANGE	0-28051-016-0	02	1	1107-
297	03.417 BOLT; DUCT 00.206 (B) M8X14 W/LK WASHER	0-50040-814-0	01	1	0211-0501
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.206 (B) M8X14 W/LK WASHER	0-50040-814-0	01	1	0502-0507
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0508-0512
297	03.417 BOLT; DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3>	8-97216-223-0	01	1	0607-
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> IDN	8-97228-660-0	01	1	0607-
508	03.417 HOSE; AIR,TURBO TO PIPE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> IDN	8-97217-911-3	01	1	0607-
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97221-914-3	01	1	0607-
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (B) IDN	8-97228-657-1	01	1	0607-
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3>	8-97228-658-2	01	1	0607-

60 399 391 391 381 281 389 391 242 242 17 64 64 391 391 242 389 391 389 391 232 192 5 320 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	0502-
5	03.407 CLIP; AIR DUCT (A) ID=87	8-97087-432-0	01	1	0211-0501
5	03.407 CLIP; AIR DUCT 4JB1 NA ENG(RLF) (A) ID=87	8-97087-432-0	01	1	0502-0606
5	03.407 CLIP; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87	8-97087-432-0	01	1	0607-
5	03.407 CLIP; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87	8-97087-432-0	01	1	0607-
17	03.403 GASKET; AIR DUCT IDN	8-97853-699-2	01	1	0211-0501
17	03.403 GASKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> IDN	8-97853-699-2	01	1	0502-
60	03.417 BRACKET; AIR DUCT,UPR	8-97856-956-0	01	1	0211-0501
60	03.417 BRACKET; AIR DUCT,UPR AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-1	01	1	0502-
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0501
64	03.417 BOLT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0502-
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=44-57	1-09707-207-0	07	1	0607-0810
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A) ID=40-50	8-98133-347-0	07	1	0811-1001
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> 03.417 (A) ID=40-50	8-98133-347-0	07	1	1002-
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 01.159 (B) ID=58-76	1-09707-203-0	02	1	0607-0811
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=55-75	8-98133-349-0	02	1	0812-1001
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	02	1	1002-
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	02	1	1002-
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (A) ID=44-60	8-94175-940-0	07	1	1002-
232	03.417 HOSE; CONN 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-2	01	1	0502-
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3>	8-97224-994-0	01	1	0607-
232	03.417 HOSE; CONN	5-14231-115-1	01	1	0211-0501
232	03.417 HOSE; CONN 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	0502-
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97856-932-0	01	1	0607-
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97856-933-0	01	1	0607-
242	03.417 BRACKET; AIR DUCT (B)	8-97856-935-0	01	1	0211-0501
242	03.417 BRACKET; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97856-935-0	01	1	0502-
242	03.417 BRACKET; AIR DUCT (C)	8-97856-958-0	01	1	0211-0501
242	03.417 BRACKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0502-
242	03.417 BRACKET; AIR DUCT (A)	8-97856-967-1	01	1	0211-0501
242	03.417 BRACKET; AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97856-967-1	01	1	0502-
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3>	8-94313-520-3	01	1	0701-
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER(K46) IDN	8-97089-948-2	01	1	0211-0501
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER(K46) IDN	8-97089-948-2	01	1	0502-
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER(K46)	8-97076-959-2	01	1	0211-0501
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER(K46)	8-97076-959-2	01	1	0502-
290	03.374 CLIP; ACL TO AIR DUCT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	0502-
290	03.374 CLIP; ACL TO AIR DUCT 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=87	8-97087-432-0	01	1	0607-
320	03.417 HOSE; CONN,ACL 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3>	8-97205-771-0	01	1	0607-
320	03.417 HOSE; CONN,ACL	8-94110-075-2	01	1	0211-0501
320	03.417 HOSE; CONN,ACL 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94110-075-3	01	1	0502-
381	03.417 NUT; BRKT,AIR DUCT 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0211-0501
381	03.417 NUT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0502-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (A) IDN	8-97080-149-0	01	1	0211-0501
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A) IDN	8-97080-149-0	01	1	0502-0606
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A) IDN	8-97080-149-0	01	1	0607-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B) IDN	8-97081-886-0	02	1	0211-0501
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B) IDN	8-97081-886-0	02	1	0502-0606
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B) IDN	8-97081-886-0	02	1	0607-
391	03.417 NUT; SUPPORT RUBBER,UPR M8 FLANGE IDN	8-94279-517-0	07	1	0211-0501
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE IDN	8-94279-517-0	07	1	0502-0606
391	03.417 NUT; SUPPORT RUBBER,UPR AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE IDN	8-94279-517-0	07	1	0607-0910
391	03.417 NUT; SUPPORT RUBBER,UPR AIR INTAKE REAR VERTICAL<KJ3> M8 W/LK WASHER IDN	8-97581-234-0	07	1	0911-
399	03.417 CAP; BRKT,AIR DUCT IDN	8-94273-605-0	02	1	0211-0501
399	03.417 CAP; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> IDN	8-94273-605-0	02	1	0502-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
