◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51382 - NHR(INDONESIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶

1-30 — AIR CLEANER (#80052) — 121 parça

1 2 3 2 3 6 4 8 229 94 44 54 145 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.402 CLEANER ASM; AIR 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97090-029-2	01	1	0502-
1	03.402 CLEANER ASM; AIR 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> IDN	8-97062-053-1	01	1	0607-
1	03.402 CLEANER ASM; AIR	8-94140-289-3	01	1	0211-0501
1	03.402 CLEANER ASM; AIR 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94140-289-3	01	1	0502-
2	03.403 NUT; WING,ELEMENT IDN	1-14217-068-0	02	1	0211-0501
2	03.403 NUT; WING,ELEMENT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDN	1-14217-068-0	02	1	0502-0606
2	03.403 NUT; WING,ELEMENT AIR INTAKE REAR VERTICAL<KJ3> IDN	1-14217-068-0	02	1	0607-
3	03.403 WASHER; SEAL,WING NUT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	0502-
3	03.403 WASHER; SEAL,WING NUT IDN	1-14219-225-0	02	1	0211-0501
3	03.403 WASHER; SEAL,WING NUT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDN	1-14219-225-0	02	1	0502-0606
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE REAR VERTICAL<KJ3> IDN	1-14219-225-0	02	1	0607-
4	03.403 GASKET; COVER TO BODY 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	0502-
4	03.403 GASKET; COVER TO BODY 03.410	8-94156-051-0	01	1	0211-0501
4	03.403 GASKET; COVER TO BODY 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.410	8-94156-051-0	01	1	0502-0606
4	03.403 GASKET; COVER TO BODY AIR INTAKE REAR VERTICAL<KJ3> 03.410	8-94156-051-0	01	1	0607-
6	03.410 FILTER; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	0502-
6	03.410 FILTER; ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	0502-
6	03.410 FILTER; ACL IDN	8-94156-052-0	01	1	0211-0501
6	03.410 FILTER; ACL 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDN	8-94156-052-0	01	1	0502-0606
6	03.410 FILTER; ACL AIR INTAKE REAR VERTICAL<KJ3> IDN	8-94156-052-0	01	1	0607-
6	03.410 FILTER; ACL BEST VALUE PARTS IDN	5-87610-029-3	01	1	0211-0501
6	03.410 FILTER; ACL 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> BEST VALUE PARTS IDN	5-87610-029-3	01	1	0502-0606
6	03.410 FILTER; ACL AIR INTAKE REAR VERTICAL<KJ3> BEST VALUE PARTS IDN	5-87610-029-3	01	1	0607-
6	03.410 FILTER; ACL AIR INTAKE SYSTEM FRONT<6PC> BEST VALUE PARTS	5-87610-148-0	01	1	0502-
6	03.410 FILTER; ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> BEST VALUE PARTS	5-87610-148-0	01	1	0502-
8	03.410 COVER ASM; ACL	8-94156-050-0	01	1	0211-0501
8	03.410 COVER ASM; ACL 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-050-0	01	1	0502-0606
8	03.410 COVER ASM; ACL AIR INTAKE REAR VERTICAL<KJ3>	8-94156-050-0	01	1	0607-
44	03.403 BOLT; ACL 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	0211-0501
44	03.403 BOLT; ACL AIR INTAKE REAR VERTICAL<KJ3> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	0502-0909
44	03.403 BOLT; ACL AIR INTAKE REAR VERTICAL<KJ3> 09.171 M8X18 W/LK WASHER	0-50540-818-0	04	1	0910-
54	03.405 BRACKET; ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97038-519-1	01	1	0502-
54	03.405 BRACKET; ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97084-884-0	01	1	0502-
54	03.405 BRACKET; ACL (A)	8-94140-144-3	01	1	0211-0501
54	03.405 BRACKET; ACL 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94140-144-3	01	1	0502-0606
54	03.405 BRACKET; ACL AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94140-144-3	01	1	0607-
94	03.415 VALVE; VACUATOR 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-94439-205-0	01	1	0502-
94	03.415 VALVE; VACUATOR 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	0502-
94	03.415 VALVE; VACUATOR (A)	8-94160-187-0	01	1	0211-0501
94	03.415 VALVE; VACUATOR 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94160-187-0	01	1	0502-0606
94	03.415 VALVE; VACUATOR AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94160-187-0	01	1	0607-
145	03.405 BOLT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE	0-28681-025-0	02	1	0502-0512
145	03.405 BOLT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 00.029 (A) M10X25 FLANGE IDN	0-28651-025-0	02	1	0601-
145	03.405 BOLT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE IDN	0-28681-035-0	02	1	0502-0512
145	03.405 BOLT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.277 (B) M10X35 FLANGE IDN	0-28651-035-0	02	1	0601-
145	03.405 BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28681-025-0	04	1	0211-0501
145	03.405 BOLT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) M10X25 FLANGE	0-28681-025-0	04	1	0502-0512
145	03.405 BOLT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.029 (A) M10X25 FLANGE IDN	0-28651-025-0	04	1	0601-0606
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> 00.029 (A) M10X25 FLANGE IDN	0-28651-025-0	04	1	0607-
146	03.405 NUT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602
146	03.405 NUT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602
146	03.405 NUT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
146	03.405 NUT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0501
146	03.405 NUT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	0502-0602
146	03.405 NUT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-
229	03.406 BODY ASM; ACL 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3>	5-87411-854-0	01	1	0607-

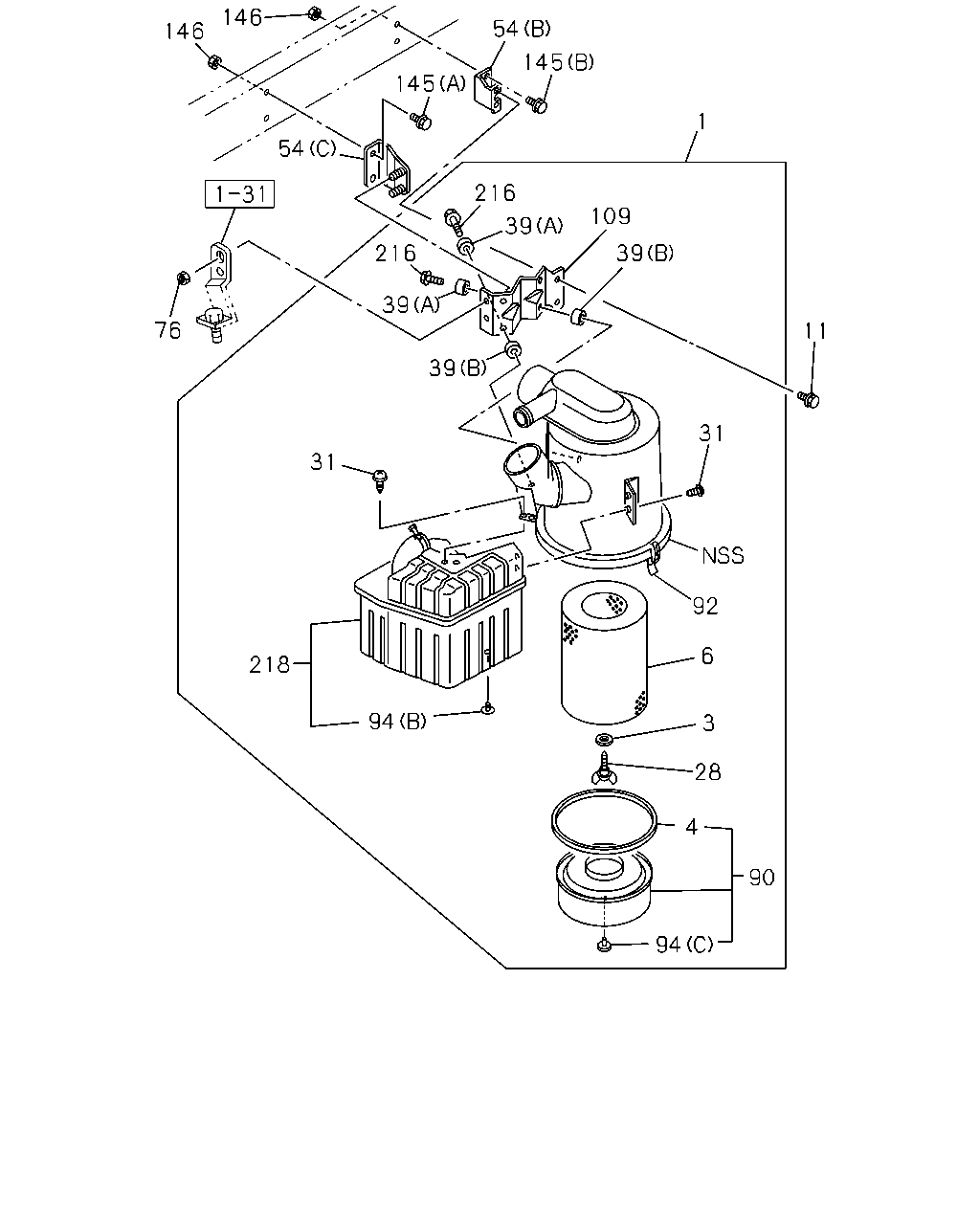

146 54 146 145 145 1 54 216 109 39 39 216 39 76 11 39 31 31 92 6 218 94 3 28 4 90 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.402 CLEANER ASM; AIR 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97090-029-2	01	1	0502-
1	03.402 CLEANER ASM; AIR 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> IDN	8-97062-053-1	01	1	0607-
1	03.402 CLEANER ASM; AIR	8-94140-289-3	01	1	0211-0501
1	03.402 CLEANER ASM; AIR 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94140-289-3	01	1	0502-
3	03.403 WASHER; SEAL,WING NUT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	0502-
3	03.403 WASHER; SEAL,WING NUT IDN	1-14219-225-0	02	1	0211-0501
3	03.403 WASHER; SEAL,WING NUT 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDN	1-14219-225-0	02	1	0502-0606
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE REAR VERTICAL<KJ3> IDN	1-14219-225-0	02	1	0607-
4	03.403 GASKET; COVER TO BODY 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	0502-
4	03.403 GASKET; COVER TO BODY 03.410	8-94156-051-0	01	1	0211-0501
4	03.403 GASKET; COVER TO BODY 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.410	8-94156-051-0	01	1	0502-0606
4	03.403 GASKET; COVER TO BODY AIR INTAKE REAR VERTICAL<KJ3> 03.410	8-94156-051-0	01	1	0607-
6	03.410 FILTER; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	0502-
6	03.410 FILTER; ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	0502-
6	03.410 FILTER; ACL IDN	8-94156-052-0	01	1	0211-0501
6	03.410 FILTER; ACL 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDN	8-94156-052-0	01	1	0502-0606
6	03.410 FILTER; ACL AIR INTAKE REAR VERTICAL<KJ3> IDN	8-94156-052-0	01	1	0607-
6	03.410 FILTER; ACL BEST VALUE PARTS IDN	5-87610-029-3	01	1	0211-0501
6	03.410 FILTER; ACL 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> BEST VALUE PARTS IDN	5-87610-029-3	01	1	0502-0606
6	03.410 FILTER; ACL AIR INTAKE REAR VERTICAL<KJ3> BEST VALUE PARTS IDN	5-87610-029-3	01	1	0607-
6	03.410 FILTER; ACL AIR INTAKE SYSTEM FRONT<6PC> BEST VALUE PARTS	5-87610-148-0	01	1	0502-
6	03.410 FILTER; ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> BEST VALUE PARTS	5-87610-148-0	01	1	0502-
11	03.403 BOLT; ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0502-0512
11	03.403 BOLT; ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 00.029 M10X25 FLANGE IDN	0-28651-025-0	02	1	0601-
28	03.403 BOLT; WING,ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	9-14217-090-0	01	1	0502-
31	03.406 SCREW; ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.402	8-97100-001-0	04	1	0502-
39	03.403 RUBBER; MTG,BOLT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97100-002-0	04	1	0502-
39	03.403 RUBBER; MTG,BOLT 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97100-007-0	02	1	0502-
54	03.405 BRACKET; ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97038-519-1	01	1	0502-
54	03.405 BRACKET; ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97084-884-0	01	1	0502-
54	03.405 BRACKET; ACL (A)	8-94140-144-3	01	1	0211-0501
54	03.405 BRACKET; ACL 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94140-144-3	01	1	0502-0606
54	03.405 BRACKET; ACL AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94140-144-3	01	1	0607-
76	03.405 NUT; BRKT TO ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602
76	03.405 NUT; BRKT TO ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
90	03.406 CUP; ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97215-621-0	01	1	0502-
92	03.405 CLIP; WIRE,ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-94118-230-0	03	1	0502-
94	03.415 VALVE; VACUATOR 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-94439-205-0	01	1	0502-
94	03.415 VALVE; VACUATOR 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	0502-
94	03.415 VALVE; VACUATOR (A)	8-94160-187-0	01	1	0211-0501
94	03.415 VALVE; VACUATOR 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94160-187-0	01	1	0502-0606
94	03.415 VALVE; VACUATOR AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94160-187-0	01	1	0607-
109	03.405 STAY; ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-175-1	01	1	0502-
145	03.405 BOLT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE	0-28681-025-0	02	1	0502-0512
145	03.405 BOLT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 00.029 (A) M10X25 FLANGE IDN	0-28651-025-0	02	1	0601-
145	03.405 BOLT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE IDN	0-28681-035-0	02	1	0502-0512
145	03.405 BOLT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.277 (B) M10X35 FLANGE IDN	0-28651-035-0	02	1	0601-
145	03.405 BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28681-025-0	04	1	0211-0501
145	03.405 BOLT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) M10X25 FLANGE	0-28681-025-0	04	1	0502-0512
145	03.405 BOLT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.029 (A) M10X25 FLANGE IDN	0-28651-025-0	04	1	0601-0606
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> 00.029 (A) M10X25 FLANGE IDN	0-28651-025-0	04	1	0607-
146	03.405 NUT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602
146	03.405 NUT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602
146	03.405 NUT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
146	03.405 NUT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0501
146	03.405 NUT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	0502-0602
146	03.405 NUT; BRKT TO FRAME 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-
216	03.402 BOLT; ACL TO SILENCER 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97126-074-0	04	1	0502-
218	03.417 RESONATOR; ACL 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97093-071-1	01	1	0502-

164

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	164	03.402 CLEANER ASM; AIR,SUB HEAVY DUTY AIR CLEANER(K46)	8-94144-273-2	01	1	0211-0501
	164	03.402 CLEANER ASM; AIR,SUB 4JB1 NA ENG(RLF) HEAVY DUTY AIR CLEANER(K46)	8-94144-273-2	01	1	0502-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
