◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51382 - NHR(INDONESIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#80051) — 112 parça

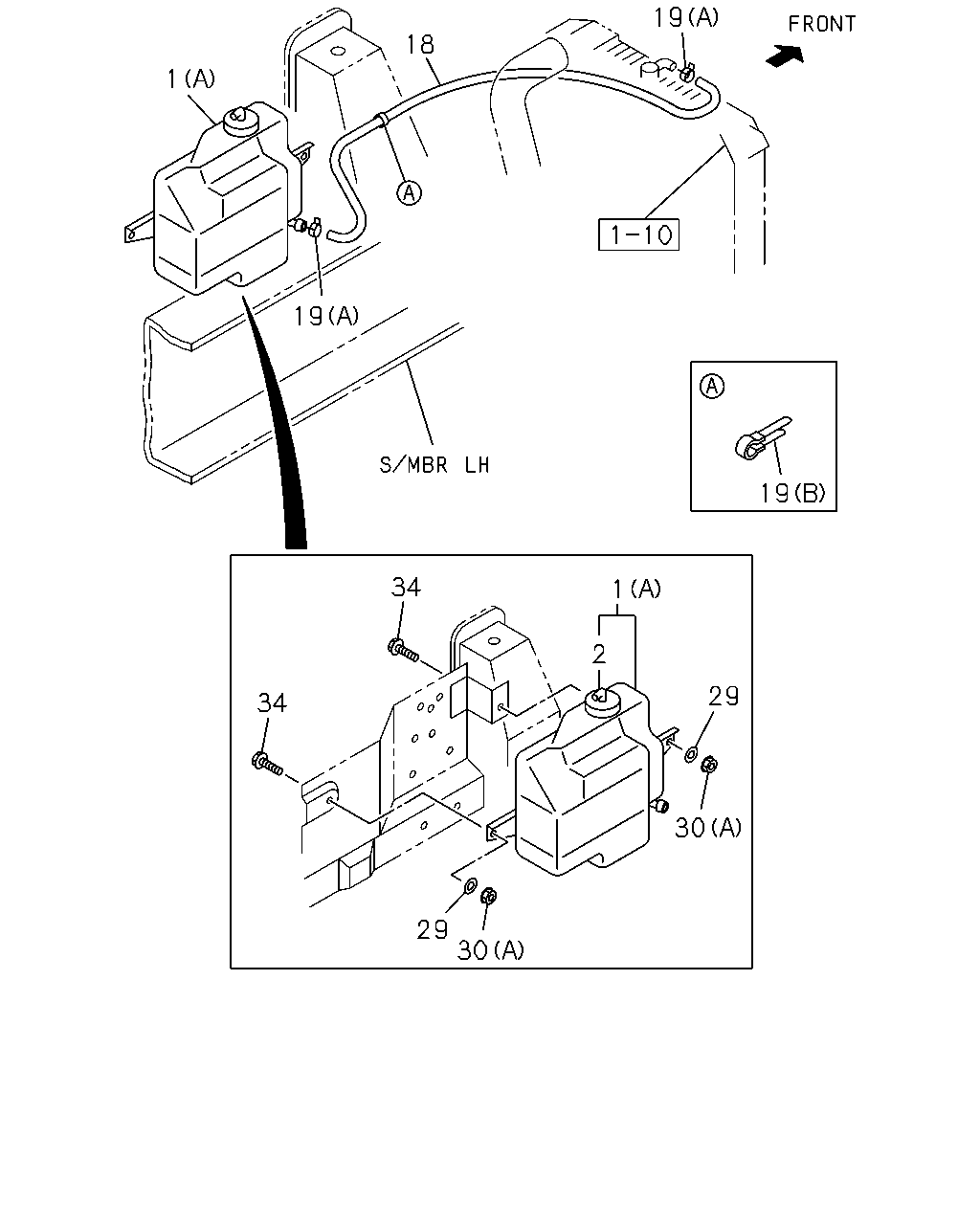

çizim 89204
19 18 1 19 19 34 1 2 29 34 30 29 30
BalonParca AdiParca NoAdetTipApplied Date
1 01.219 TANK; SURGE,RAD
4JB1-TC ENG(RDT) (C) IDN 		8-97205-136-1 01 1 0607-
1 01.219 TANK; SURGE,RAD
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97210-844-0 01 1 0502-1010
1 01.219 TANK; SURGE,RAD
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-98178-177-0 01 1 1011-
1 01.219 TANK; SURGE,RAD
(A) 		8-97138-509-0 01 1 0211-0501
1 01.219 TANK; SURGE,RAD
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97138-509-0 01 1 0502-
2 01.203 CAP; SURGE TANK
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 0502-1010
2 01.203 CAP; SURGE TANK
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-98178-074-0 01 1 1011-
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0211-0501
2 01.203 CAP; SURGE TANK
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 0502-
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-2 01 1 0502-
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-TC ENG(RDT) L=1740 IDN 		8-97225-444-1 01 1 0607-
18 01.240 HOSE; RAD TO SURGE TANK
L=860 		8-97163-002-1 01 1 0211-0501
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 0502-
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 NA ENG(RLF) (B) ID=14 L=47 IDN 		5-09700-319-0 01 1 0502-
19 01.240 CLIP; HOSE,SURGE TANK
4JB1-TC ENG(RDT) (B) ID=14 L=47 IDN 		5-09700-319-0 02 1 0607-
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 0811-
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 IDN 		5-09700-319-0 01 1 0211-0501
19 01.240 CLIP; HOSE,SURGE TANK
AIR INTAKE SYSTEM FRONT<6PC> 02.559 (C) ID=10 & 11 		8-94438-996-0 02 1 0502-0810
19 01.240 CLIP; HOSE,SURGE TANK
AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11 		8-94438-996-0 02 1 0811-
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (A) ID=12 IDN 		8-94238-610-0 02 1 0211-0911
19 01.240 CLIP; HOSE,SURGE TANK
(A) ID=12 		8-98150-358-0 02 1 0912-
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501
29 01.203 WASHER; PL,RESERVE TANK
4JB1 NA ENG(RLF) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0605
29 01.203 WASHER; PL,RESERVE TANK
4JB1 NA ENG(RLF) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606-
30 01.203 NUT
4JB1-TC ENG(RDT) 01.062 (C) M8 FLANGE 		0-91180-108-0 04 1 0607-
30 01.203 NUT
4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE IDN 		0-91180-208-0 03 1 0607-
30 01.203 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0211-0501
30 01.203 NUT
4JB1 NA ENG(RLF) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0502-0602
30 01.203 NUT
4JB1 NA ENG(RLF) 01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0603-
34 01.203 BOLT; RESERVE TANK
AIR INTAKE SYSTEM FRONT<6PC> 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0502-0512
34 01.203 BOLT; RESERVE TANK
AIR INTAKE SYSTEM FRONT<6PC> 03.162 M6X20 FLANGE IDN 		0-28650-620-0 03 1 0601-
34 01.203 BOLT; RESERVE TANK
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 04 1 0607-
34 01.203 BOLT; RESERVE TANK
00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0211-0501
34 01.203 BOLT; RESERVE TANK
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0502-0512
34 01.203 BOLT; RESERVE TANK
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 09.242 M6X16 FLANGE IDN 		0-28050-616-0 03 1 0601-

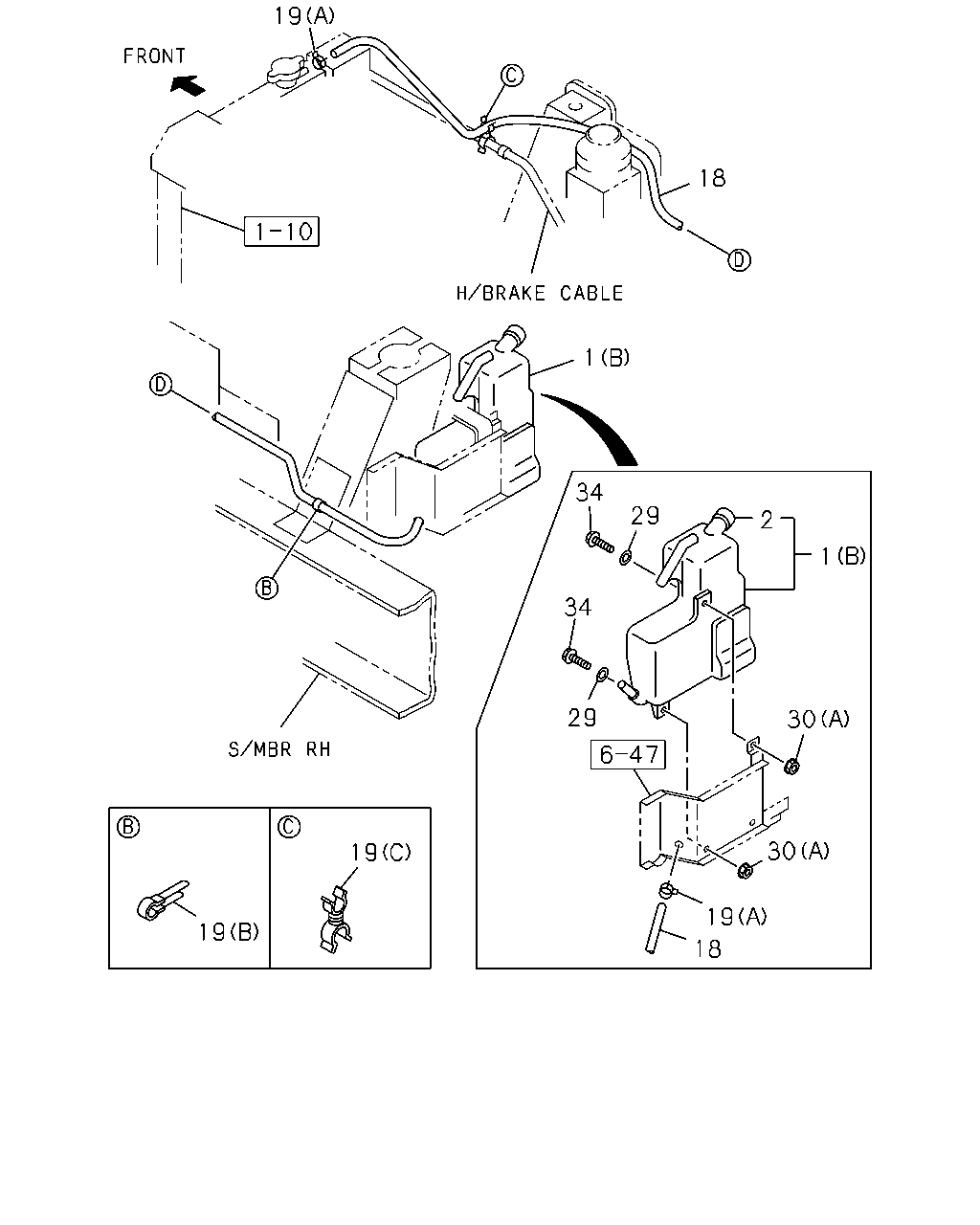

çizim 90549
19 18 1 34 29 2 1 34 29 30 30 19 19 19 18
BalonParca AdiParca NoAdetTipApplied Date
1 01.219 TANK; SURGE,RAD
4JB1-TC ENG(RDT) (C) IDN 		8-97205-136-1 01 1 0607-
1 01.219 TANK; SURGE,RAD
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97210-844-0 01 1 0502-1010
1 01.219 TANK; SURGE,RAD
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-98178-177-0 01 1 1011-
1 01.219 TANK; SURGE,RAD
(A) 		8-97138-509-0 01 1 0211-0501
1 01.219 TANK; SURGE,RAD
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97138-509-0 01 1 0502-
2 01.203 CAP; SURGE TANK
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 0502-1010
2 01.203 CAP; SURGE TANK
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-98178-074-0 01 1 1011-
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0211-0501
2 01.203 CAP; SURGE TANK
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 0502-
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-2 01 1 0502-
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-TC ENG(RDT) L=1740 IDN 		8-97225-444-1 01 1 0607-
18 01.240 HOSE; RAD TO SURGE TANK
L=860 		8-97163-002-1 01 1 0211-0501
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 0502-
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 NA ENG(RLF) (B) ID=14 L=47 IDN 		5-09700-319-0 01 1 0502-
19 01.240 CLIP; HOSE,SURGE TANK
4JB1-TC ENG(RDT) (B) ID=14 L=47 IDN 		5-09700-319-0 02 1 0607-
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 0811-
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 IDN 		5-09700-319-0 01 1 0211-0501
19 01.240 CLIP; HOSE,SURGE TANK
AIR INTAKE SYSTEM FRONT<6PC> 02.559 (C) ID=10 & 11 		8-94438-996-0 02 1 0502-0810
19 01.240 CLIP; HOSE,SURGE TANK
AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11 		8-94438-996-0 02 1 0811-
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (A) ID=12 IDN 		8-94238-610-0 02 1 0211-0911
19 01.240 CLIP; HOSE,SURGE TANK
(A) ID=12 		8-98150-358-0 02 1 0912-
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501
29 01.203 WASHER; PL,RESERVE TANK
4JB1 NA ENG(RLF) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0605
29 01.203 WASHER; PL,RESERVE TANK
4JB1 NA ENG(RLF) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606-
30 01.203 NUT
4JB1-TC ENG(RDT) 01.062 (C) M8 FLANGE 		0-91180-108-0 04 1 0607-
30 01.203 NUT
4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE IDN 		0-91180-208-0 03 1 0607-
30 01.203 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0211-0501
30 01.203 NUT
4JB1 NA ENG(RLF) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0502-0602
30 01.203 NUT
4JB1 NA ENG(RLF) 01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0603-
34 01.203 BOLT; RESERVE TANK
AIR INTAKE SYSTEM FRONT<6PC> 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0502-0512
34 01.203 BOLT; RESERVE TANK
AIR INTAKE SYSTEM FRONT<6PC> 03.162 M6X20 FLANGE IDN 		0-28650-620-0 03 1 0601-
34 01.203 BOLT; RESERVE TANK
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 04 1 0607-
34 01.203 BOLT; RESERVE TANK
00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0211-0501
34 01.203 BOLT; RESERVE TANK
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0502-0512
34 01.203 BOLT; RESERVE TANK
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 09.242 M6X16 FLANGE IDN 		0-28050-616-0 03 1 0601-

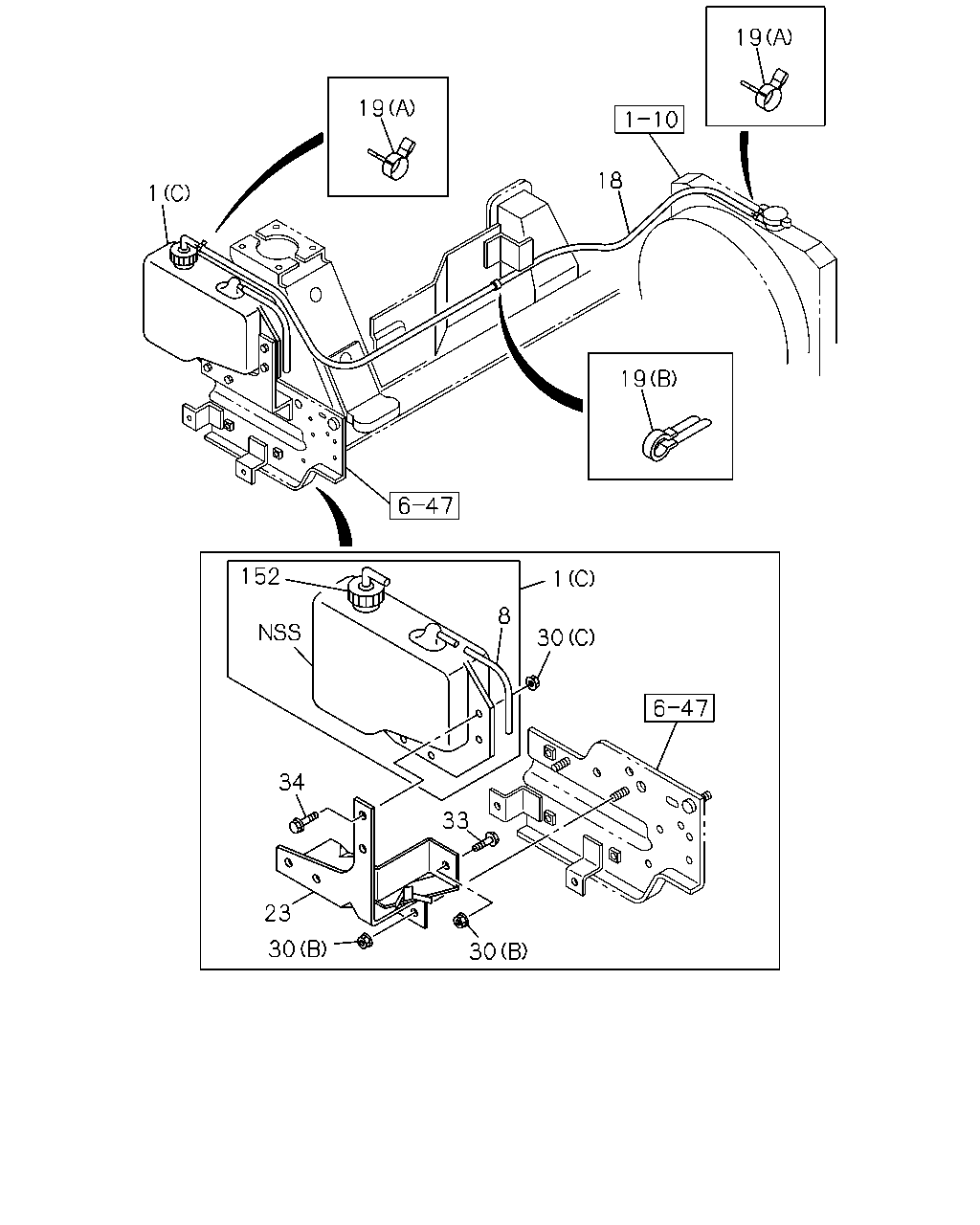

çizim 90558
19 19 18 1 19 152 1 8 30 34 33 23 30 30
BalonParca AdiParca NoAdetTipApplied Date
1 01.219 TANK; SURGE,RAD
4JB1-TC ENG(RDT) (C) IDN 		8-97205-136-1 01 1 0607-
1 01.219 TANK; SURGE,RAD
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97210-844-0 01 1 0502-1010
1 01.219 TANK; SURGE,RAD
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-98178-177-0 01 1 1011-
1 01.219 TANK; SURGE,RAD
(A) 		8-97138-509-0 01 1 0211-0501
1 01.219 TANK; SURGE,RAD
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97138-509-0 01 1 0502-
8 01.166 HOSE; VINYL
4JB1-TC ENG(RDT) 01.240 L=500 IDN 		1-09366-179-0 01 1 0607-
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-2 01 1 0502-
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-TC ENG(RDT) L=1740 IDN 		8-97225-444-1 01 1 0607-
18 01.240 HOSE; RAD TO SURGE TANK
L=860 		8-97163-002-1 01 1 0211-0501
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 0502-
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 NA ENG(RLF) (B) ID=14 L=47 IDN 		5-09700-319-0 01 1 0502-
19 01.240 CLIP; HOSE,SURGE TANK
4JB1-TC ENG(RDT) (B) ID=14 L=47 IDN 		5-09700-319-0 02 1 0607-
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 0811-
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 IDN 		5-09700-319-0 01 1 0211-0501
19 01.240 CLIP; HOSE,SURGE TANK
AIR INTAKE SYSTEM FRONT<6PC> 02.559 (C) ID=10 & 11 		8-94438-996-0 02 1 0502-0810
19 01.240 CLIP; HOSE,SURGE TANK
AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11 		8-94438-996-0 02 1 0811-
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (A) ID=12 IDN 		8-94238-610-0 02 1 0211-0911
19 01.240 CLIP; HOSE,SURGE TANK
(A) ID=12 		8-98150-358-0 02 1 0912-
23 01.219 BRACKET; RESERVE TANK
4JB1-TC ENG(RDT) IDN 		8-97225-271-1 01 1 0607-
30 01.203 NUT
4JB1-TC ENG(RDT) 01.062 (C) M8 FLANGE 		0-91180-108-0 04 1 0607-
30 01.203 NUT
4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE IDN 		0-91180-208-0 03 1 0607-
30 01.203 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0211-0501
30 01.203 NUT
4JB1 NA ENG(RLF) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0502-0602
30 01.203 NUT
4JB1 NA ENG(RLF) 01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0603-
33 01.277 BOLT; BRKT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0607-
34 01.203 BOLT; RESERVE TANK
AIR INTAKE SYSTEM FRONT<6PC> 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0502-0512
34 01.203 BOLT; RESERVE TANK
AIR INTAKE SYSTEM FRONT<6PC> 03.162 M6X20 FLANGE IDN 		0-28650-620-0 03 1 0601-
34 01.203 BOLT; RESERVE TANK
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 04 1 0607-
34 01.203 BOLT; RESERVE TANK
00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0211-0501
34 01.203 BOLT; RESERVE TANK
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0502-0512
34 01.203 BOLT; RESERVE TANK
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 09.242 M6X16 FLANGE IDN 		0-28050-616-0 03 1 0601-
152 01.203 CAP ASM; SURGE TANK
4JB1-TC ENG(RDT) IDN 		8-97217-799-0 01 1 0607-
çizim 182513
56 56 128 56 55 56
BalonParca AdiParca NoAdetTipApplied Date
55 01.173 HOSE; WATER,RAD OUTLET 8-97089-916-1 01 1 0211-0501
55 01.173 HOSE; WATER,RAD OUTLET
4JB1 NA ENG(RLF) 		8-97089-916-1 01 1 0502-0606
55 01.173 HOSE; WATER,RAD OUTLET 8-97089-916-1 01 1 0607-
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=48 		5-09704-049-0 03 1 0211-0610
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98036-282-0 03 1 0611-0901
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98133-956-0 03 1 0902-
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=42 		5-09704-047-1 01 1 0211-0901
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=42 		8-98133-958-0 01 1 0902-
128 01.159 HOSE; WATER,RAD INL
4JB1-TC ENG(RDT) IDN 		8-97177-853-0 01 1 0607-
128 01.159 HOSE; WATER,RAD INL
4JB1 NA ENG(RLF) 		8-97147-473-0 01 1 0211-
