Isuzu WW
▶
TRUCKS
▶
FV
▶
10829 - FV/GV(AUSTRAL)A.SUS
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#8005) — 22 parça
Tümü
A - FVD5MF
B - GVD5MC
C - FVY5MF
D - FVL5MF
◀

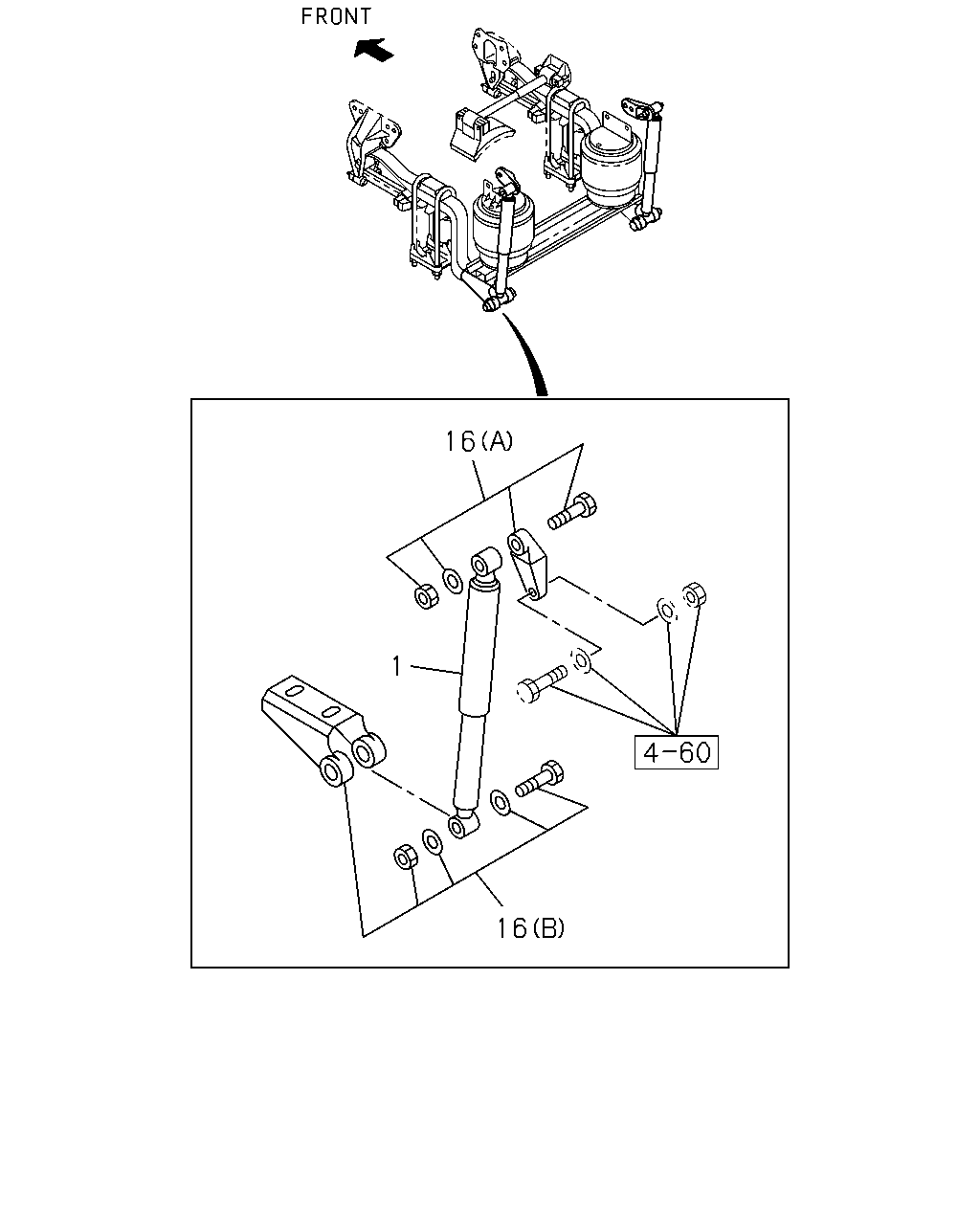

[461A] FVD,GVD (11 parça)

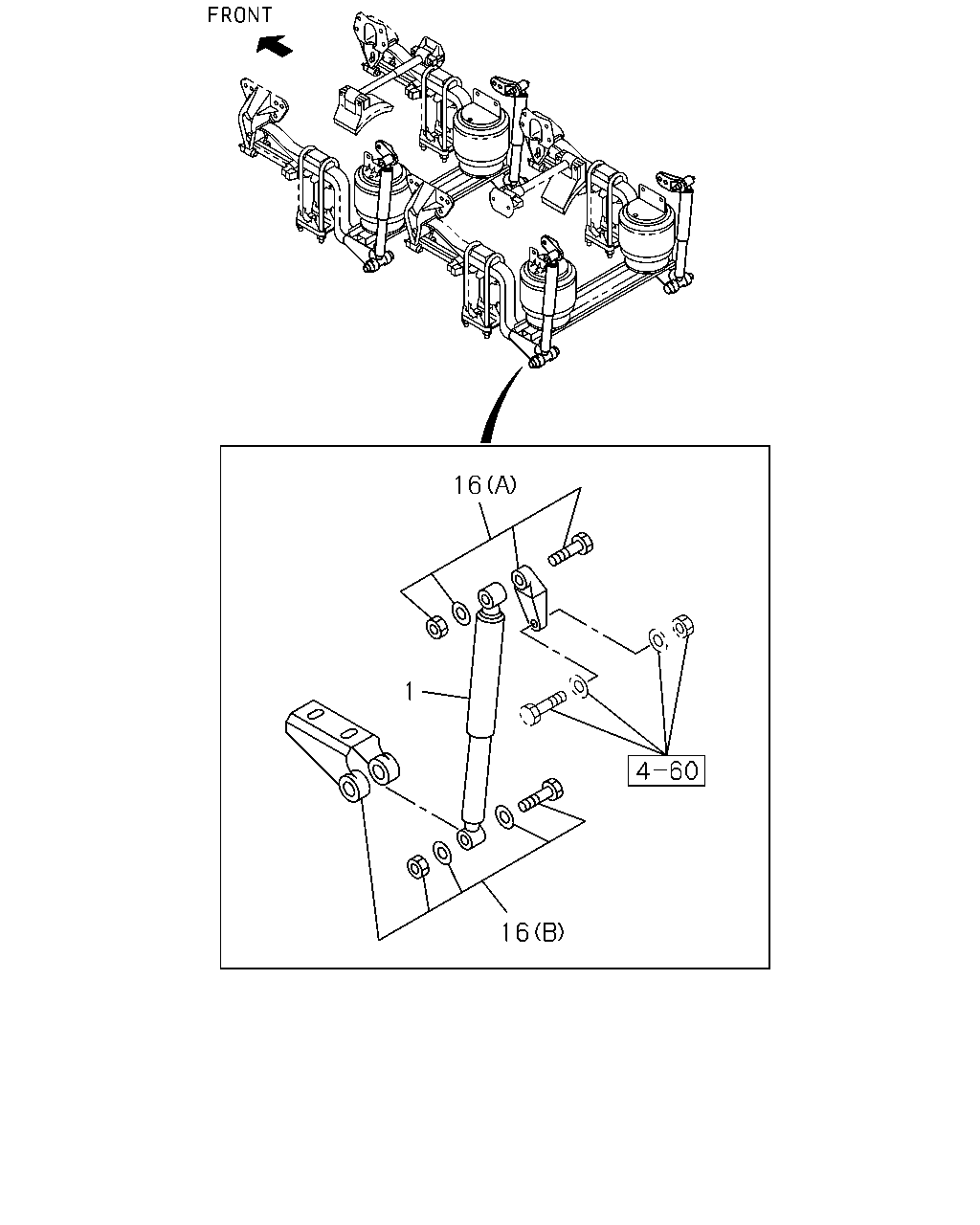

[461A] FVY,FVL (11 parça)
▶
16
1
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
ABSORBER ASM; SHOCK,RR
1-51630-746-0
02
1
0005-0302
●
●
1
ABSORBER ASM; SHOCK,RR
1-51630-746-0
04
1
0303-
●
●
1
ABSORBER ASM; SHOCK,RR
1-51630-746-0
04
1
0005-0011
●
1
ABSORBER ASM; SHOCK,RR
1-51630-746-0
04
1
0012-0302
●
●
1
ABSORBER ASM; SHOCK,RR
1-51630-746-0
08
1
0303-
●
●
16
BRACKET; S/ABS,RR
(A)
1-51681-823-0
02
1
0005-
●
●
16
BRACKET; S/ABS,RR
(B)
1-51681-824-0
02
1
0005-
●
●
16
BRACKET; S/ABS,RR
(A)
1-51681-823-0
04
1
0005-0011
●
16
BRACKET; S/ABS,RR
(A)
1-51681-823-0
04
1
0012-
●
●
16
BRACKET; S/ABS,RR
(B)
1-51681-824-0
04
1
0005-0011
●
16
BRACKET; S/ABS,RR
(B)
1-51681-824-0
04
1
0012-
●
●
16
1
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
ABSORBER ASM; SHOCK,RR
1-51630-746-0
02
1
0005-0302
●
●
1
ABSORBER ASM; SHOCK,RR
1-51630-746-0
04
1
0303-
●
●
1
ABSORBER ASM; SHOCK,RR
1-51630-746-0
04
1
0005-0011
●
1
ABSORBER ASM; SHOCK,RR
1-51630-746-0
04
1
0012-0302
●
●
1
ABSORBER ASM; SHOCK,RR
1-51630-746-0
08
1
0303-
●
●
16
BRACKET; S/ABS,RR
(A)
1-51681-823-0
02
1
0005-
●
●
16
BRACKET; S/ABS,RR
(B)
1-51681-824-0
02
1
0005-
●
●
16
BRACKET; S/ABS,RR
(A)
1-51681-823-0
04
1
0005-0011
●
16
BRACKET; S/ABS,RR
(A)
1-51681-823-0
04
1
0012-
●
●
16
BRACKET; S/ABS,RR
(B)
1-51681-824-0
04
1
0005-0011
●
16
BRACKET; S/ABS,RR
(B)
1-51681-824-0
04
1
0012-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
