1 |

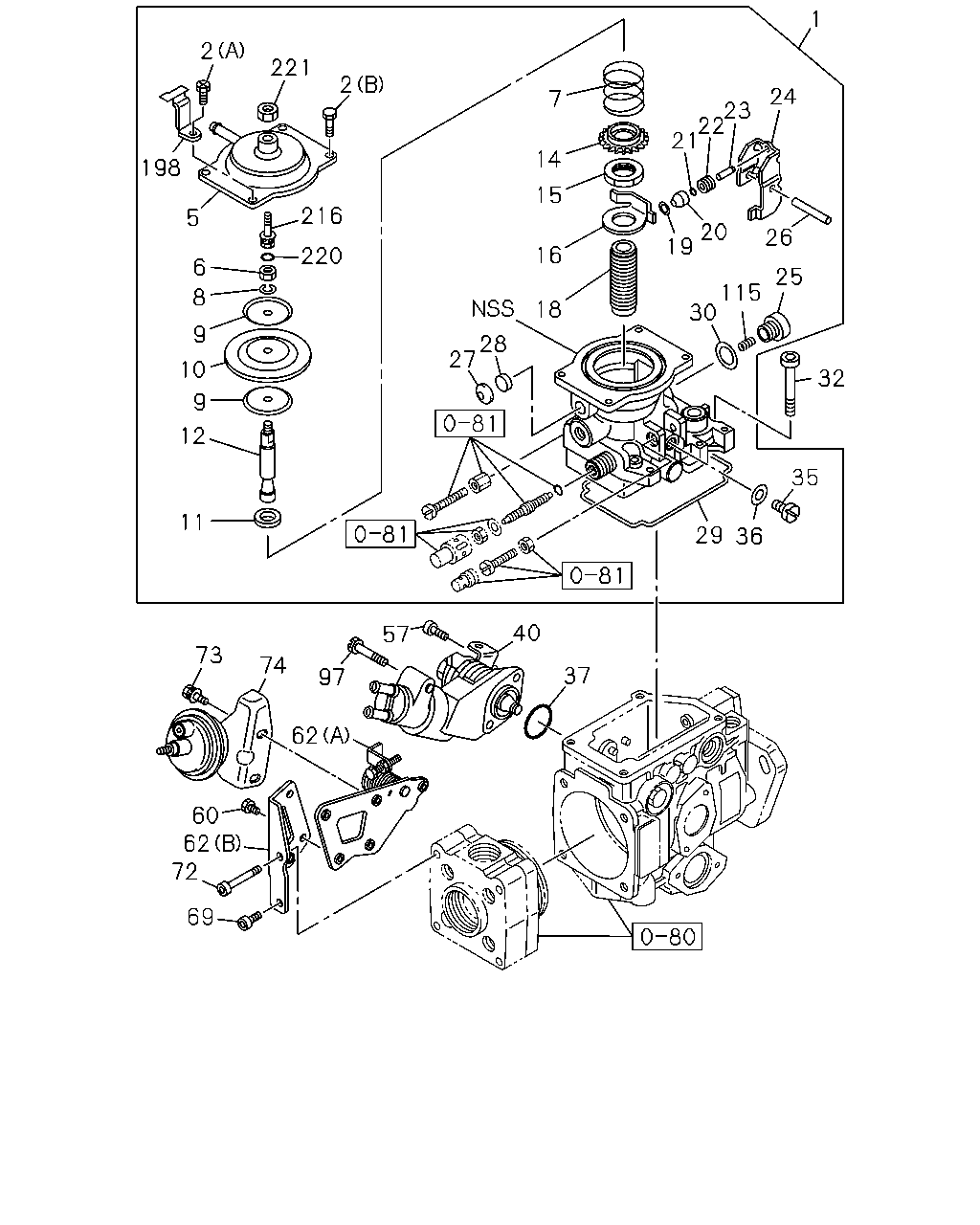

03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: A = 8-97204-201-9, 97204201, C = 8-98253-290-0, 98253290
|
8-97231-935-0 |
01 |
1 |
- |
| |
1 |
03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: B = 8-97263-086-3, 97263086
|
8-97302-242-0 |
01 |
1 |
- |
| |
2 |
03.306 BOLT; COVER FIX,BOOST COMPENSATO
03.308, (B)
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94313-264-0 |
02 |
1 |
- |
| |
2 |
03.306 BOLT; COVER FIX,BOOST COMPENSATO
03.308, (A)
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94313-267-0 |
02 |
1 |
- |
| |
5 |
03.306 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97214-503-0 |
01 |
1 |
- |
| |
6 |
03.320 NUT; DIAPH,BOOST COMPENSATOR
08.845
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
9-88410-525-0 |
01 |
1 |
- |
| |
7 |
03.320 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97185-286-0 |
01 |
1 |
- |
| |
8 |
03.318 WASHER; LK,DIAPH,BOOST COMPENSAT
03.314
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-725-0 |
01 |
1 |
- |
| |
9 |
03.318 PLATE; DIAPH,BOOST COMPENSATOR
03.314
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-723-0 |
02 |
1 |
- |
| |
10 |
03.320 DIAPHRAGM; BOOST COMPENSATOR,GOV
03.314
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-724-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.70
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-729-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.90
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-730-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.10
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-731-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.30
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-732-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.50
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-733-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.70
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-734-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.90
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-735-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.10
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-736-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.30
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-737-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.70
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-738-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.90
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-739-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.10
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-740-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.30
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-741-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.50
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-742-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.80
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-743-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.00
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-744-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.20
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-745-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.40
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-746-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.60
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-747-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.80
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-748-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.00
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-749-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.20
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-750-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.40
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-751-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.60
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-752-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.80
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-753-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.00
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-754-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.20
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-755-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.40
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-756-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.50
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-757-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.60
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-758-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=1.80
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94169-510-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=1.90
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94169-511-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.00
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94169-512-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.10
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94169-513-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.20
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94169-514-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.30
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94169-515-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.40
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94169-516-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.50
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94169-517-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.60
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94169-518-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.70
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97046-102-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.80
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97046-103-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.90
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97046-104-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.00
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97046-105-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.10
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97046-106-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.20
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97046-107-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.30
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97046-108-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.40
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97046-109-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.50
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97046-110-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.60
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97046-111-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.70
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97046-112-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.80
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97046-113-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.90
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97046-114-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.00
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97046-115-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.10
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97169-970-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.20
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97169-971-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.30
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97169-972-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.40
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97169-973-0 |
01 |
1 |
- |
| |
11 |
03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.50
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97169-974-0 |
01 |
1 |
- |
| |
12 |
03.318 PIN; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97120-314-0 |
01 |
1 |
- |
| |
14 |
03.318 NUT; DIAPH ADJ,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-726-0 |
01 |
1 |
- |
| |
15 |
03.320 NUT; BUSHING LK,BOOST COMPENSATO
03.318
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-720-0 |
01 |
1 |
- |
| |
16 |
03.330 PLATE; BUSHING,ADJ
03.314
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-719-0 |
01 |
1 |
- |
| |
18 |
03.320 BUSHING; ADJ PIN,BOOST COMPENSAT
03.314
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94151-391-0 |
01 |
1 |
- |
| |
19 |
03.320 GASKET; BUSHING,BOOST COMPENSATO
03.318
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94257-686-0 |
01 |
1 |
- |
| |
20 |
03.320 BUSHING; CONT PIN,BOOST COMPENSA
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97218-966-0 |
01 |
1 |
- |
| |
21 |
03.320 GASKET; CONT PIN,BOOST COMPENSAT
03.318
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94257-684-0 |
01 |
1 |
- |
| |
22 |
03.320 NUT; BUSHING,CONT PIN,BOOST COMP
03.318
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94257-683-0 |
01 |
1 |
- |
| |
23 |
03.320 PIN; CONT,BOOST COMPENSATOR
03.318
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94151-392-0 |
01 |
1 |
- |
| |
24 |
03.320 LEVER; BOOST COMPENSATOR,GOV
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97218-967-0 |
01 |
1 |
- |
| |
25 |
03.306 PLUG; HSG,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97214-502-0 |
01 |
1 |
- |
| |
26 |
03.320 PIN; CONT LEVER,BOOST COMPENSATO
03.318
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94257-693-0 |
01 |
1 |
- |
| |
27 |
03.320 PLUG; ELEMENT
03.318
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94151-395-0 |
01 |
1 |
- |
| |
28 |
03.320 ELEMENT; BOOST COMPENSATOR
03.314
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94159-096-0 |
01 |
1 |
- |
| |
29 |
03.306 GASKET; HSG,BOOST COMPENSATOR
03.308
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97136-413-0 |
01 |
1 |
- |
| |
30 |
03.306 GASKET; HSG PLUG,BOOST COMPENSAT
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94144-588-0 |
01 |
1 |
- |
| |
32 |
03.485 BOLT; BOOST COMPENSATOR FIX,INJ
03.330
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94242-298-0 |
04 |
1 |
- |
| |
35 |
03.320 PLUG; CONT LEVER PIN,BOOST COMPE
03.318
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94257-694-0 |
02 |
1 |
- |
| |
36 |
03.320 GASKET; LEVER PIN,BOOST COMPENSA
09.170
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
5-15729-099-0 |
02 |
1 |
- |
| |
37 |
03.306 GASKET; STARTING ADVANCER,INJ PU
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94227-491-0 |
01 |
1 |
- |
| |
40 |
03.308 ADVANCER ASM; STARTING,GOV
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97313-362-0 |
01 |
1 |
- |
| |
57 |
03.308 BOLT; START ADVANCE
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
1-15619-276-0 |
01 |
1 |
- |
| |
60 |
03.330 BOLT; BRKT
03.306
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94313-203-0 |
02 |
1 |
- |
| |
62 |
03.314 BRACKET; ACTUATOR
(A) ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97086-128-1 |
01 |
1 |
- |
| |
62 |
03.314 BRACKET; ACTUATOR
(B) ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97086-129-0 |
01 |
1 |
- |
| |
69 |
03.330 SCREW; BRKT,INJ PUMP
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94325-497-0 |
01 |
1 |
- |
| |
72 |
03.330 BOLT; BRKT FIX,INJ PUMP
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94242-278-0 |
01 |
1 |
- |
| |
73 |
03.330 BOLT; ACTUATOR
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97094-111-0 |
02 |
1 |
- |
| |
74 |
03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97086-134-0 |
01 |
1 |
- |
| |
97 |
03.306 BOLT; PLATE,START ADVANCE
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97218-972-0 |
01 |
1 |
- |
| |
115 |
03.308 SPRING; COMPENSATOR
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97214-505-0 |
01 |
1 |
- |
| |
198 |
03.340 BRACKET; DIAPH
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97214-507-0 |
01 |
1 |
- |
| |
216 |
03.320 SCREW; ADJ,DIAPH,BOOST COMPENSAT
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-97214-478-0 |
01 |
1 |
- |
| |
220 |
03.308 GASKET; ADJ SCREW,BOOST COMPENSA
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
8-94122-761-0 |
01 |
1 |
- |
| |
221 |
03.330 NUT; ADJ SCREW LOCK,BOOST COMPEN
03.318
ASM PART: A = 8-97204-201-9, 97204201, B = 8-97263-086-3, 97263086,
C = 8-98253-290-0, 98253290
|
1-15729-006-0 |
01 |
1 |
- |
