Sayfa 0-80 - Isuzu EPC

0-80 — INJECTION PUMP (#80044) — 356 parça

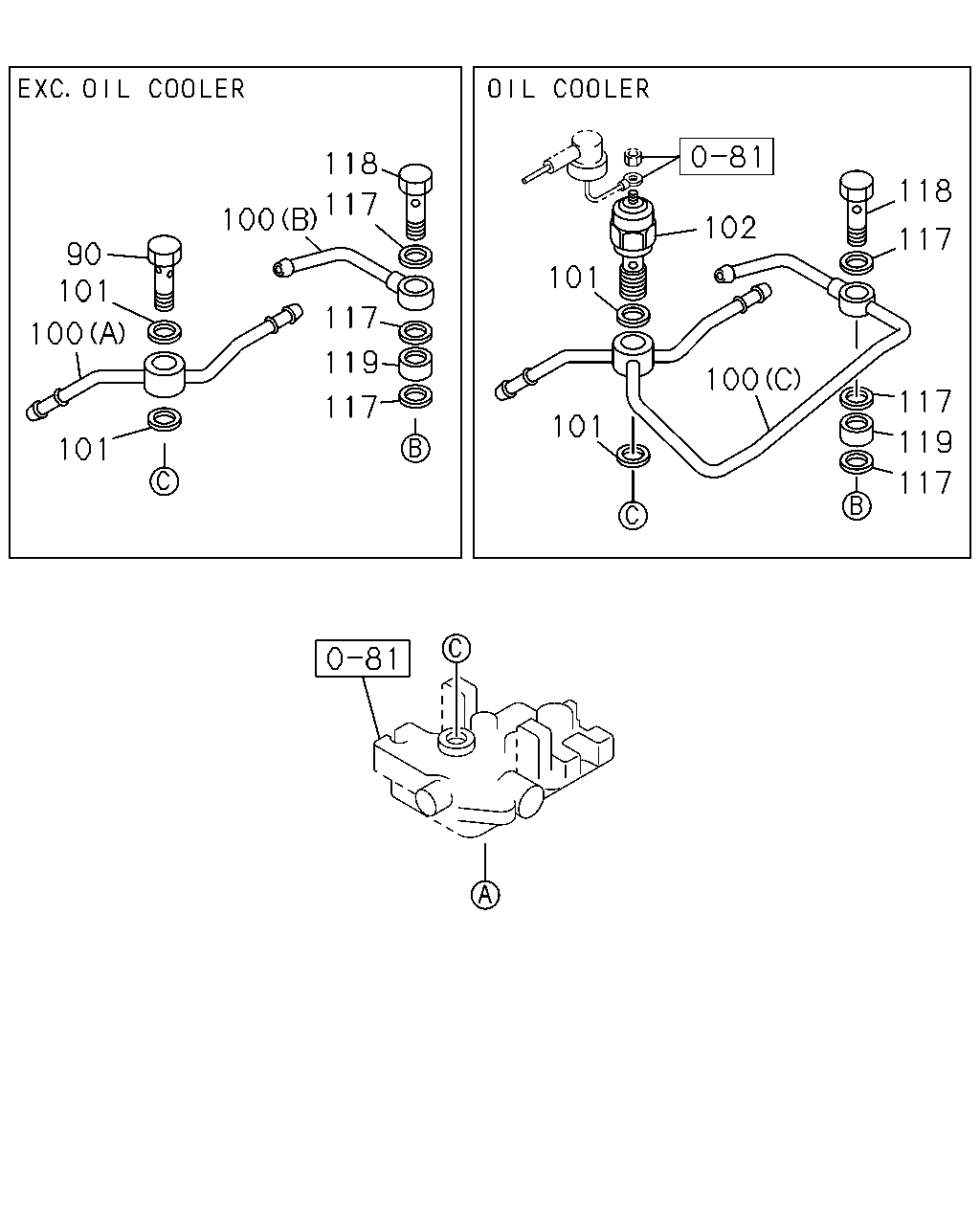

118 118 117 100 102 117 90 101 101 117 100 119 100 117 117 101 119 101 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
90	03.318 VALVE; OVERFLOW,INJ PUMP 03.308 ASM PART: B = 8-97122-090-1, 97122090	8-97119-184-0	01	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97214-509-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: B = 8-97122-090-1, 97122090	8-94418-035-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: B = 8-97122-090-1, 97122090	8-97102-545-1	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (C) ASM PART: A = 8-97120-180-1, 97120180	8-97102-546-1	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (E) ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97214-510-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (D) ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97385-181-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP 03.318 ASM PART: B = 8-97122-090-1, 97122090	8-97119-187-0	02	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP 03.332 ASM PART: A = 8-97120-180-1, 97120180	8-97119-188-0	02	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97249-545-0	02	1	-
102	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-97125-533-0	01	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP 03.318 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-97119-187-0	03	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ASM PART: E = 8-98253-290-0, 98253290	8-97249-545-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086	8-97249-545-0	03	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94379-688-0	01	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP 03.308 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-97165-709-0	01	1	-
119	03.162 SPACER; FUEL INL,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-97113-359-0	01	1	-

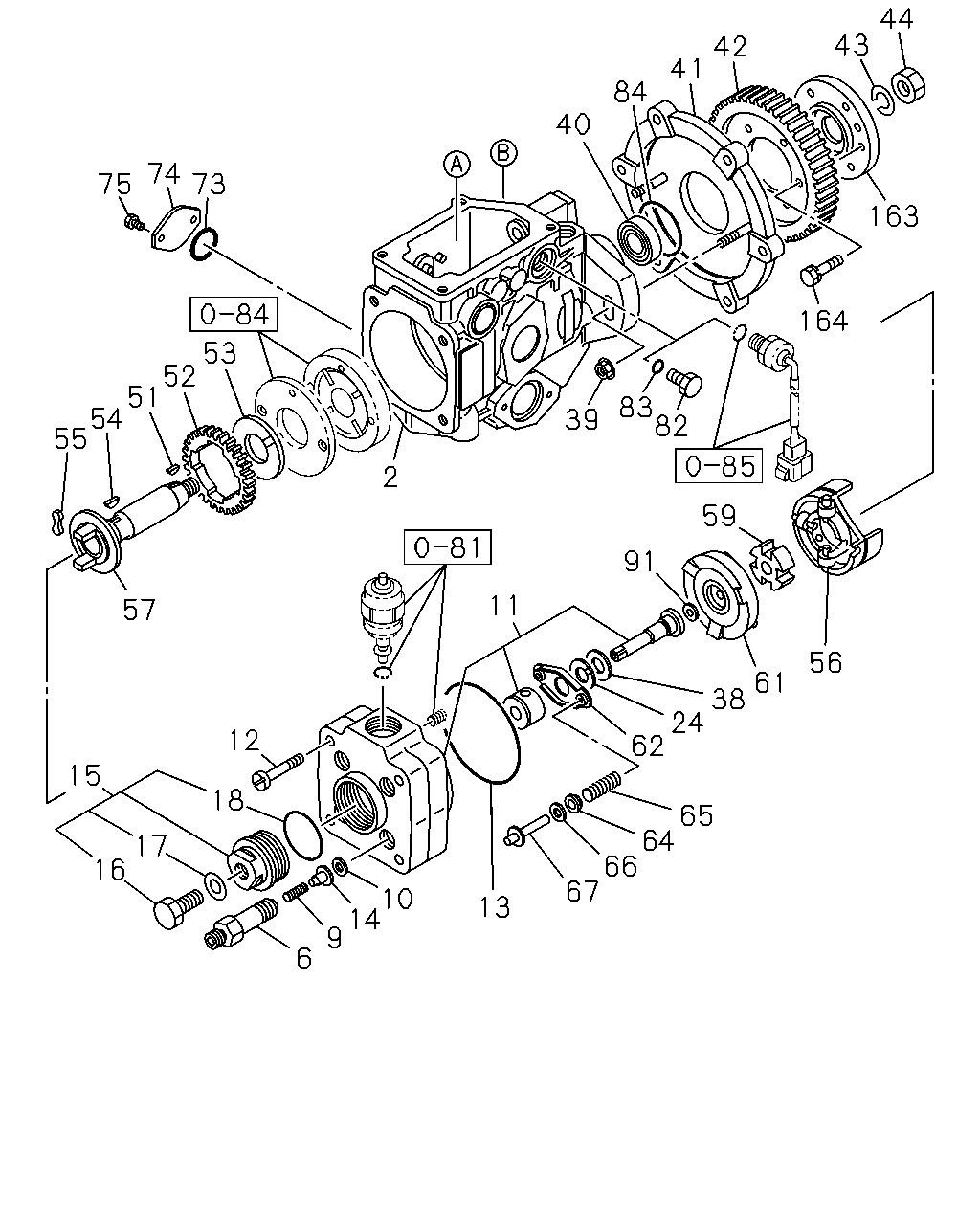

44 43 42 41 84 40 74 73 75 163 164 53 52 51 54 55 39 83 82 2 59 91 11 57 56 61 38 24 62 12 15 18 65 64 66 67 17 16 10 14 9 13 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94174-844-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086	8-97231-940-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: E = 8-98253-290-0, 98253290	8-98259-840-0	01	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94367-330-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94174-803-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94247-716-0	04	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-97125-529-0	01	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97214-499-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94257-670-0	03	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94257-670-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-527-0	01	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94174-802-0	04	1	-
15	03.330 PLUG ASM; DISTR,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94433-807-0	01	1	-
15	03.330 PLUG ASM; DISTR,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97231-942-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94174-818-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97224-536-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94433-808-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-637-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-515-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-514-0	01	1	-
39	03.340 NUT; MTG BRKT FIX ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97119-344-0	02	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP 03.306 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94227-475-0	01	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97147-034-0	01	1	-
41	03.306 BRACKET; INJ PUMP HSG ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94174-843-0	01	1	-
41	03.306 BRACKET; INJ PUMP HSG ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97214-512-1	01	1	-
42	03.330 GEAR; DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94458-257-0	01	1	-
42	03.330 GEAR; DRIVE,INJ PUMP ASM PART: B = 8-97122-090-1, 97122090	8-94471-422-0	01	1	-
42	03.330 GEAR; DRIVE,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97229-619-0	01	1	-
43	03.340 WASHER; LK,DRIVE GEAR,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94226-554-0	01	1	-
44	03.330 NUT; DRIVE GEAR FIX,INJ PUMP 03.340, M14 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94226-565-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP 03.330 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201	5-83539-024-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94239-370-0	01	1	-
52	03.340 GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-483-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94227-484-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94317-488-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-481-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94169-528-0	02	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94227-482-1	02	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94433-760-0	01	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97218-960-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94433-759-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97217-211-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94433-761-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97144-349-1	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-97125-528-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97214-495-0	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-516-1	01	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-517-0	02	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94433-816-0	01	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97214-522-0	01	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.50 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-518-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.80 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-519-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.00 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-520-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.20 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-521-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.50 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-522-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-523-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=2.00 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-524-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.90 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94433-204-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.10 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94433-205-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.30 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94433-206-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.40 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94433-207-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.60 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94433-208-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.70 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94433-209-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97146-139-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97146-140-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97146-141-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97146-142-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.10 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-360-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.20 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-361-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.30 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-362-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.40 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-363-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.50 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-364-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.60 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-365-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.70 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-366-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.80 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-367-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.90 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-368-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.00 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-369-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.10 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-370-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.20 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-371-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.30 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-372-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.40 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-373-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-374-0	AR	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94433-776-0	02	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97328-703-0	02	1	-
73	03.306 GASKET; COVER TO HSG 03.330 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94433-763-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97383-765-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-97125-525-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97231-934-0	01	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94313-276-0	02	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97231-933-0	02	1	-
82	03.306 PLUG; HSG,INJ PUMP ASM PART: B = 8-97122-090-1, 97122090	8-94242-284-0	01	1	-
83	03.306 GASKET; HSG PLUG ASM PART: B = 8-97122-090-1, 97122090	8-94227-671-0	01	1	-
84	03.306 GASKET; BRKT TO HSG ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086	8-94247-722-0	01	1	-
84	03.306 GASKET; BRKT TO HSG 06.061, ID=52.6 ASM PART: E = 8-98253-290-0, 98253290	9-09561-353-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.74 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94111-658-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.76 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94111-659-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.78 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94111-660-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94111-661-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.82 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94111-662-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.84 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94111-663-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.86 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94111-664-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.88 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94111-665-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.90 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-528-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.92 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-529-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.94 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-530-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.96 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-531-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.98 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-532-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.00 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-533-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.02 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-534-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.04 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-535-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.06 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-536-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.08 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-537-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.10 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-538-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.12 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-539-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.14 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-540-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.16 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-541-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.18 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-542-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.20 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-543-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.22 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-544-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.24 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-545-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.26 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-546-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.28 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-547-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.30 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-548-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.32 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-549-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.34 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-550-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.36 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-551-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.38 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-552-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.40 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-553-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.42 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-554-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.44 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-555-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.46 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-556-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.48 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-557-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.50 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-558-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.52 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-559-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.54 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-560-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.56 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-561-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.58 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-562-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.60 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-563-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.62 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-564-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.64 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-565-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.66 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-566-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.68 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-567-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.70 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-568-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.72 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-569-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.74 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-570-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.76 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-571-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.78 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-572-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.80 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-573-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.82 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-574-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.84 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-575-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.86 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-576-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.88 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-577-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.90 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-578-0	AR	1	-
163	03.330 COUPLING; INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-337-1	01	1	-
164	03.306 BOLT; GEAR TO COUPLING ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	5-15619-112-0	06	1	-
164	03.306 BOLT; GEAR TO COUPLING 01.531, M8X18 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	9-01910-618-0	06	1	-

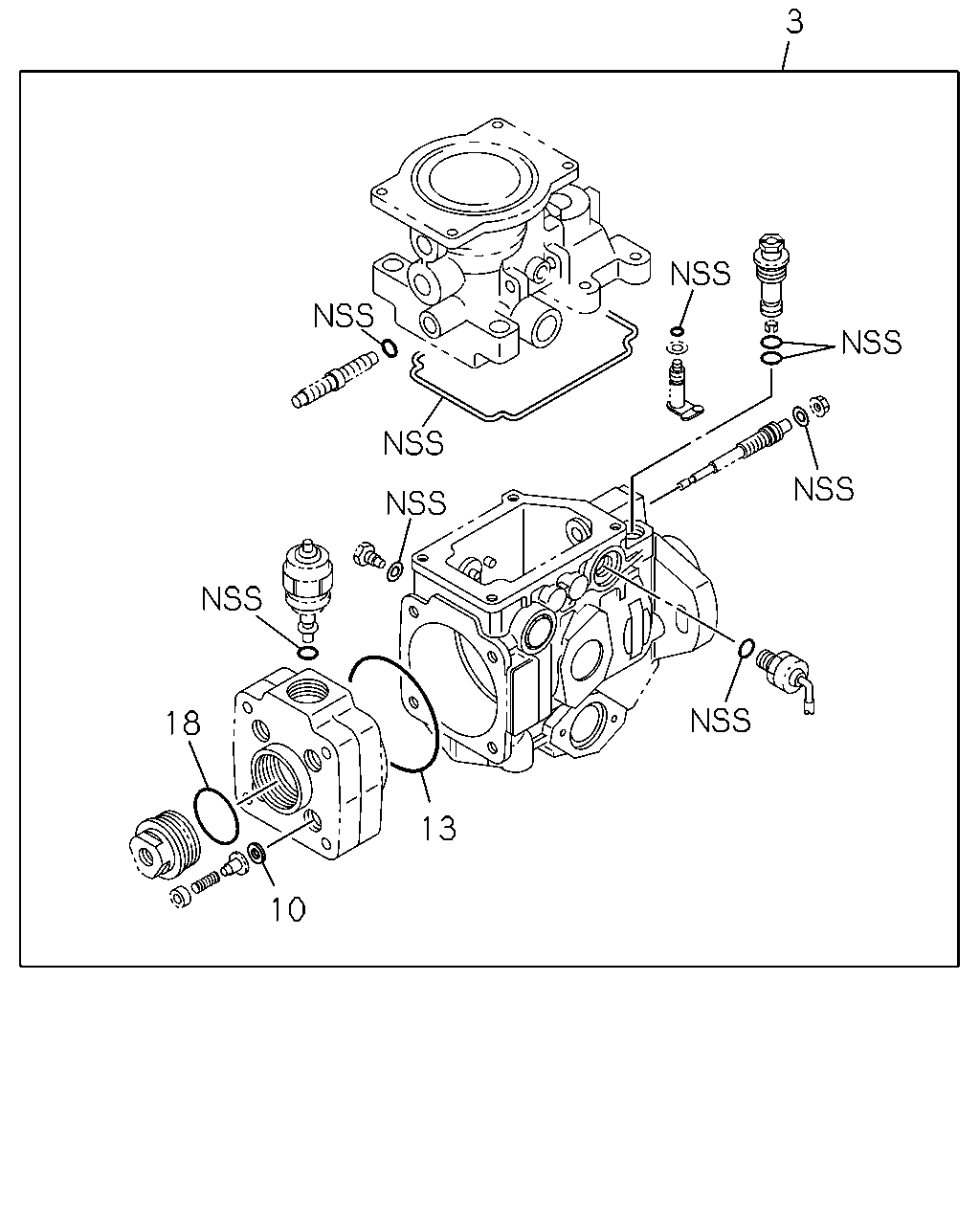

3 18 13 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.304 REPAIR KIT; FUEL INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94228-545-0	01	1	-
3	03.304 REPAIR KIT; FUEL INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97383-766-0	01	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94247-716-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-527-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-637-0	01	1	-

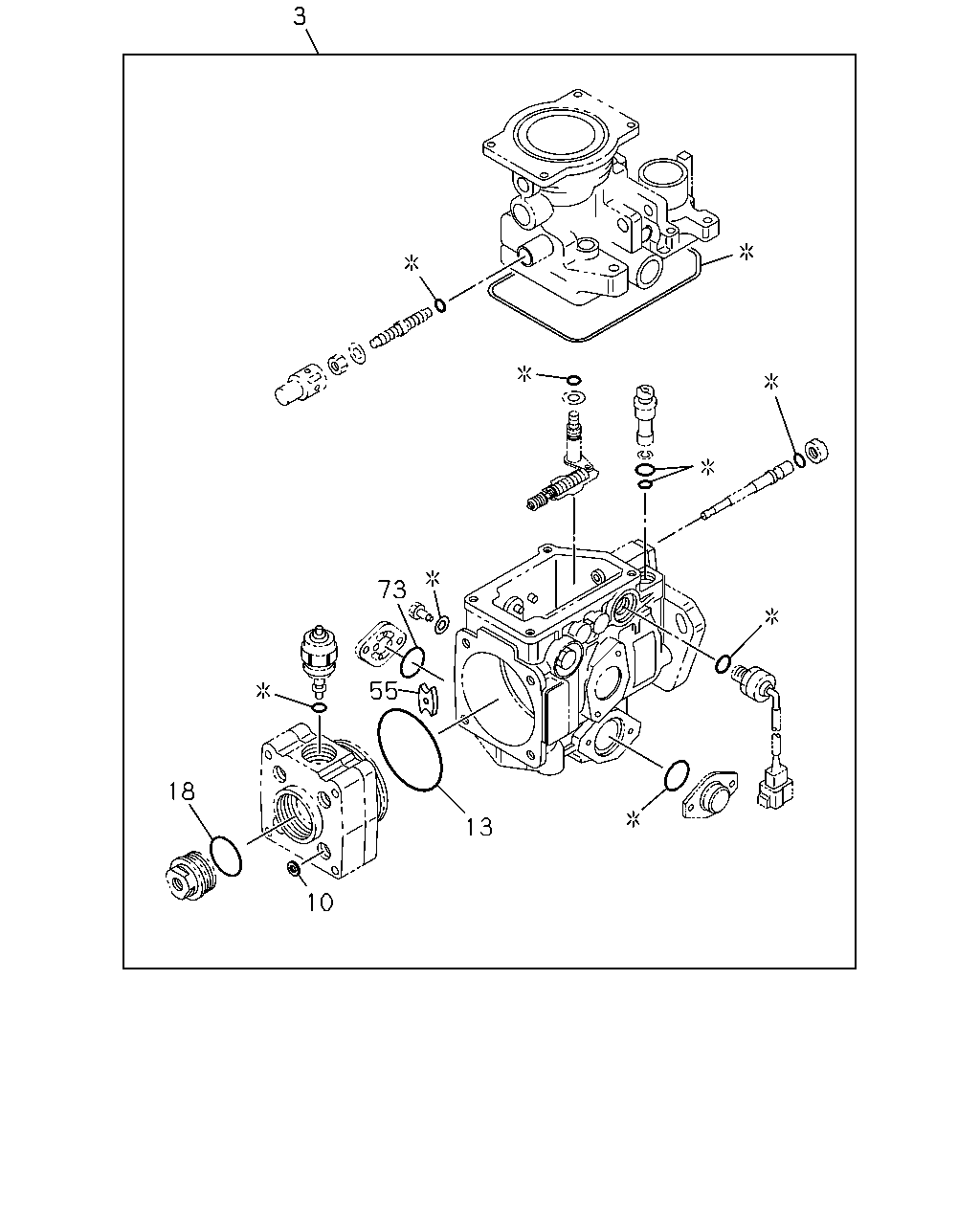

3 73 55 18 13 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.304 REPAIR KIT; FUEL INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94228-545-0	01	1	-
3	03.304 REPAIR KIT; FUEL INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97383-766-0	01	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94247-716-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-527-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-637-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94169-528-0	02	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94227-482-1	02	1	-
73	03.306 GASKET; COVER TO HSG 03.330 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94433-763-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97383-765-0	01	1	-

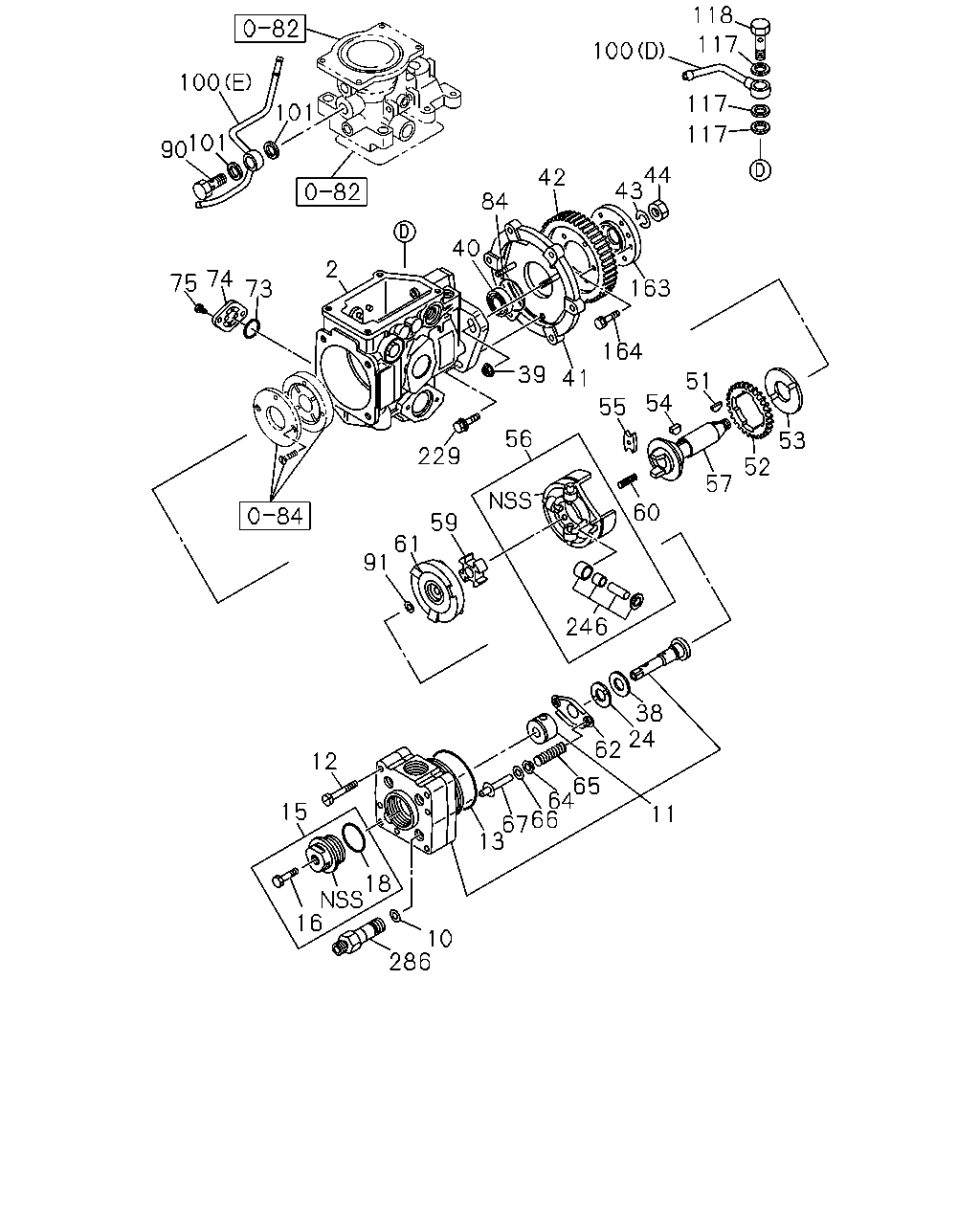

118 117 100 100 117 101 117 101 90 44 43 42 84 40 2 74 75 163 73 164 39 41 51 54 55 56 53 52 229 57 60 59 61 91 246 38 24 62 12 65 64 66 67 13 15 11 18 16 10 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94174-844-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086	8-97231-940-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: E = 8-98253-290-0, 98253290	8-98259-840-0	01	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94247-716-0	04	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-97125-529-0	01	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97214-499-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94257-670-0	03	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94257-670-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-527-0	01	1	-
15	03.330 PLUG ASM; DISTR,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94433-807-0	01	1	-
15	03.330 PLUG ASM; DISTR,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97231-942-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94174-818-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97224-536-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-637-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-515-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-514-0	01	1	-
39	03.340 NUT; MTG BRKT FIX ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97119-344-0	02	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP 03.306 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94227-475-0	01	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97147-034-0	01	1	-
41	03.306 BRACKET; INJ PUMP HSG ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94174-843-0	01	1	-
41	03.306 BRACKET; INJ PUMP HSG ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97214-512-1	01	1	-
42	03.330 GEAR; DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94458-257-0	01	1	-
42	03.330 GEAR; DRIVE,INJ PUMP ASM PART: B = 8-97122-090-1, 97122090	8-94471-422-0	01	1	-
42	03.330 GEAR; DRIVE,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97229-619-0	01	1	-
43	03.340 WASHER; LK,DRIVE GEAR,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94226-554-0	01	1	-
44	03.330 NUT; DRIVE GEAR FIX,INJ PUMP 03.340, M14 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94226-565-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP 03.330 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201	5-83539-024-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94239-370-0	01	1	-
52	03.340 GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-483-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94227-484-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94317-488-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-481-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94169-528-0	02	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94227-482-1	02	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94433-760-0	01	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97218-960-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94433-759-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97217-211-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94433-761-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97144-349-1	01	1	-
60	03.320 SPRING; DRIVE DISC,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97214-524-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-97125-528-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97214-495-0	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-516-1	01	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-517-0	02	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94433-816-0	01	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97214-522-0	01	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.50 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-518-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.80 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-519-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.00 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-520-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.20 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-521-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.50 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-522-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-523-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=2.00 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-524-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.90 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94433-204-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.10 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94433-205-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.30 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94433-206-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.40 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94433-207-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.60 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94433-208-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.70 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94433-209-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97146-139-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97146-140-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97146-141-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97146-142-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.10 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-360-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.20 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-361-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.30 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-362-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.40 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-363-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.50 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-364-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.60 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-365-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.70 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-366-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.80 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-367-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.90 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-368-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.00 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-369-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.10 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-370-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.20 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-371-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.30 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-372-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.40 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-373-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97189-374-0	AR	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94433-776-0	02	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97328-703-0	02	1	-
73	03.306 GASKET; COVER TO HSG 03.330 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94433-763-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97383-765-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-97125-525-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97231-934-0	01	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-94313-276-0	02	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97231-933-0	02	1	-
84	03.306 GASKET; BRKT TO HSG ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086	8-94247-722-0	01	1	-
84	03.306 GASKET; BRKT TO HSG 06.061, ID=52.6 ASM PART: E = 8-98253-290-0, 98253290	9-09561-353-0	01	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP 03.308 ASM PART: B = 8-97122-090-1, 97122090	8-97119-184-0	01	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97214-509-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.74 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94111-658-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.76 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94111-659-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.78 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94111-660-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94111-661-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.82 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94111-662-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.84 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94111-663-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.86 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94111-664-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.88 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94111-665-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.90 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-528-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.92 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-529-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.94 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-530-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.96 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-531-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.98 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-532-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.00 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-533-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.02 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-534-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.04 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-535-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.06 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-536-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.08 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-537-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.10 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-538-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.12 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-539-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.14 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-540-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.16 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-541-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.18 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-542-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.20 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-543-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.22 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-544-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.24 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-545-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.26 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-546-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.28 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-547-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.30 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-548-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.32 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-549-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.34 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-550-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.36 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-551-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.38 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-552-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.40 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-553-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.42 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-554-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.44 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-555-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.46 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-556-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.48 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-557-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.50 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-558-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.52 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-559-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.54 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-560-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.56 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-561-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.58 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-562-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.60 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-563-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.62 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-564-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.64 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-565-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.66 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-566-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.68 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-567-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.70 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-568-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.72 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-569-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.74 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-570-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.76 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-571-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.78 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-572-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.80 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-573-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.82 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-574-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.84 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-575-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.86 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-576-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.88 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-577-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.90 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-578-0	AR	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: B = 8-97122-090-1, 97122090	8-94418-035-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: B = 8-97122-090-1, 97122090	8-97102-545-1	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (C) ASM PART: A = 8-97120-180-1, 97120180	8-97102-546-1	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (E) ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97214-510-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (D) ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97385-181-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP 03.318 ASM PART: B = 8-97122-090-1, 97122090	8-97119-187-0	02	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP 03.332 ASM PART: A = 8-97120-180-1, 97120180	8-97119-188-0	02	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97249-545-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP 03.318 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-97119-187-0	03	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ASM PART: E = 8-98253-290-0, 98253290	8-97249-545-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086	8-97249-545-0	03	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94379-688-0	01	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP 03.308 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	8-97165-709-0	01	1	-
163	03.330 COUPLING; INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090, C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-94227-337-1	01	1	-
164	03.306 BOLT; GEAR TO COUPLING ASM PART: A = 8-97120-180-1, 97120180, B = 8-97122-090-1, 97122090	5-15619-112-0	06	1	-
164	03.306 BOLT; GEAR TO COUPLING 01.531, M8X18 ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	9-01910-618-0	06	1	-
229	03.330 BOLT; BRKT ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97049-904-0	01	1	-
246	03.300 ROLLER KIT; INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97218-980-0	01	1	-
286	03.306 VALVE; PRESSURE,CONT ASM PART: C = 8-97204-201-9, 97204201, D = 8-97263-086-3, 97263086, E = 8-98253-290-0, 98253290	8-97227-581-1	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
