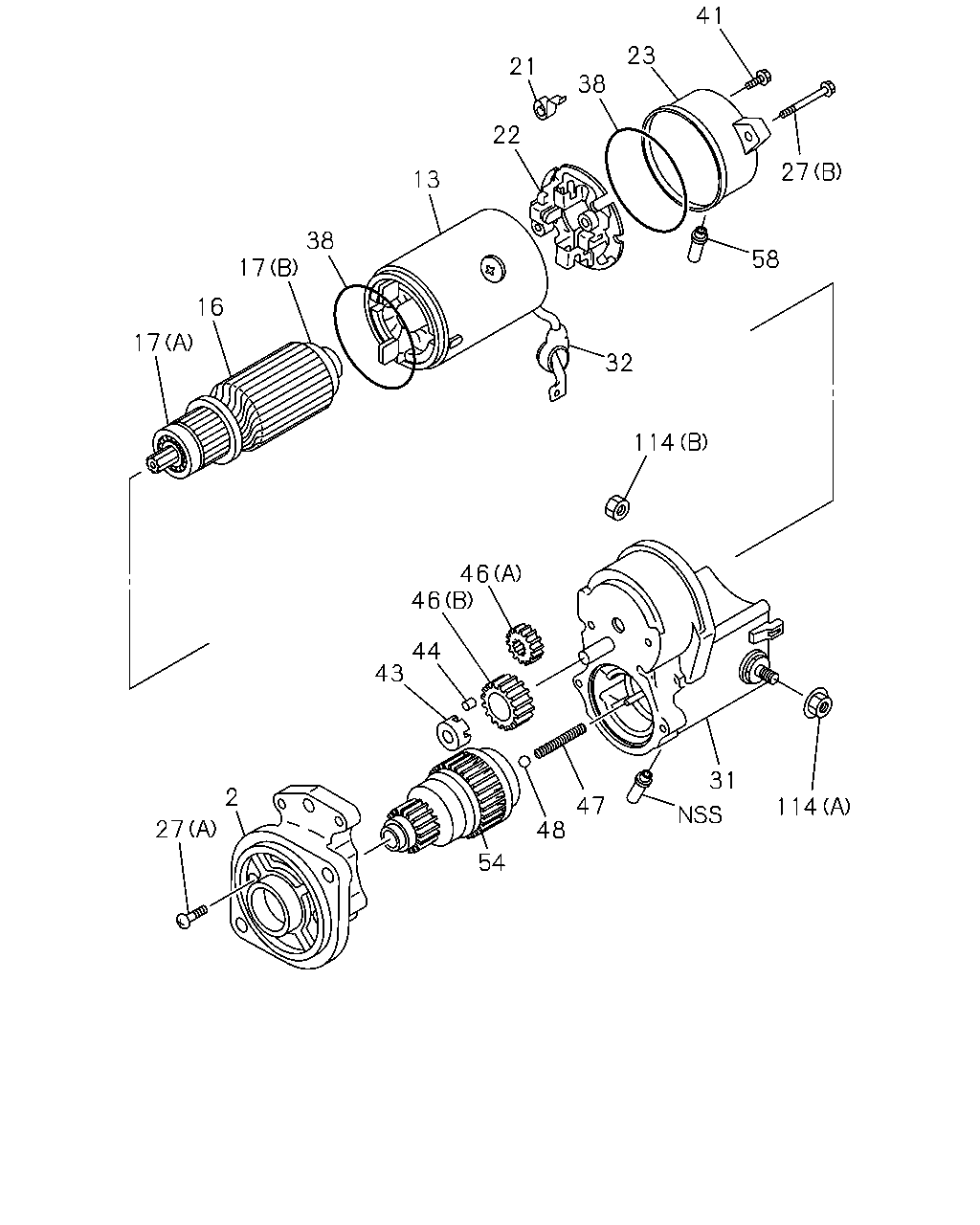

0-65 — STARTER (#80042) — 24 parça

41 23 21 38 22 27 13 38 17 58 16 17 32 114 46 46 44 43 31 2 47 48 114 27 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-97120-356-2, 97120356	8-97142-908-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: A = 8-97120-356-2, 97120356	8-97135-497-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-97120-356-2, 97120356	8-97112-869-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-97120-356-2, 97120356	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-97120-356-2, 97120356	8-97112-954-0	01	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER IDN ASM PART: A = 8-97120-356-2, 97120356	8-97112-880-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-97120-356-2, 97120356	8-97112-873-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-97120-356-2, 97120356	8-97112-875-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: A = 8-97120-356-2, 97120356	8-97112-881-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: A = 8-97120-356-2, 97120356	8-97112-957-0	02	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-97120-356-2, 97120356	8-97142-907-1	01	1	-
32	02.115 COVER; RUBBER,STARTER IDN ASM PART: A = 8-97120-356-2, 97120356	5-81119-029-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER 02.049 ASM PART: A = 8-97120-356-2, 97120356	8-94170-214-0	02	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: A = 8-97120-356-2, 97120356	8-97142-903-0	02	1	-
43	02.086 RETAINER; PINION STARTER IDN ASM PART: A = 8-97120-356-2, 97120356	8-94377-246-0	01	1	-
44	02.086 ROLLER; PINION STARTER IDN ASM PART: A = 8-97120-356-2, 97120356	5-81129-099-0	05	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: A = 8-97120-356-2, 97120356	8-97078-649-0	01	1	-
46	02.086 GEAR; CLU STARTER (A), IDN ASM PART: A = 8-97120-356-2, 97120356	8-97142-904-0	01	1	-
47	02.086 SPRING; PINION STARTER ASM PART: A = 8-97120-356-2, 97120356	8-94377-245-0	01	1	-
48	02.108 BALL; PINION,STARTER IDN ASM PART: A = 8-97120-356-2, 97120356	5-81129-092-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-97120-356-2, 97120356	8-97148-687-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER 02.067, IDN ASM PART: A = 8-97120-356-2, 97120356	8-97041-421-0	01	1	-
114	02.055 NUT; TERMINAL 02.102, (A) ASM PART: A = 8-97120-356-2, 97120356	8-94109-763-0	01	1	-
114	02.055 NUT; TERMINAL (B), IDN ASM PART: A = 8-97120-356-2, 97120356	8-94377-238-0	01	1	-
