◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51382 - NHR(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#80040) — 43 parça

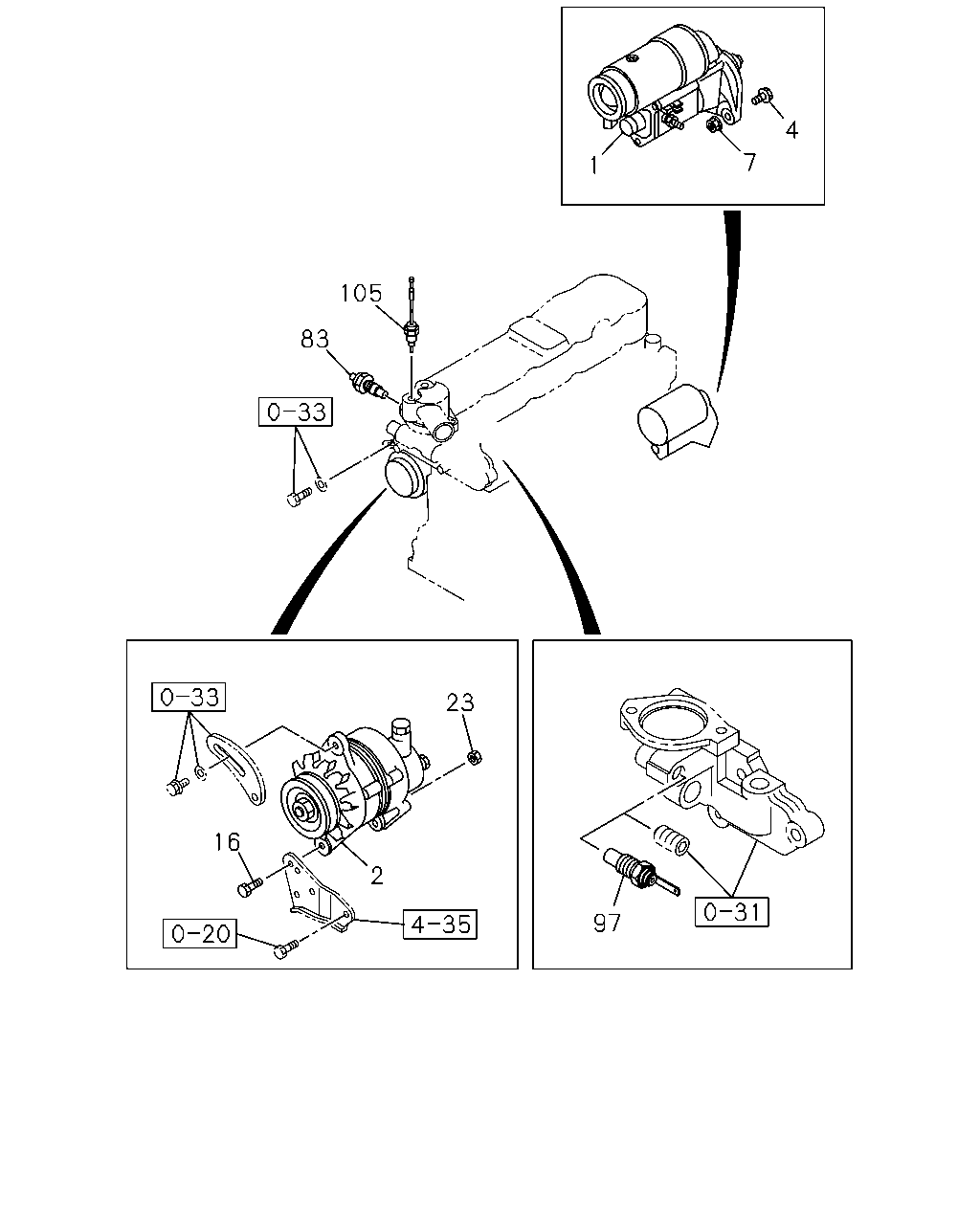

çizim 72603
4 7 1 105 83 23 16 2 97
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0211-0606 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0607- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-1 01 1 0211-0606 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A IDN 		8-97187-657-2 01 1 0607-1408 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A IDN 		8-98284-007-0 01 1 1409-1505 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A IDN 		8-98300-335-0 01 1 1506- ● ●
4 02.042 BOLT; STARTER
OIL COOLER<KC4> 00.685 M12X45 FLANGE 		0-28051-245-0 02 1 0811- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0211-0501 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0502-0512 ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 0601-0606 ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 0607- ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0211-0602 ●
7 02.042 NUT; STARTER
M12 FLANGE IDN 		0-91180-112-0 02 1 0603-0606 ●
7 02.042 NUT; STARTER
M12 FLANGE IDN 		0-91180-112-0 02 1 0607-0810 ● ●
7 02.042 NUT; STARTER
M12 FLANGE IDN 		0-91180-112-0 02 1 0811- ● ●
7 02.042 NUT; STARTER
OIL COOLER<KC4> M12 FLANGE IDN 		0-91180-112-0 02 1 0811- ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0211-0512 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 0601-0606 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 0607- ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0602 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0603-0606 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0607- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0211-0606 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0607- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0211-0606 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0607- ● ●
97 01.150 SWITCH; THERMO,EGR CONT 8-94368-591-0 01 1 0607- ●
105 01.150 SWITCH; THERMO,QOS 8-94336-668-0 01 1 0607- ●
105 01.150 SWITCH; THERMO,QOS 8-94457-511-0 01 1 0607-0810 ●
105 01.150 SWITCH; THERMO,QOS
OIL COOLER<KC4> 		8-94457-511-0 01 1 0811- ●
105 01.150 SWITCH; THERMO,QOS 8-94457-511-0 01 1 0811- ●

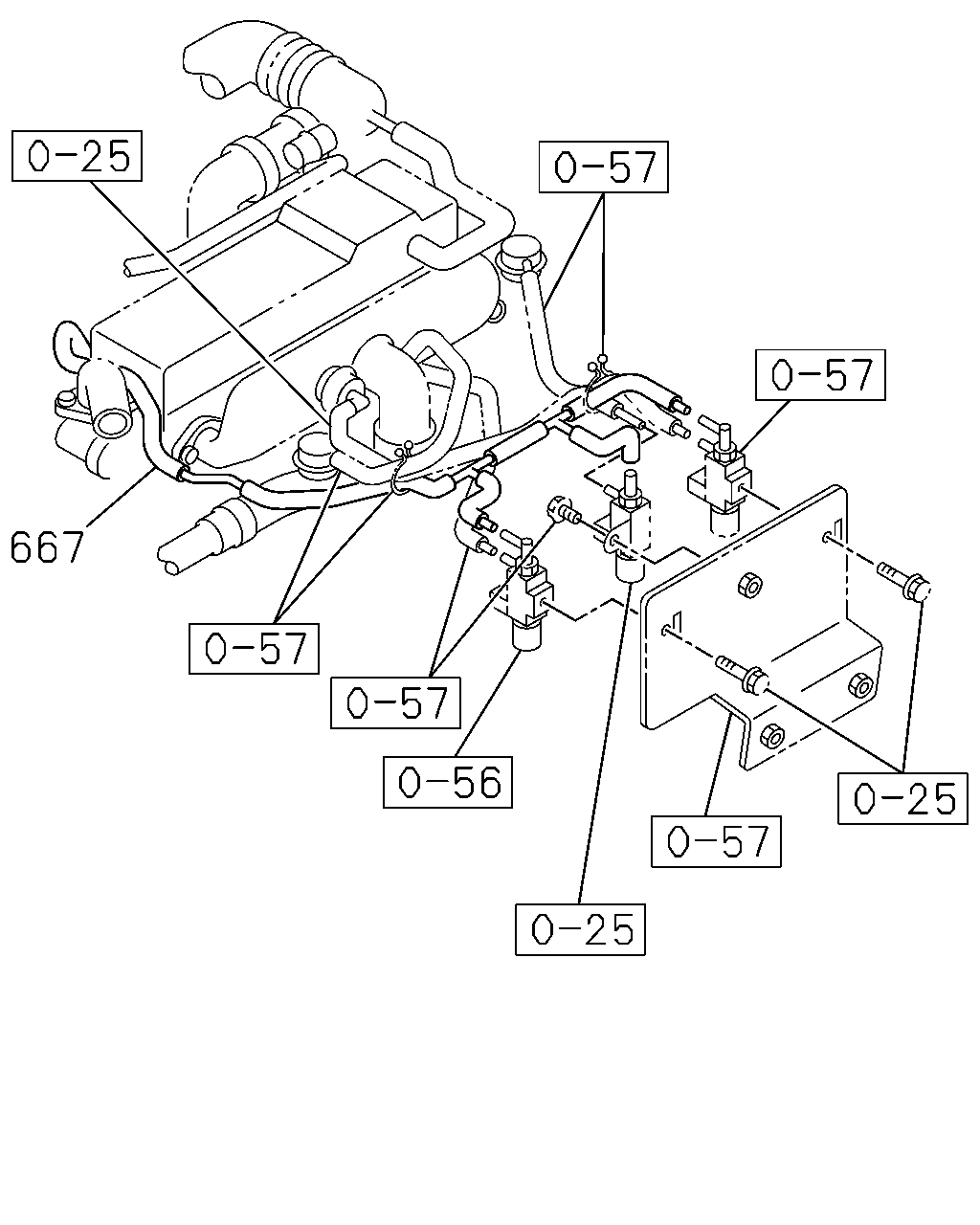

çizim 72943
667
BalonParca AdiParca NoAdetTipApplied Date A B
667 03.280 HOSE; VAC,PUMP TO VSV 8-97228-358-1 01 1 0607- ●
çizim 73289
644 10 10 46 644 578 578
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
02.510 12V 80A IDN 		8-97173-951-0 01 1 0211- ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 12V 80A IDN 		8-97173-951-0 01 1 0607- ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0211- ● ●
644 02.510 RELAY; COLD START DEVICE
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ●
644 02.510 RELAY; COLD START DEVICE
12V 20A IDN 		8-97173-037-1 01 1 0502- ●

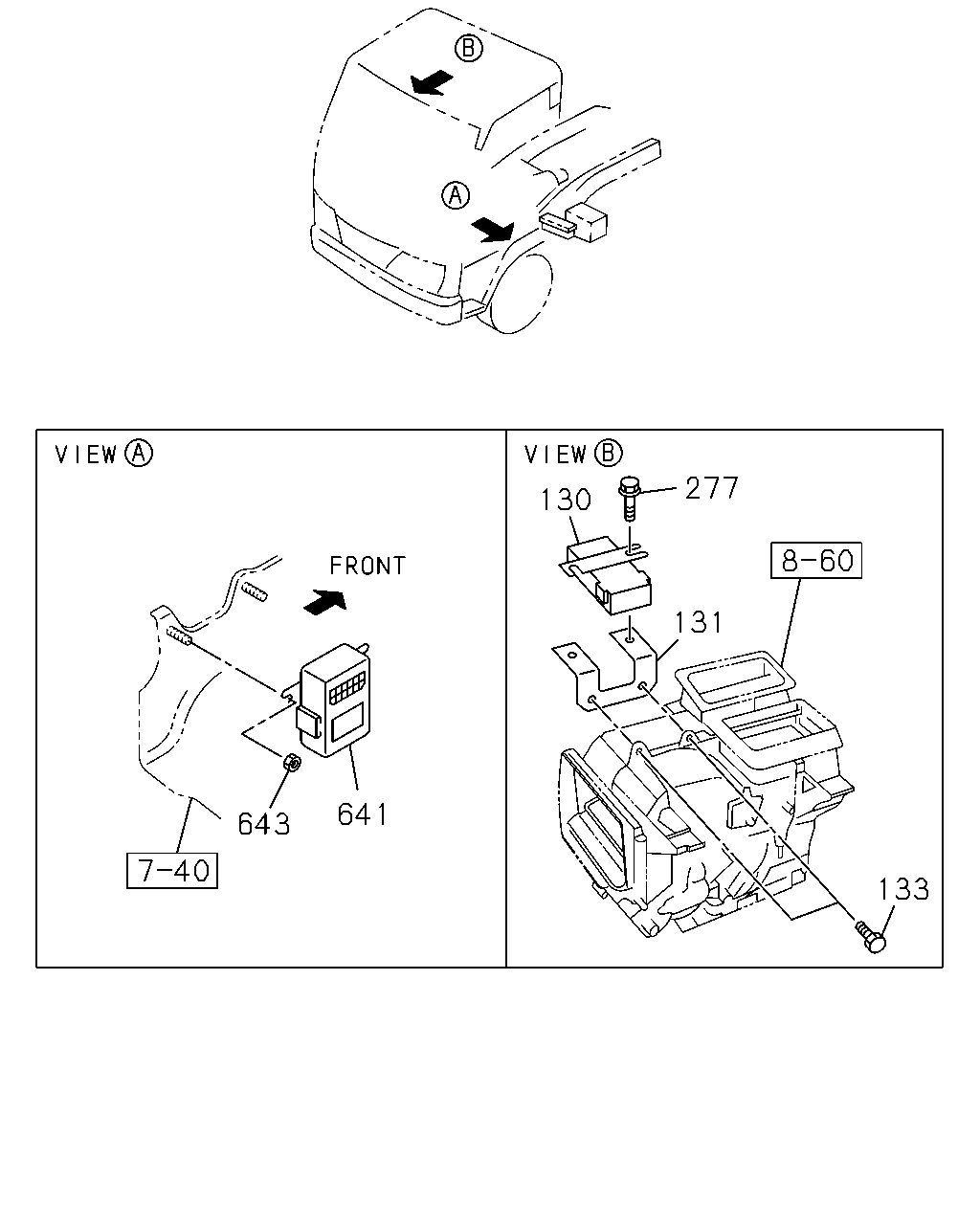

çizim 182502
277 130 131 641 643 133
BalonParca AdiParca NoAdetTipApplied Date A B
130 02.510 CONTROLLER; EGR 8-97201-734-3 01 1 0607- ●
131 03.670 BRACKET; EGR 8-97217-813-1 01 1 0607- ●
133 02.500 BOLT; EGR CONTROLLER
03.162 M6X20 FLANGE IDN 		0-28650-620-0 02 1 0607- ●
277 02.510 BOLT; BRKT
03.162 M6X20 FLANGE IDN 		0-28650-620-0 02 1 0607- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> IDN 		8-97361-317-3 01 1 0607- ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE 		0-91180-106-0 02 1 0607- ● ●
