4-60 — REAR SUSPENSION (#8004) — 533 parça

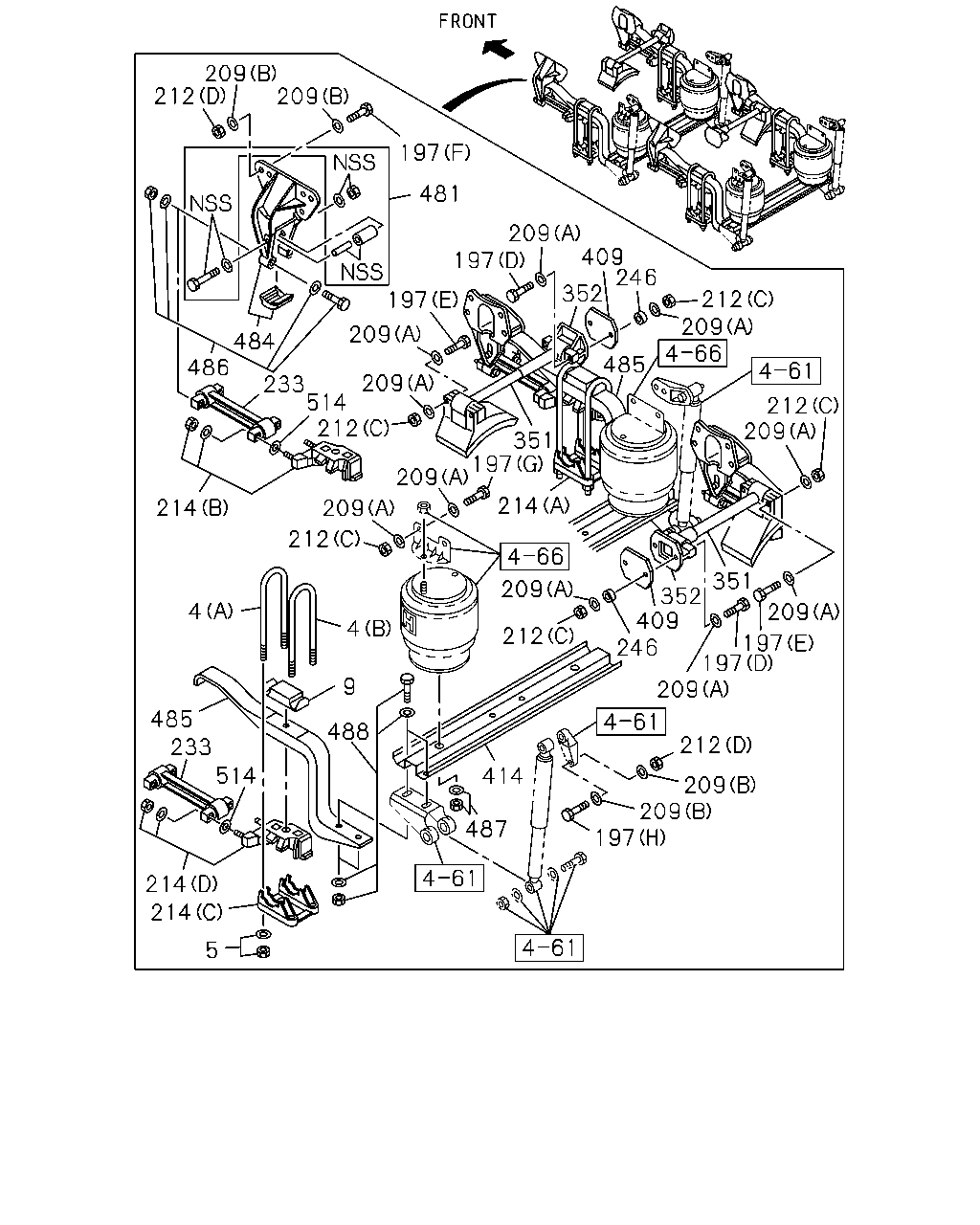

çizim 9777
209 212 209 197 481 209 197 409 246 197 352 212 209 209 484 486 485 209 233 514 212 212 209 351 197 209 214 214 209 212 351 209 352 409 246 212 4 209 4 197 197 209 9 485 233 488 212 514 414 209 209 197 487 214 214 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 02 1 0005- ● ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 02 1 0005- ● ●
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 0005-0011 ●
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 0012- ● ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 0005-0011 ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 0012- ● ●
5 NUT; U-BOLT,RR SPR 1-52179-039-0 01 1 0005- ● ●
5 NUT; U-BOLT,RR SPR 1-52179-039-0 02 1 0005-0011 ●
5 NUT; U-BOLT,RR SPR 1-52179-039-0 02 1 0012- ● ●
9 PAD; U BOLT,RR SPR 1-51372-073-0 02 1 0005- ● ●
9 PAD; U BOLT,RR SPR 1-51372-073-0 04 1 0005-0011 ●
9 PAD; U BOLT,RR SPR 1-51372-073-0 04 1 0012- ● ●
197 BOLT
(G) 		1-09000-770-0 04 1 0303- ● ●
197 BOLT
(H) 		1-09000-771-0 04 1 0303- ● ●
197 BOLT
(G) 		1-09000-770-0 08 1 0303- ● ●
197 BOLT
(H) 		1-09000-771-0 08 1 0303- ● ●
197 BOLT
(A) 		1-09000-709-0 12 1 0005-0302 ● ●
197 BOLT
(D) 		1-09000-767-0 02 1 0303- ● ●
197 BOLT
(B) 		1-09000-710-0 04 1 0005-0302 ● ●
197 BOLT
(E) 		1-09000-768-0 02 1 0303- ● ●
197 BOLT
(C) 		1-09000-712-0 04 1 0005-0302 ● ●
197 BOLT
(F) M20X65 		1-09000-769-0 12 1 0303- ● ●
197 BOLT
(A) 		1-09000-709-0 24 1 0005-0011 ●
197 BOLT
(A) 		1-09000-709-0 24 1 0012-0302 ● ●
197 BOLT
(D) 		1-09000-767-0 04 1 0303- ● ●
197 BOLT
(B) 		1-09000-710-0 08 1 0005-0011 ●
197 BOLT
(B) 		1-09000-710-0 08 1 0012-0302 ● ●
197 BOLT
(E) 		1-09000-768-0 04 1 0303- ● ●
197 BOLT
(C) 		1-09000-712-0 08 1 0005-0011 ●
197 BOLT
(C) 		1-09000-712-0 08 1 0012-0302 ● ●
197 BOLT
(F) M20X65 		1-09000-769-0 24 1 0303- ● ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 0303- ● ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 32 1 0303- ● ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 32 1 0303- ● ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 64 1 0303- ● ●
212 NUT
(A) 		1-09400-145-0 04 1 0005-0302 ● ●
212 NUT
(C) 		1-09000-160-0 08 1 0303- ● ●
212 NUT
(B) 		1-09400-146-0 16 1 0005-0302 ● ●
212 NUT
(D) M20 		1-09400-161-0 16 1 0303- ● ●
212 NUT
(A) 		1-09400-145-0 08 1 0005-0011 ●
212 NUT
(A) 		1-09400-145-0 08 1 0012-0302 ● ●
212 NUT
(C) 		1-09000-160-0 16 1 0303- ● ●
212 NUT
(B) 		1-09400-146-0 32 1 0005-0011 ●
212 NUT
(B) 		1-09400-146-0 32 1 0012-0302 ● ●
212 NUT
(D) M20 		1-09400-161-0 32 1 0303- ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0005-0011 ● ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0012-0102 ● ● ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0103-0201 ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0202- ● ● ● ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 0005-0011 ● ● ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 0012- ● ● ● ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 0005-0011 ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 0012- ● ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 0005-0011 ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 0012- ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0103-0201 ● ●
233 ROD ASM; TORQUE,RR SUSP
L=366 		1-51510-855-0 02 1 0005- ● ●
233 ROD ASM; TORQUE,RR SUSP
L=366 		1-51510-855-0 04 1 0005-0011 ●
233 ROD ASM; TORQUE,RR SUSP
L=366 		1-51510-855-0 04 1 0012- ● ●
246 WASHER; TORQUE ROD 8-97372-224-0 02 1 1101- ● ● ●
246 WASHER; TORQUE ROD 8-97372-224-0 04 1 1101- ●
351 ROD ASM; RADIUS 1-51510-866-0 01 1 0211-0302 ● ●
351 ROD ASM; RADIUS 1-51510-867-0 01 1 0303- ● ●
351 ROD ASM; RADIUS 1-51510-856-0 01 1 0005-0201 ● ●
351 ROD ASM; RADIUS 1-51510-866-0 01 1 0202-0212 ● ●
351 ROD ASM; RADIUS 1-51510-856-0 02 1 0005-0011 ●
351 ROD ASM; RADIUS 1-51510-856-0 02 1 0012-0201 ● ●
351 ROD ASM; RADIUS 1-51510-866-0 02 1 0202-0302 ● ●
351 ROD ASM; RADIUS 1-51510-867-0 02 1 0303- ● ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 01 1 0005- ● ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 0005-0011 ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 0012- ● ●
409 SPACER; RADIUS ROD
T=10 		1-52175-021-0 01 1 0005-0302 ● ●
409 SPACER; RADIUS ROD
T=10 		1-52175-020-0 01 1 0303- ● ●
409 SPACER; RADIUS ROD
T=10 		1-52175-020-0 02 1 0005-0011 ●
409 SPACER; RADIUS ROD
T=10 		1-52175-020-0 02 1 0012- ● ●
409 SPACER; RADIUS ROD
T=6 		1-52175-028-0 02 1 0202-0302 ● ●
414 BEAM; AIR SPR 1-52172-036-0 01 1 0005- ● ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 0005-0011 ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 0012- ● ●
481 ROLLER; REBOUND 1-53357-043-0 01 1 0005- ● ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 0005-0011 ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 0012- ● ●
484 BRACKET; REAR SPRING 1-53353-131-0 02 1 0005- ● ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 0005-0011 ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 0012- ● ●
485 SPRING; LEAF 1-51410-240-0 02 1 0005-0302 ● ●
485 SPRING; LEAF 1-51410-259-0 02 1 0303- ● ●
485 SPRING; LEAF 1-51410-240-0 04 1 0005-0011 ●
485 SPRING; LEAF 1-51410-240-0 04 1 0012- ● ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 01 1 0005- ● ●
486 FIXING KIT; TORQUE ROD 1-52000-162-0 01 1 0005-0011 ●
486 FIXING KIT; TORQUE ROD 1-52000-162-0 01 1 0012-0302 ● ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 02 1 0303- ● ●
487 FIXING KIT; AIR SPRING 1-52000-166-0 01 1 0005-0302 ● ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 0303- ● ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 0005-0011 ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 0012-0302 ● ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 0303- ● ●
488 FIXING KIT; BEAM 1-52000-167-0 01 1 0005-0302 ● ●
488 FIXING KIT; BEAM 1-52000-164-0 01 1 0303- ● ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 0005-0011 ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 0012- ● ●
514 SPACER; TORQUE ROD 1-09503-299-0 08 1 0303- ● ● ● ●

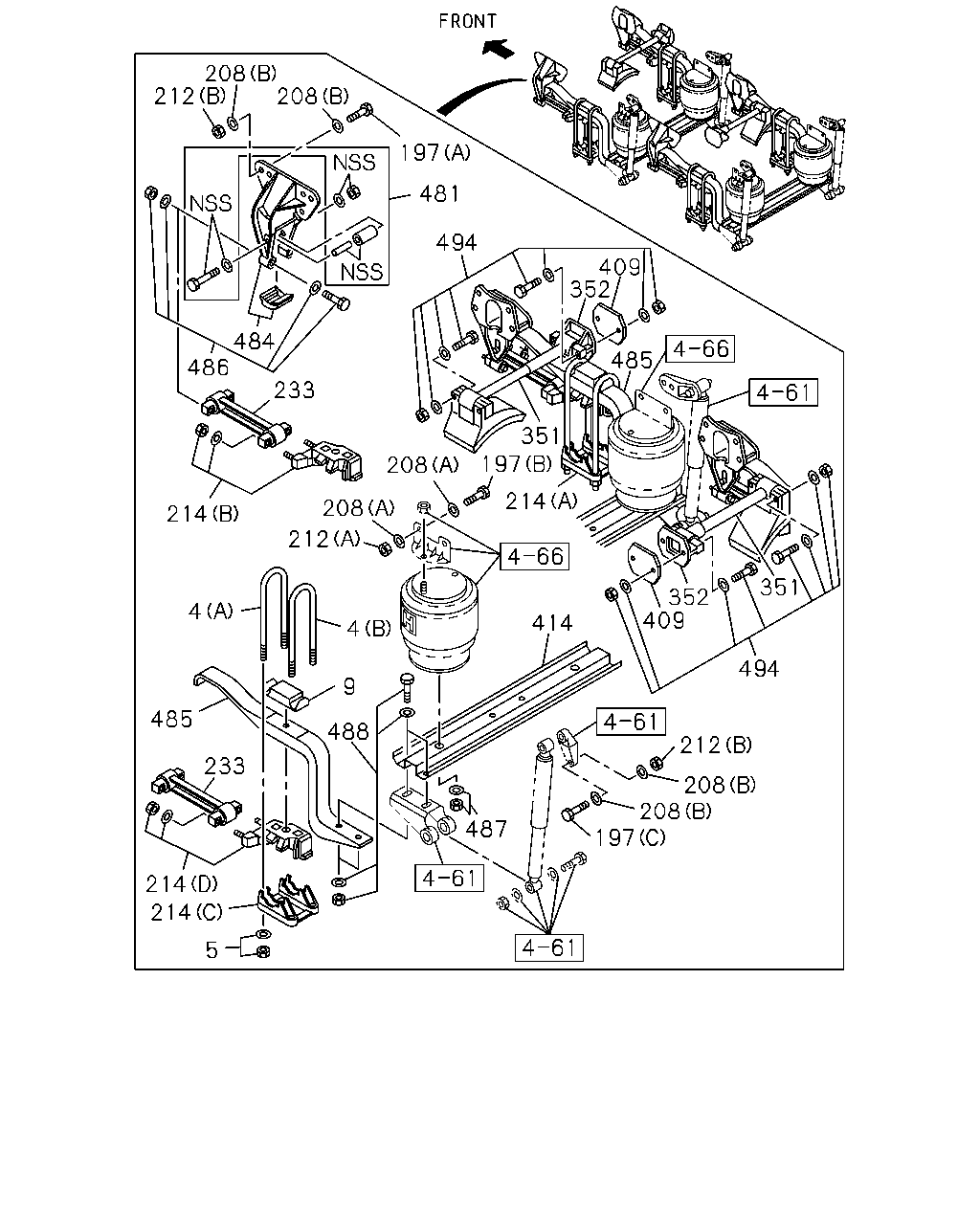

çizim 10113
208 212 208 197 481 494 409 352 484 486 485 233 351 197 208 214 208 214 212 351 352 409 4 414 4 494 9 485 488 212 233 208 208 197 487 214 214 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 02 1 0005- ● ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 02 1 0005- ● ●
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 0005-0011 ●
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 0012- ● ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 0005-0011 ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 0012- ● ●
5 NUT; U-BOLT,RR SPR 1-52179-039-0 01 1 0005- ● ●
5 NUT; U-BOLT,RR SPR 1-52179-039-0 02 1 0005-0011 ●
5 NUT; U-BOLT,RR SPR 1-52179-039-0 02 1 0012- ● ●
9 PAD; U BOLT,RR SPR 1-51372-073-0 02 1 0005- ● ●
9 PAD; U BOLT,RR SPR 1-51372-073-0 04 1 0005-0011 ●
9 PAD; U BOLT,RR SPR 1-51372-073-0 04 1 0012- ● ●
197 BOLT
(G) 		1-09000-770-0 04 1 0303- ● ●
197 BOLT
(H) 		1-09000-771-0 04 1 0303- ● ●
197 BOLT
(G) 		1-09000-770-0 08 1 0303- ● ●
197 BOLT
(H) 		1-09000-771-0 08 1 0303- ● ●
197 BOLT
(A) 		1-09000-709-0 12 1 0005-0302 ● ●
197 BOLT
(D) 		1-09000-767-0 02 1 0303- ● ●
197 BOLT
(B) 		1-09000-710-0 04 1 0005-0302 ● ●
197 BOLT
(E) 		1-09000-768-0 02 1 0303- ● ●
197 BOLT
(C) 		1-09000-712-0 04 1 0005-0302 ● ●
197 BOLT
(F) M20X65 		1-09000-769-0 12 1 0303- ● ●
197 BOLT
(A) 		1-09000-709-0 24 1 0005-0011 ●
197 BOLT
(A) 		1-09000-709-0 24 1 0012-0302 ● ●
197 BOLT
(D) 		1-09000-767-0 04 1 0303- ● ●
197 BOLT
(B) 		1-09000-710-0 08 1 0005-0011 ●
197 BOLT
(B) 		1-09000-710-0 08 1 0012-0302 ● ●
197 BOLT
(E) 		1-09000-768-0 04 1 0303- ● ●
197 BOLT
(C) 		1-09000-712-0 08 1 0005-0011 ●
197 BOLT
(C) 		1-09000-712-0 08 1 0012-0302 ● ●
197 BOLT
(F) M20X65 		1-09000-769-0 24 1 0303- ● ●
208 WASHER; LK
(A) 		1-09503-296-0 08 1 0005-0302 ● ●
208 WASHER; LK
(B) 		1-09503-297-0 32 1 0005-0302 ● ●
208 WASHER; LK
(A) 		1-09503-296-0 16 1 0005-0011 ●
208 WASHER; LK
(A) 		1-09503-296-0 16 1 0012-0302 ● ●
208 WASHER; LK
(B) 		1-09503-297-0 64 1 0005-0011 ●
208 WASHER; LK
(B) 		1-09503-297-0 64 1 0012-0302 ● ●
212 NUT
(A) 		1-09400-145-0 04 1 0005-0302 ● ●
212 NUT
(C) 		1-09000-160-0 08 1 0303- ● ●
212 NUT
(B) 		1-09400-146-0 16 1 0005-0302 ● ●
212 NUT
(D) M20 		1-09400-161-0 16 1 0303- ● ●
212 NUT
(A) 		1-09400-145-0 08 1 0005-0011 ●
212 NUT
(A) 		1-09400-145-0 08 1 0012-0302 ● ●
212 NUT
(C) 		1-09000-160-0 16 1 0303- ● ●
212 NUT
(B) 		1-09400-146-0 32 1 0005-0011 ●
212 NUT
(B) 		1-09400-146-0 32 1 0012-0302 ● ●
212 NUT
(D) M20 		1-09400-161-0 32 1 0303- ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0005-0011 ● ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0012-0102 ● ● ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0103-0201 ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0202- ● ● ● ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 0005-0011 ● ● ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 0012- ● ● ● ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 0005-0011 ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 0012- ● ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 0005-0011 ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 0012- ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0103-0201 ● ●
233 ROD ASM; TORQUE,RR SUSP
L=366 		1-51510-855-0 02 1 0005- ● ●
233 ROD ASM; TORQUE,RR SUSP
L=366 		1-51510-855-0 04 1 0005-0011 ●
233 ROD ASM; TORQUE,RR SUSP
L=366 		1-51510-855-0 04 1 0012- ● ●
351 ROD ASM; RADIUS 1-51510-866-0 01 1 0211-0302 ● ●
351 ROD ASM; RADIUS 1-51510-867-0 01 1 0303- ● ●
351 ROD ASM; RADIUS 1-51510-856-0 01 1 0005-0201 ● ●
351 ROD ASM; RADIUS 1-51510-866-0 01 1 0202-0212 ● ●
351 ROD ASM; RADIUS 1-51510-856-0 02 1 0005-0011 ●
351 ROD ASM; RADIUS 1-51510-856-0 02 1 0012-0201 ● ●
351 ROD ASM; RADIUS 1-51510-866-0 02 1 0202-0302 ● ●
351 ROD ASM; RADIUS 1-51510-867-0 02 1 0303- ● ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 01 1 0005- ● ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 0005-0011 ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 0012- ● ●
409 SPACER; RADIUS ROD
T=10 		1-52175-021-0 01 1 0005-0302 ● ●
409 SPACER; RADIUS ROD
T=10 		1-52175-020-0 01 1 0303- ● ●
409 SPACER; RADIUS ROD
T=10 		1-52175-020-0 02 1 0005-0011 ●
409 SPACER; RADIUS ROD
T=10 		1-52175-020-0 02 1 0012- ● ●
409 SPACER; RADIUS ROD
T=6 		1-52175-028-0 02 1 0202-0302 ● ●
414 BEAM; AIR SPR 1-52172-036-0 01 1 0005- ● ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 0005-0011 ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 0012- ● ●
481 ROLLER; REBOUND 1-53357-043-0 01 1 0005- ● ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 0005-0011 ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 0012- ● ●
484 BRACKET; REAR SPRING 1-53353-131-0 02 1 0005- ● ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 0005-0011 ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 0012- ● ●
485 SPRING; LEAF 1-51410-240-0 02 1 0005-0302 ● ●
485 SPRING; LEAF 1-51410-259-0 02 1 0303- ● ●
485 SPRING; LEAF 1-51410-240-0 04 1 0005-0011 ●
485 SPRING; LEAF 1-51410-240-0 04 1 0012- ● ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 01 1 0005- ● ●
486 FIXING KIT; TORQUE ROD 1-52000-162-0 01 1 0005-0011 ●
486 FIXING KIT; TORQUE ROD 1-52000-162-0 01 1 0012-0302 ● ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 02 1 0303- ● ●
487 FIXING KIT; AIR SPRING 1-52000-166-0 01 1 0005-0302 ● ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 0303- ● ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 0005-0011 ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 0012-0302 ● ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 0303- ● ●
488 FIXING KIT; BEAM 1-52000-167-0 01 1 0005-0302 ● ●
488 FIXING KIT; BEAM 1-52000-164-0 01 1 0303- ● ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 0005-0011 ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 0012- ● ●
494 FASTENER KIT 1-52170-113-0 01 1 0005-0302 ● ●
494 FASTENER KIT 1-52170-113-0 02 1 0005-0011 ●
494 FASTENER KIT 1-52170-113-0 02 1 0012-0302 ● ●

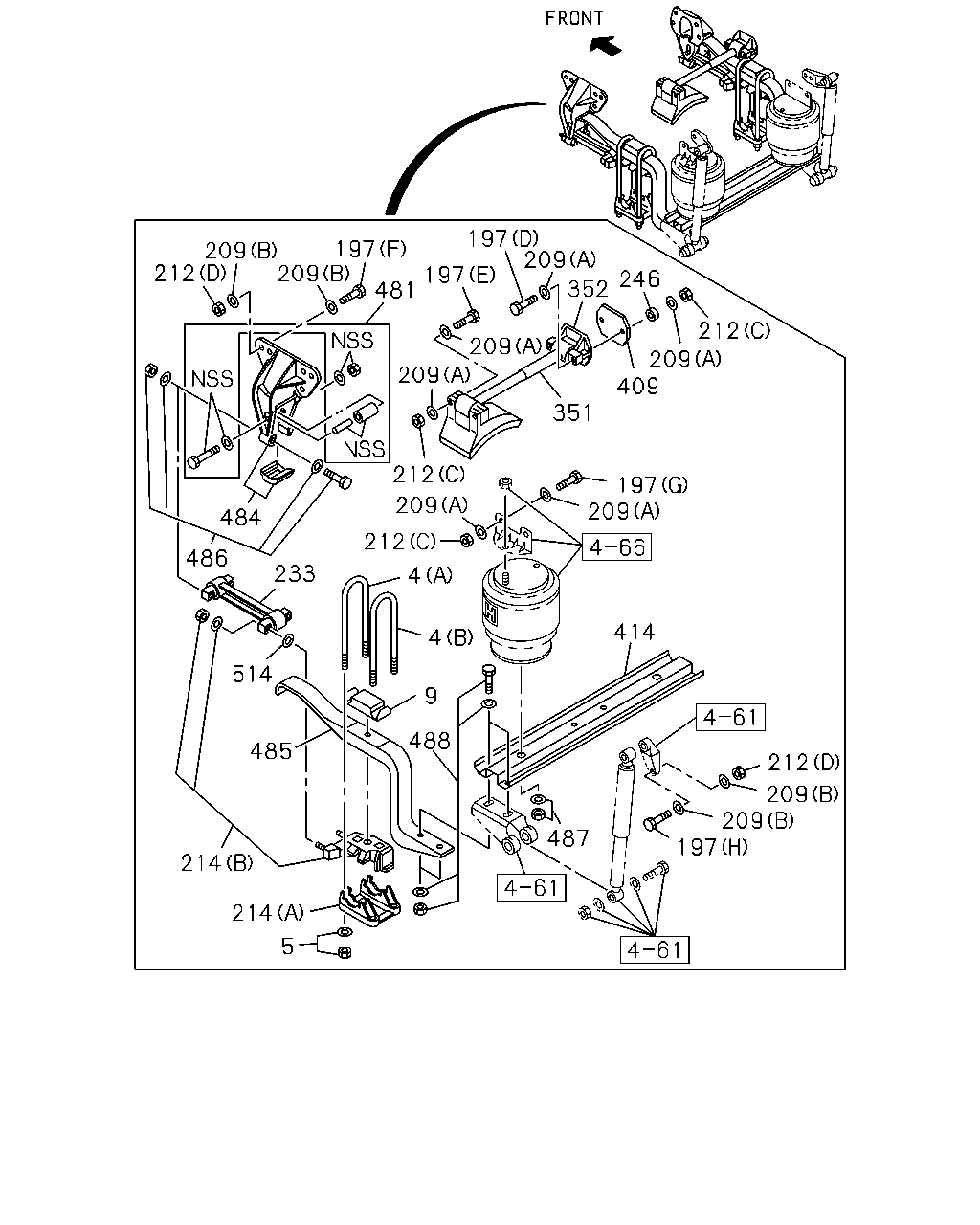

çizim 10156
197 209 209 197 212 209 197 246 352 481 212 209 209 409 209 351 212 197 209 209 484 212 486 233 4 414 4 514 9 488 485 212 209 209 197 487 214 214 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 02 1 0005- ● ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 02 1 0005- ● ●
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 0005-0011 ●
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 0012- ● ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 0005-0011 ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 0012- ● ●
5 NUT; U-BOLT,RR SPR 1-52179-039-0 01 1 0005- ● ●
5 NUT; U-BOLT,RR SPR 1-52179-039-0 02 1 0005-0011 ●
5 NUT; U-BOLT,RR SPR 1-52179-039-0 02 1 0012- ● ●
9 PAD; U BOLT,RR SPR 1-51372-073-0 02 1 0005- ● ●
9 PAD; U BOLT,RR SPR 1-51372-073-0 04 1 0005-0011 ●
9 PAD; U BOLT,RR SPR 1-51372-073-0 04 1 0012- ● ●
197 BOLT
(G) 		1-09000-770-0 04 1 0303- ● ●
197 BOLT
(H) 		1-09000-771-0 04 1 0303- ● ●
197 BOLT
(G) 		1-09000-770-0 08 1 0303- ● ●
197 BOLT
(H) 		1-09000-771-0 08 1 0303- ● ●
197 BOLT
(A) 		1-09000-709-0 12 1 0005-0302 ● ●
197 BOLT
(D) 		1-09000-767-0 02 1 0303- ● ●
197 BOLT
(B) 		1-09000-710-0 04 1 0005-0302 ● ●
197 BOLT
(E) 		1-09000-768-0 02 1 0303- ● ●
197 BOLT
(C) 		1-09000-712-0 04 1 0005-0302 ● ●
197 BOLT
(F) M20X65 		1-09000-769-0 12 1 0303- ● ●
197 BOLT
(A) 		1-09000-709-0 24 1 0005-0011 ●
197 BOLT
(A) 		1-09000-709-0 24 1 0012-0302 ● ●
197 BOLT
(D) 		1-09000-767-0 04 1 0303- ● ●
197 BOLT
(B) 		1-09000-710-0 08 1 0005-0011 ●
197 BOLT
(B) 		1-09000-710-0 08 1 0012-0302 ● ●
197 BOLT
(E) 		1-09000-768-0 04 1 0303- ● ●
197 BOLT
(C) 		1-09000-712-0 08 1 0005-0011 ●
197 BOLT
(C) 		1-09000-712-0 08 1 0012-0302 ● ●
197 BOLT
(F) M20X65 		1-09000-769-0 24 1 0303- ● ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 0303- ● ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 32 1 0303- ● ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 32 1 0303- ● ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 64 1 0303- ● ●
212 NUT
(A) 		1-09400-145-0 04 1 0005-0302 ● ●
212 NUT
(C) 		1-09000-160-0 08 1 0303- ● ●
212 NUT
(B) 		1-09400-146-0 16 1 0005-0302 ● ●
212 NUT
(D) M20 		1-09400-161-0 16 1 0303- ● ●
212 NUT
(A) 		1-09400-145-0 08 1 0005-0011 ●
212 NUT
(A) 		1-09400-145-0 08 1 0012-0302 ● ●
212 NUT
(C) 		1-09000-160-0 16 1 0303- ● ●
212 NUT
(B) 		1-09400-146-0 32 1 0005-0011 ●
212 NUT
(B) 		1-09400-146-0 32 1 0012-0302 ● ●
212 NUT
(D) M20 		1-09400-161-0 32 1 0303- ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0005-0011 ● ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0012-0102 ● ● ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0103-0201 ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0202- ● ● ● ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 0005-0011 ● ● ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 0012- ● ● ● ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 0005-0011 ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 0012- ● ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 0005-0011 ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 0012- ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0103-0201 ● ●
233 ROD ASM; TORQUE,RR SUSP
L=366 		1-51510-855-0 02 1 0005- ● ●
233 ROD ASM; TORQUE,RR SUSP
L=366 		1-51510-855-0 04 1 0005-0011 ●
233 ROD ASM; TORQUE,RR SUSP
L=366 		1-51510-855-0 04 1 0012- ● ●
246 WASHER; TORQUE ROD 8-97372-224-0 02 1 1101- ● ● ●
246 WASHER; TORQUE ROD 8-97372-224-0 04 1 1101- ●
351 ROD ASM; RADIUS 1-51510-866-0 01 1 0211-0302 ● ●
351 ROD ASM; RADIUS 1-51510-867-0 01 1 0303- ● ●
351 ROD ASM; RADIUS 1-51510-856-0 01 1 0005-0201 ● ●
351 ROD ASM; RADIUS 1-51510-866-0 01 1 0202-0212 ● ●
351 ROD ASM; RADIUS 1-51510-856-0 02 1 0005-0011 ●
351 ROD ASM; RADIUS 1-51510-856-0 02 1 0012-0201 ● ●
351 ROD ASM; RADIUS 1-51510-866-0 02 1 0202-0302 ● ●
351 ROD ASM; RADIUS 1-51510-867-0 02 1 0303- ● ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 01 1 0005- ● ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 0005-0011 ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 0012- ● ●
409 SPACER; RADIUS ROD
T=10 		1-52175-021-0 01 1 0005-0302 ● ●
409 SPACER; RADIUS ROD
T=10 		1-52175-020-0 01 1 0303- ● ●
409 SPACER; RADIUS ROD
T=10 		1-52175-020-0 02 1 0005-0011 ●
409 SPACER; RADIUS ROD
T=10 		1-52175-020-0 02 1 0012- ● ●
409 SPACER; RADIUS ROD
T=6 		1-52175-028-0 02 1 0202-0302 ● ●
414 BEAM; AIR SPR 1-52172-036-0 01 1 0005- ● ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 0005-0011 ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 0012- ● ●
481 ROLLER; REBOUND 1-53357-043-0 01 1 0005- ● ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 0005-0011 ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 0012- ● ●
484 BRACKET; REAR SPRING 1-53353-131-0 02 1 0005- ● ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 0005-0011 ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 0012- ● ●
485 SPRING; LEAF 1-51410-240-0 02 1 0005-0302 ● ●
485 SPRING; LEAF 1-51410-259-0 02 1 0303- ● ●
485 SPRING; LEAF 1-51410-240-0 04 1 0005-0011 ●
485 SPRING; LEAF 1-51410-240-0 04 1 0012- ● ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 01 1 0005- ● ●
486 FIXING KIT; TORQUE ROD 1-52000-162-0 01 1 0005-0011 ●
486 FIXING KIT; TORQUE ROD 1-52000-162-0 01 1 0012-0302 ● ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 02 1 0303- ● ●
487 FIXING KIT; AIR SPRING 1-52000-166-0 01 1 0005-0302 ● ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 0303- ● ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 0005-0011 ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 0012-0302 ● ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 0303- ● ●
488 FIXING KIT; BEAM 1-52000-167-0 01 1 0005-0302 ● ●
488 FIXING KIT; BEAM 1-52000-164-0 01 1 0303- ● ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 0005-0011 ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 0012- ● ●
514 SPACER; TORQUE ROD 1-09503-299-0 08 1 0303- ● ● ● ●

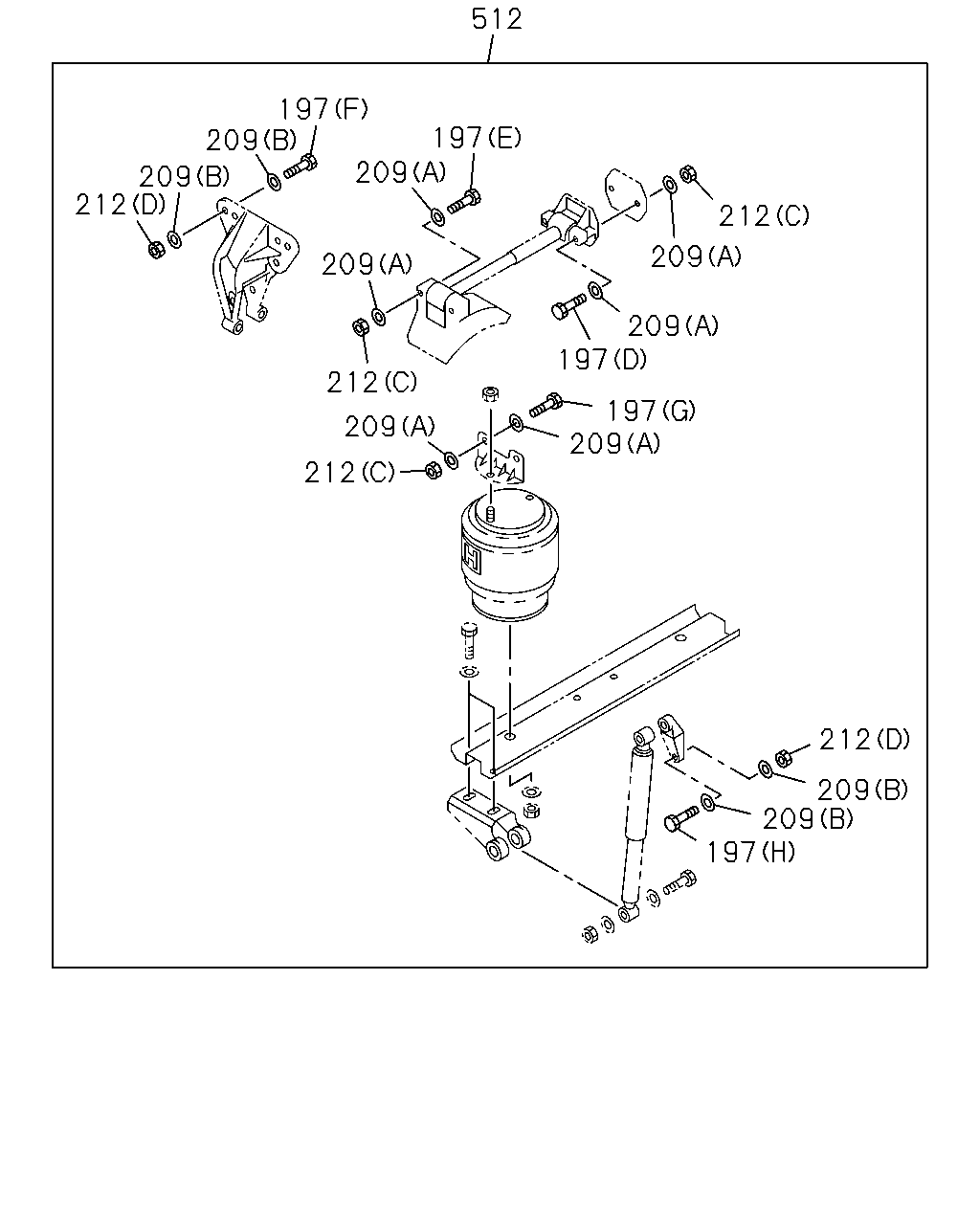

çizim 46069
512 197 209 197 209 209 212 212 209 209 209 197 212 197 209 209 212 212 209 209 197
BalonParca AdiParca NoAdetTipApplied Date A B C D
197 BOLT
(G) 		1-09000-770-0 04 1 0303- ● ●
197 BOLT
(H) 		1-09000-771-0 04 1 0303- ● ●
197 BOLT
(G) 		1-09000-770-0 08 1 0303- ● ●
197 BOLT
(H) 		1-09000-771-0 08 1 0303- ● ●
197 BOLT
(A) 		1-09000-709-0 12 1 0005-0302 ● ●
197 BOLT
(D) 		1-09000-767-0 02 1 0303- ● ●
197 BOLT
(B) 		1-09000-710-0 04 1 0005-0302 ● ●
197 BOLT
(E) 		1-09000-768-0 02 1 0303- ● ●
197 BOLT
(C) 		1-09000-712-0 04 1 0005-0302 ● ●
197 BOLT
(F) M20X65 		1-09000-769-0 12 1 0303- ● ●
197 BOLT
(A) 		1-09000-709-0 24 1 0005-0011 ●
197 BOLT
(A) 		1-09000-709-0 24 1 0012-0302 ● ●
197 BOLT
(D) 		1-09000-767-0 04 1 0303- ● ●
197 BOLT
(B) 		1-09000-710-0 08 1 0005-0011 ●
197 BOLT
(B) 		1-09000-710-0 08 1 0012-0302 ● ●
197 BOLT
(E) 		1-09000-768-0 04 1 0303- ● ●
197 BOLT
(C) 		1-09000-712-0 08 1 0005-0011 ●
197 BOLT
(C) 		1-09000-712-0 08 1 0012-0302 ● ●
197 BOLT
(F) M20X65 		1-09000-769-0 24 1 0303- ● ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 0303- ● ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 32 1 0303- ● ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 32 1 0303- ● ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 64 1 0303- ● ●
212 NUT
(A) 		1-09400-145-0 04 1 0005-0302 ● ●
212 NUT
(C) 		1-09000-160-0 08 1 0303- ● ●
212 NUT
(B) 		1-09400-146-0 16 1 0005-0302 ● ●
212 NUT
(D) M20 		1-09400-161-0 16 1 0303- ● ●
212 NUT
(A) 		1-09400-145-0 08 1 0005-0011 ●
212 NUT
(A) 		1-09400-145-0 08 1 0012-0302 ● ●
212 NUT
(C) 		1-09000-160-0 16 1 0303- ● ●
212 NUT
(B) 		1-09400-146-0 32 1 0005-0011 ●
212 NUT
(B) 		1-09400-146-0 32 1 0012-0302 ● ●
212 NUT
(D) M20 		1-09400-161-0 32 1 0303- ● ●
512 FIXING KIT; BRKT TO FRAME 1-52000-192-0 01 1 0303- ● ●
512 FIXING KIT; BRKT TO FRAME 1-52000-177-0 02 1 0005-0302 ● ●
512 FIXING KIT; BRKT TO FRAME 1-52000-192-0 02 1 0303- ● ●

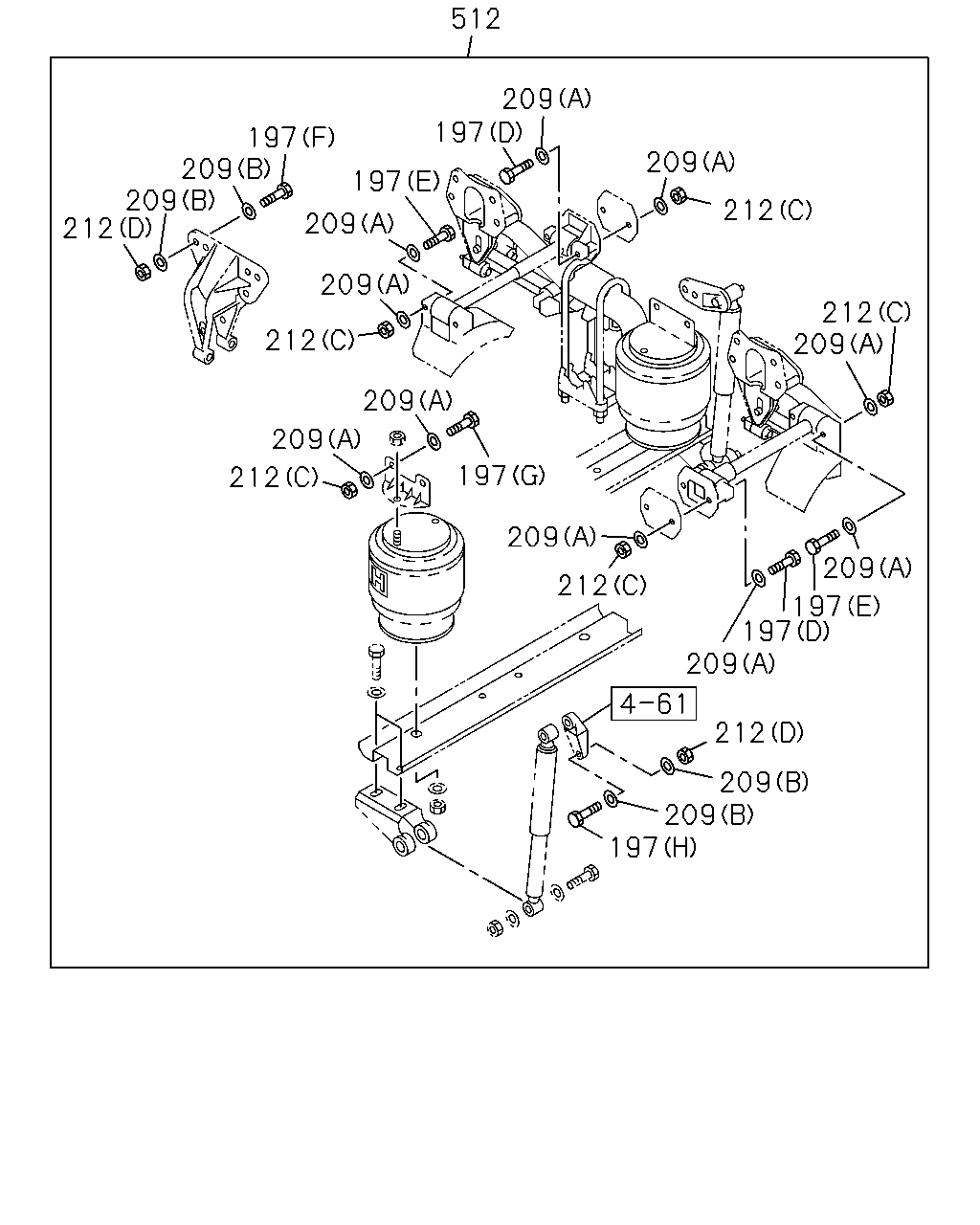

çizim 47032
512 209 197 197 209 209 212 197 212 209 209 212 209 212 209 209 197 212 209 209 212 197 197 209 212 209 209 197 209
BalonParca AdiParca NoAdetTipApplied Date A B C D
197 BOLT
(G) 		1-09000-770-0 04 1 0303- ● ●
197 BOLT
(H) 		1-09000-771-0 04 1 0303- ● ●
197 BOLT
(G) 		1-09000-770-0 08 1 0303- ● ●
197 BOLT
(H) 		1-09000-771-0 08 1 0303- ● ●
197 BOLT
(A) 		1-09000-709-0 12 1 0005-0302 ● ●
197 BOLT
(D) 		1-09000-767-0 02 1 0303- ● ●
197 BOLT
(B) 		1-09000-710-0 04 1 0005-0302 ● ●
197 BOLT
(E) 		1-09000-768-0 02 1 0303- ● ●
197 BOLT
(C) 		1-09000-712-0 04 1 0005-0302 ● ●
197 BOLT
(F) M20X65 		1-09000-769-0 12 1 0303- ● ●
197 BOLT
(A) 		1-09000-709-0 24 1 0005-0011 ●
197 BOLT
(A) 		1-09000-709-0 24 1 0012-0302 ● ●
197 BOLT
(D) 		1-09000-767-0 04 1 0303- ● ●
197 BOLT
(B) 		1-09000-710-0 08 1 0005-0011 ●
197 BOLT
(B) 		1-09000-710-0 08 1 0012-0302 ● ●
197 BOLT
(E) 		1-09000-768-0 04 1 0303- ● ●
197 BOLT
(C) 		1-09000-712-0 08 1 0005-0011 ●
197 BOLT
(C) 		1-09000-712-0 08 1 0012-0302 ● ●
197 BOLT
(F) M20X65 		1-09000-769-0 24 1 0303- ● ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 0303- ● ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 32 1 0303- ● ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 32 1 0303- ● ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 64 1 0303- ● ●
212 NUT
(A) 		1-09400-145-0 04 1 0005-0302 ● ●
212 NUT
(C) 		1-09000-160-0 08 1 0303- ● ●
212 NUT
(B) 		1-09400-146-0 16 1 0005-0302 ● ●
212 NUT
(D) M20 		1-09400-161-0 16 1 0303- ● ●
212 NUT
(A) 		1-09400-145-0 08 1 0005-0011 ●
212 NUT
(A) 		1-09400-145-0 08 1 0012-0302 ● ●
212 NUT
(C) 		1-09000-160-0 16 1 0303- ● ●
212 NUT
(B) 		1-09400-146-0 32 1 0005-0011 ●
212 NUT
(B) 		1-09400-146-0 32 1 0012-0302 ● ●
212 NUT
(D) M20 		1-09400-161-0 32 1 0303- ● ●
512 FIXING KIT; BRKT TO FRAME 1-52000-192-0 01 1 0303- ● ●
512 FIXING KIT; BRKT TO FRAME 1-52000-177-0 02 1 0005-0302 ● ●
512 FIXING KIT; BRKT TO FRAME 1-52000-192-0 02 1 0303- ● ●

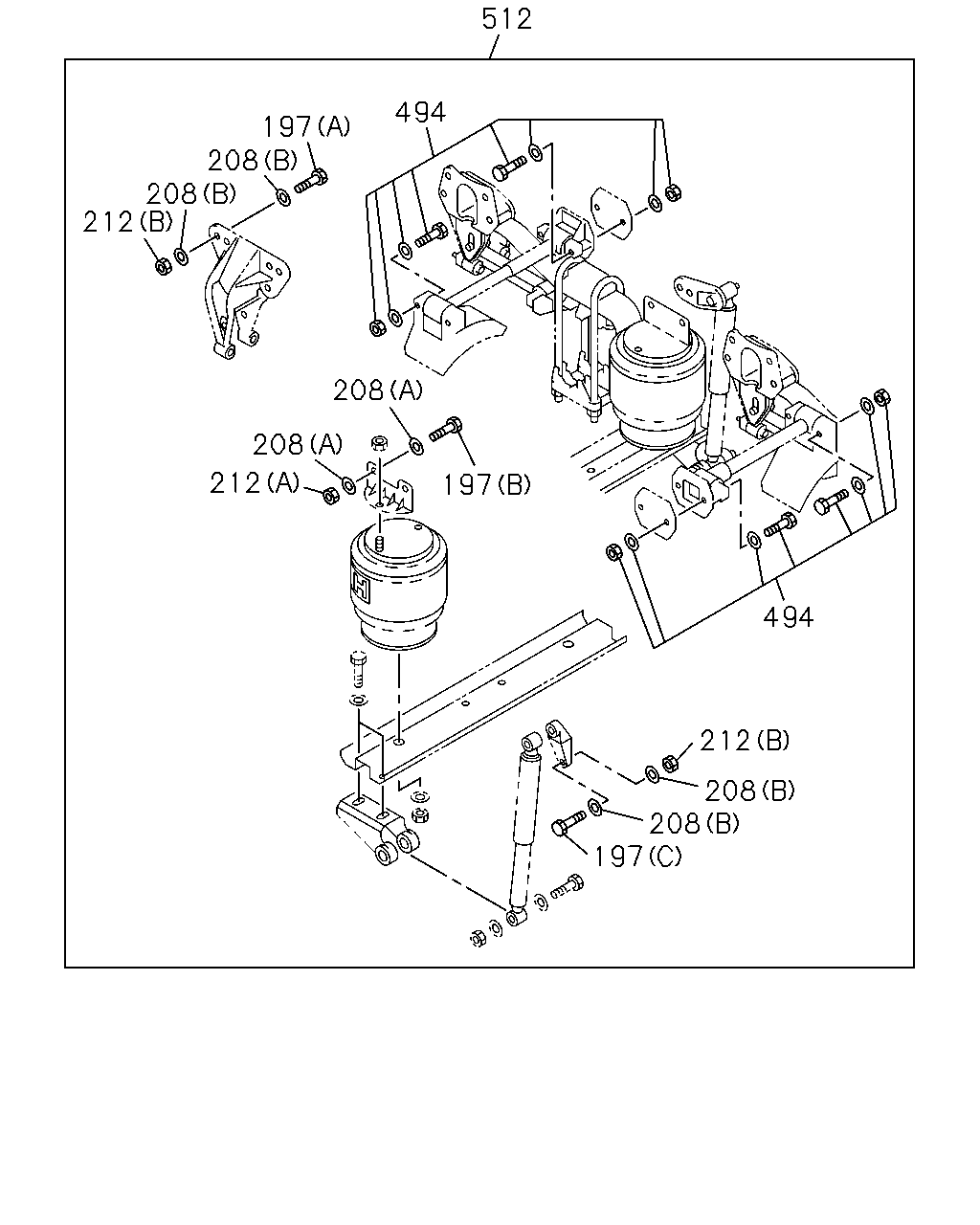

çizim 47107
512 494 197 208 208 212 208 208 212 197 494 212 208 208 197
BalonParca AdiParca NoAdetTipApplied Date A B C D
197 BOLT
(G) 		1-09000-770-0 04 1 0303- ● ●
197 BOLT
(H) 		1-09000-771-0 04 1 0303- ● ●
197 BOLT
(G) 		1-09000-770-0 08 1 0303- ● ●
197 BOLT
(H) 		1-09000-771-0 08 1 0303- ● ●
197 BOLT
(A) 		1-09000-709-0 12 1 0005-0302 ● ●
197 BOLT
(D) 		1-09000-767-0 02 1 0303- ● ●
197 BOLT
(B) 		1-09000-710-0 04 1 0005-0302 ● ●
197 BOLT
(E) 		1-09000-768-0 02 1 0303- ● ●
197 BOLT
(C) 		1-09000-712-0 04 1 0005-0302 ● ●
197 BOLT
(F) M20X65 		1-09000-769-0 12 1 0303- ● ●
197 BOLT
(A) 		1-09000-709-0 24 1 0005-0011 ●
197 BOLT
(A) 		1-09000-709-0 24 1 0012-0302 ● ●
197 BOLT
(D) 		1-09000-767-0 04 1 0303- ● ●
197 BOLT
(B) 		1-09000-710-0 08 1 0005-0011 ●
197 BOLT
(B) 		1-09000-710-0 08 1 0012-0302 ● ●
197 BOLT
(E) 		1-09000-768-0 04 1 0303- ● ●
197 BOLT
(C) 		1-09000-712-0 08 1 0005-0011 ●
197 BOLT
(C) 		1-09000-712-0 08 1 0012-0302 ● ●
197 BOLT
(F) M20X65 		1-09000-769-0 24 1 0303- ● ●
208 WASHER; LK
(A) 		1-09503-296-0 08 1 0005-0302 ● ●
208 WASHER; LK
(B) 		1-09503-297-0 32 1 0005-0302 ● ●
208 WASHER; LK
(A) 		1-09503-296-0 16 1 0005-0011 ●
208 WASHER; LK
(A) 		1-09503-296-0 16 1 0012-0302 ● ●
208 WASHER; LK
(B) 		1-09503-297-0 64 1 0005-0011 ●
208 WASHER; LK
(B) 		1-09503-297-0 64 1 0012-0302 ● ●
212 NUT
(A) 		1-09400-145-0 04 1 0005-0302 ● ●
212 NUT
(C) 		1-09000-160-0 08 1 0303- ● ●
212 NUT
(B) 		1-09400-146-0 16 1 0005-0302 ● ●
212 NUT
(D) M20 		1-09400-161-0 16 1 0303- ● ●
212 NUT
(A) 		1-09400-145-0 08 1 0005-0011 ●
212 NUT
(A) 		1-09400-145-0 08 1 0012-0302 ● ●
212 NUT
(C) 		1-09000-160-0 16 1 0303- ● ●
212 NUT
(B) 		1-09400-146-0 32 1 0005-0011 ●
212 NUT
(B) 		1-09400-146-0 32 1 0012-0302 ● ●
212 NUT
(D) M20 		1-09400-161-0 32 1 0303- ● ●
494 FASTENER KIT 1-52170-113-0 01 1 0005-0302 ● ●
494 FASTENER KIT 1-52170-113-0 02 1 0005-0011 ●
494 FASTENER KIT 1-52170-113-0 02 1 0012-0302 ● ●
512 FIXING KIT; BRKT TO FRAME 1-52000-192-0 01 1 0303- ● ●
512 FIXING KIT; BRKT TO FRAME 1-52000-177-0 02 1 0005-0302 ● ●
512 FIXING KIT; BRKT TO FRAME 1-52000-192-0 02 1 0303- ● ●

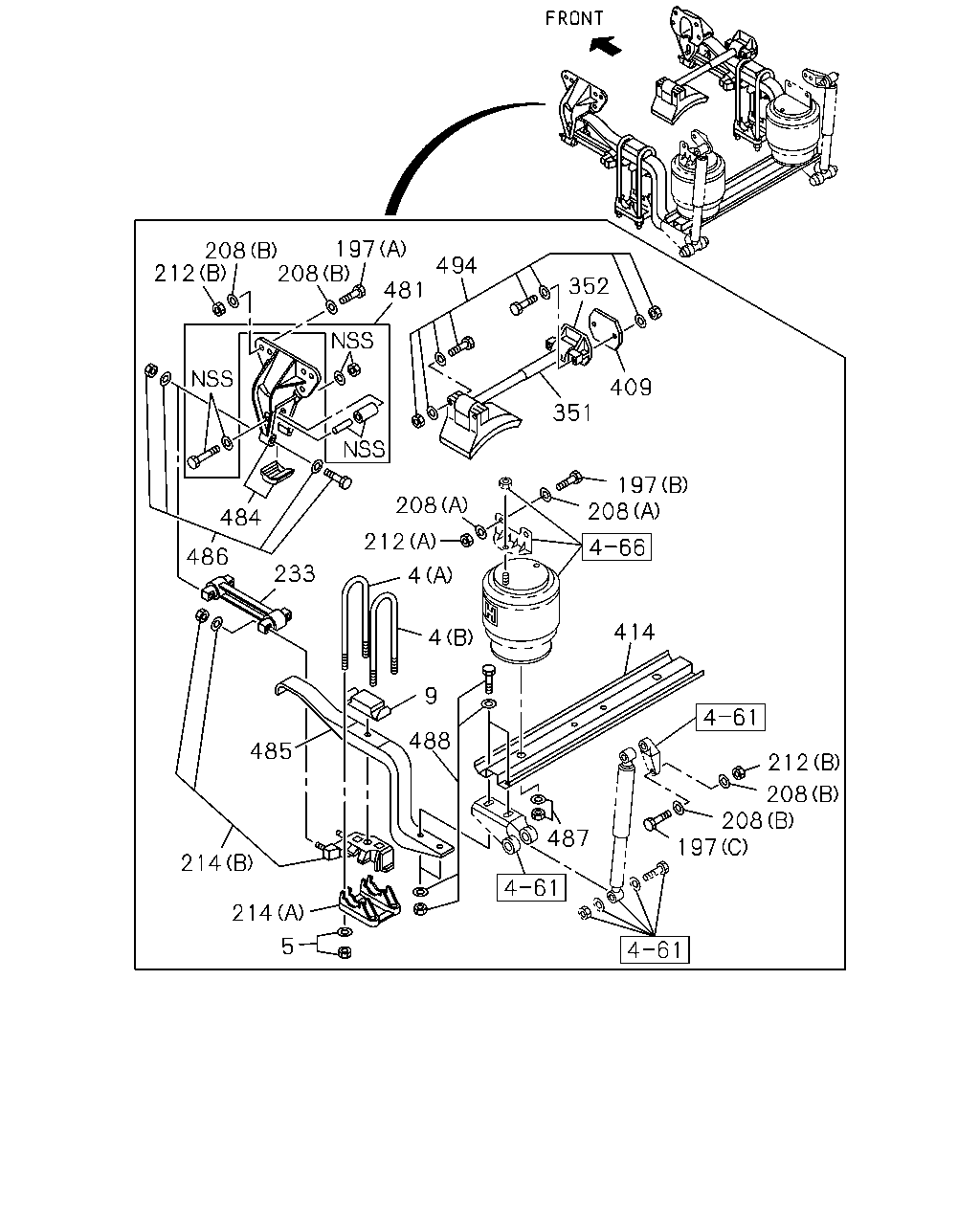

çizim 47211
208 197 212 208 494 352 481 409 351 197 208 208 484 212 486 233 4 414 4 9 488 485 212 208 208 197 487 214 214 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 02 1 0005- ● ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 02 1 0005- ● ●
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 0005-0011 ●
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 0012- ● ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 0005-0011 ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 0012- ● ●
5 NUT; U-BOLT,RR SPR 1-52179-039-0 01 1 0005- ● ●
5 NUT; U-BOLT,RR SPR 1-52179-039-0 02 1 0005-0011 ●
5 NUT; U-BOLT,RR SPR 1-52179-039-0 02 1 0012- ● ●
9 PAD; U BOLT,RR SPR 1-51372-073-0 02 1 0005- ● ●
9 PAD; U BOLT,RR SPR 1-51372-073-0 04 1 0005-0011 ●
9 PAD; U BOLT,RR SPR 1-51372-073-0 04 1 0012- ● ●
197 BOLT
(G) 		1-09000-770-0 04 1 0303- ● ●
197 BOLT
(H) 		1-09000-771-0 04 1 0303- ● ●
197 BOLT
(G) 		1-09000-770-0 08 1 0303- ● ●
197 BOLT
(H) 		1-09000-771-0 08 1 0303- ● ●
197 BOLT
(A) 		1-09000-709-0 12 1 0005-0302 ● ●
197 BOLT
(D) 		1-09000-767-0 02 1 0303- ● ●
197 BOLT
(B) 		1-09000-710-0 04 1 0005-0302 ● ●
197 BOLT
(E) 		1-09000-768-0 02 1 0303- ● ●
197 BOLT
(C) 		1-09000-712-0 04 1 0005-0302 ● ●
197 BOLT
(F) M20X65 		1-09000-769-0 12 1 0303- ● ●
197 BOLT
(A) 		1-09000-709-0 24 1 0005-0011 ●
197 BOLT
(A) 		1-09000-709-0 24 1 0012-0302 ● ●
197 BOLT
(D) 		1-09000-767-0 04 1 0303- ● ●
197 BOLT
(B) 		1-09000-710-0 08 1 0005-0011 ●
197 BOLT
(B) 		1-09000-710-0 08 1 0012-0302 ● ●
197 BOLT
(E) 		1-09000-768-0 04 1 0303- ● ●
197 BOLT
(C) 		1-09000-712-0 08 1 0005-0011 ●
197 BOLT
(C) 		1-09000-712-0 08 1 0012-0302 ● ●
197 BOLT
(F) M20X65 		1-09000-769-0 24 1 0303- ● ●
208 WASHER; LK
(A) 		1-09503-296-0 08 1 0005-0302 ● ●
208 WASHER; LK
(B) 		1-09503-297-0 32 1 0005-0302 ● ●
208 WASHER; LK
(A) 		1-09503-296-0 16 1 0005-0011 ●
208 WASHER; LK
(A) 		1-09503-296-0 16 1 0012-0302 ● ●
208 WASHER; LK
(B) 		1-09503-297-0 64 1 0005-0011 ●
208 WASHER; LK
(B) 		1-09503-297-0 64 1 0012-0302 ● ●
212 NUT
(A) 		1-09400-145-0 04 1 0005-0302 ● ●
212 NUT
(C) 		1-09000-160-0 08 1 0303- ● ●
212 NUT
(B) 		1-09400-146-0 16 1 0005-0302 ● ●
212 NUT
(D) M20 		1-09400-161-0 16 1 0303- ● ●
212 NUT
(A) 		1-09400-145-0 08 1 0005-0011 ●
212 NUT
(A) 		1-09400-145-0 08 1 0012-0302 ● ●
212 NUT
(C) 		1-09000-160-0 16 1 0303- ● ●
212 NUT
(B) 		1-09400-146-0 32 1 0005-0011 ●
212 NUT
(B) 		1-09400-146-0 32 1 0012-0302 ● ●
212 NUT
(D) M20 		1-09400-161-0 32 1 0303- ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0005-0011 ● ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0012-0102 ● ● ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0103-0201 ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0202- ● ● ● ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 0005-0011 ● ● ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 0012- ● ● ● ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 0005-0011 ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 0012- ● ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 0005-0011 ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 0012- ● ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0103-0201 ● ●
233 ROD ASM; TORQUE,RR SUSP
L=366 		1-51510-855-0 02 1 0005- ● ●
233 ROD ASM; TORQUE,RR SUSP
L=366 		1-51510-855-0 04 1 0005-0011 ●
233 ROD ASM; TORQUE,RR SUSP
L=366 		1-51510-855-0 04 1 0012- ● ●
351 ROD ASM; RADIUS 1-51510-866-0 01 1 0211-0302 ● ●
351 ROD ASM; RADIUS 1-51510-867-0 01 1 0303- ● ●
351 ROD ASM; RADIUS 1-51510-856-0 01 1 0005-0201 ● ●
351 ROD ASM; RADIUS 1-51510-866-0 01 1 0202-0212 ● ●
351 ROD ASM; RADIUS 1-51510-856-0 02 1 0005-0011 ●
351 ROD ASM; RADIUS 1-51510-856-0 02 1 0012-0201 ● ●
351 ROD ASM; RADIUS 1-51510-866-0 02 1 0202-0302 ● ●
351 ROD ASM; RADIUS 1-51510-867-0 02 1 0303- ● ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 01 1 0005- ● ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 0005-0011 ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 0012- ● ●
409 SPACER; RADIUS ROD
T=10 		1-52175-021-0 01 1 0005-0302 ● ●
409 SPACER; RADIUS ROD
T=10 		1-52175-020-0 01 1 0303- ● ●
409 SPACER; RADIUS ROD
T=10 		1-52175-020-0 02 1 0005-0011 ●
409 SPACER; RADIUS ROD
T=10 		1-52175-020-0 02 1 0012- ● ●
409 SPACER; RADIUS ROD
T=6 		1-52175-028-0 02 1 0202-0302 ● ●
414 BEAM; AIR SPR 1-52172-036-0 01 1 0005- ● ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 0005-0011 ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 0012- ● ●
481 ROLLER; REBOUND 1-53357-043-0 01 1 0005- ● ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 0005-0011 ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 0012- ● ●
484 BRACKET; REAR SPRING 1-53353-131-0 02 1 0005- ● ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 0005-0011 ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 0012- ● ●
485 SPRING; LEAF 1-51410-240-0 02 1 0005-0302 ● ●
485 SPRING; LEAF 1-51410-259-0 02 1 0303- ● ●
485 SPRING; LEAF 1-51410-240-0 04 1 0005-0011 ●
485 SPRING; LEAF 1-51410-240-0 04 1 0012- ● ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 01 1 0005- ● ●
486 FIXING KIT; TORQUE ROD 1-52000-162-0 01 1 0005-0011 ●
486 FIXING KIT; TORQUE ROD 1-52000-162-0 01 1 0012-0302 ● ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 02 1 0303- ● ●
487 FIXING KIT; AIR SPRING 1-52000-166-0 01 1 0005-0302 ● ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 0303- ● ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 0005-0011 ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 0012-0302 ● ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 0303- ● ●
488 FIXING KIT; BEAM 1-52000-167-0 01 1 0005-0302 ● ●
488 FIXING KIT; BEAM 1-52000-164-0 01 1 0303- ● ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 0005-0011 ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 0012- ● ●
494 FASTENER KIT 1-52170-113-0 01 1 0005-0302 ● ●
494 FASTENER KIT 1-52170-113-0 02 1 0005-0011 ●
494 FASTENER KIT 1-52170-113-0 02 1 0012-0302 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
