◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51382 - NHR(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#80035) — 86 parça

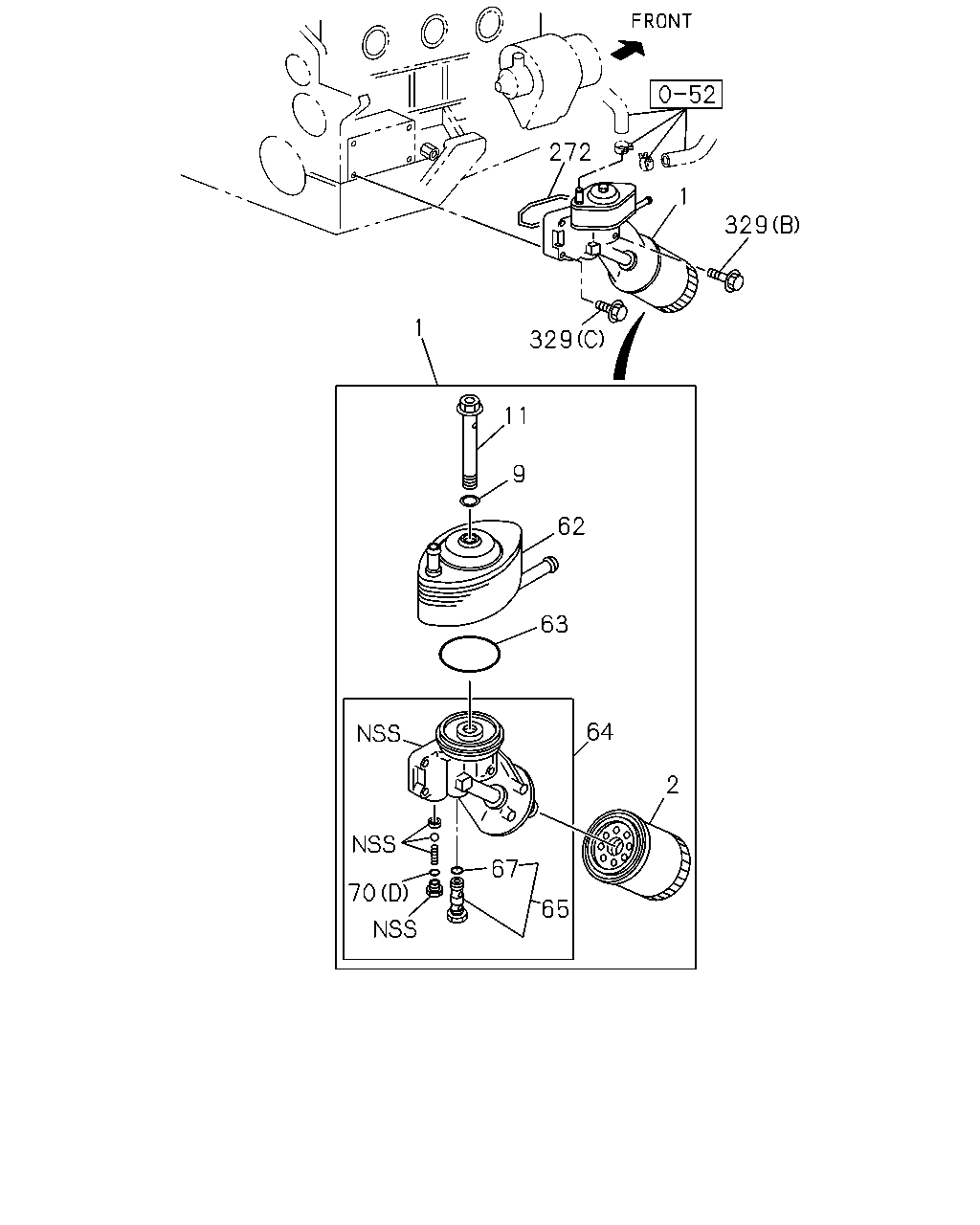

çizim 64157
272 1 329 1 329 11 9 62 63 64 2 67 70 65
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.540 FILTER & COOLER ASM; OIL 8-97224-298-2 01 1 0607- ●
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> 		8-94327-272-1 01 1 0811- ●
2 01.836 ELEMENT; OIL FILTER 8-97329-911-0 01 1 0607- ●
2 01.836 ELEMENT; OIL FILTER
OIL COOLER<KC4> 		8-97049-708-0 01 1 0811- ●
2 01.836 ELEMENT; OIL FILTER
IDN 		8-97049-708-1 01 1 0211-0311 ●
2 01.836 ELEMENT; OIL FILTER
IDN 		8-97957-675-1 01 1 0312-0810 ●
2 01.836 ELEMENT; OIL FILTER
EXC. OIL COOLER<KC4> IDN 		8-97957-675-1 01 1 0811- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-021-0 01 1 0607- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-009-0 01 1 0211-0311 ●
2 01.836 ELEMENT; OIL FILTER
OIL COOLER<KC4> BEST VALUE PARTS 		5-87610-009-0 01 1 0811- ●
9 01.840 GASKET; CENTER BOLT 8-97047-000-0 01 1 0607- ●
11 01.840 BOLT; CENTER 8-97144-713-0 01 1 0607- ●
62 01.540 COOLER ASM; OIL 8-97226-391-0 01 1 0607- ●
62 01.540 COOLER ASM; OIL
OIL COOLER<KC4> 		8-94401-680-0 01 1 0811- ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 0607-0810 ●
63 01.550 GASKET; COOLER TO BRKT
OIL COOLER<KC4> 		8-94383-720-0 01 1 0811- ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 0811- ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97166-497-2 01 1 0607- ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> 		8-97081-756-0 01 1 0811- ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 0607- ●
65 01.540 VALVE; OIL COOLER
OIL COOLER<KC4> 01.837 		8-94167-882-0 01 1 0811- ●
67 01.550 GASKET; VLV
01.837 		9-09920-975-0 01 1 0607- ●
70 01.844 GASKET; PLUG,OIL FILTER
(D) 		9-09921-193-0 01 1 0607- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (A) ID=13.6 		8-94167-884-0 01 1 0811- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (B) ID=8.8 		8-94167-885-0 01 1 0811- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (C) ID=6.8 		8-94167-886-0 01 1 0811- ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-0 01 1 0211-0606 ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-1 01 1 0607-0706 ● ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 		8-98087-965-0 01 1 0707- ● ●
329 01.840 BOLT; OIL FILTER
04.686 (B) M8X60 FLANGE 		0-28050-860-0 02 1 0607- ●
329 01.840 BOLT; OIL FILTER
00.004 (C) M8X32 FLANGE 		0-28080-832-0 02 1 0607- ●
329 01.840 BOLT; OIL FILTER
01.531 (A) M8X25 FLANGE 		0-28080-825-0 04 1 0211-0512 ●
329 01.840 BOLT; OIL FILTER
03.275 (A) M8X25 FLANGE 		0-28050-825-0 04 1 0601- ●

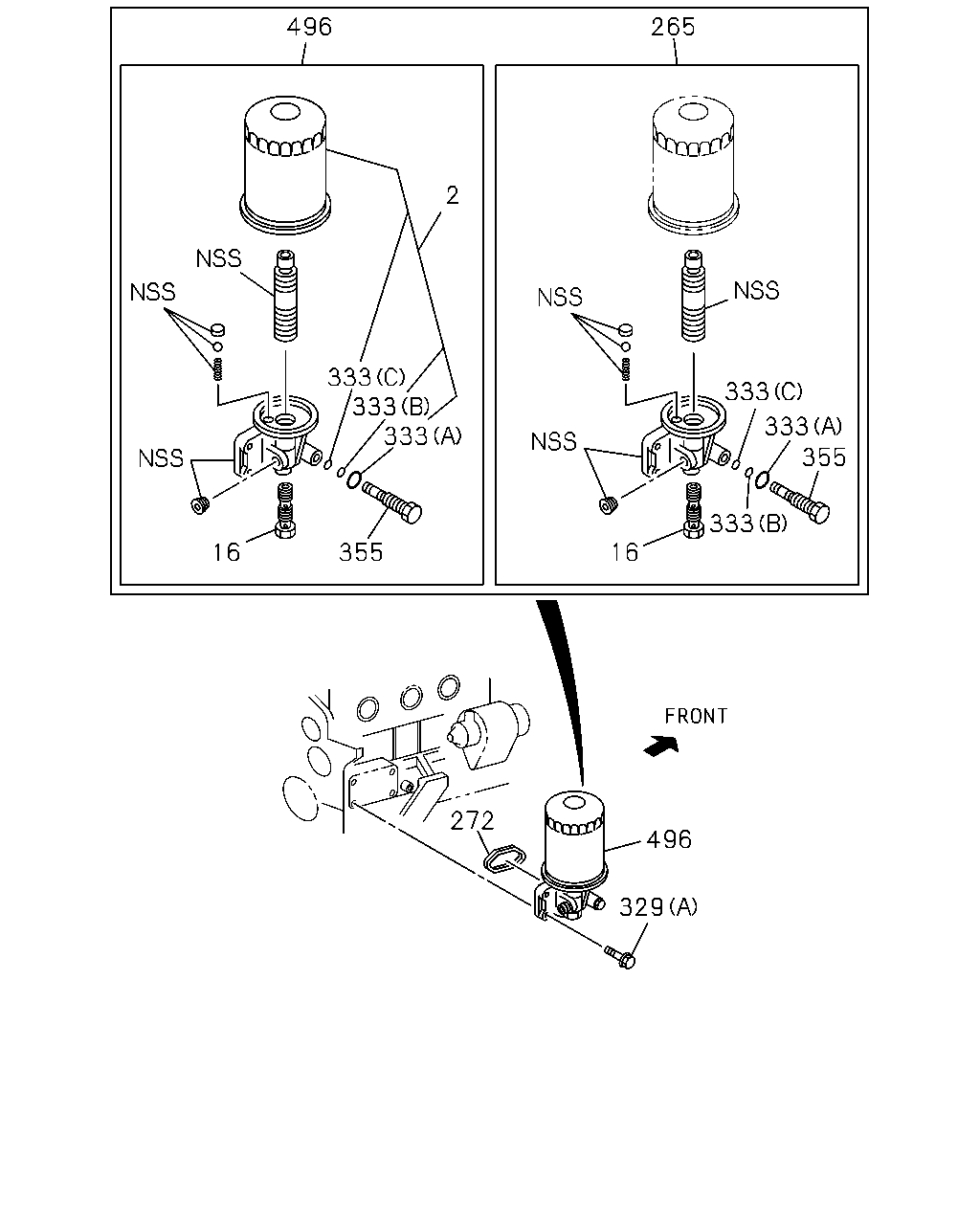

çizim 64376
496 265 2 333 333 333 333 333 355 333 16 355 16 272 496 329
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.836 ELEMENT; OIL FILTER 8-97329-911-0 01 1 0607- ●
2 01.836 ELEMENT; OIL FILTER
OIL COOLER<KC4> 		8-97049-708-0 01 1 0811- ●
2 01.836 ELEMENT; OIL FILTER
IDN 		8-97049-708-1 01 1 0211-0311 ●
2 01.836 ELEMENT; OIL FILTER
IDN 		8-97957-675-1 01 1 0312-0810 ●
2 01.836 ELEMENT; OIL FILTER
EXC. OIL COOLER<KC4> IDN 		8-97957-675-1 01 1 0811- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-021-0 01 1 0607- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-009-0 01 1 0211-0311 ●
2 01.836 ELEMENT; OIL FILTER
OIL COOLER<KC4> BEST VALUE PARTS 		5-87610-009-0 01 1 0811- ●
16 01.540 VALVE ASM; RELIEF
01.837 		8-94167-882-0 01 1 0211-0311 ●
265 01.837 BODY; OIL FILTER 8-97129-937-1 01 1 0305-0311 ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-0 01 1 0211-0606 ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-1 01 1 0607-0706 ● ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 		8-98087-965-0 01 1 0707- ● ●
329 01.840 BOLT; OIL FILTER
04.686 (B) M8X60 FLANGE 		0-28050-860-0 02 1 0607- ●
329 01.840 BOLT; OIL FILTER
00.004 (C) M8X32 FLANGE 		0-28080-832-0 02 1 0607- ●
329 01.840 BOLT; OIL FILTER
01.531 (A) M8X25 FLANGE 		0-28080-825-0 04 1 0211-0512 ●
329 01.840 BOLT; OIL FILTER
03.275 (A) M8X25 FLANGE 		0-28050-825-0 04 1 0601- ●
333 01.844 GASKET; OIL FILTER
(A) ID=13.6 		8-94167-884-0 01 1 0211-0311 ●
333 01.844 GASKET; OIL FILTER
(B) ID=8.8 		8-94167-885-0 01 1 0211-0311 ●
333 01.844 GASKET; OIL FILTER
(C) ID=6.8 		8-94167-886-0 01 1 0211-0311 ●
355 01.837 PLUG; OIL PRESS 8-94167-883-0 01 1 0211-0311 ●
496 01.835 FILTER ASM; OIL 8-94462-137-2 01 1 0211-0311 ●

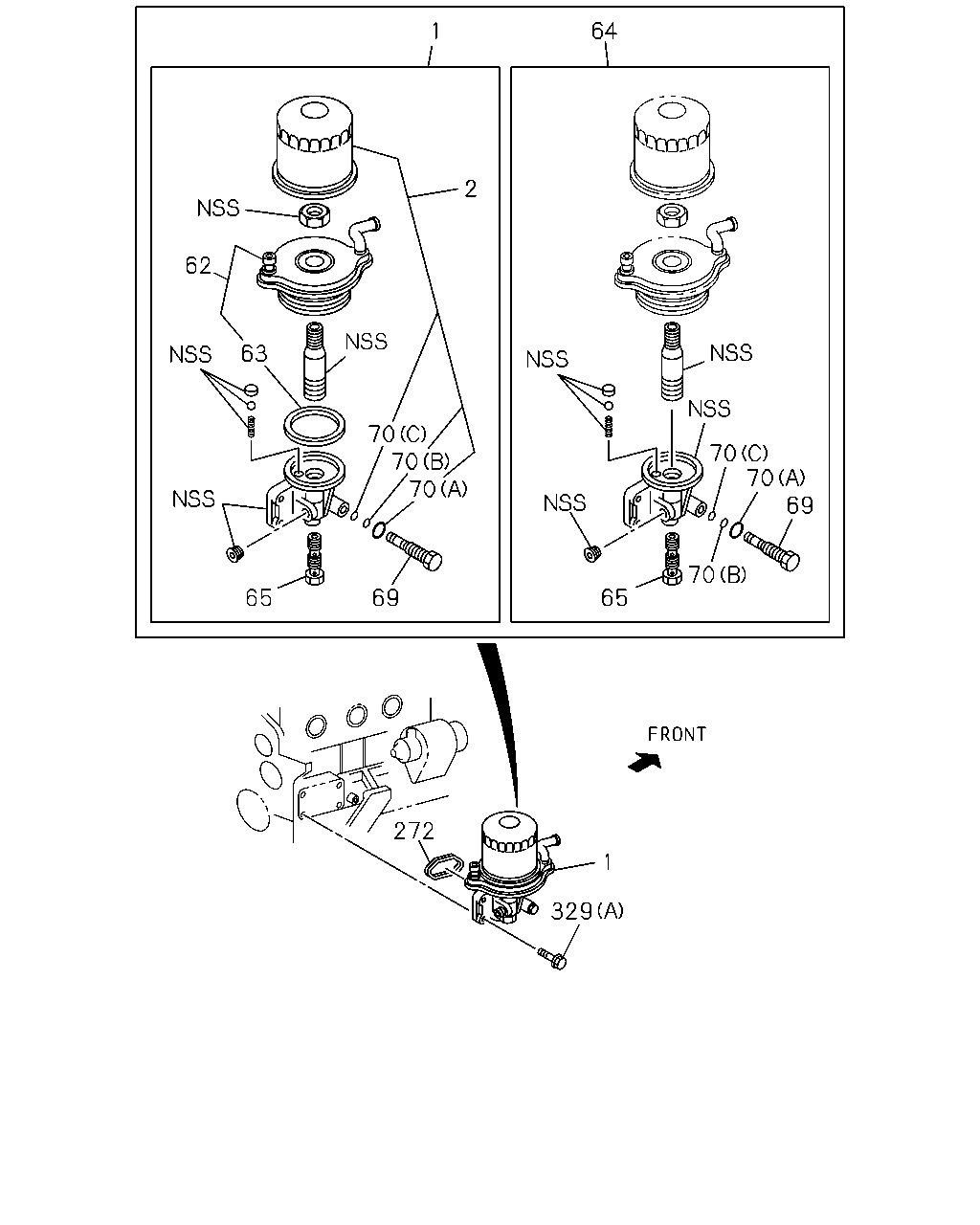

çizim 64414
64 1 2 62 63 70 70 70 70 70 69 70 65 69 65 272 1 329
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.540 FILTER & COOLER ASM; OIL 8-97224-298-2 01 1 0607- ●
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> 		8-94327-272-1 01 1 0811- ●
2 01.836 ELEMENT; OIL FILTER 8-97329-911-0 01 1 0607- ●
2 01.836 ELEMENT; OIL FILTER
OIL COOLER<KC4> 		8-97049-708-0 01 1 0811- ●
2 01.836 ELEMENT; OIL FILTER
IDN 		8-97049-708-1 01 1 0211-0311 ●
2 01.836 ELEMENT; OIL FILTER
IDN 		8-97957-675-1 01 1 0312-0810 ●
2 01.836 ELEMENT; OIL FILTER
EXC. OIL COOLER<KC4> IDN 		8-97957-675-1 01 1 0811- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-021-0 01 1 0607- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-009-0 01 1 0211-0311 ●
2 01.836 ELEMENT; OIL FILTER
OIL COOLER<KC4> BEST VALUE PARTS 		5-87610-009-0 01 1 0811- ●
62 01.540 COOLER ASM; OIL 8-97226-391-0 01 1 0607- ●
62 01.540 COOLER ASM; OIL
OIL COOLER<KC4> 		8-94401-680-0 01 1 0811- ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 0607-0810 ●
63 01.550 GASKET; COOLER TO BRKT
OIL COOLER<KC4> 		8-94383-720-0 01 1 0811- ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 0811- ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97166-497-2 01 1 0607- ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> 		8-97081-756-0 01 1 0811- ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 0607- ●
65 01.540 VALVE; OIL COOLER
OIL COOLER<KC4> 01.837 		8-94167-882-0 01 1 0811- ●
69 01.837 PLUG; BODY,OIL FILTER
OIL COOLER<KC4> 		8-94167-883-0 01 1 0811- ●
70 01.844 GASKET; PLUG,OIL FILTER
(D) 		9-09921-193-0 01 1 0607- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (A) ID=13.6 		8-94167-884-0 01 1 0811- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (B) ID=8.8 		8-94167-885-0 01 1 0811- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (C) ID=6.8 		8-94167-886-0 01 1 0811- ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-0 01 1 0211-0606 ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-1 01 1 0607-0706 ● ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 		8-98087-965-0 01 1 0707- ● ●
329 01.840 BOLT; OIL FILTER
04.686 (B) M8X60 FLANGE 		0-28050-860-0 02 1 0607- ●
329 01.840 BOLT; OIL FILTER
00.004 (C) M8X32 FLANGE 		0-28080-832-0 02 1 0607- ●
329 01.840 BOLT; OIL FILTER
01.531 (A) M8X25 FLANGE 		0-28080-825-0 04 1 0211-0512 ●
329 01.840 BOLT; OIL FILTER
03.275 (A) M8X25 FLANGE 		0-28050-825-0 04 1 0601- ●
