Sayfa 0-35 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51382 - NHR(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶

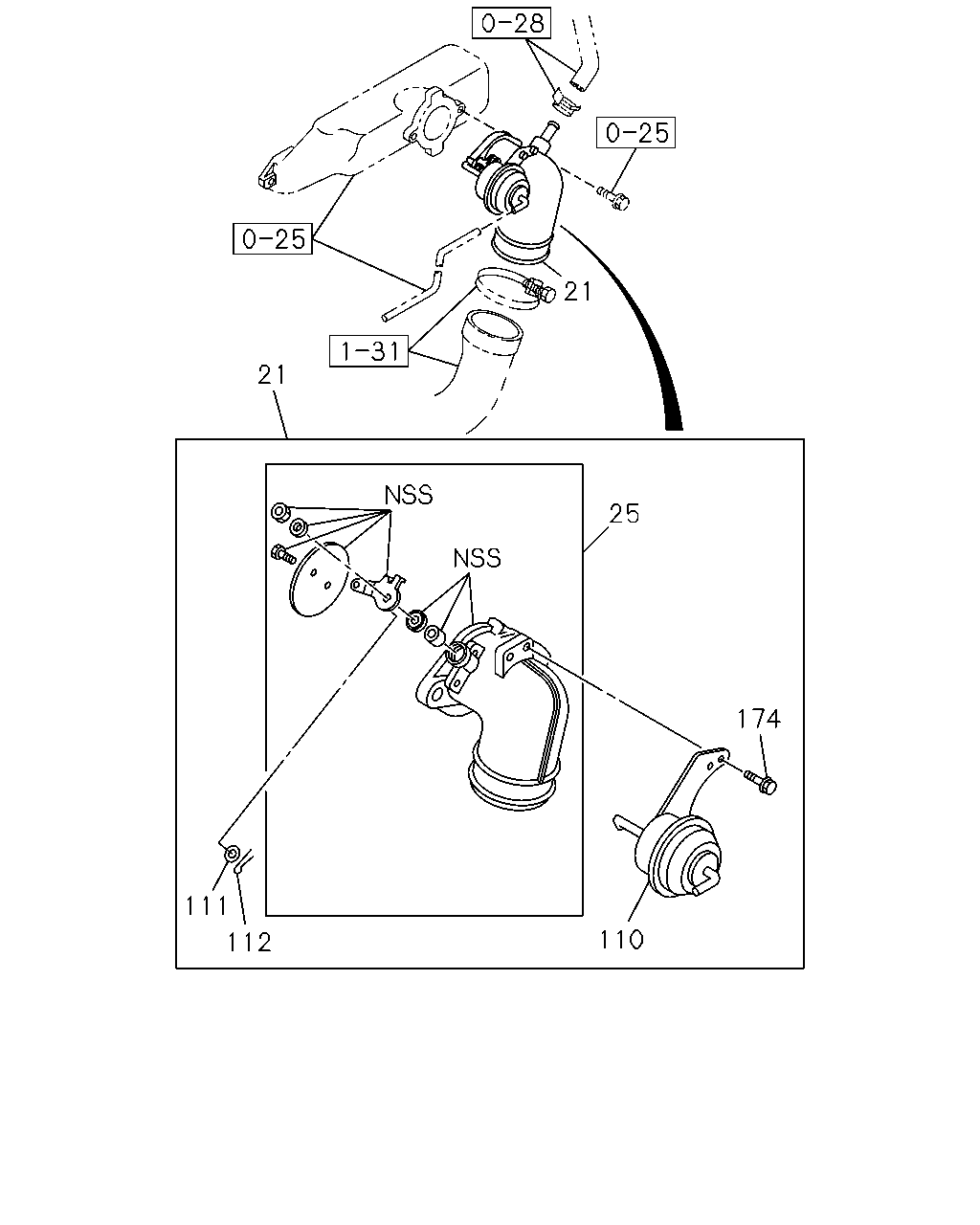

0-35 — ENGINE CONTROL VALVE AND LEVER (#80029) — 44 parça

21 21 25 174 111 110 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-1	01	1	0502-	●
21	03.440 VALVE ASM; THROTTLE	8-97309-924-3	01	1	0607-		●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> 03.265	8-94143-586-1	01	1	0211-0501	●	●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-1	01	1	0502-	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	0502-	●
25	03.440 BODY ASM; THROTTLE	8-97317-383-2	01	1	0607-		●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	0502-	●
110	03.440 CHAMBER ASM; DIAPH	8-97317-385-0	01	1	0607-		●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	0211-0501	●	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	0502-	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	0211-0501	●	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	0502-0606	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	0607-	●
111	03.440 WASHER; SPLIT PIN	8-94467-828-0	01	1	0607-		●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	0211-0501	●	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	0502-0606	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	0607-	●
112	03.440 PIN; SPLIT,LEVER	9-08112-010-0	01	1	0607-		●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501	●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0606	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0607-	●
174	03.440 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0607-		●

21 21 25 174 112 111 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-1	01	1	0502-	●
21	03.440 VALVE ASM; THROTTLE	8-97309-924-3	01	1	0607-		●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> 03.265	8-94143-586-1	01	1	0211-0501	●	●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 03.265	8-94143-586-1	01	1	0502-	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	0502-	●
25	03.440 BODY ASM; THROTTLE	8-97317-383-2	01	1	0607-		●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	0502-	●
110	03.440 CHAMBER ASM; DIAPH	8-97317-385-0	01	1	0607-		●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	0211-0501	●	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97104-169-0	01	1	0502-	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	0211-0501	●	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	0502-0606	●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8>	8-94467-828-0	01	1	0607-	●
111	03.440 WASHER; SPLIT PIN	8-94467-828-0	01	1	0607-		●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	0211-0501	●	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	0502-0606	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8>	9-08112-010-0	01	1	0607-	●
112	03.440 PIN; SPLIT,LEVER	9-08112-010-0	01	1	0607-		●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501	●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0606	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0607-	●
174	03.440 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0607-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
