◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51382 - NHR(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#80028) — 23 parça

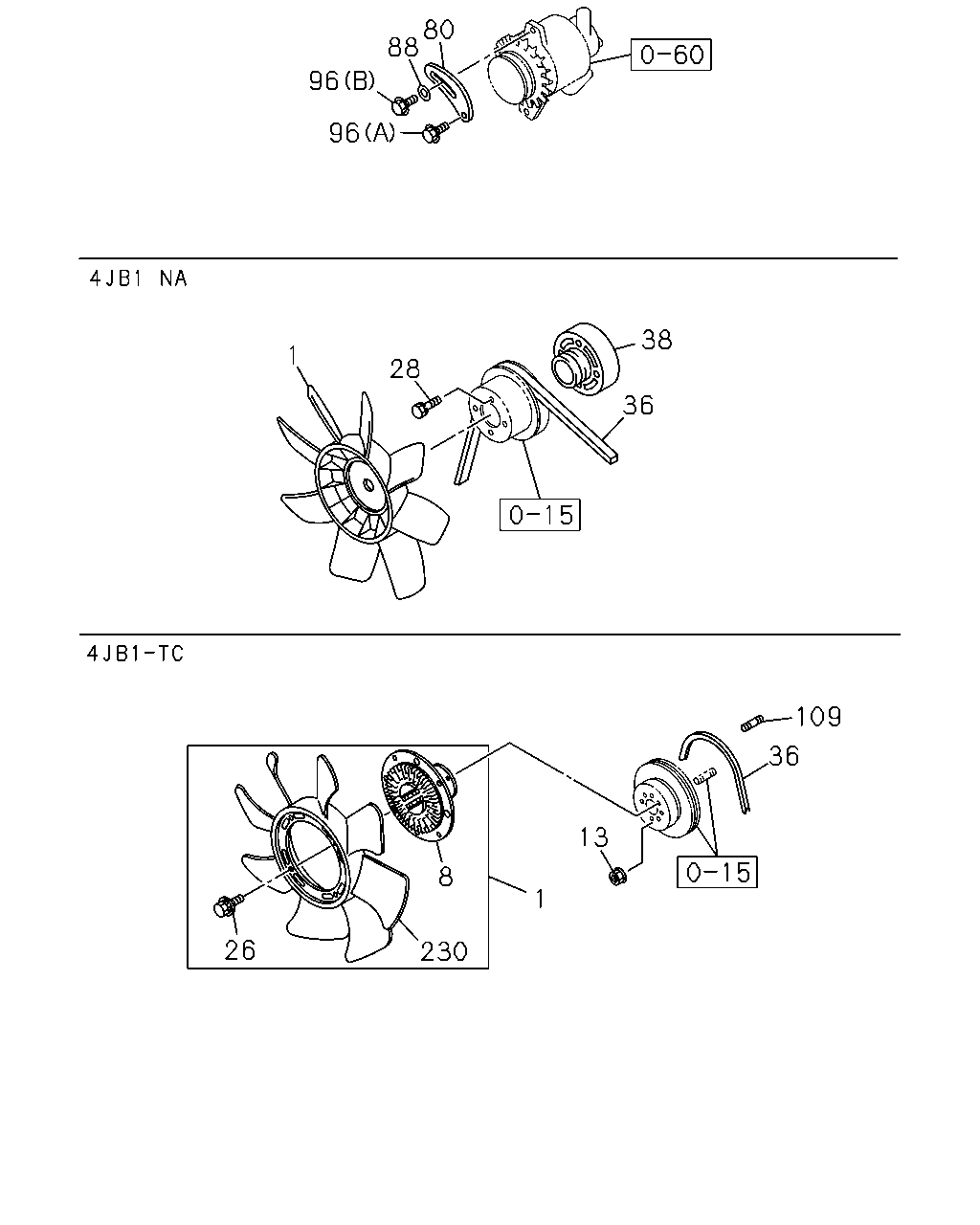

çizim 61075
80 88 96 96 38 1 28 36 109 36 13 8 1 26 230
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.064 FAN; COOLING
OD=410 		8-97129-769-2 01 1 0607- ●
1 01.064 FAN; COOLING
OD=390 		5-13660-285-0 01 1 0211- ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 0607- ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE IDN 		5-09440-004-0 04 1 0607- ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0607- ●
28 01.062 BOLT; COOLING FAN
M6X45 W/LK WASHER 		0-50040-645-0 04 1 0211-0909 ●
28 01.062 BOLT; COOLING FAN
M6X45 W/LK WASHER 		0-50540-645-0 04 1 0910- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0211-0606 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0607- ● ●
38 01.062 SPACER; FAN
01.064 		9-13642-078-0 01 1 0211- ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0211-0606 ●
80 02.317 PLATE; ADJ 8-97080-556-2 01 1 0607- ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 0211-0605 ●
88 02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22 IDN 		0-91614-708-0 01 1 0606-0606 ●
88 02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22 IDN 		0-91614-708-0 01 1 0607- ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 0211-0512 ●
96 02.317 BOLT; ADJ PLATE
09.173 (A) M8X45 FLANGE 		0-28050-845-0 01 1 0601-0606 ●
96 02.317 BOLT; ADJ PLATE
09.173 (A) M8X45 FLANGE 		0-28050-845-0 01 1 0607- ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0211-0512 ●
96 02.317 BOLT; ADJ PLATE
09.008 (B) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0601-0606 ●
96 02.317 BOLT; ADJ PLATE
09.008 (B) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0607- ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0607- ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-1 01 1 0607- ●
