Isuzu WW
▶
TRUCKS
▶
NHR
▶
51382 - NHR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶

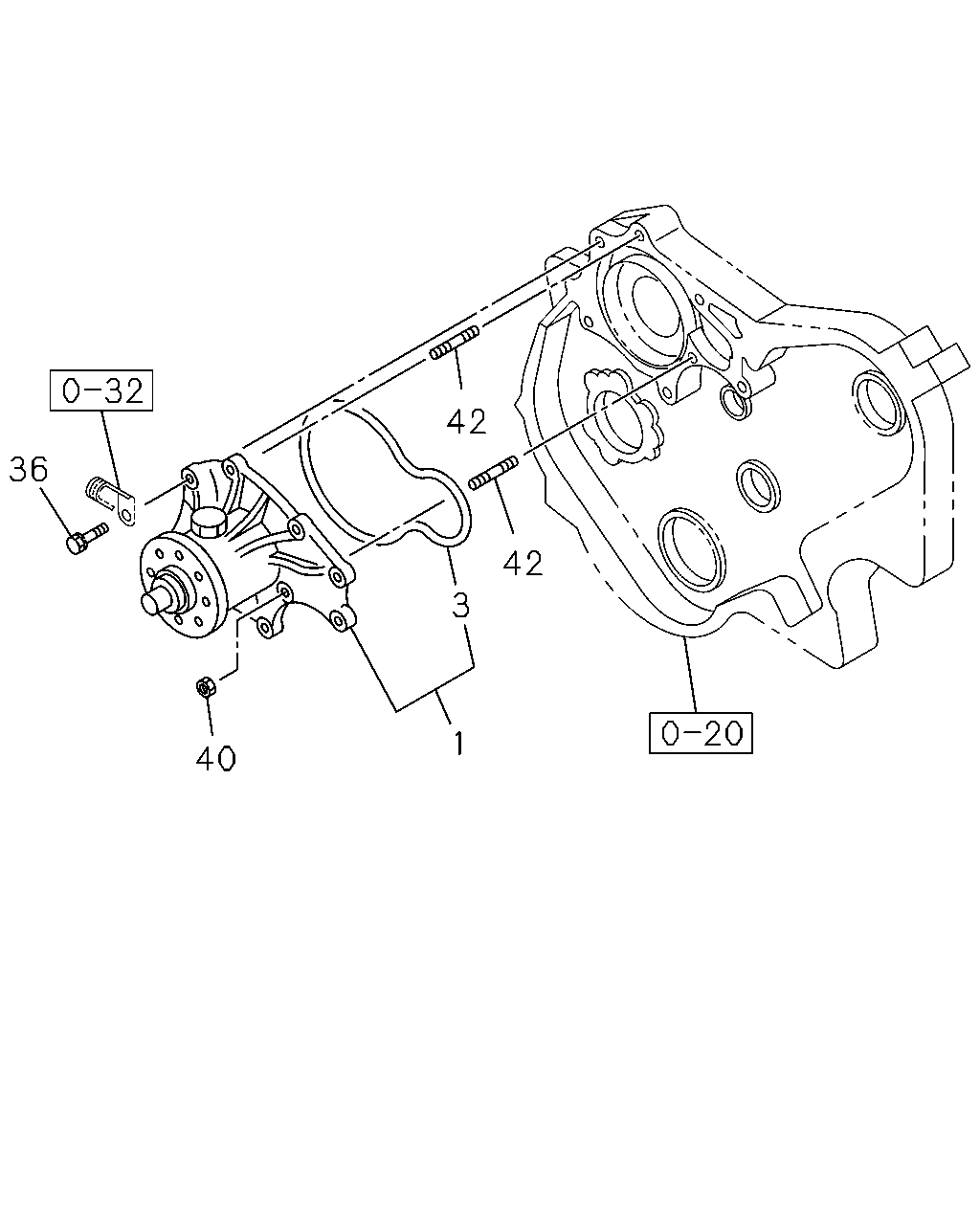

0-30 - WATER PUMP AND CORROSION RESISTOR
▶
0-30 — WATER PUMP AND CORROSION RESISTOR
(#80025) — 14 parça
Tümü
A - 4JB1 NA ENG
B - 4JB1-TC ENG
42
42
3
1
40
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
01.069 PUMP ASM; WATER,W/GASKET
8-97105-012-3
01
1
0211-0606
●
1
01.069 PUMP ASM; WATER,W/GASKET
8-97105-012-5
01
1
0607-
●
●
1
01.069 PUMP ASM; WATER,W/GASKET
BEST VALUE PARTS
5-87610-088-0
01
1
0211-0606
●
1
01.069 PUMP ASM; WATER,W/GASKET
BEST VALUE PARTS
5-87610-088-0
01
1
0607-
●
●
3
01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94178-081-0
01
1
0211-0606
●
3
01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94178-081-0
01
1
0607-
●
●
36
00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER
5-09000-084-1
05
1
0211-0606
●
36
00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER
5-09000-084-1
05
1
0607-
●
●
40
07.874 NUT; WATER PUMP
07.633 M8 FLANGE
0-91150-108-0
02
1
0211-0602
●
40
07.874 NUT; WATER PUMP
01.062 M8 FLANGE
0-91180-108-0
02
1
0603-0606
●
40
07.874 NUT; WATER PUMP
01.062 M8 FLANGE
0-91180-108-0
02
1
0607-
●
●
42
01.073 STUD; WATER PUMP
09.173 M8X22 L=34
9-04110-822-0
02
1
0211-0604
●
42
01.073 STUD; WATER PUMP
M8X22 L=34 IDN
0-41010-822-0
02
1
0605-0606
●
42
01.073 STUD; WATER PUMP
M8X22 L=34 IDN
0-41010-822-0
02
1
0607-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
