0-25 — INLET MANIFOLD (#80022) — 76 parça

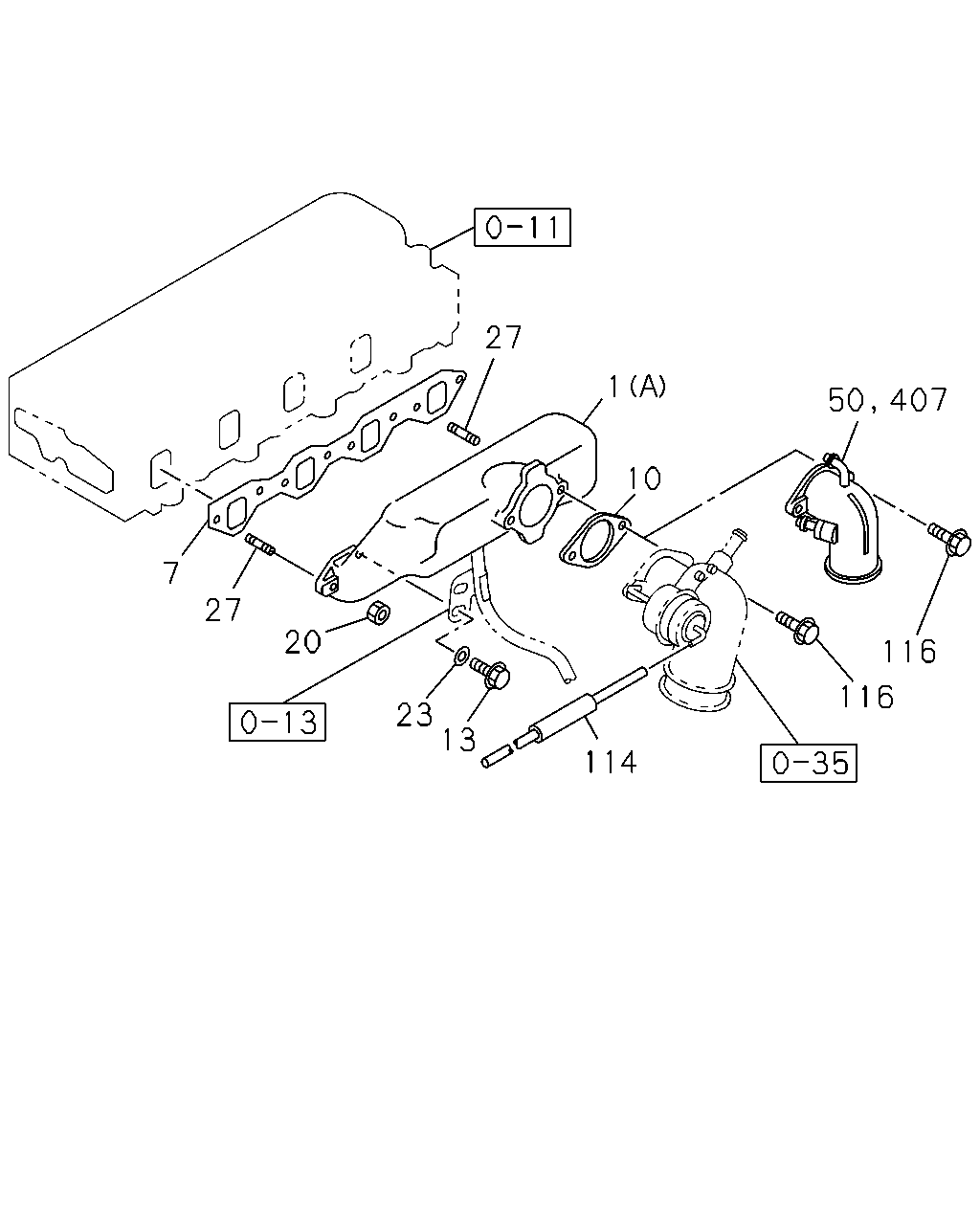

27 1 10 7 27 20 116 116 23 13 114 50 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.265 MANIFOLD; INL (B)	8-97192-327-1	01	1	0607-	●
1	03.265 MANIFOLD; INL (A)	8-97107-744-1	01	1	0211-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0211-0606		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0607-	●	●
10	03.406 GASKET; INL PIPE TO MANIF	8-97035-883-1	01	1	0211-		●
13	03.275 BOLT; INL MANIF 09.008 M8X25 W/LK WASHER	0-50540-825-0	05	1	0607-	●
13	03.275 BOLT; INL MANIF 09.171 M8X30 W/LK WASHER	0-50540-830-0	01	1	0607-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	0211-0512		●
13	03.275 BOLT; INL MANIF 09.008 M8X25 W/LK WASHER	0-50540-825-0	06	1	0601-		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0211-0606		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0607-0805	●	●
20	03.275 NUT; INL MANIF 04.634 M8 FLANGE	8-97581-233-0	02	1	0806-	●	●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	0211-0605		●
23	03.275 WASHER; PL,INL MANIF 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	01	1	0606-0606		●
23	03.275 WASHER; PL,INL MANIF 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	01	1	0607-	●	●
27	03.275 STUD; INL MANIF M8X25 L=37	0-41010-825-0	01	1	0607-0810	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> M8X25 L=37	0-41010-825-0	01	1	0811-		●
27	03.275 STUD; INL MANIF M8X25 L=37	0-41010-825-0	01	1	0811-	●
27	03.275 STUD; INL MANIF 00.219 M8X35 L=46	9-09630-034-1	01	1	0607-0810	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 00.219 M8X35 L=46	9-09630-034-1	01	1	0811-		●
27	03.275 STUD; INL MANIF 00.219 M8X35 L=46	9-09630-034-1	01	1	0811-	●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	02	1	0211-0604		●
27	03.275 STUD; INL MANIF M8X25 L=37	0-41010-825-0	02	1	0605-0810		●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4> M8X25 L=37	0-41010-825-0	02	1	0811-		●
50	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8>	8-97078-858-0	01	1	0502-		●
114	03.265 HOSE; VAC,INT THROTTLE L=403	8-97228-401-0	01	1	0607-	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> L=1320	8-97227-211-0	01	1	0211-	●	●
116	03.275 BOLT; MANIF TO INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0211-0501		●
116	03.275 BOLT; MANIF TO INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0502-0512	●	●
116	03.275 BOLT; MANIF TO INL PIPE 02.042 M10X25 FLANGE	0-28151-025-0	02	1	0601-	●	●
407	03.265 PIPE; INL,REAR EXC. EXHAUST BRAKE<NF8>	8-94152-318-0	01	1	0211-0501	●	●
407	03.265 PIPE; INL,REAR AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8>	8-94152-318-0	01	1	0502-		●

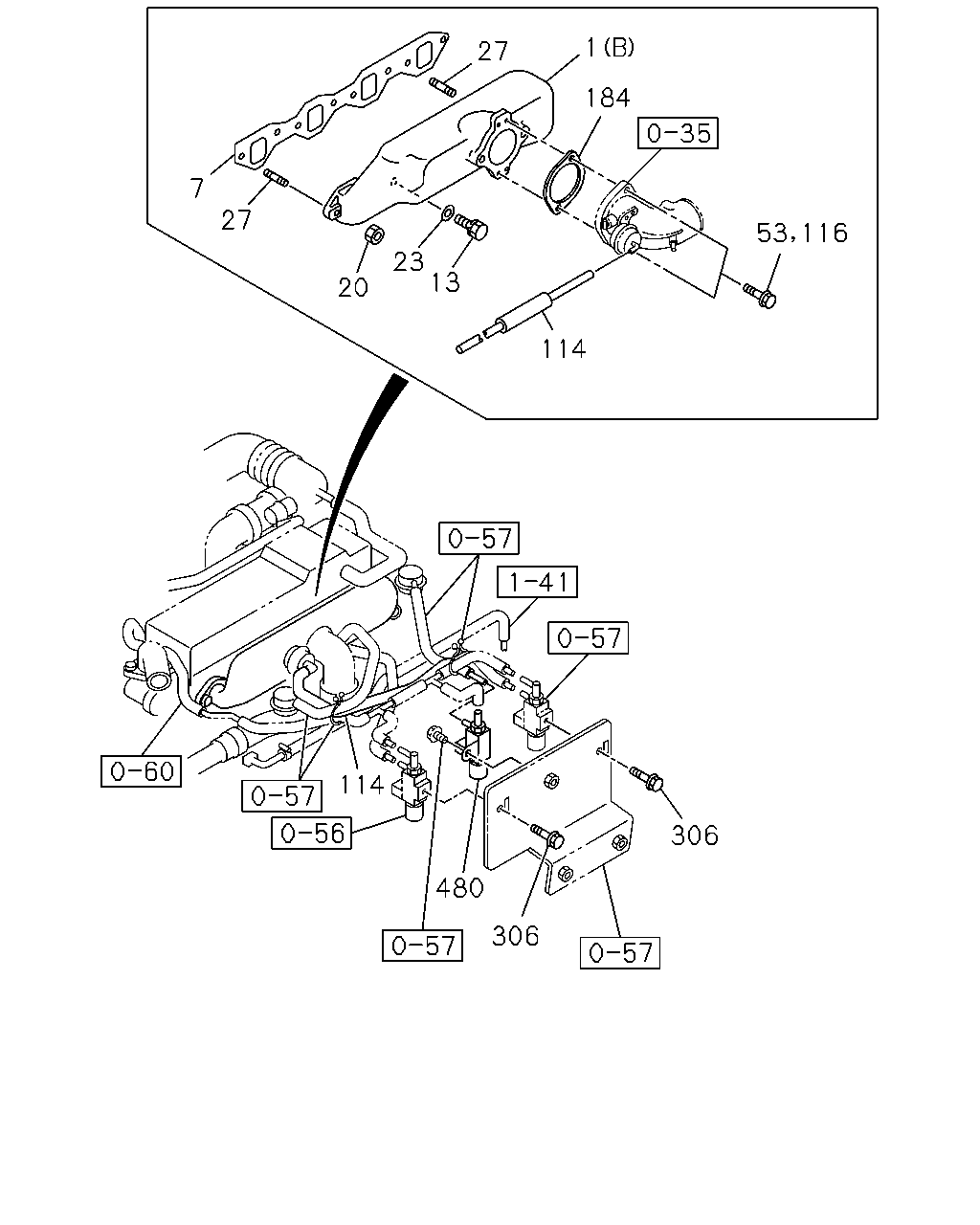

1 27 184 7 27 23 13 20 114 114 306 480 306 53 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.265 MANIFOLD; INL (B)	8-97192-327-1	01	1	0607-	●
1	03.265 MANIFOLD; INL (A)	8-97107-744-1	01	1	0211-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0211-0606		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0607-	●	●
13	03.275 BOLT; INL MANIF 09.008 M8X25 W/LK WASHER	0-50540-825-0	05	1	0607-	●
13	03.275 BOLT; INL MANIF 09.171 M8X30 W/LK WASHER	0-50540-830-0	01	1	0607-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	0211-0512		●
13	03.275 BOLT; INL MANIF 09.008 M8X25 W/LK WASHER	0-50540-825-0	06	1	0601-		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0211-0606		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0607-0805	●	●
20	03.275 NUT; INL MANIF 04.634 M8 FLANGE	8-97581-233-0	02	1	0806-	●	●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	0211-0605		●
23	03.275 WASHER; PL,INL MANIF 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	01	1	0606-0606		●
23	03.275 WASHER; PL,INL MANIF 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	01	1	0607-	●	●
27	03.275 STUD; INL MANIF M8X25 L=37	0-41010-825-0	01	1	0607-0810	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> M8X25 L=37	0-41010-825-0	01	1	0811-		●
27	03.275 STUD; INL MANIF M8X25 L=37	0-41010-825-0	01	1	0811-	●
27	03.275 STUD; INL MANIF 00.219 M8X35 L=46	9-09630-034-1	01	1	0607-0810	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 00.219 M8X35 L=46	9-09630-034-1	01	1	0811-		●
27	03.275 STUD; INL MANIF 00.219 M8X35 L=46	9-09630-034-1	01	1	0811-	●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	02	1	0211-0604		●
27	03.275 STUD; INL MANIF M8X25 L=37	0-41010-825-0	02	1	0605-0810		●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4> M8X25 L=37	0-41010-825-0	02	1	0811-		●
53	03.602 BOLT; INL PIPE 02.042 M10X25 FLANGE	0-28151-025-0	02	1	0607-	●
114	03.265 HOSE; VAC,INT THROTTLE L=403	8-97228-401-0	01	1	0607-	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> L=1320	8-97227-211-0	01	1	0211-	●	●
116	03.275 BOLT; MANIF TO INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0211-0501		●
116	03.275 BOLT; MANIF TO INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0502-0512	●	●
116	03.275 BOLT; MANIF TO INL PIPE 02.042 M10X25 FLANGE	0-28151-025-0	02	1	0601-	●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406	8-97035-883-1	01	1	0607-	●
306	03.265 BOLT; VLV 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-	●
306	03.265 BOLT; VLV 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	0607-	●
480	03.314 VALVE ASM; VAC SW 03.670	8-94144-597-1	01	1	0607-	●

138 115 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 03.483 (C) ID=6 & 6	8-94463-708-0	01	1	0502-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) 08.852 (A) ID=8 & 23	5-09707-002-0	02	1	0607-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	0211-0606	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. EURO2 SPECIFICATION(NT2) 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	0607-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	0211-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 03.278 (B) ID=37	8-94481-468-0	01	1	0211-0606	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. EURO2 SPECIFICATION(NT2) 03.278 (B) ID=37	8-94481-468-0	01	1	0607-	●	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417	8-98170-481-1	01	1	1107-		●
138	03.265 PIPE; INL 03.417	8-94417-173-1	01	1	0211-0501	●	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> 03.417	8-94417-173-1	01	1	0502-1106		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> 03.417	8-94417-173-1	01	1	1107-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
