0-22 — ENGINE MOUNTING (#80021) — 74 parça

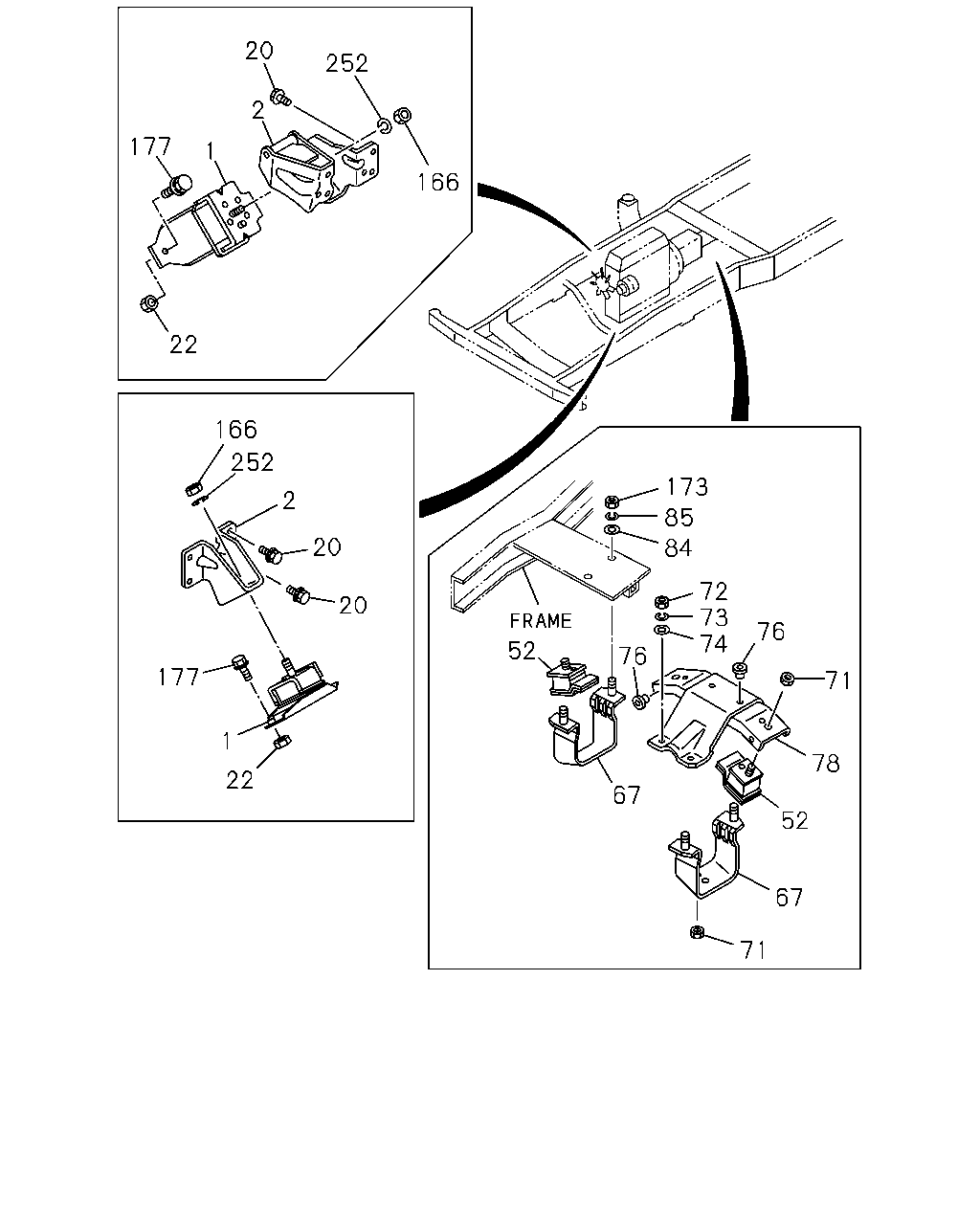

çizim 39477
252 166 20 2 1 177 22 166 2 252 20 20 177 1 22 173 85 84 72 73 74 52 76 76 78 52 67 67 71 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.027 RUBBER; ENG FOOT,FRT
INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-97520-598-0 01 1 1506- ●
1 00.027 RUBBER; ENG FOOT,FRT
INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-97520-599-0 01 1 1506- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 0211-0606 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 0607-1505 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 1506- ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-97080-620-0 01 1 1506- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 0211-0606 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 0607-1505 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 1506- ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-97080-621-0 01 1 1506- ●
2 00.029 FOOT; ENG 8-97287-639-2 01 1 0211-0606 ●
2 00.029 FOOT; ENG 8-97287-639-2 01 1 0607- ● ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0211-0606 ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0607- ● ●
20 00.029 BOLT; ENG FOOT
00.034 M10X28 		8-94329-952-1 02 1 0607-0810 ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> 00.034 M10X28 		8-94329-952-1 02 1 0811- ●
20 00.029 BOLT; ENG FOOT
00.034 M10X28 		8-94329-952-1 02 1 0811- ●
20 00.029 BOLT; ENG FOOT
02.277 M10X22 W/LK WASHER 		0-50041-022-0 05 1 0607-0909 ●
20 00.029 BOLT; ENG FOOT
M10X22 W/LK WASHER 		0-50541-022-0 05 1 0910- ●
20 00.029 BOLT; ENG FOOT
EXC. OIL COOLER<KC4> 02.277 M10X22 W/LK WASHER 		0-50041-022-0 03 1 0811-0909 ●
20 00.029 BOLT; ENG FOOT
02.277 M10X22 W/LK WASHER 		0-50041-022-0 03 1 0811-0909 ●
20 00.029 BOLT; ENG FOOT
EXC. OIL COOLER<KC4> M10X22 W/LK WASHER 		0-50541-022-0 03 1 0910- ●
20 00.029 BOLT; ENG FOOT
M10X22 W/LK WASHER 		0-50541-022-0 03 1 0910- ●
20 00.029 BOLT; ENG FOOT
00.034 M10X28 		8-94329-952-1 01 1 0211-0810 ●
20 00.029 BOLT; ENG FOOT
EXC. OIL COOLER<KC4> 00.034 M10X28 		8-94329-952-1 01 1 0811- ●
20 00.029 BOLT; ENG FOOT
00.002 M14X25 W/LK WASHER 		0-50041-425-0 01 1 0211-0512 ●
20 00.029 BOLT; ENG FOOT
M14X25 W/LK WASHER 		0-50541-425-0 01 1 0601-0606 ●
20 00.029 BOLT; ENG FOOT
M14X25 W/LK WASHER 		0-50541-425-0 01 1 0607- ● ●
20 00.029 BOLT; ENG FOOT
02.277 M10X22 W/LK WASHER 		0-50041-022-0 06 1 0211-0810 ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> 02.277 M10X22 W/LK WASHER 		0-50041-022-0 02 1 0811-0909 ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> M10X22 W/LK WASHER 		0-50541-022-0 02 1 0910- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 M10 FLANGE 		0-91150-210-0 04 1 0211-0501 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 M10 FLANGE 		0-91150-210-0 04 1 0502-0602 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 0211-0501 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0502- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 0211-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 0502- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 0211-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 0502- ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0211-0501 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0502-0602 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 0603- ● ●
72 00.002 NUT; SUPPORT RUBBER TO TRANS
09.011 M10 		9-09110-410-0 04 1 0211-0501 ●
72 00.002 NUT; SUPPORT RUBBER TO TRANS
09.011 M10 		9-09110-410-0 04 1 0502-0512 ● ●
72 00.002 NUT; SUPPORT RUBBER TO TRANS
00.833 M10 		0-91110-510-0 04 1 0601- ● ●
73 00.002 WASHER; LK,CUSHION RUBBER TO FRA
ID=10.2 		9-09150-610-0 04 1 0211-0501 ●
73 00.002 WASHER; LK,CUSHION RUBBER TO FRA
ID=10.2 		9-09150-610-0 04 1 0502-0603 ● ●
73 00.002 WASHER; LK,CUSHION RUBBER TO FRA
ID=10.2 IDN 		0-91510-610-0 04 1 0604- ● ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
04.085 ID=10.5 OD=22 		9-09164-610-0 02 1 0211-0501 ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
04.085 ID=10.5 OD=22 		9-09164-610-0 02 1 0502-0605 ● ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
ID=10.5 OD=22 		0-91614-610-0 02 1 0606- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 02 1 0211-0501 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 02 1 0502- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-94133-393-2 01 1 0211-0501 ●
78 00.029 BRACKET; ENG MTG,RR 8-94133-393-2 01 1 0502- ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0211-0501 ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0502-0605 ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0606- ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0211-0501 ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0502-0603 ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 IDN 		0-91510-610-0 04 1 0604-0610 ● ●
166 00.002 NUT; SUPPORT RUBBER
04.634 M12 IDN 		9-99110-512-0 02 1 0211-0512 ●
166 00.002 NUT; SUPPORT RUBBER
05.002 M12 		0-91110-512-0 02 1 0601-0606 ●
166 00.002 NUT; SUPPORT RUBBER
05.002 M12 		0-91110-512-0 02 1 0607- ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 0211-0501 ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 0502-0512 ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
00.833 M10 		0-91110-510-0 04 1 0601-0610 ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 04 1 0611- ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0211-0501 ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0502- ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0211-0603 ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0604-0606 ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0607- ● ●
