0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#80020) — 63 parça

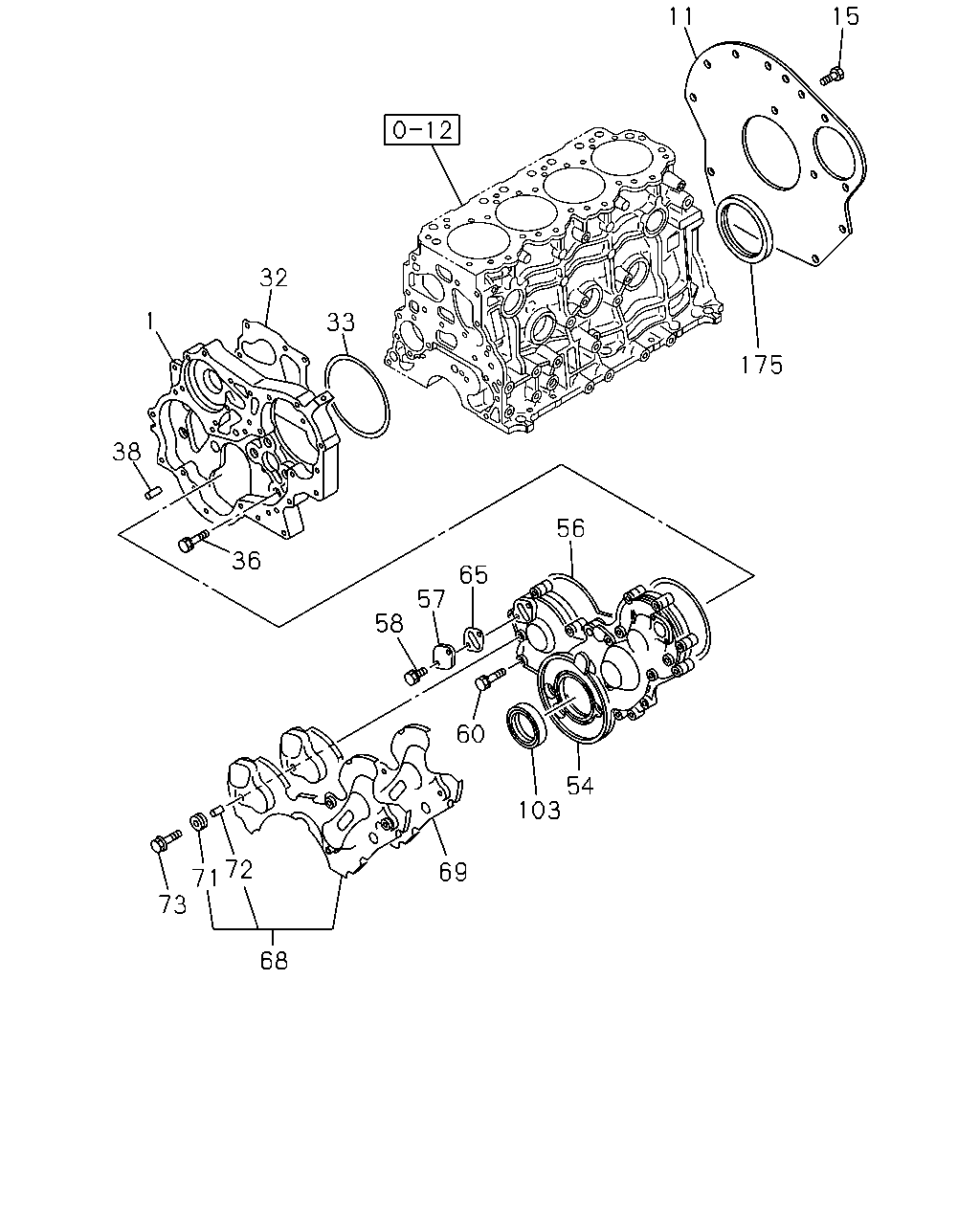

çizim 38347
15 11 32 1 33 175 38 56 36 65 57 58 60 54 103 72 71 73 69 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.206 CASE; TIMING GEAR 8-97219-001-4 01 1 0607- ●
1 00.206 CASE; TIMING GEAR
OIL COOLER<KC4> 		8-97129-982-3 01 1 0811- ●
1 00.206 CASE; TIMING GEAR 8-97129-982-3 01 1 0211-0302 ●
1 00.206 CASE; TIMING GEAR
IDN 		8-97562-251-0 01 1 0303-0810 ●
1 00.206 CASE; TIMING GEAR
EXC. OIL COOLER<KC4> IDN 		8-97562-251-0 01 1 0811- ●
11 00.683 PLATE; RR,C/BL 8-94437-923-2 01 1 0211-0606 ●
11 00.683 PLATE; RR,C/BL 8-94437-923-2 01 1 0607- ● ●
15 00.683 BOLT; RR PLATE TO C/BL
M12X25 		5-09000-227-0 03 1 0211-0606 ●
15 00.683 BOLT; RR PLATE TO C/BL
M12X25 		5-09000-227-0 03 1 0607- ● ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97129-427-1 01 1 0211-0606 ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97129-427-1 01 1 0607- ● ●
33 00.207 GASKET; BRKT TO CASE
ALSO INCLUDED IN GASKET SET(ENGINE). INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-98269-758-0 01 1 1401- ●
33 00.207 GASKET; BRKT TO CASE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94109-707-0 01 1 0211-0606 ●
33 00.207 GASKET; BRKT TO CASE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94109-707-0 01 1 0607-1312 ● ●
33 00.207 GASKET; BRKT TO CASE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94109-707-0 01 1 1401- ●
33 00.207 GASKET; BRKT TO CASE
ALSO INCLUDED IN GASKET SET(ENGINE). INJ PUMP Q SET SPECIAL +5%Q<T1A> 		8-94109-707-0 01 1 1401- ●
36 00.206 BOLT; GEAR CASE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 06 1 0211-0606 ●
36 00.206 BOLT; GEAR CASE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 06 1 0607-0909 ● ●
36 00.206 BOLT; GEAR CASE
M8X20 W/LK WASHER 		0-50540-820-0 06 1 0910- ● ●
36 00.206 BOLT; GEAR CASE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 0211-0606 ●
36 00.206 BOLT; GEAR CASE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 0607-0909 ● ●
36 00.206 BOLT; GEAR CASE
03.704 M8X45 W/LK WASHER 		0-50540-845-0 02 1 0910- ● ●
38 00.685 PIN; GEAR CASE COVER
04.510 OD=10 L=20 		8-97135-423-0 02 1 0211-0606 ●
38 00.685 PIN; GEAR CASE COVER
04.510 OD=10 L=20 		8-97135-423-0 02 1 0607- ● ●
54 00.206 COVER; GEAR CASE 8-97231-214-1 01 1 0211-0606 ●
54 00.206 COVER; GEAR CASE 8-97231-214-1 01 1 0607- ● ●
56 00.207 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97287-694-0 01 1 0211-0606 ●
56 00.207 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97287-694-0 01 1 0607- ● ●
57 00.206 COVER; TIMING CHECK HOLE 5-11321-009-0 02 1 0211-0606 ●
57 00.206 COVER; TIMING CHECK HOLE 5-11321-009-0 02 1 0607- ● ●
58 00.206 BOLT; CHECK HOLE COVER
M6X14 W/LK WASHER 		0-50040-614-0 04 1 0211-0403 ●
58 00.206 BOLT; CHECK HOLE COVER
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0404-0512 ●
58 00.206 BOLT; CHECK HOLE COVER
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 0601-0606 ●
58 00.206 BOLT; CHECK HOLE COVER
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 0607- ● ●
60 00.206 BOLT; COVER TO CASE
01.252 M8X58 FLANGE 		8-94130-055-1 01 1 0211-0606 ●
60 00.206 BOLT; COVER TO CASE
01.252 M8X58 FLANGE 		8-94130-055-1 01 1 0607- ● ●
60 00.206 BOLT; COVER TO CASE
03.275 M8X30 FLANGE 		0-28080-830-0 08 1 0211-0512 ●
60 00.206 BOLT; COVER TO CASE
M8X30 FLANGE 		0-28050-830-0 08 1 0601-0606 ●
60 00.206 BOLT; COVER TO CASE
M8X30 FLANGE 		0-28050-830-0 08 1 0607- ● ●
60 00.206 BOLT; COVER TO CASE
01.840 M8X70 W/LK WASHER 		0-50040-870-0 06 1 0211-0512 ●
60 00.206 BOLT; COVER TO CASE
M8X70 W/LK WASHER 		0-50540-870-0 06 1 0601-0606 ●
60 00.206 BOLT; COVER TO CASE
M8X70 W/LK WASHER 		0-50540-870-0 06 1 0607- ● ●
60 00.206 BOLT; COVER TO CASE
M12X55 W/HEX-SOCKET 		0-58311-255-0 01 1 0211-0512 ●
60 00.206 BOLT; COVER TO CASE
M12X55 HEX SOCKET 		0-58331-255-0 01 1 0601-0606 ●
60 00.206 BOLT; COVER TO CASE
M12X55 HEX SOCKET 		0-58331-255-0 01 1 0607- ● ●
65 00.207 GASKET; COVER,TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97118-698-1 02 1 0211-0606 ●
65 00.207 GASKET; COVER,TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97118-698-1 02 1 0607- ● ●
68 00.206 COVER ASM; GEAR CASE COVER 8-94155-721-1 01 1 0211-0606 ●
68 00.206 COVER ASM; GEAR CASE COVER 8-94155-721-1 01 1 0607- ● ●
69 00.206 SEAL; RUBBER,COVER TO COVER 8-94155-722-3 01 1 0211-0606 ●
69 00.206 SEAL; RUBBER,COVER TO COVER 8-94155-722-3 01 1 0607- ● ●
71 00.206 RUBBER; MTG,COVER 5-19389-002-0 04 1 0211-0606 ●
71 00.206 RUBBER; MTG,COVER 5-19389-002-0 04 1 0607- ● ●
72 00.206 BUSHING; SPACER,COVER TO COVER 5-19389-009-0 04 1 0211-0606 ●
72 00.206 BUSHING; SPACER,COVER TO COVER 5-19389-009-0 04 1 0607- ● ●
73 00.206 BOLT; COVER FIX
08.900 M6X18 W/LK&PL WASHER 		0-50140-618-0 04 1 0211-0403 ●
73 00.206 BOLT; COVER FIX
00.738 M6X16 FLANGE 		0-28080-616-0 04 1 0404-0512 ●
73 00.206 BOLT; COVER FIX
09.242 M6X16 FLANGE IDN 		0-28050-616-0 04 1 0601-0606 ●
73 00.206 BOLT; COVER FIX
09.242 M6X16 FLANGE IDN 		0-28050-616-0 04 1 0607- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97351-704-0 01 1 0211-0606 ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97351-704-0 01 1 0607- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 0211-0606 ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 0607- ● ●
