4-50 — FRONT SUSPENSION (#8002) — 116 parça

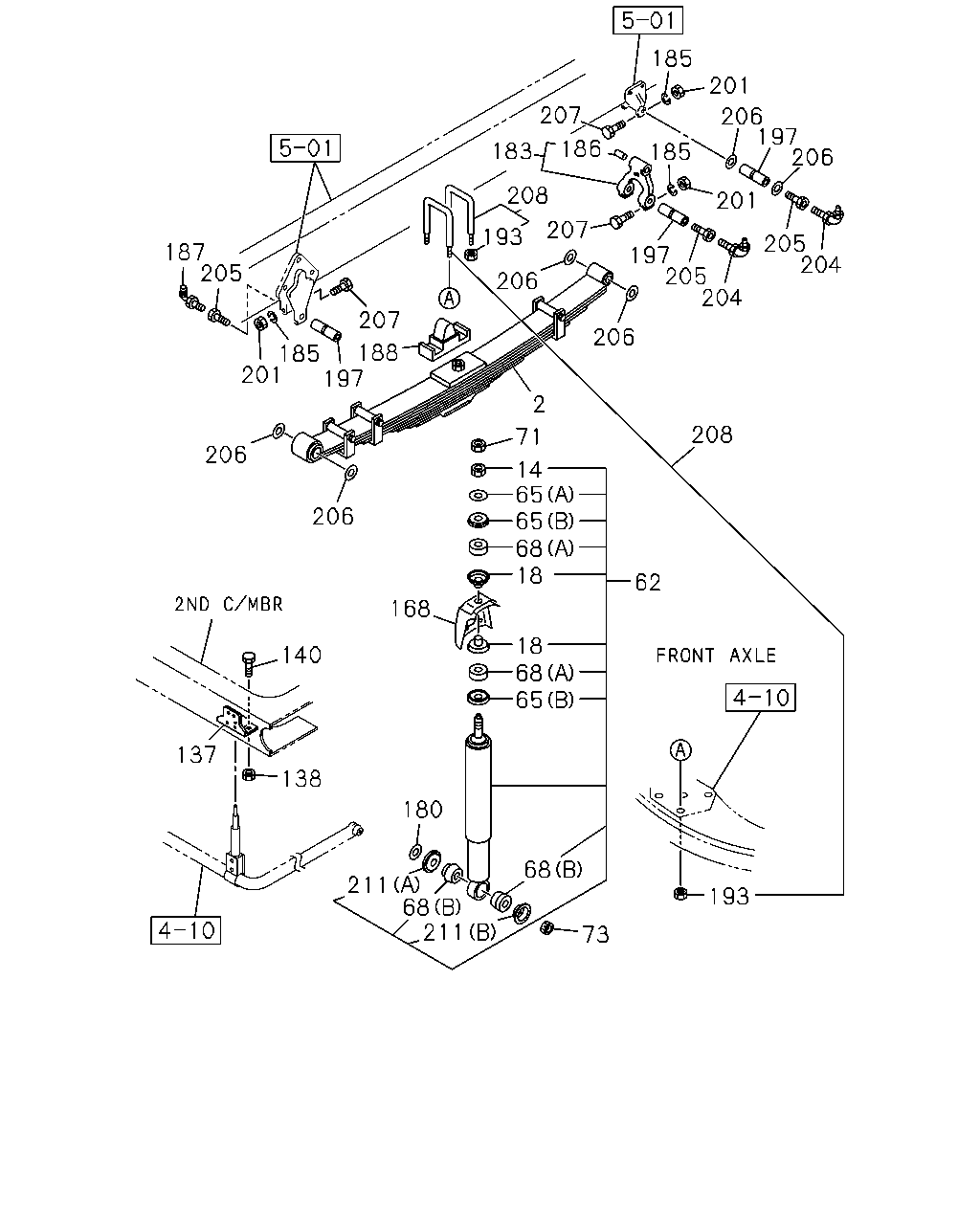

çizim 9469
185 201 207 206 197 206 185 186 183 201 208 207 193 205 204 187 205 197 205 204 206 207 206 185 188 201 197 2 208 71 206 14 65 65 68 18 206 62 168 18 68 65 140 137 138 180 211 68 211 68 193 73
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 3 LEAF 		8-97383-539-0 01 1 0406- ● ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 3 LEAF 		8-97383-540-0 01 1 0406- ● ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HE1 TC ENG(57L) 8-LEAF 		1-51130-474-0 01 1 0005-0210 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HE1 TC ENG(57L) 8-LEAF 		1-51130-343-0 01 1 0005-0210 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6SD1 TCN ENG(31L) 3-LEAF 		1-51130-744-0 01 1 0005-0011 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6SD1 TCN ENG(31L) 3-LEAF 		1-51130-744-0 01 1 0012-0210 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		1-51130-744-0 01 1 0012-0210 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		1-51130-744-0 01 1 0211-0307 ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		1-51130-744-0 01 1 0308-0405 ● ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 3-LEAF 		1-51130-744-0 01 1 0406- ● ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6SD1 TCN ENG(31L) 3-LEAF 		1-51130-743-0 01 1 0005-0011 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6SD1 TCN ENG(31L) 3-LEAF 		1-51130-743-0 01 1 0012-0210 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		1-51130-743-0 01 1 0012-0210 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		1-51130-743-0 01 1 0211-0307 ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		1-51130-743-0 01 1 0308-0405 ● ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 3-LEAF 		1-51130-743-0 01 1 0406- ● ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		1-51130-746-0 01 1 0005-0307 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		1-51130-745-0 01 1 0005-0307 ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0005-0011 ● ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0012- ● ● ● ●
18 WASHER; CENTERING,S/ABS
6HE1 TC ENG(57L) ID=20.8 		9-51631-041-0 04 1 0005-0210 ●
18 WASHER; CENTERING,S/ABS
6SD1 TCN ENG(31L) ID=24 		1-51631-067-0 04 1 0005-0011 ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0005-0011 ● ●
18 WASHER; CENTERING,S/ABS
6SD1 TCN ENG(31L) ID=24 		1-51631-067-0 04 1 0012-0210 ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0012-0210 ● ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0211- ● ● ● ●
62 ABSORBER ASM; SHOCK,FRT
6HE1 TC ENG(57L) 		1-51630-644-0 02 1 0005-0210 ●
62 ABSORBER ASM; SHOCK,FRT
6SD1 TCN ENG(31L) 		1-51600-415-0 02 1 0005-0011 ●
62 ABSORBER ASM; SHOCK,FRT 1-51600-415-0 02 1 0005-0011 ● ●
62 ABSORBER ASM; SHOCK,FRT
6SD1 TCN ENG(31L) 		1-51600-415-0 02 1 0012-0210 ●
62 ABSORBER ASM; SHOCK,FRT 1-51600-415-0 02 1 0012-0210 ● ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51600-415-0 02 1 0211- ● ● ● ●
65 WASHER; S/ABS
6HE1 TC ENG(57L) (B) ID=16.5 		9-51631-040-0 04 1 0005-0210 ●
65 WASHER; S/ABS
6SD1 TCN ENG(31L) (A) ID=16.5 		1-09503-266-0 02 1 0005-0011 ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0005-0011 ● ●
65 WASHER; S/ABS
6SD1 TCN ENG(31L) (A) ID=16.5 		1-09503-266-0 02 1 0012-0210 ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0012-0210 ● ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0211- ● ● ● ●
65 WASHER; S/ABS
6SD1 TCN ENG(31L) (B) ID=16.5 		1-51631-068-0 04 1 0005-0011 ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0005-0011 ● ●
65 WASHER; S/ABS
6SD1 TCN ENG(31L) (B) ID=16.5 		1-51631-068-0 04 1 0012-0210 ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0012-0210 ● ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0211- ● ● ● ●
68 BUSHING; S/ABS
6HE1 TC ENG(57L) (A) 		9-51631-039-0 04 1 0005-0210 ●
68 BUSHING; S/ABS
6SD1 TCN ENG(31L) (A) ID=16 T=25 		1-51631-069-0 04 1 0005-0011 ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0005-0011 ● ●
68 BUSHING; S/ABS
6SD1 TCN ENG(31L) (A) ID=16 T=25 		1-51631-069-0 04 1 0012-0210 ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0012-0210 ● ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0211- ● ● ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0005-0011 ● ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0012- ● ● ● ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 0005-0011 ● ● ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 0012-0512 ● ● ● ●
71 NUT; LK,S/ABS,UPR
M14 		0-91111-514-0 02 1 0601- ● ● ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 0005-0011 ● ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 0012-0210 ● ● ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0211-0512 ● ● ● ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 0601- ● ● ● ●
137 BRACKET; STAB BAR TO FRAME 1-51781-046-2 02 1 0005-0011 ● ● ●
137 BRACKET; STAB BAR TO FRAME 1-51781-046-3 02 1 0012- ● ● ● ●
138 NUT; BRKT
M10 FLANGE 		0-91150-210-0 08 1 0005-0011 ● ● ●
138 NUT; BRKT
M10 FLANGE 		0-91150-210-0 08 1 0012-0602 ● ● ● ●
138 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0603- ● ● ● ●
140 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 0005-0011 ● ● ●
140 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 0012-0512 ● ● ● ●
140 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 08 1 0601- ● ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0005-0011 ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0012- ● ● ● ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0005-0011 ● ● ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0012-0605 ● ● ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0606- ● ● ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 0005-0011 ● ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0012- ● ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0005-0011 ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0012-0603 ● ● ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604- ● ● ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0005-0011 ● ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0012-0902 ● ● ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ● ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0011 ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0012-0512 ● ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-0 02 1 0005-0011 ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 0012- ● ● ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0005-0011 ● ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0012-0512 ● ● ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ● ● ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ● ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 0005-0011 ● ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 0012- ● ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0005-0011 ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0012-0512 ● ● ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ● ● ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0011 ● ● ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 02 1 0012-0512 ● ● ● ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0005-0011 ● ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0012-0512 ● ● ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0005-0011 ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0012- ● ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0005-0011 ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0012- ● ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0005-0011 ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0012-0512 ● ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ● ● ●
208 U-BOLT SET; FRT SPRING
6HE1 TC ENG(57L) L=210 		1-87870-380-0 04 1 0005-0210 ●
208 U-BOLT SET; FRT SPRING
6SD1 TCN ENG(31L) L=190 		1-87870-163-2 04 1 0005-0011 ●
208 U-BOLT SET; FRT SPRING
L=190 		1-87870-163-2 04 1 0005-0011 ● ●
208 U-BOLT SET; FRT SPRING
6SD1 TCN ENG(31L) L=190 		1-87870-163-2 04 1 0012-0210 ●
208 U-BOLT SET; FRT SPRING
L=190 		1-87870-163-2 04 1 0012-0210 ● ● ●
208 U-BOLT SET; FRT SPRING
L=190 		1-87870-163-4 04 1 0211- ● ● ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0005-0011 ● ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0012- ● ● ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0005-0011 ● ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0012- ● ● ● ●
