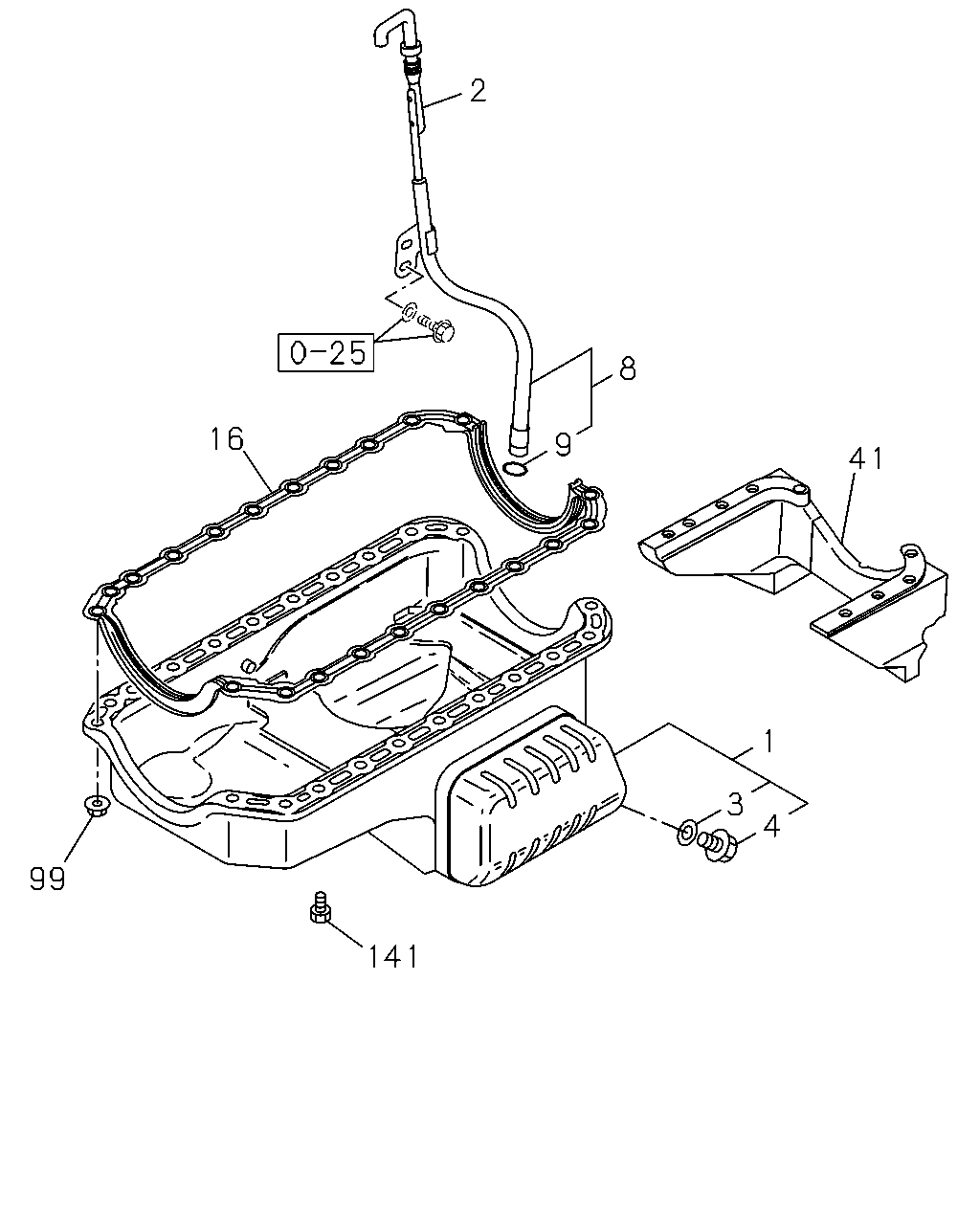

0-13 — OIL PAN AND LEVEL GAUGE (#80017) — 20 parça

2 8 16 9 41 1 3 4 99 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	0211-0411	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0412-0606	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0607-	●	●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0607-		●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0211-	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0211-0606	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0607-	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14 IDN	8-94152-613-0	01	1	0211-0606	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14 IDN	8-94152-613-0	01	1	0607-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	0607-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0211-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0607-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0211-	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	0211-0606	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	0607-	●	●
41	00.137 RUBBER; SPACE	8-97095-936-0	01	1	0607-1203		●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0211-0606	●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0607-	●	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0211-0606	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0607-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
