0-12 — CYLINDER BLOCK (#80016) — 120 parça

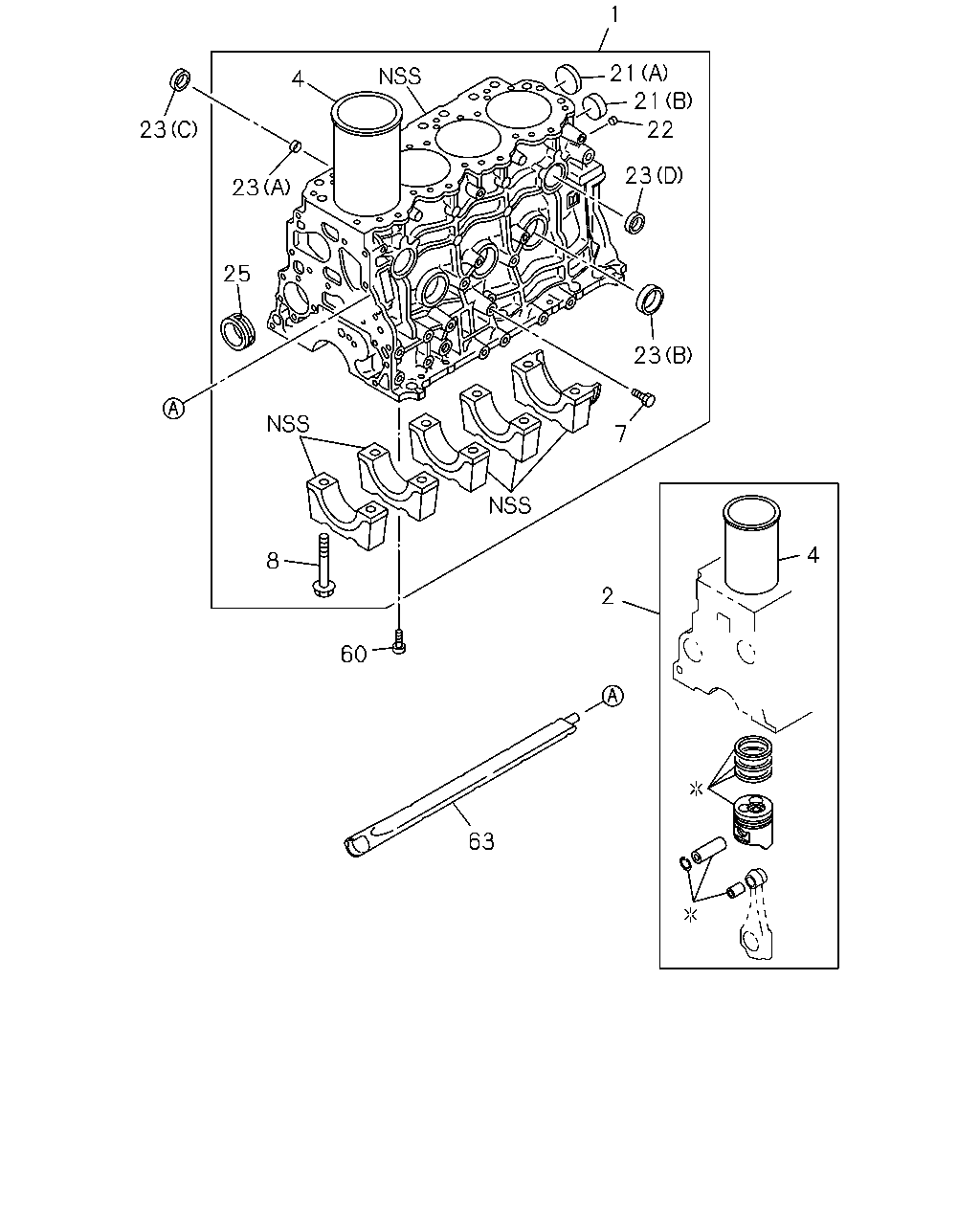

4 2 7 63 60 8 25 23 23 4 1 21 21 22 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-97352-707-2	01	1	0211-0606	●
1	00.033 BLOCK ASM; CYL	8-97352-707-2	01	1	0607-	●	●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87813-193-2	04	1	0607-		●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87813-194-2	04	1	0607-		●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87813-195-2	04	1	0607-		●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87813-196-2	04	1	0607-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-181-3	04	1	0211-	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-182-3	04	1	0211-	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-183-3	04	1	0211-	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-184-3	04	1	0211-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	0211-0606	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	0607-1206	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	12	1	1207-	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	0211-0606	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	0607-1206	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	12	1	1207-	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	0211-0606	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	0607-1206	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	12	1	1207-	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	0211-0606	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	0607-1206	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	12	1	1207-	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	0211-0606	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	0607-1206	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	12	1	1207-	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	0211-0606	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	0607-1206	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	12	1	1207-	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	0211-0606	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	0607-1206	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	12	1	1207-	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	0211-0606	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	0607-1206	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	12	1	1207-	●	●
7	00.034 PLUG; WATER DRAIN PT1/4 IDN	9-09664-001-0	01	1	0211-0606	●
7	00.034 PLUG; WATER DRAIN PT1/4 IDN	9-09664-001-0	01	1	0607-1206	●	●
7	00.034 PLUG; WATER DRAIN PT1/4 IDN	9-09664-001-0	03	1	1207-	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0211-0606	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0607-1206	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	30	1	1207-	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0211-0606	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0607-	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0211-0606	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0607-	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	0211-0606	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	0607-1206	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	03	1	1207-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0607-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0211-	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	0211-0606	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	0607-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0211-0606	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0607-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0211-0606	●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0607-	●	●
25	00.539 METAL; CM/SHF CENTER AND REAR	8-94427-201-2	02	1	0211-0411	●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	0211-0411	●
25	00.539 METAL; CM/SHF CENTER AND REAR	8-97378-147-0	02	1	0411-0606	●
25	00.539 METAL; CM/SHF CENTER AND REAR	8-97378-147-0	02	1	0607-	●	●
25	00.539 METAL; CM/SHF FRONT	8-97378-148-0	01	1	0411-0606	●
25	00.539 METAL; CM/SHF FRONT	8-97378-148-0	01	1	0607-	●	●
60	01.531 BOLT; OIL JET 04.105 M16X12	9-99202-316-0	01	1	0211-0606	●
60	01.531 BOLT; OIL JET M16X12	0-92002-416-0	01	1	0607-	●
63	01.153 DUCT; WATER,C/BL	8-94419-436-2	01	1	0211-0606	●
63	01.153 DUCT; WATER,C/BL	8-94419-436-2	01	1	0607-	●	●

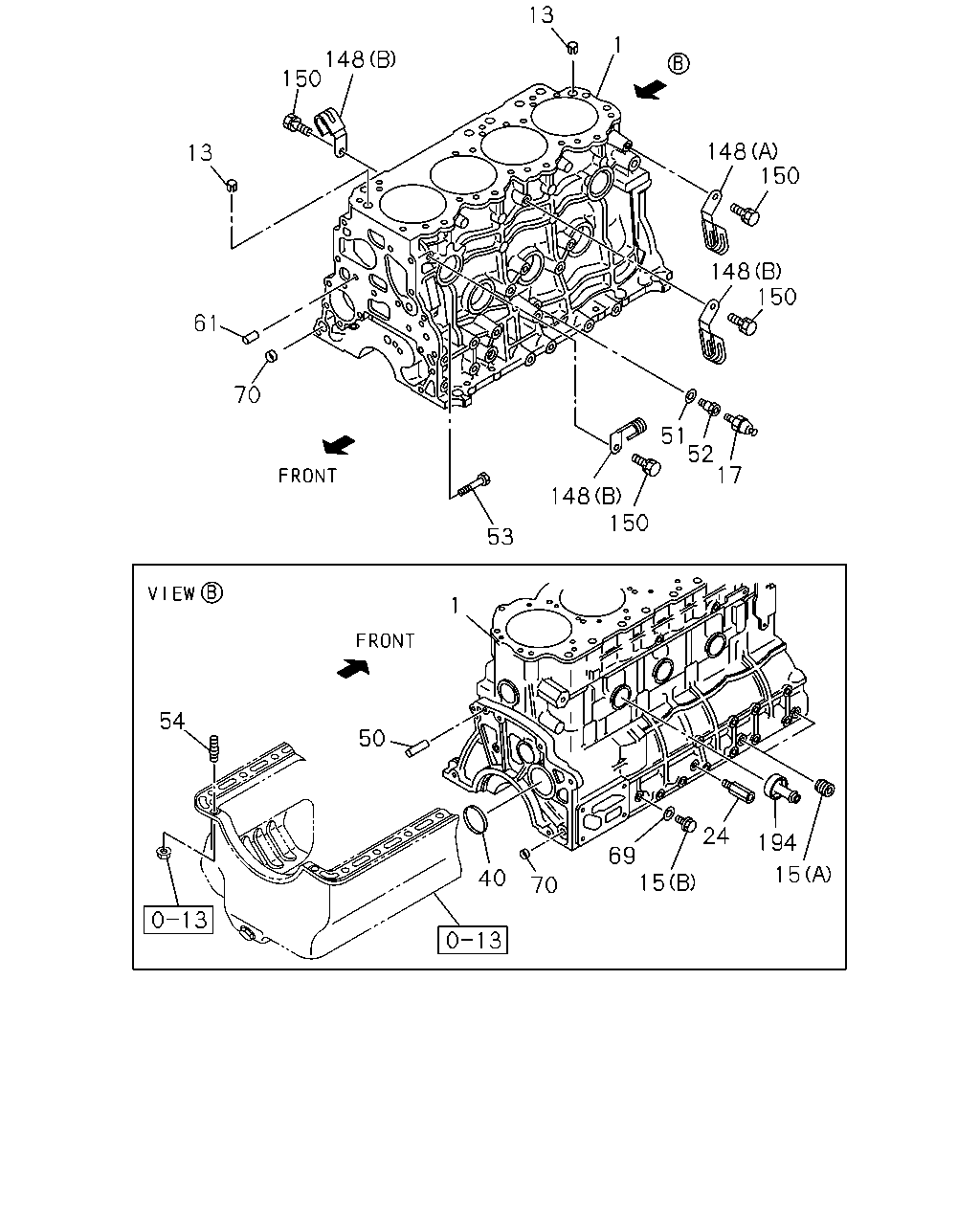

70 61 13 150 148 13 148 150 148 150 51 52 17 150 53 148 54 50 1 15 194 24 15 69 70 40 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-97352-707-2	01	1	0211-0606	●
1	00.033 BLOCK ASM; CYL	8-97352-707-2	01	1	0607-	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0211-0606	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0607-	●	●
15	01.531 PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	0211-0606	●
15	01.531 PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	0607-	●	●
15	01.531 PLUG; OIL GALLERY 03.001 (B) M14X14 IDN	8-94152-613-0	01	1	0211-	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	0211-0606	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	0607-	●	●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	0211-0606	●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	0607-	●	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	0211-0606	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	0607-	●	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	0211-0606	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	0607-	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0211-0606	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0607-	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0607-0709		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	0710-1501		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1502-		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-749-2	01	1	0211-	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	0211-0606	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	0607-	●	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	0211-0606	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	0607-	●	●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0607-		●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0211-	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0211-	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0211-0606	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0607-	●	●
148	02.313 CLIP; HARNESS 04.930 (A) L=91 ID=8.5	8-94329-956-0	01	1	0211-0606	●
148	02.313 CLIP; HARNESS 04.930 (A) L=91 ID=8.5	8-94329-956-0	01	1	0607-1304	●	●
148	02.313 CLIP; HARNESS 04.930 (A) L=91 ID=8.5	8-94329-956-0	01	1	1305-	●
148	02.313 CLIP; HARNESS 00.446 (B) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	03	1	0211-0606	●
148	02.313 CLIP; HARNESS 00.446 (B) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	03	1	0607-0801	●	●
148	02.313 CLIP; HARNESS 03.671 (B) ID=12 VINYL CHLORIDE IDN	8-97367-984-1	03	1	0802-0907	●	●
148	02.313 CLIP; HARNESS 03.671 (B) ID=12 VINYL CHLORIDE IDN	8-97367-984-1	02	1	0908-1304	●	●
148	02.313 CLIP; HARNESS 03.671 (B) ID=12 VINYL CHLORIDE IDN	8-97367-984-1	02	1	1305-	●
150	02.313 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-1304		●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0211-0512	●
150	02.313 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0601-	●
194	00.439 PIPE; OIL DRAIN,C/BL	8-97137-781-0	01	1	0607-		●

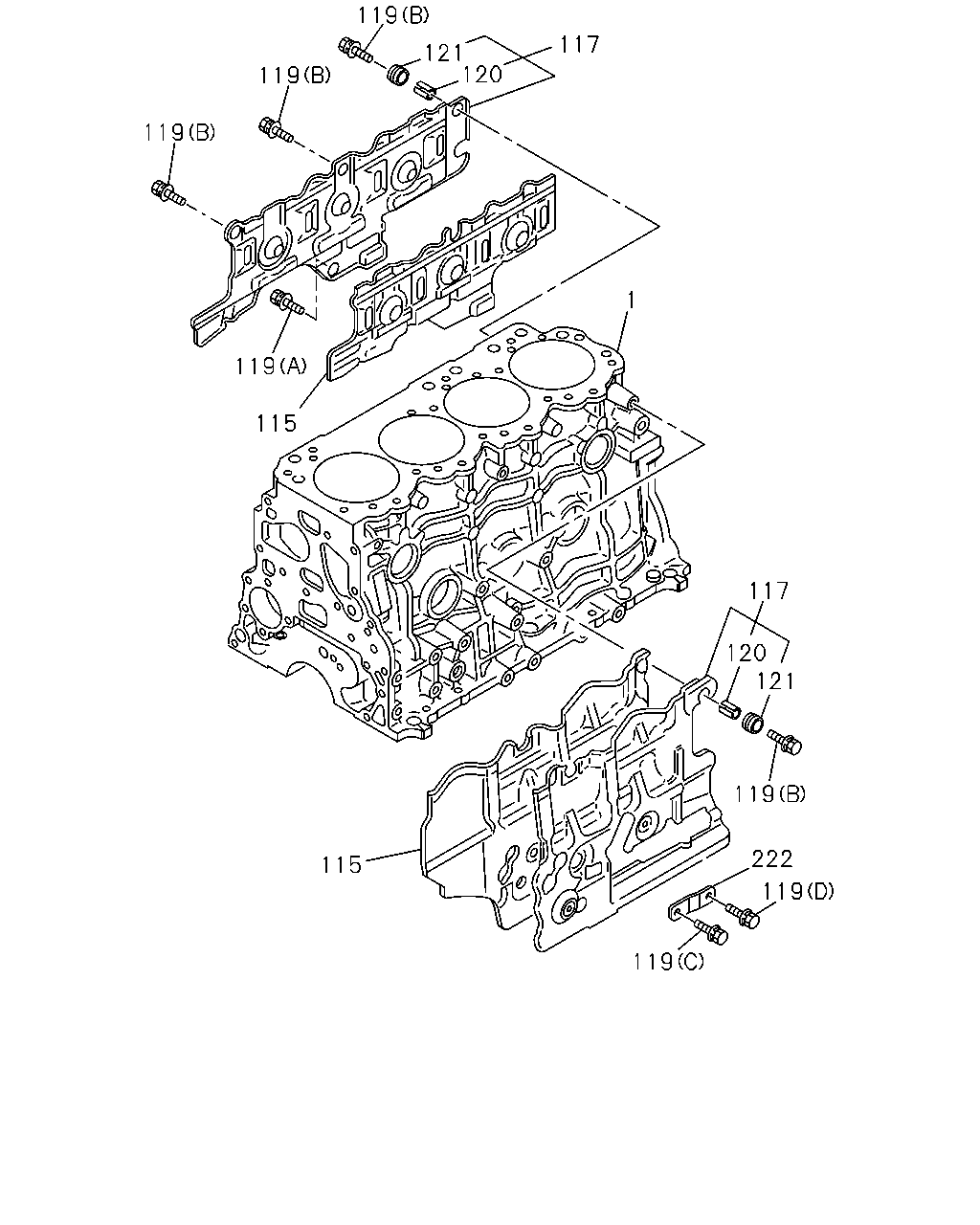

119 117 121 120 119 119 1 119 115 117 120 121 119 222 115 119 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-97352-707-2	01	1	0211-0606	●
1	00.033 BLOCK ASM; CYL	8-97352-707-2	01	1	0607-	●	●
115	00.034 RUBBER; SPACE	8-97204-193-0	01	1	0607-1304		●
115	00.034 RUBBER; SPACE	8-97204-194-0	01	1	0607-1304		●
117	00.030 COVER ASM; C/BL	8-97020-126-0	01	1	0607-1304		●
117	00.030 COVER ASM; C/BL	8-97204-191-1	01	1	0607-1304		●
119	00.034 BOLT; COVER FIX 03.407 (C) M8X10 FLANGE	0-28050-810-0	01	1	0607-1304		●
119	00.034 BOLT; COVER FIX (D) M10X20 W/LK WASHER IDN	0-50541-020-0	01	1	0607-1304		●
119	00.034 BOLT; COVER FIX (A) M10X28	8-94329-952-1	01	1	0607-1304		●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER IDN	8-94329-953-1	05	1	0607-1304		●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5 IDN	8-94140-427-1	06	1	0607-1304		●
121	00.034 RUBBER; MTG,COVER OD=22 IDN	8-94140-428-1	06	1	0607-1304		●
222	00.340 BRACKET; COVER,C/BL	8-97209-129-0	01	1	0607-1304		●
