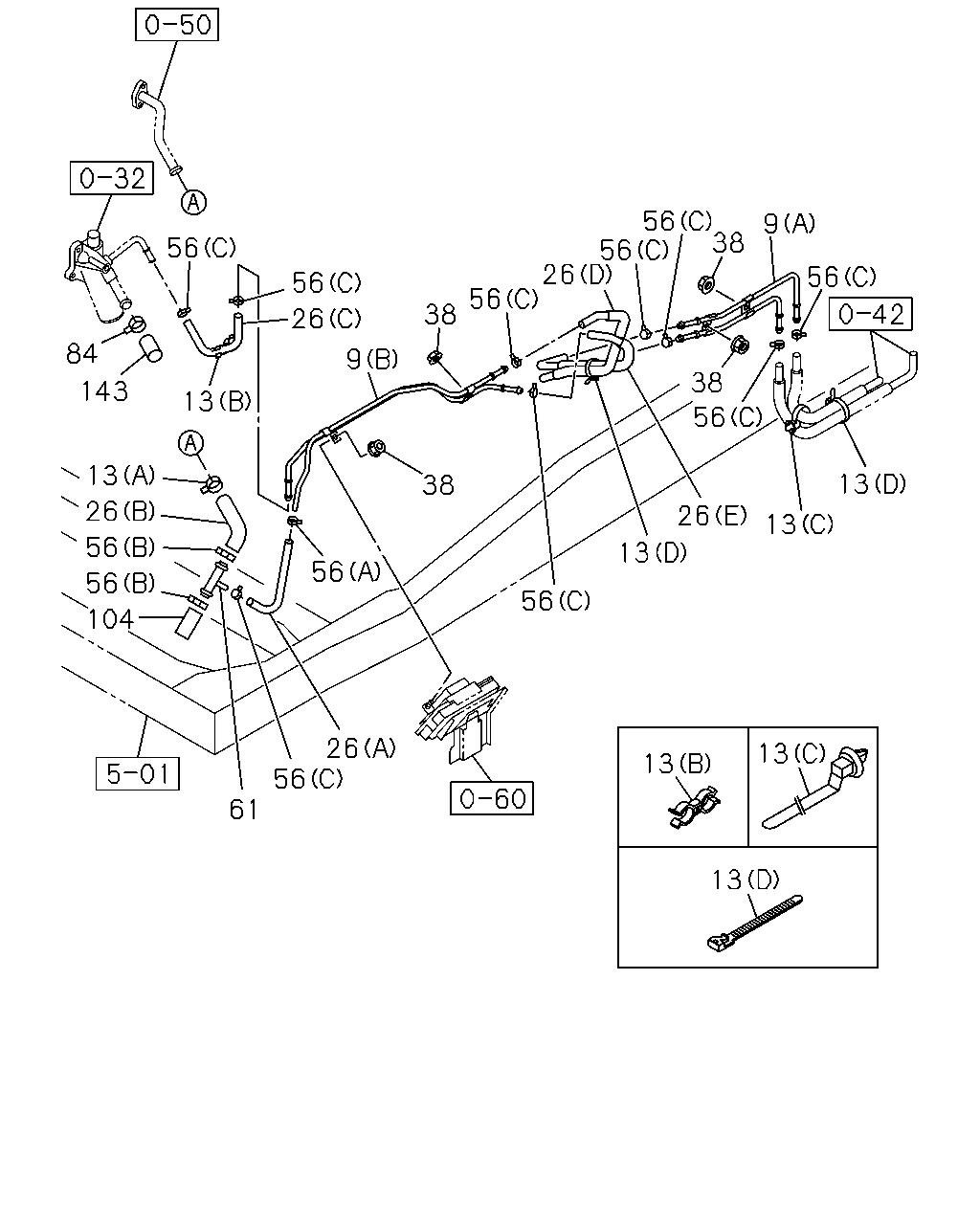

8-45 — HEATER PIPING (#80008) — 19 parça

56 38 56 26 56 9 56 56 56 38 26 84 9 38 143 13 56 13 13 38 26 26 13 56 13 56 56 56 104 26 56 13 13 61 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	08.846 PIPE; HTR (B)	8-98163-729-1	01	1	1108-
9	08.846 PIPE; HTR (A)	8-98163-730-0	01	1	1108-
13	08.846 CLIP; HTR HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	1108-
13	08.846 CLIP; HTR HOSE 02.559 (D) L=250	5-09707-030-1	02	1	1108-
13	08.846 CLIP; HTR HOSE 03.162 (B) ID=13.2 & 11.5	8-97230-081-0	01	1	1108-
13	08.846 CLIP; HTR HOSE 03.278 (A) ID=22	8-97359-141-0	01	1	1108-
26	08.846 HOSE; HTR 01.159 (C) L=230 SERVICED BY L=3000	0-03257-300-0	01	1	1108-
26	08.846 HOSE; HTR (A)	8-97378-372-1	01	1	1108-
26	08.846 HOSE; HTR (B)	8-97383-827-1	01	1	1108-
26	08.846 HOSE; HTR (D)	8-98114-293-0	01	1	1108-
26	08.846 HOSE; HTR (E)	8-98171-400-0	01	1	1108-
38	08.846 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	04	1	1108-
56	08.846 CLAMP; HTR HOSE 01.219 (A) ID=13	8-94238-571-0	01	1	1108-
56	08.846 CLAMP; HTR HOSE 03.278 (B) ID=22	8-97359-141-0	02	1	1108-
56	08.846 CLAMP; HTR HOSE 03.162 (C) ID=13	8-98150-357-0	09	1	1108-
61	08.866 JOINT; HTR HOSE	8-97378-346-0	01	1	1108-
84	08.846 CLIP; HTR PIPE 01.166 ID=25	8-94233-115-0	01	1	1108-
104	16.550 PLUG; RUBBER,HTR HOSE HOLE 01.166	8-94107-793-0	01	1	1108-
143	08.846 CAP; HEATER PIPE 01.166	8-94107-793-0	01	1	1108-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
