Isuzu WW
▶
TRUCKS
▶
NPR
▶
51381 - NPR BUS CNG(LHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#80007) — 21 parça
◀

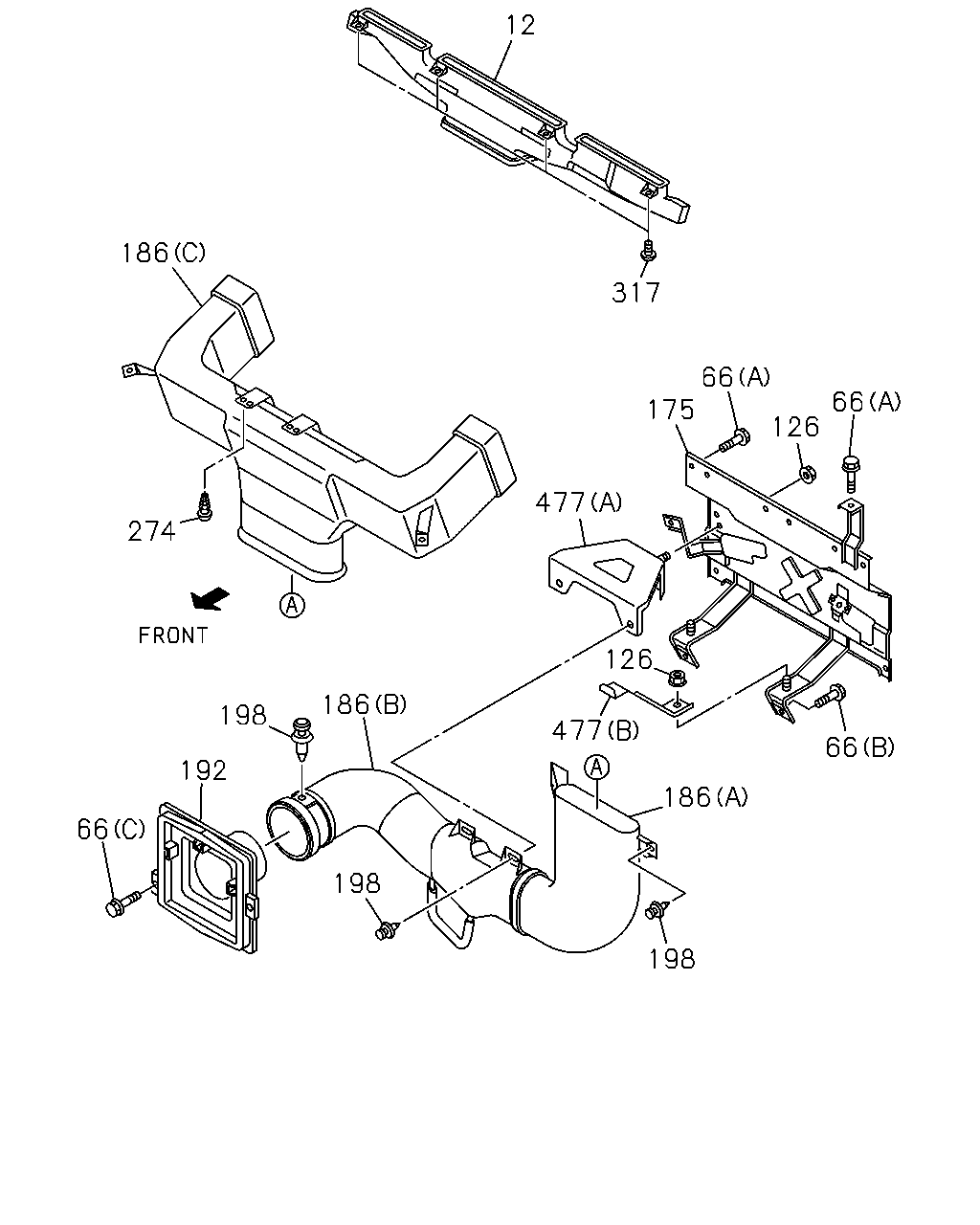

[840A] DUCT (18 parça)
[840A] OTHER PARTS (3 parça)
▶
12
186
317
66
175
66
126
477
274
126
186
198
477
66
192
186
66
198
198
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
09.779 NOZZLE; DEFROSTER
8-98040-490-3
01
1
1108-
66
08.845 BOLT; DUCT
02.343 (A) M6X16 FLANGE
0-28650-616-0
02
1
1108-
66
08.845 BOLT; DUCT
08.857 (C) M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
1108-
66
08.845 BOLT; DUCT
(B) M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1108-
126
09.262 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
01
1
1108-
126
09.262 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
01
1
1108-
175
09.262 BRACKET; HTR DUCT
8-98091-543-5
01
1
1108-
186
09.786 DUCT; VENTILATOR
(C)
8-98054-362-0
01
1
1108-
186
09.786 DUCT; VENTILATOR
(A)
8-98054-369-0
01
1
1108-
186
09.786 DUCT; VENTILATOR
(B)
8-98054-378-2
01
1
1108-
192
09.262 DUCT; RAM AIR
8-98054-385-4
01
1
1108-
198
09.787 CLIP; DUCT
09.264
1-09987-144-0
05
1
1108-
274
08.852 SCREW; VENT DUCT
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
02
1
1108-1212
274
08.852 SCREW; VENT DUCT
16.090 T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1301-
317
09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
04
1
1108-1212
317
09.264 SCREW; DEFROSTER NOZZLE
16.090 T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1301-
477
09.786 BRACKET; DUCT
(A)
8-98091-304-0
01
1
1108-
477
09.786 BRACKET; DUCT
(B)
8-98164-456-0
01
1
1108-
206
343
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
206
09.743 GROMMET; A/C PIPE TO BLOWER UNIT
8-98019-649-0
01
1
1108-
225
08.845 SEAL; WATER
16.165 OD=20 T=0.05 BLACK
5-76777-036-0
01
1
1108-
343
08.845 SEAL; AIR DUCT
8-97856-616-0
02
1
1108-
