8-28 — CHASSIS ELECTRICAL (#80006) — 14 parça

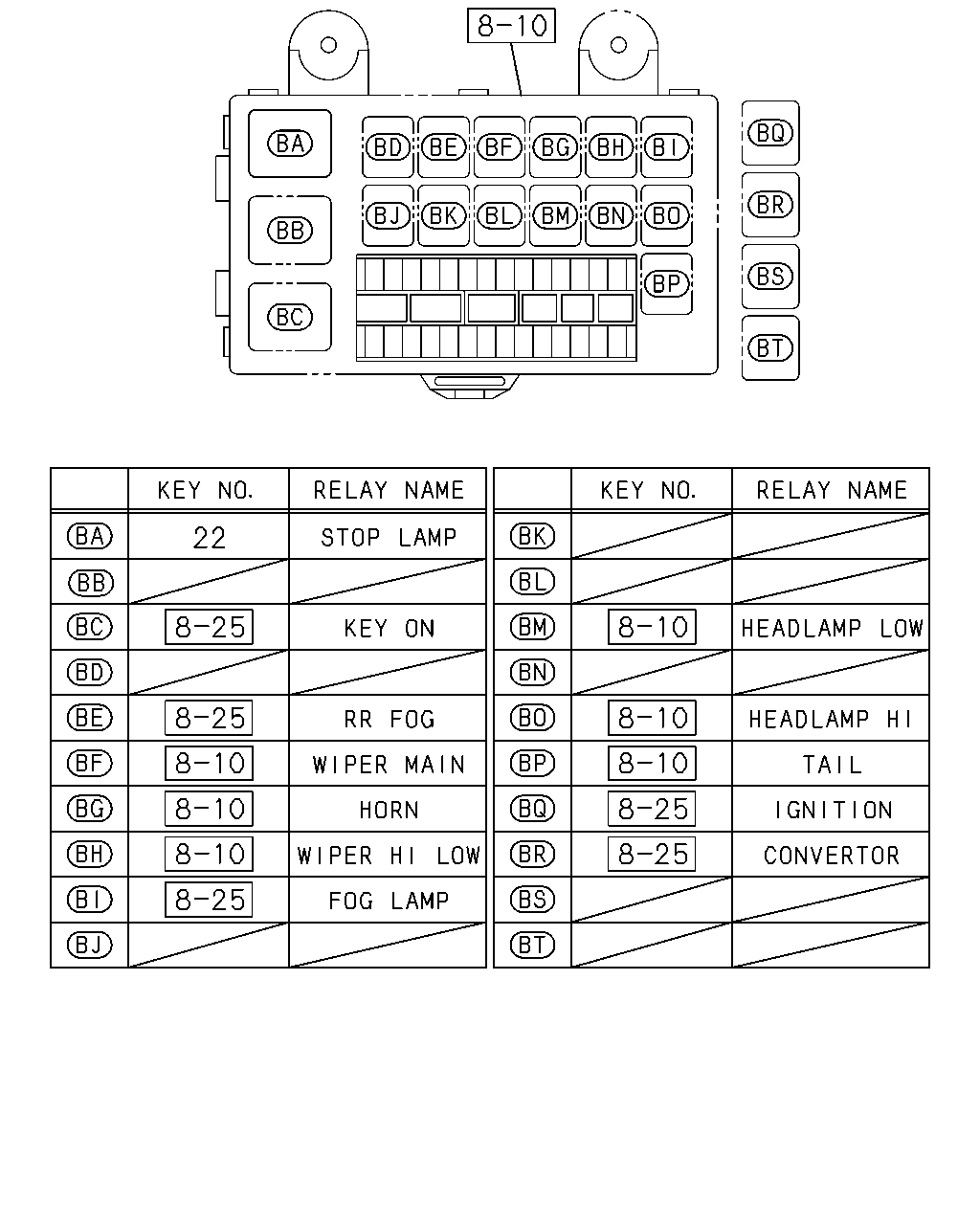

çizim 143694

22

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1108-

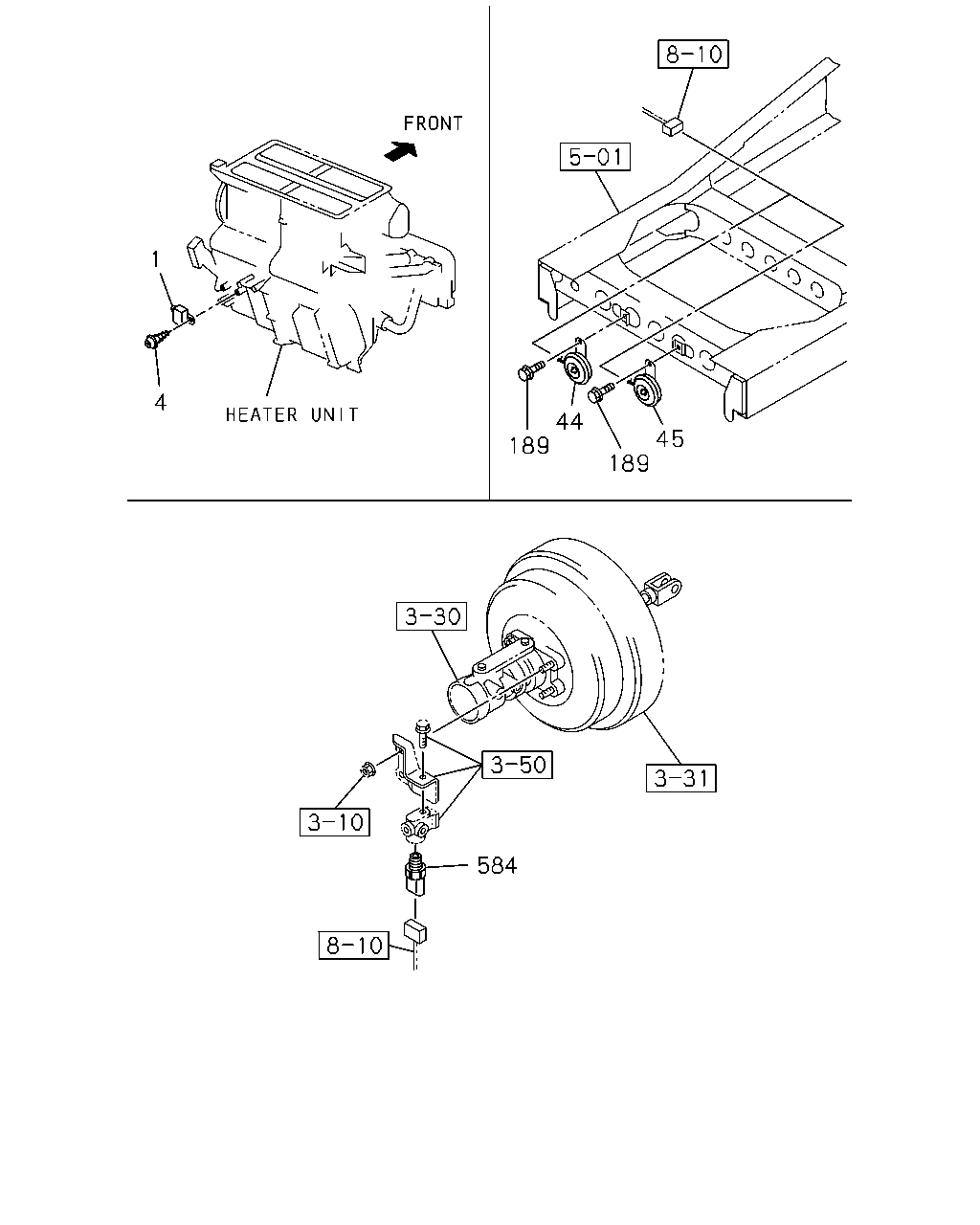

çizim 143937

1 4 44 189 45 189 584

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	02.575 UNIT; FLASHER	1-83470-057-0	01	1	1108-
	4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1108-1212
	4	02.575 SCREW; FLASHER UNIT 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
	44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-98070-080-0	01	1	1108-
	45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	1108-
	189	02.812 BOLT; HORN 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1108-
	189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1108-
	584	02.440 SENSOR; PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-682-0	01	1	1108-

çizim 182444

531 666 333

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	333	09.277 RELAY; MARKER LAMP RR FOG LAMP<T79> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1108-
	531	02.769 RELAY; MAIN 02.510 24V 30A MITUBA	8-97238-540-0	01	1	1108-1402
	531	02.769 RELAY; MAIN 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1403-
	666	02.173 RELAY; STARTER 24V 10A	8-98167-173-0	01	1	1108-

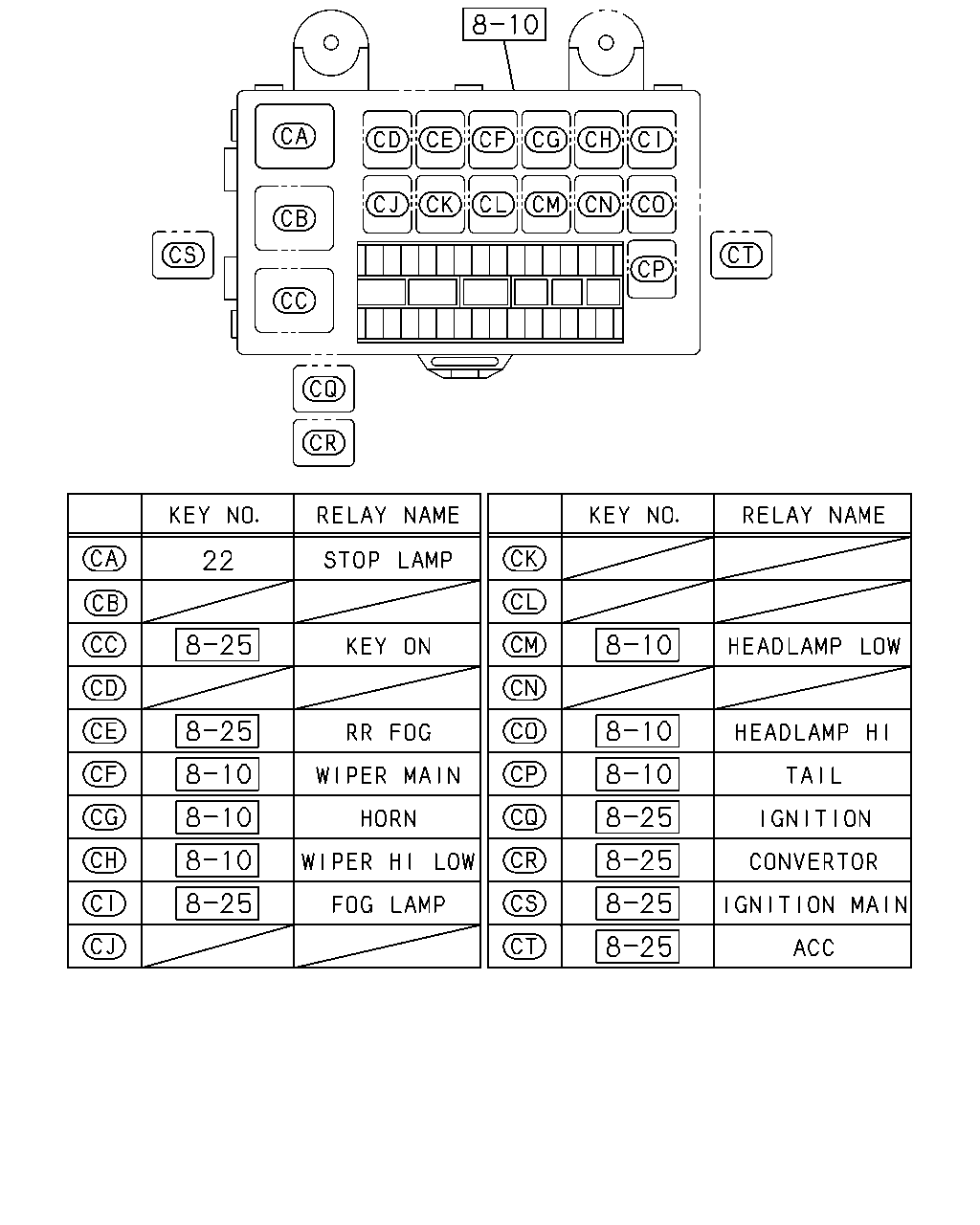

çizim 182456

22

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1108-
