Isuzu WW
▶
TRUCKS
▶
NPR
▶
51381 - NPR BUS CNG(LHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶

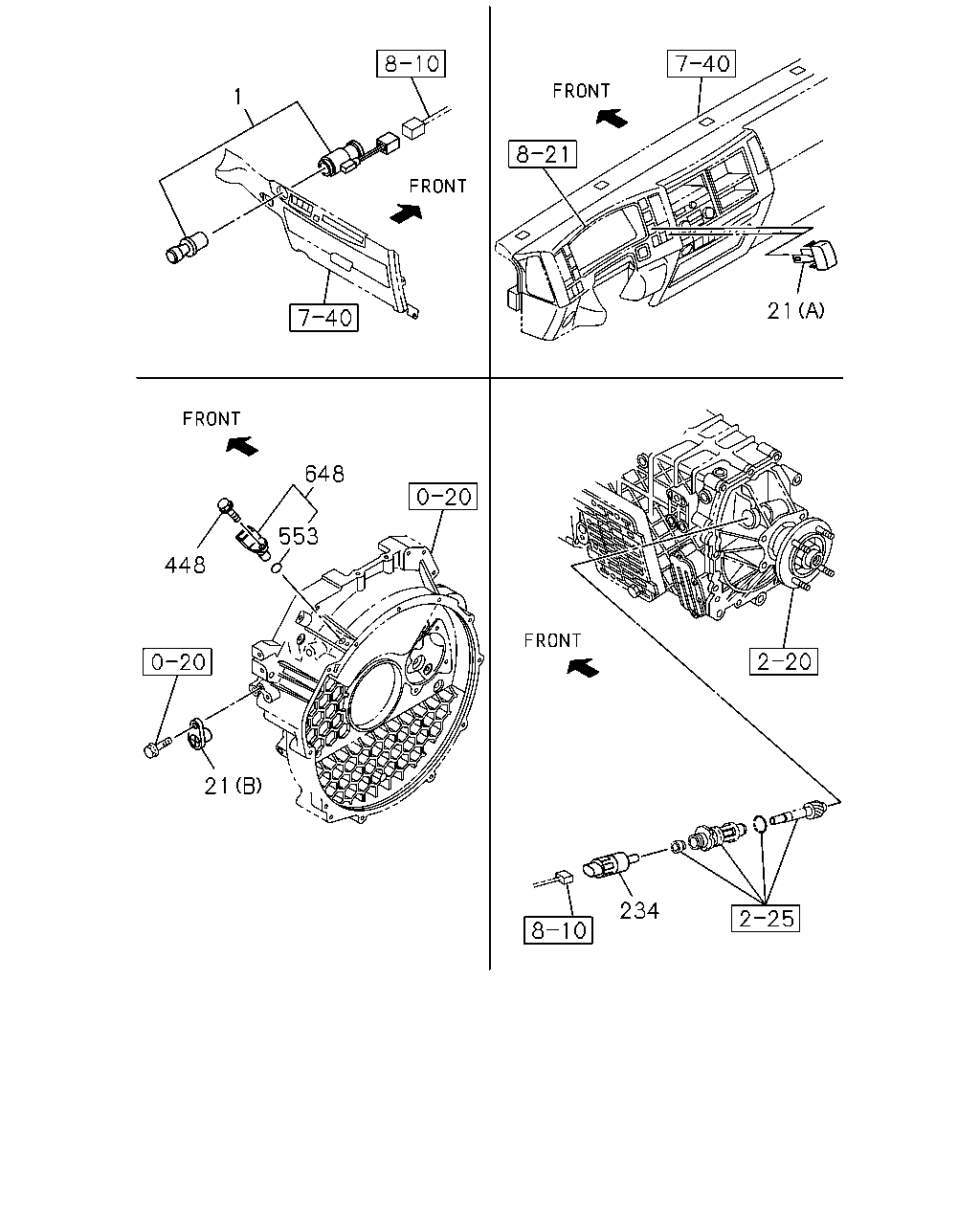

8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#80005) — 14 parça
◀
[826A] NO.2 (8 parça)
[826A] NO.1 (6 parça)
▶
1
21
648
553
448
21
234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.709 LIGHTER; CIGAR
8-98142-962-0
01
1
1108-
21
09.744 COVER; HOLE
09.748 (B)
8-97101-974-0
01
1
1108-
21
09.744 COVER; HOLE
16.081 (A)
8-98025-954-1
01
1
1108-
21
09.744 COVER; HOLE
16.081 (A)
8-98025-954-1
02
1
1108-
234
03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 25 PULSE ALUMINUM
8-97328-058-1
01
1
1108-
448
02.500 BOLT; SENSOR
09.242 M6X16 FLANGE
0-28050-616-0
02
1
1108-
553
02.500 GASKET
00.724 ID=14.2 OD=18.8
8-97369-404-0
01
1
1108-
648
03.682 SENSOR; CRANK ANGLE
8-97606-943-0
01
1
1108-
68
67
437
69
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
67
03.887 BRACKET; CONT UNIT
(A)
8-98107-787-2
01
1
1108-
67
03.887 BRACKET; CONT UNIT
(B)
8-98107-789-1
01
1
1108-
68
02.500 BOLT; BRKT
00.206 M6X12 FLANGE
0-28450-612-0
01
1
1108-
69
02.458 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
02
1
1108-
69
02.458 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
02
1
1108-
437
10.485 CONVERTER; DC
8-97254-654-0
01
1
1108-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
