Isuzu WW
▶
TRUCKS
▶
NPR
▶
51381 - NPR BUS CNG(LHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#80004) — 32 parça
◀

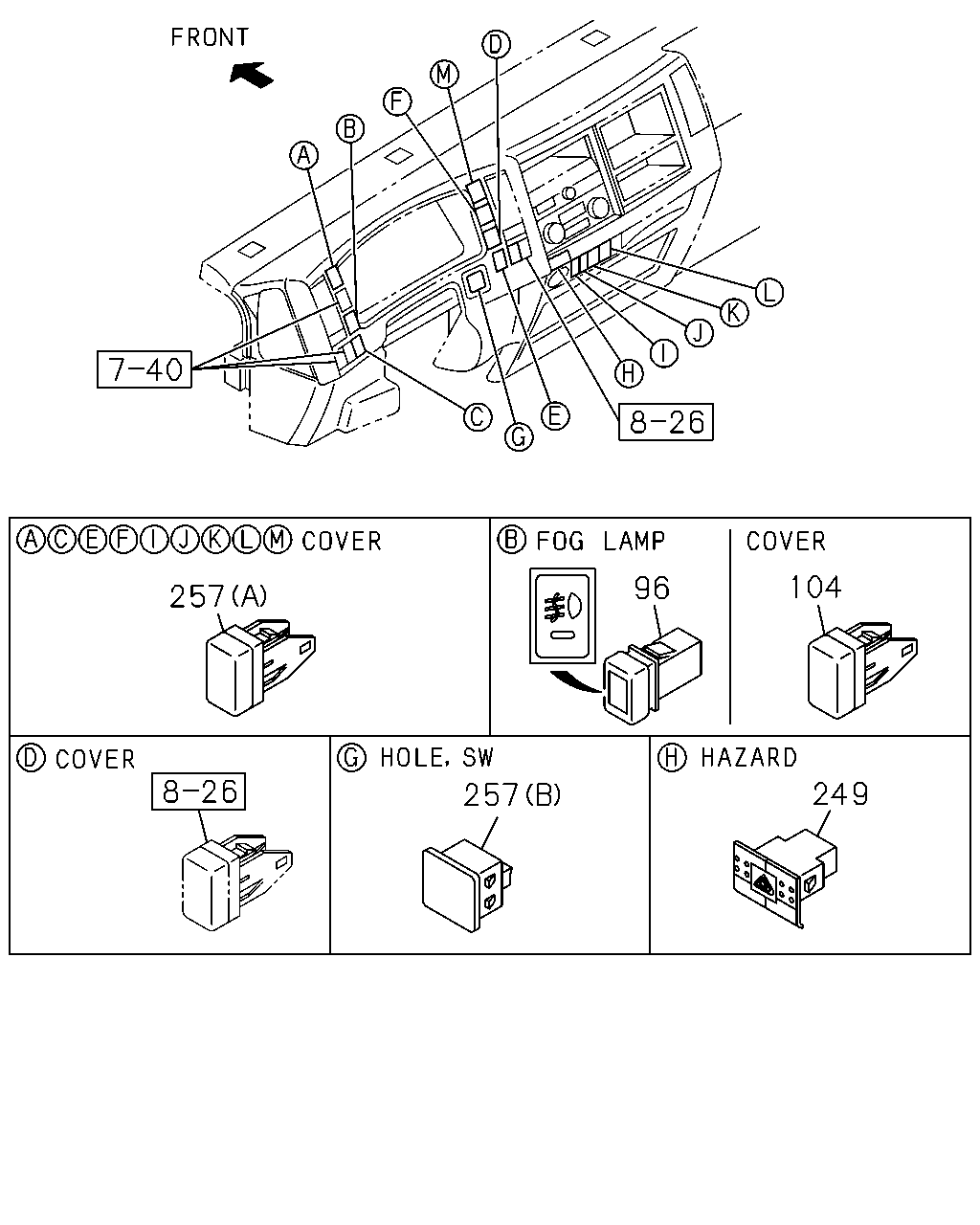

[825A] SWITCH(NO.1) (8 parça)
[825A] -'12/4 RELAY;CAB HARNESS (8 parça)
[825A] '12/5- RELAY;CAB HARNESS (8 parça)
[825A] SWITCH(NO.2) (6 parça)
[825A] RELAY;FRAME HARNESS (2 parça)
▶
104
96
257
249
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
96
02.485 SWITCH; FOG LAMP
FOG LAMP<T96>
8-97387-031-4
01
1
1108-
104
09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081
8-98025-954-1
01
1
1108-
249
02.485 SWITCH; HAZARD
8-97386-922-1
01
1
1108-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
06
1
1108-
257
16.081 COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1108-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1108-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1108-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1108-
610
98
99
595
596
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98

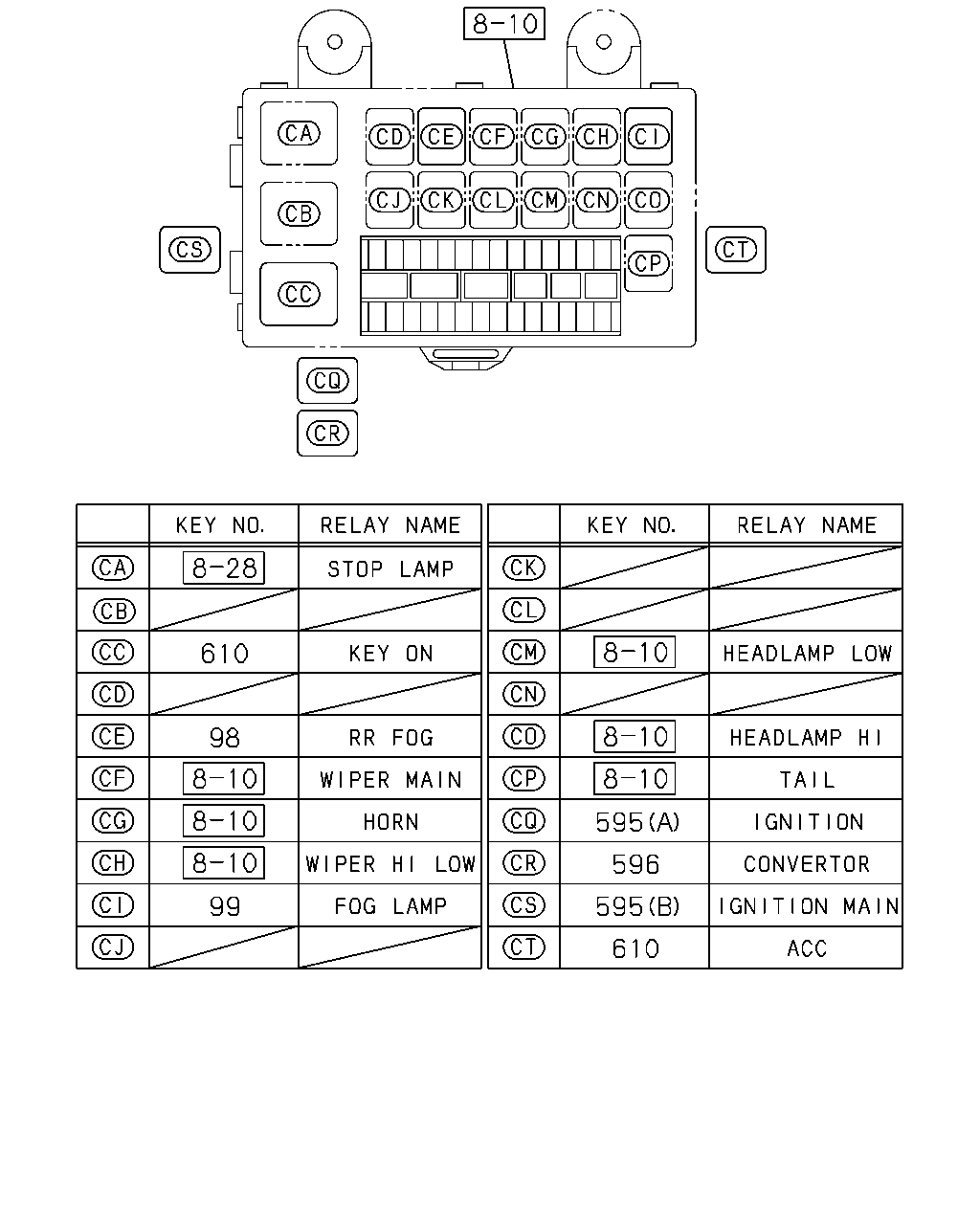

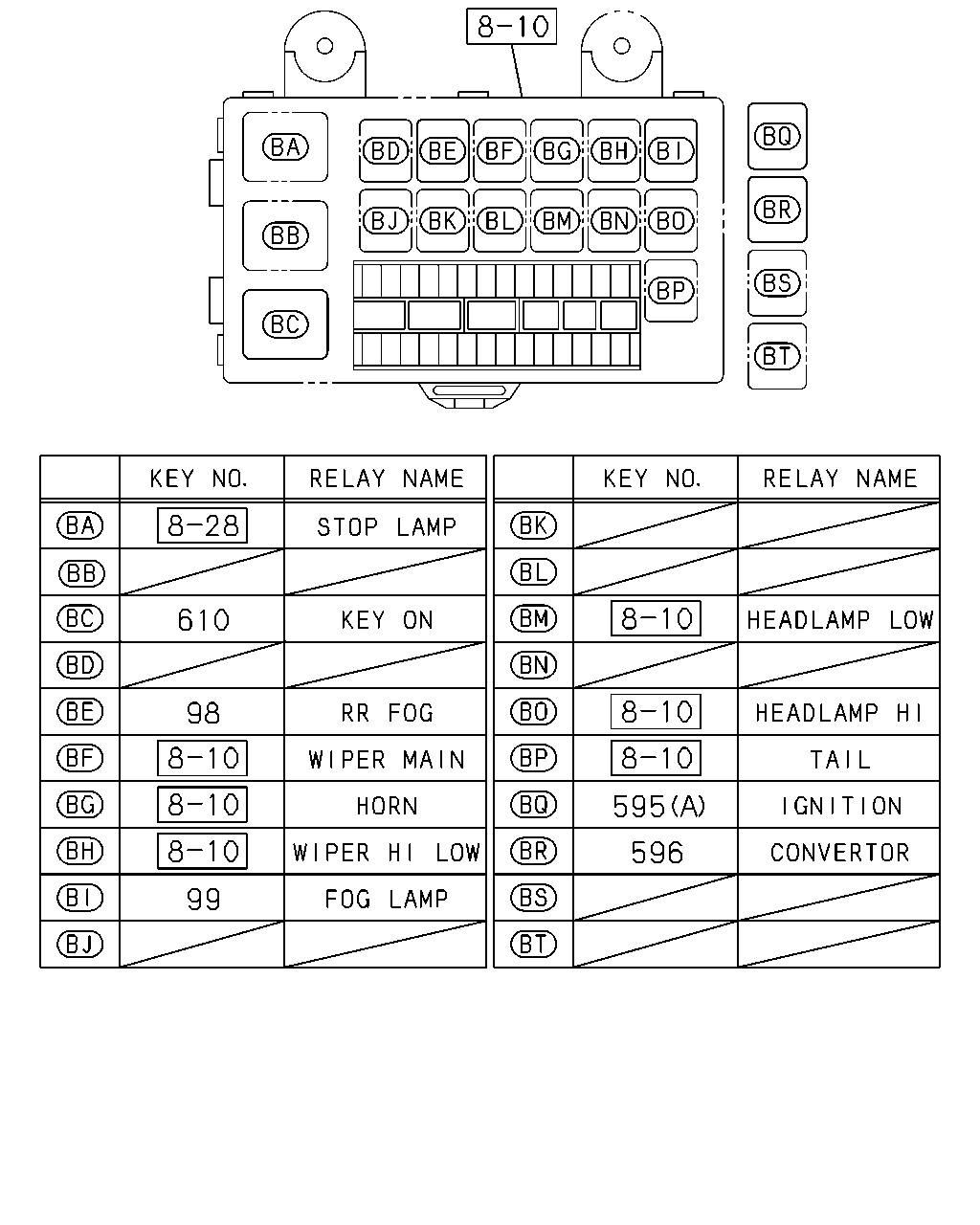

02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 24V 10A PANASONIC
8-97173-035-1
01
1
1108-
99
02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC
8-97173-035-1
01
1
1108-
595
02.510 RELAY; IGNITION
(B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
595
02.510 RELAY; IGNITION
08.852 (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1108-
596
02.510 RELAY; CONVERTOR
08.852 24V 10A PANASONIC
8-97173-035-1
01
1
1108-
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1108-1204
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
610
98
595
596
595
99
610
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 24V 10A PANASONIC
8-97173-035-1
01
1
1108-
99
02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC
8-97173-035-1
01
1
1108-
595
02.510 RELAY; IGNITION
(B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
595
02.510 RELAY; IGNITION
08.852 (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1108-
596
02.510 RELAY; CONVERTOR
08.852 24V 10A PANASONIC
8-97173-035-1
01
1
1108-
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1108-1204
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
1
3
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1

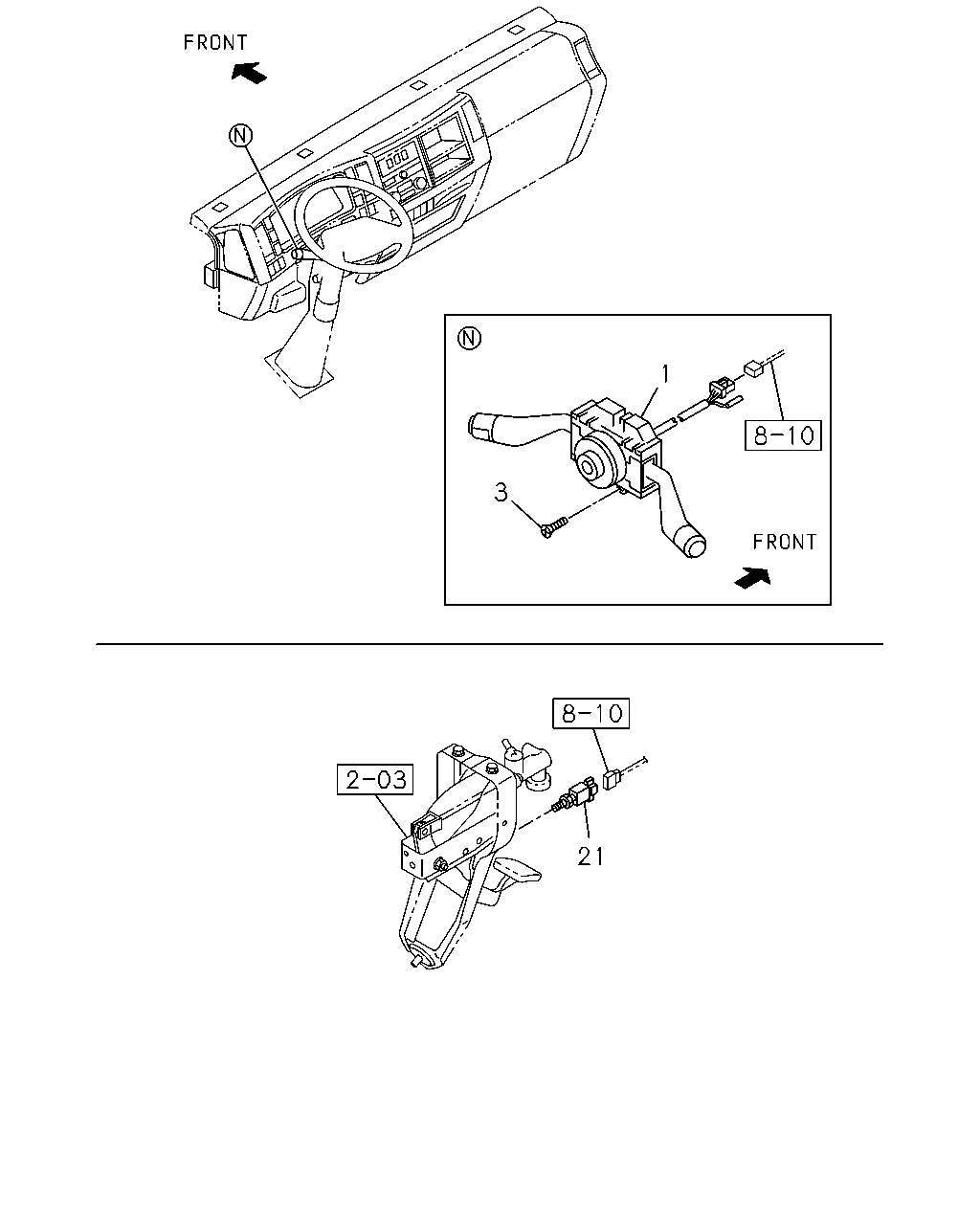

02.895 SWITCH; COMB
RR FOG LAMP<T79>
8-98070-007-2
01
1
1108-1310
1
02.895 SWITCH; COMB
RR FOG LAMP<T79>
8-98243-750-0
01
1
1311-
1
02.895 SWITCH; COMB
EXC. RR FOG LAMP<T79>
8-98070-008-2
01
1
1108-1310
1
02.895 SWITCH; COMB
EXC. RR FOG LAMP<T79>
8-98243-748-0
01
1
1311-
3
02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1108-
21
02.575 SWITCH; CLU
8-97358-248-0
01
1
1108-
593
575
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
575
16.742 RELAY; GAS VLV
02.173 24V 10A
8-98167-173-0
01
1
1108-
593
02.510 RELAY; GAS CUT
08.852 24V 10A PANASONIC
8-97173-035-1
01
1
1108-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
