8-15 — FIXING PARTS; WIRING HARNESS (#80002) — 144 parça

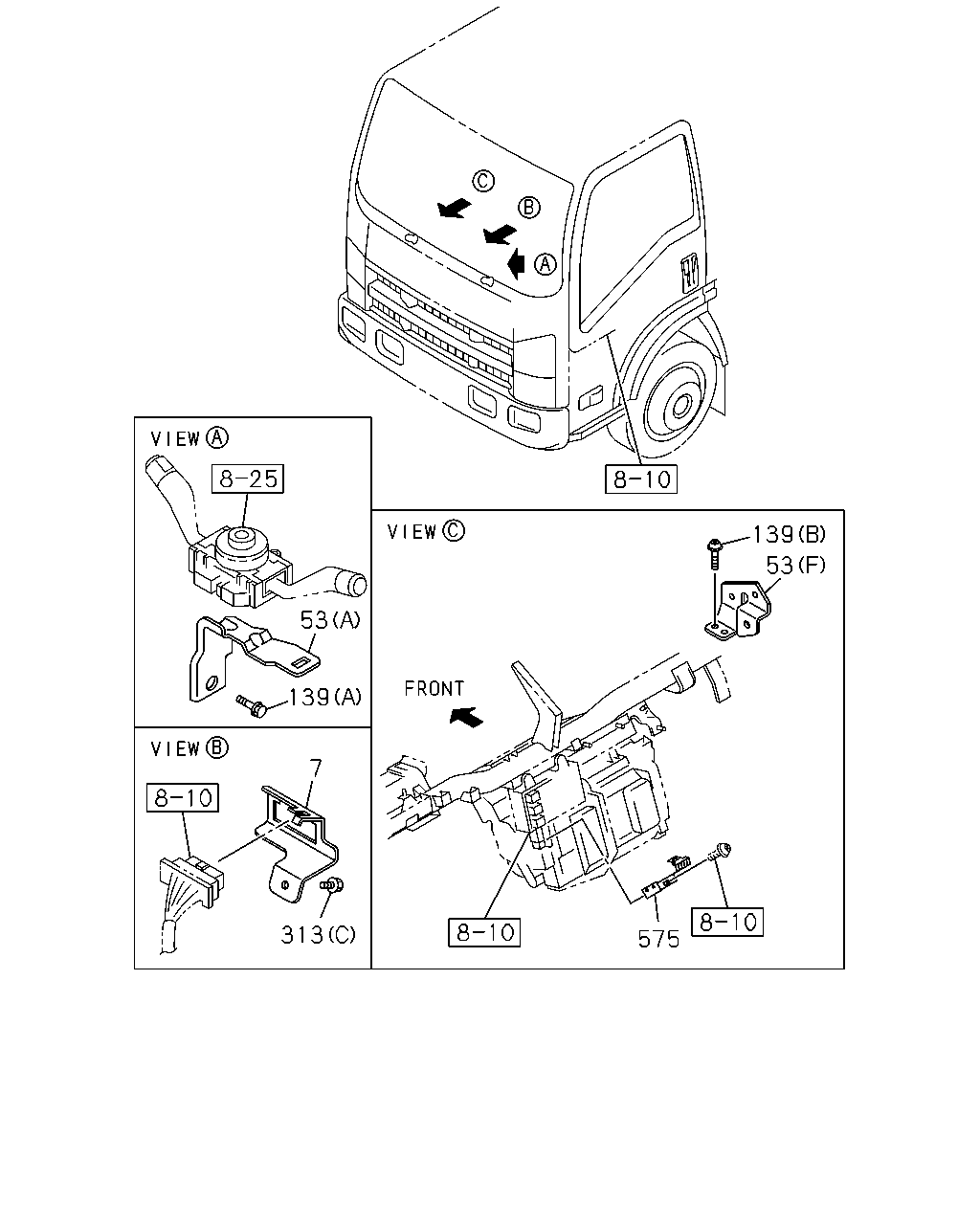

139 53 53 139 7 313 575

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR	8-98043-070-1	01	1	1108-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1108-
53	02.483 BRACKET; HARNESS (B)	8-98032-016-1	01	1	1108-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1108-
53	02.483 BRACKET; HARNESS (D)	8-98058-646-2	01	1	1108-
53	02.483 BRACKET; HARNESS (F)	8-98084-699-0	01	1	1108-
53	02.483 BRACKET; HARNESS (E)	8-98089-765-1	01	1	1108-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1108-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1108-
139	02.559 BOLT; BRKT 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1108-
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1108-
139	02.559 BOLT; BRKT 16.090 (B) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1108-1212
139	02.559 BOLT; BRKT 16.090 (B) T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
313	02.559 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 06.509 (D) M14X25 FLANGE	0-28851-425-0	01	1	1108-
313	02.559 BOLT; BRKT 09.171 (C) M6X16 FLANGE	0-28450-616-0	01	1	1108-
313	02.559 BOLT; BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1108-
313	02.559 BOLT; BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 09.171 (B) M14X20 FLANGE	0-28851-420-0	01	1	1108-
575	02.559 BRACKET; FUSE BOX	8-98132-932-1	01	1	1108-

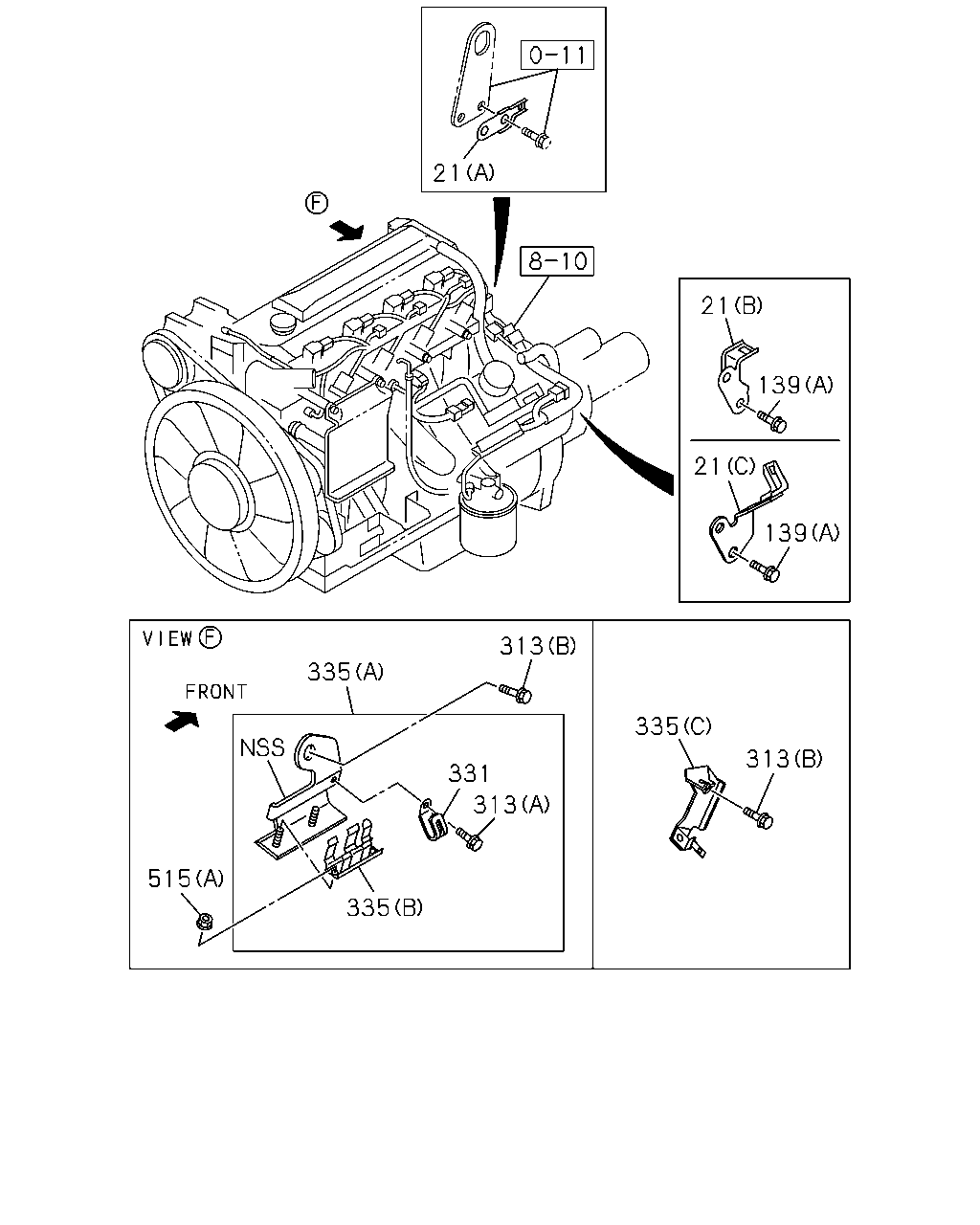

21 21 139 21 139 313 335 335 313 331 313 515 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	02.483 BRACKET; ENG HARNESS HYDRO BRAKE BOOSTER(7QQ) (C)	8-98165-459-0	01	1	1108-
21	02.483 BRACKET; ENG HARNESS (A)	8-97383-683-0	01	1	1108-
21	02.483 BRACKET; ENG HARNESS EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97383-684-0	01	1	1108-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1108-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1108-
139	02.559 BOLT; BRKT 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1108-
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1108-
139	02.559 BOLT; BRKT 16.090 (B) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1108-1212
139	02.559 BOLT; BRKT 16.090 (B) T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
313	02.559 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 06.509 (D) M14X25 FLANGE	0-28851-425-0	01	1	1108-
313	02.559 BOLT; BRKT 09.171 (C) M6X16 FLANGE	0-28450-616-0	01	1	1108-
313	02.559 BOLT; BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1108-
313	02.559 BOLT; BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 09.171 (B) M14X20 FLANGE	0-28851-420-0	01	1	1108-
331	02.559 CLIP; HARNESS BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1108-
335	02.510 BRACKET; CONNECTOR HYDRO BRAKE BOOSTER(7QQ) (C)	8-98105-196-3	01	1	1108-
335	02.510 BRACKET; CONNECTOR EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97262-725-0	01	1	1108-
335	02.510 BRACKET; CONNECTOR EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97262-726-0	01	1	1108-
515	02.559 NUT; BRKT 00.787 (C) M10	0-91111-510-0	02	1	1108-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1108-
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1108-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1108-
515	02.559 NUT; BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1108-

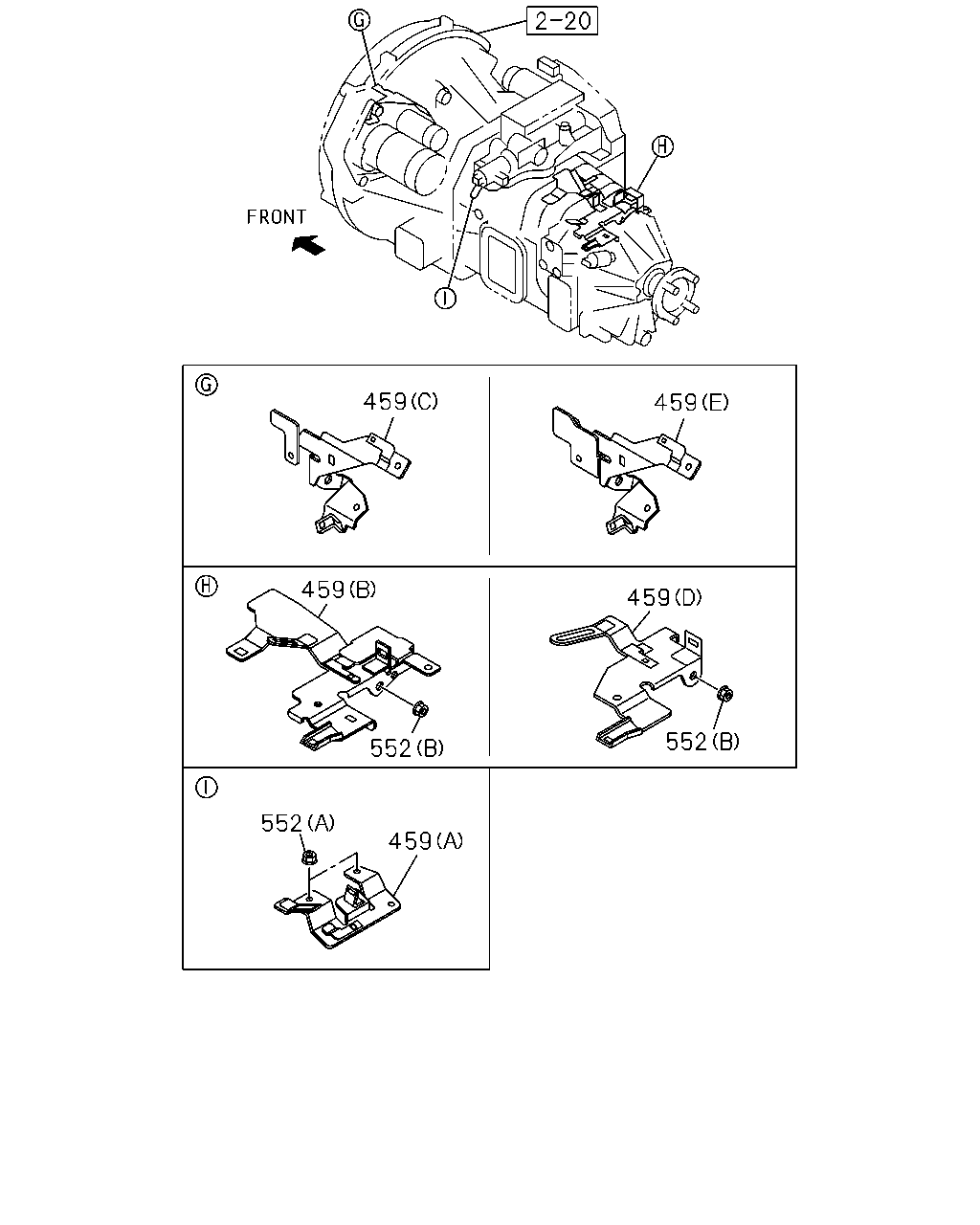

459 459 459 459 552 552 552 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	1108-
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98030-990-2	01	1	1108-1109
459	02.483 BRACKET; SUPPORT,HARNESS (D)	8-98196-974-0	01	1	1110-
459	02.483 BRACKET; SUPPORT,HARNESS (C)	8-98081-708-0	01	1	1108-1205
459	02.483 BRACKET; SUPPORT,HARNESS (E)	8-98210-989-0	01	1	1206-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1108-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1108-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1108-

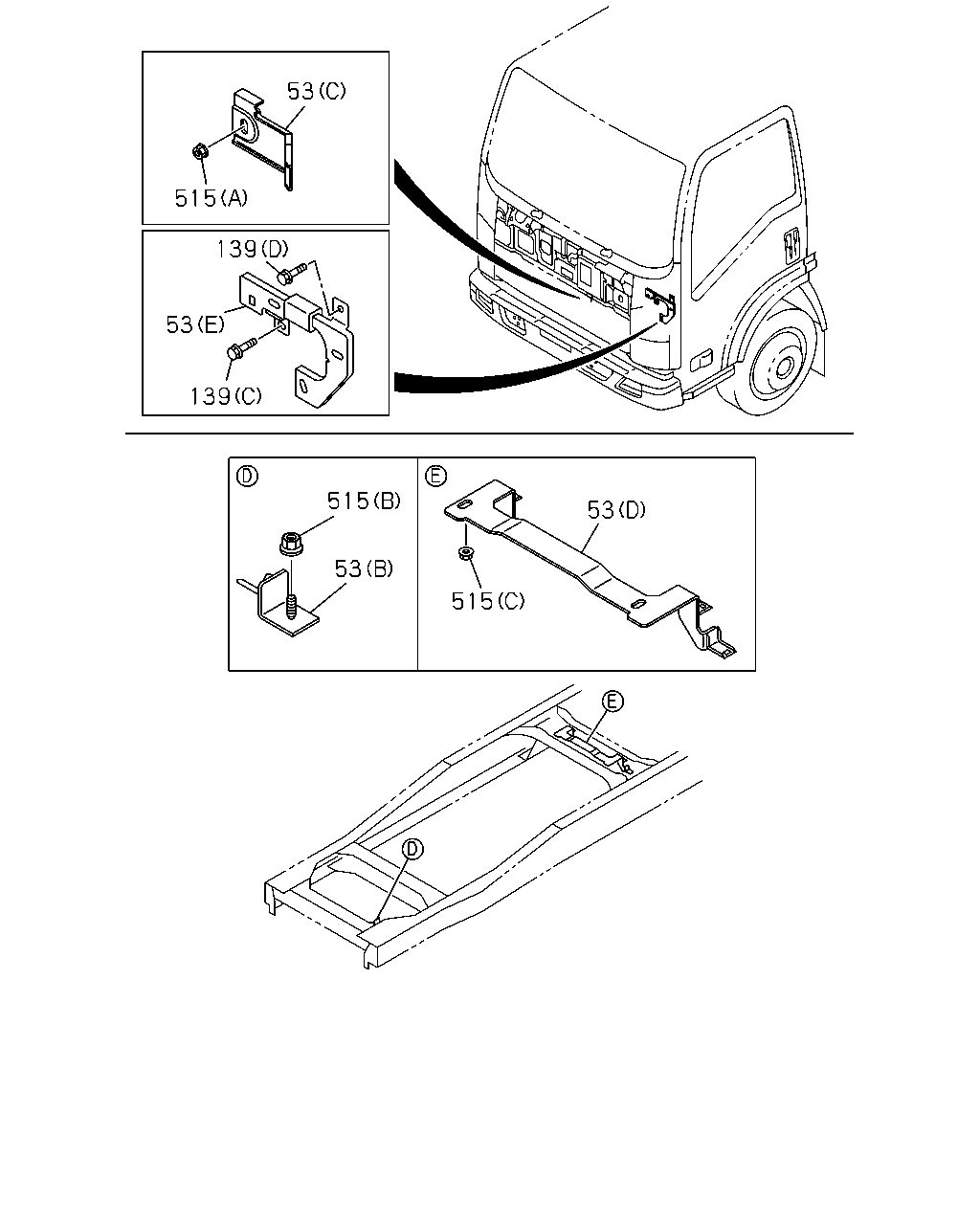

53 515 139 53 139 515 53 53 515

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1108-
53	02.483 BRACKET; HARNESS (B)	8-98032-016-1	01	1	1108-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1108-
53	02.483 BRACKET; HARNESS (D)	8-98058-646-2	01	1	1108-
53	02.483 BRACKET; HARNESS (F)	8-98084-699-0	01	1	1108-
53	02.483 BRACKET; HARNESS (E)	8-98089-765-1	01	1	1108-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1108-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1108-
139	02.559 BOLT; BRKT 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1108-
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1108-
139	02.559 BOLT; BRKT 16.090 (B) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1108-1212
139	02.559 BOLT; BRKT 16.090 (B) T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
515	02.559 NUT; BRKT 00.787 (C) M10	0-91111-510-0	02	1	1108-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1108-
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1108-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1108-
515	02.559 NUT; BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1108-

16 22 331 483 16 48 22 16 22 48 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS HYDRO BRAKE BOOSTER(7QQ) (D) ID=11X2 L=20	9-09535-036-0	02	1	1108-
16	02.559 CLIP; HARNESS (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1108-
16	02.559 CLIP; HARNESS 03.162 (B)	5-09709-095-0	01	1	1108-
16	02.559 CLIP; HARNESS 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	1108-
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	01	1	1108-
16	02.559 CLIP; HARNESS 16.578 (A) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1108-
22	02.559 CLIP; ENG HARNESS (B) L=170.3	1-09987-182-0	03	1	1108-
22	02.559 CLIP; ENG HARNESS EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) L=140	5-09707-031-1	01	1	1108-
22	02.559 CLIP; ENG HARNESS EXC. HYDRO BRAKE BOOSTER(7QQ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1108-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (B) ID=14 L=47	5-09700-319-0	05	1	1108-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	1108-
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	02	1	1108-
48	02.559 CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1108-
331	02.559 CLIP; HARNESS BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1108-
483	02.559 CLIP; ENG HARNESS HYDRO BRAKE BOOSTER(7QQ) 02.575 (A)	1-09987-161-0	02	1	1108-
483	02.559 CLIP; ENG HARNESS 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	1108-
483	02.559 CLIP; ENG HARNESS EXC. HYDRO BRAKE BOOSTER(7QQ) 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1108-
488	02.559 CLIP; CABLE,TRAILER RR FOG LAMP<T79> L=250	5-09707-030-1	04	1	1108-
488	02.559 CLIP; CABLE,TRAILER EXC. RR FOG LAMP<T79> L=250	5-09707-030-1	01	1	1108-

516 150 304 313 38 139 313 480 529 313 313 377 377 386 386 24 294 515 577 219 515 525 552 515 515 552 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	1108-1409
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-
38	02.559 BOLT; CLIP,HARNESS 09.216 M6X12 FLANGE	0-28250-612-0	01	1	1108-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1108-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1108-
139	02.559 BOLT; BRKT 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1108-
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1108-
139	02.559 BOLT; BRKT 16.090 (B) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1108-1212
139	02.559 BOLT; BRKT 16.090 (B) T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
150	02.343 BOLT; CLIP M8X12 FLANGE	0-28050-812-0	01	1	1108-
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1108-
294	02.559 NUT 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	1108-
304	02.483 BOLT; ENG HARNESS CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1108-
313	02.559 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 06.509 (D) M14X25 FLANGE	0-28851-425-0	01	1	1108-
313	02.559 BOLT; BRKT 09.171 (C) M6X16 FLANGE	0-28450-616-0	01	1	1108-
313	02.559 BOLT; BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1108-
313	02.559 BOLT; BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 09.171 (B) M14X20 FLANGE	0-28851-420-0	01	1	1108-
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1108-
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1108-
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1108-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1108-
480	02.483 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1108-
515	02.559 NUT; BRKT 00.787 (C) M10	0-91111-510-0	02	1	1108-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1108-
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1108-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1108-
515	02.559 NUT; BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1108-
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1108-
525	02.559 NUT; CLIP HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1108-
525	02.559 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1108-
525	02.559 NUT; CLIP EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1108-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1108-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1108-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1108-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1108-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1108-

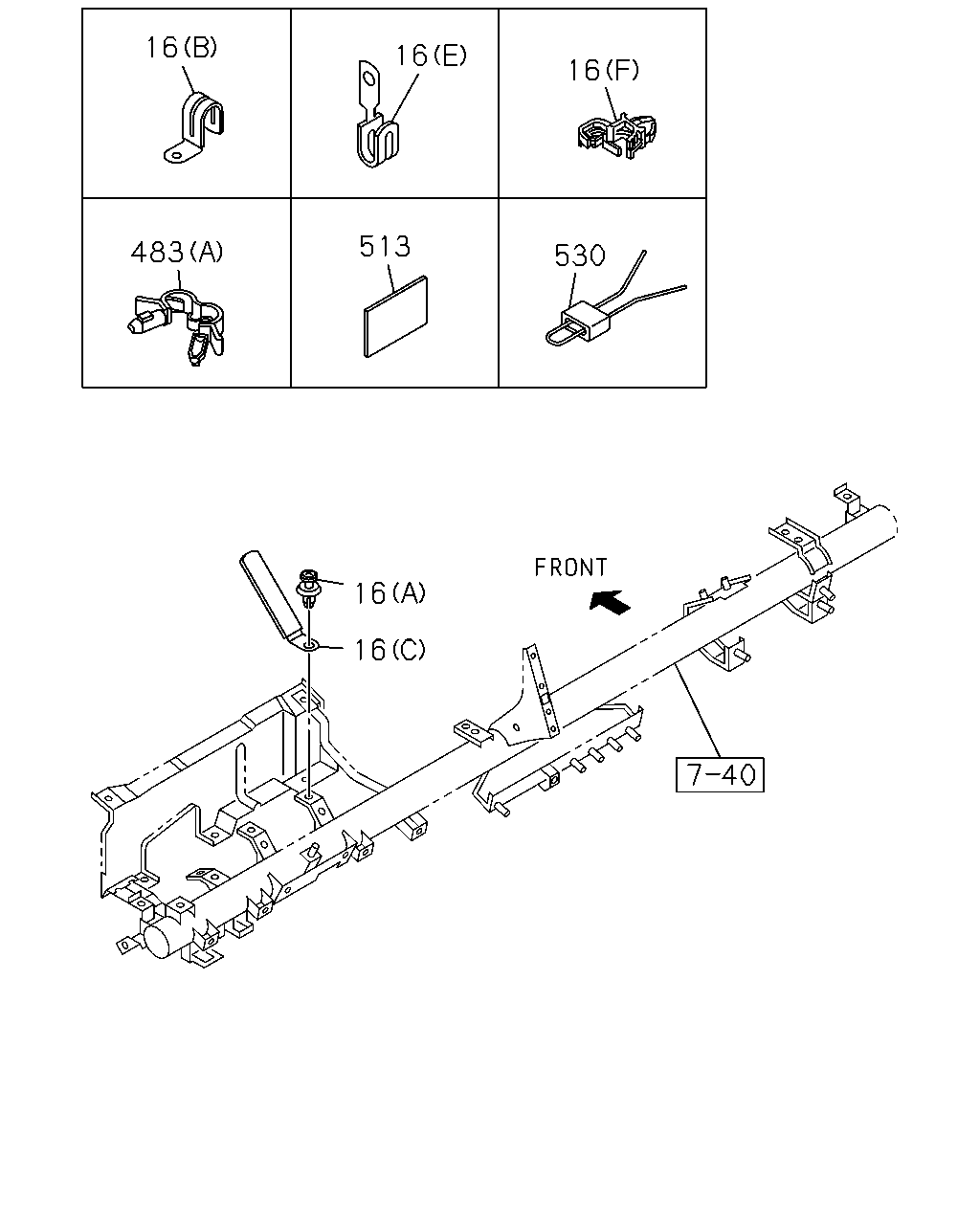

16 16 16 483 513 530 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS HYDRO BRAKE BOOSTER(7QQ) (D) ID=11X2 L=20	9-09535-036-0	02	1	1108-
16	02.559 CLIP; HARNESS (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1108-
16	02.559 CLIP; HARNESS 03.162 (B)	5-09709-095-0	01	1	1108-
16	02.559 CLIP; HARNESS 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	1108-
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	01	1	1108-
16	02.559 CLIP; HARNESS 16.578 (A) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1108-
483	02.559 CLIP; ENG HARNESS HYDRO BRAKE BOOSTER(7QQ) 02.575 (A)	1-09987-161-0	02	1	1108-
483	02.559 CLIP; ENG HARNESS 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	1108-
483	02.559 CLIP; ENG HARNESS EXC. HYDRO BRAKE BOOSTER(7QQ) 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1108-
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	1108-1309
513	02.559 TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	1108-1204
513	02.559 TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	1205-
513	02.559 TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	1205-
530	02.559 SEAL; HARNESS SPEED LIMITER 90KM(NMJ) 03.483	8-97382-876-0	02	1	1411-

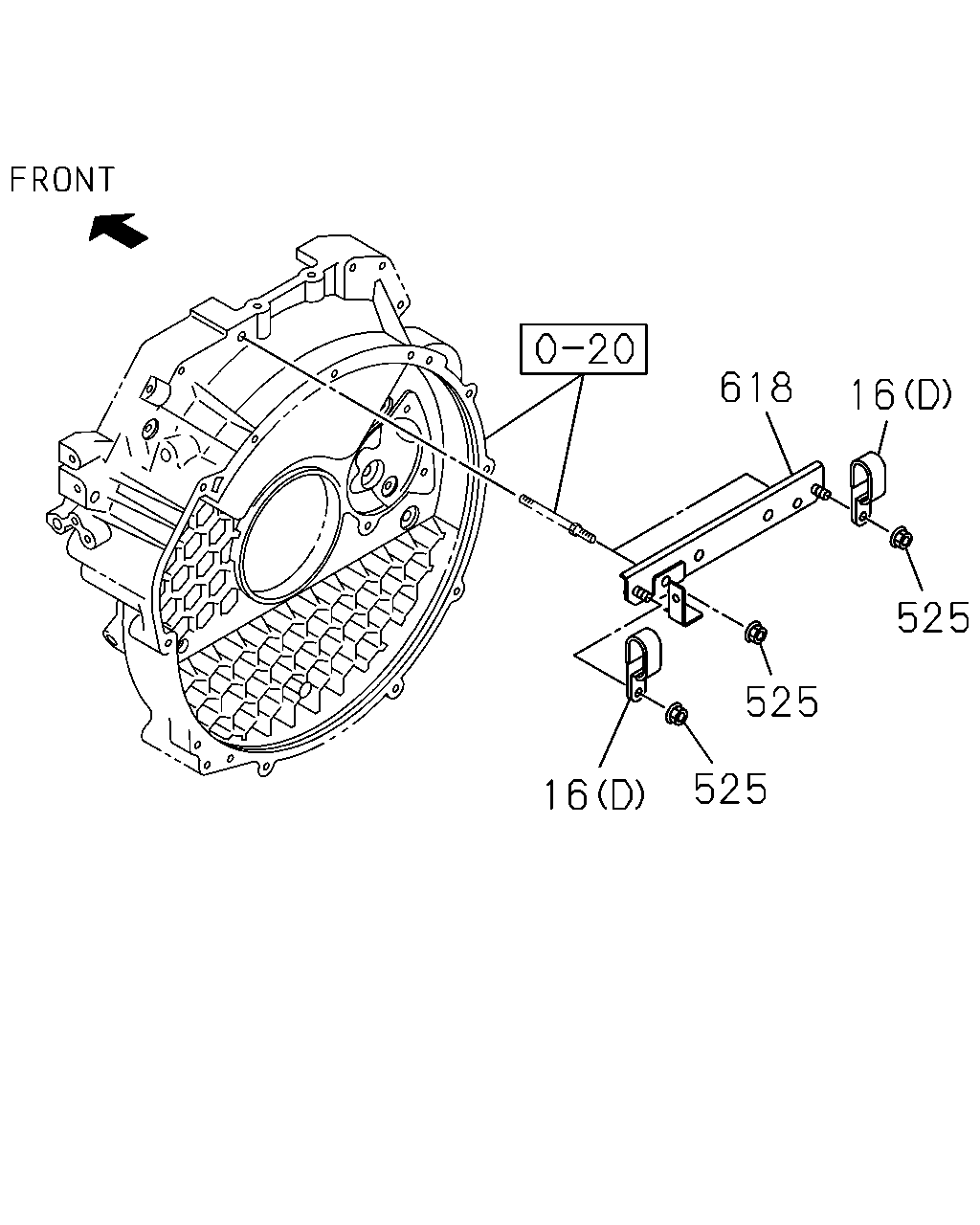

618 16 525 525 525 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS HYDRO BRAKE BOOSTER(7QQ) (D) ID=11X2 L=20	9-09535-036-0	02	1	1108-
16	02.559 CLIP; HARNESS (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1108-
16	02.559 CLIP; HARNESS 03.162 (B)	5-09709-095-0	01	1	1108-
16	02.559 CLIP; HARNESS 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	1108-
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	01	1	1108-
16	02.559 CLIP; HARNESS 16.578 (A) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1108-
525	02.559 NUT; CLIP HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1108-
525	02.559 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1108-
525	02.559 NUT; CLIP EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1108-
618	02.559 BRACKET; OIL PIPE HYDRO BRAKE BOOSTER(7QQ) 04.686	8-98105-197-1	01	1	1108-
