8-10 — WIRING HARNESS AND FUSE
(#80001) — 78 parça
◀

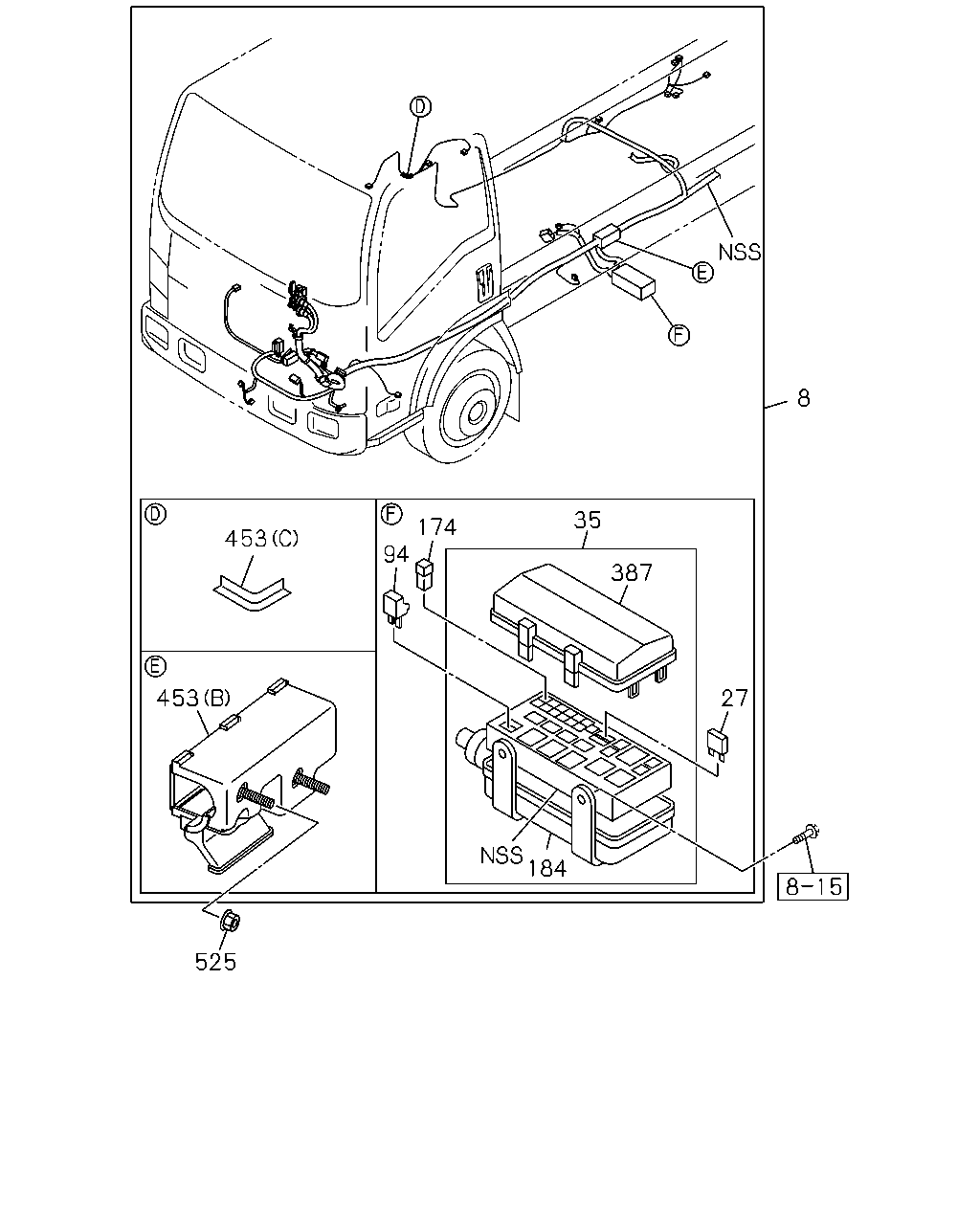

[810A] FRAME FRONT HARNESS (24 parça)

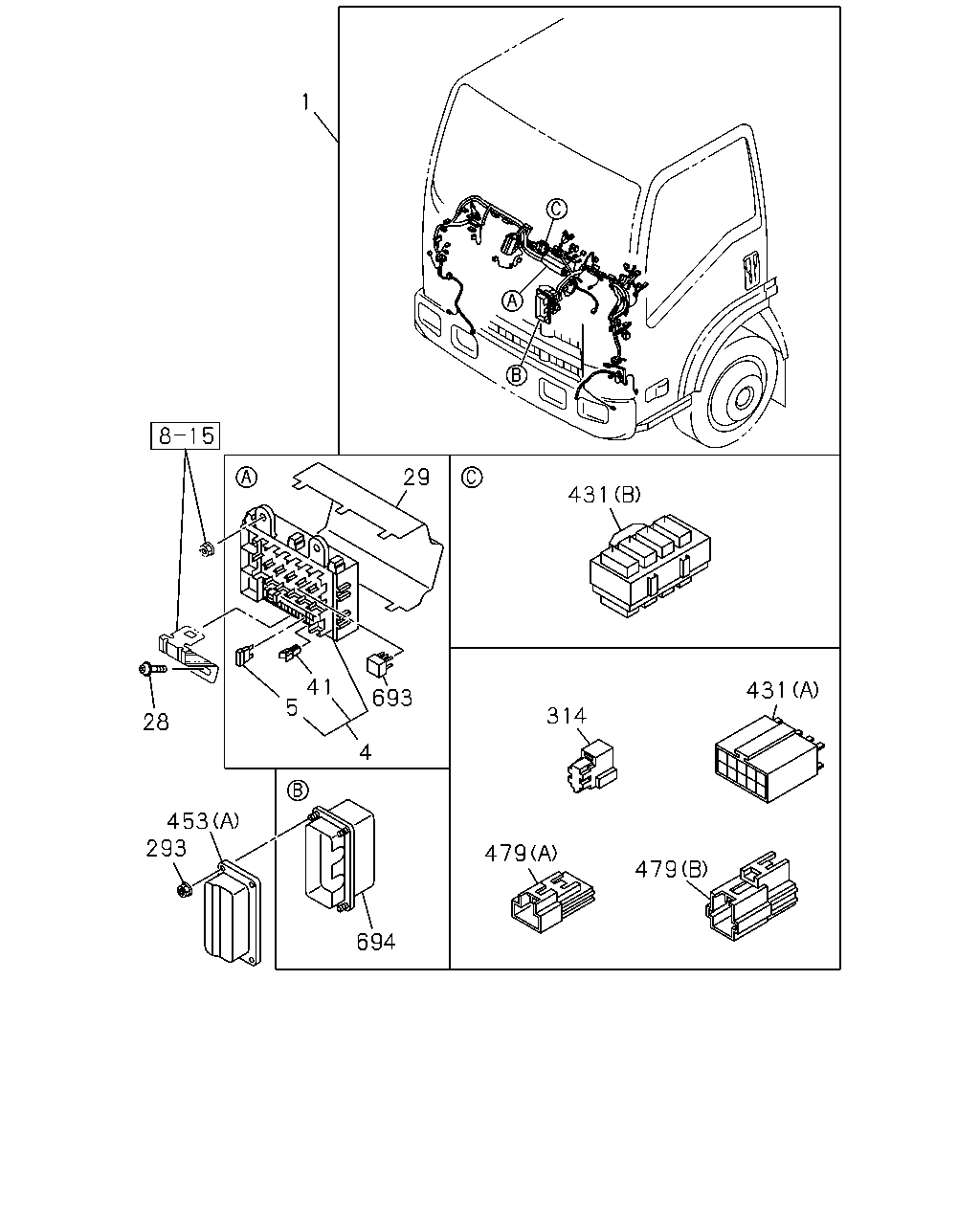

[810A] CAB HARNESS (22 parça)

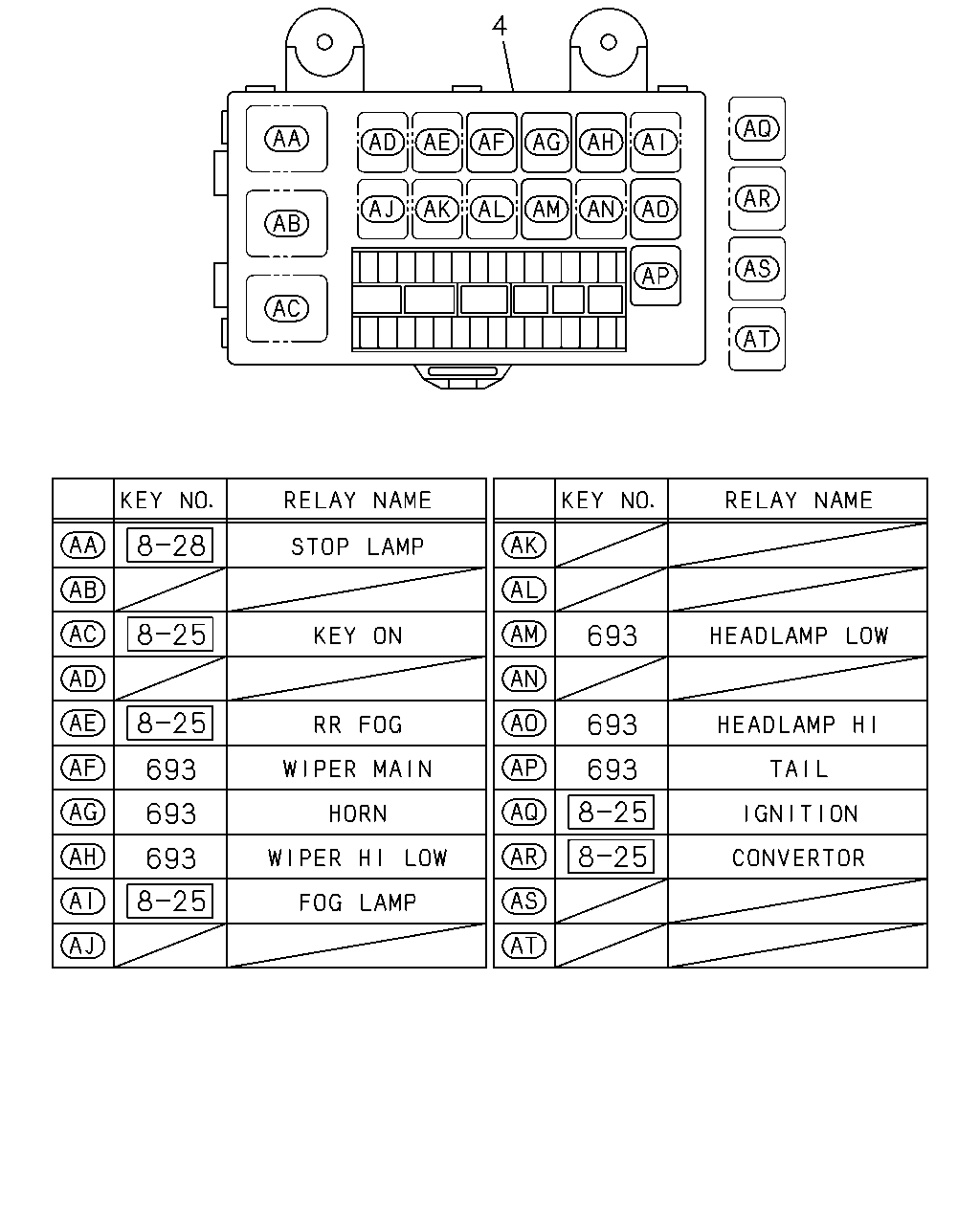

[810A] -'12/4 RELAY;CAB HARNESS (2 parça)

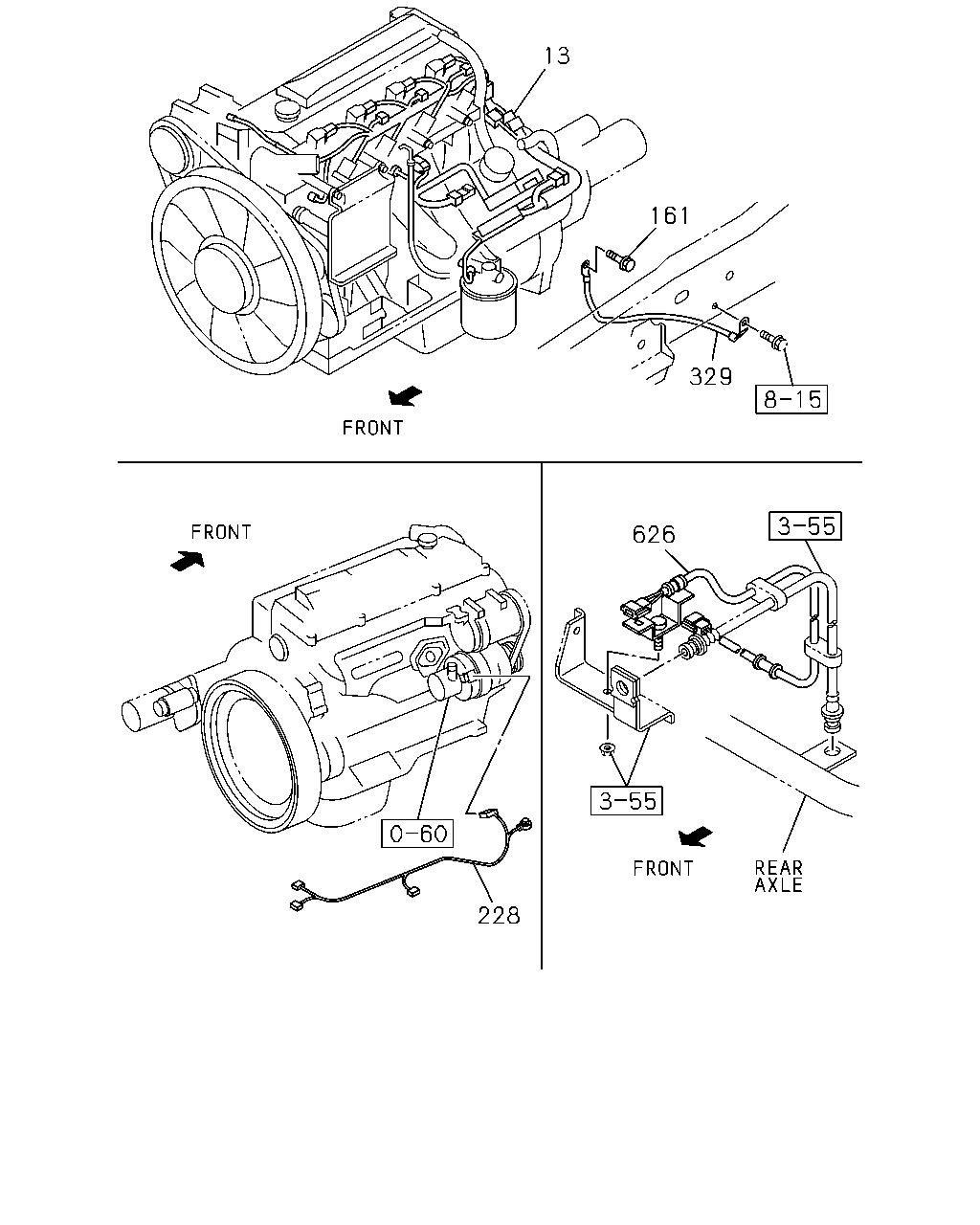

[810A] OTHER HARNESS (8 parça)

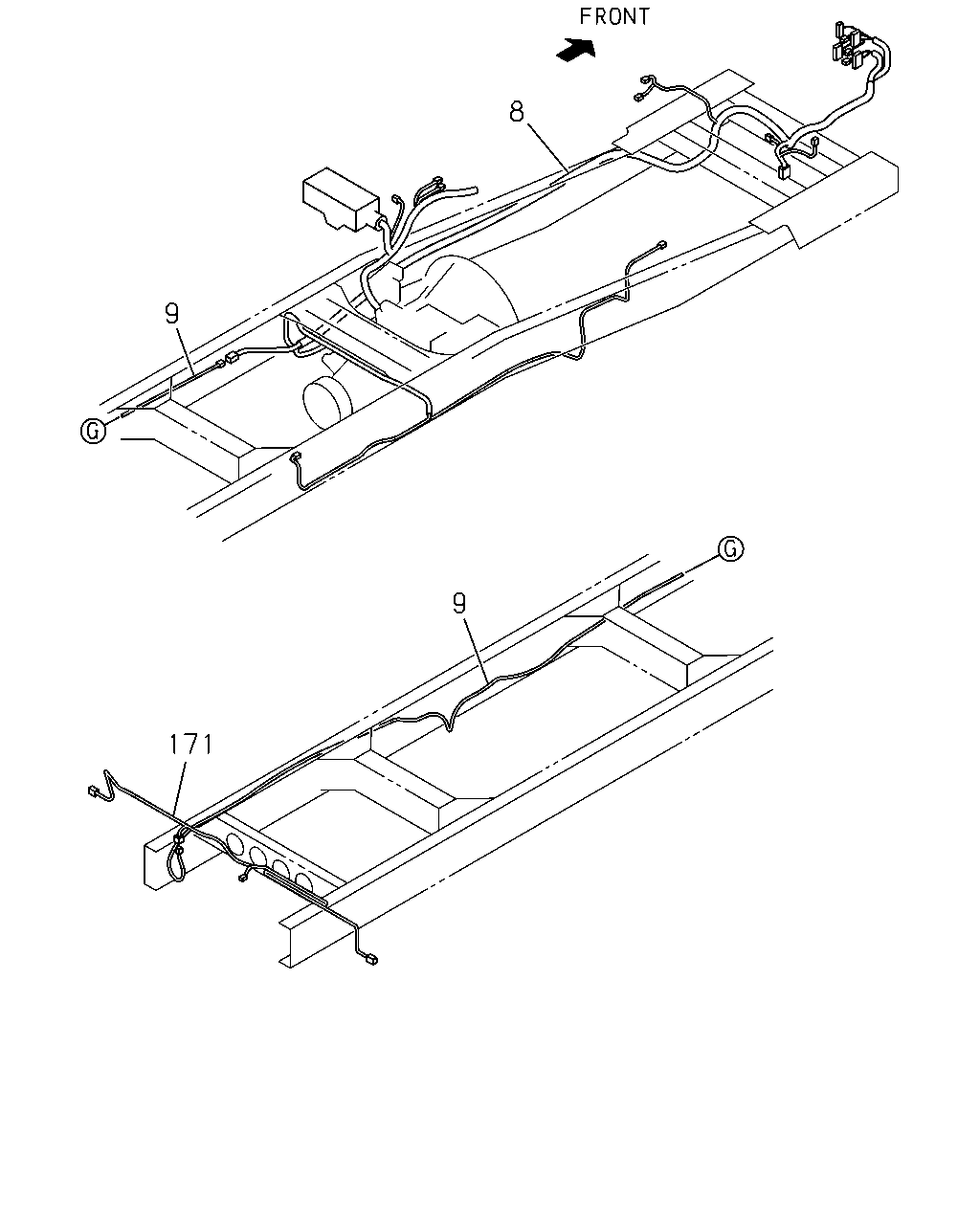

[810A] FRAME REAR HARNESSS (15 parça)

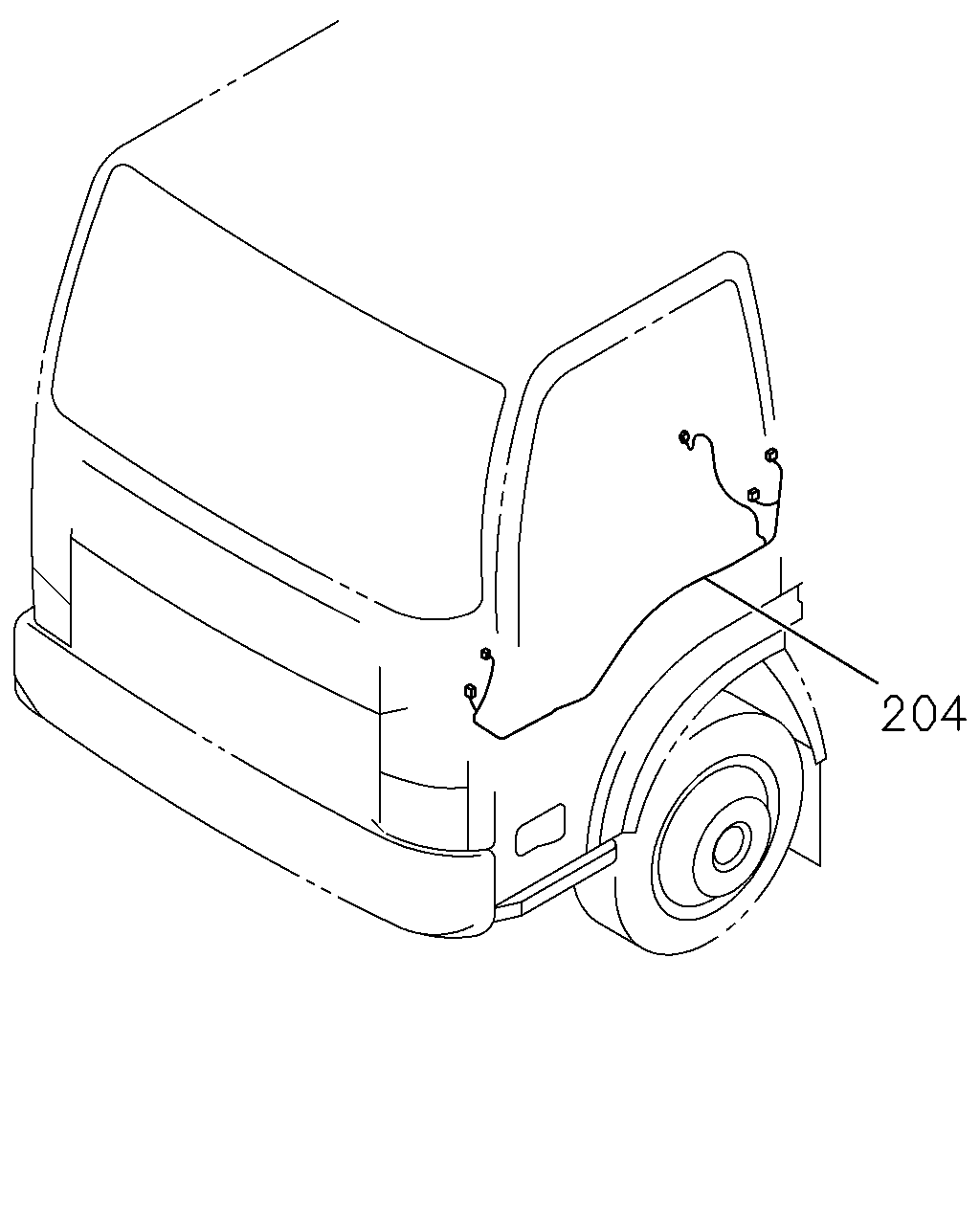

[810A] FLOOR HARNESS (1 parça)

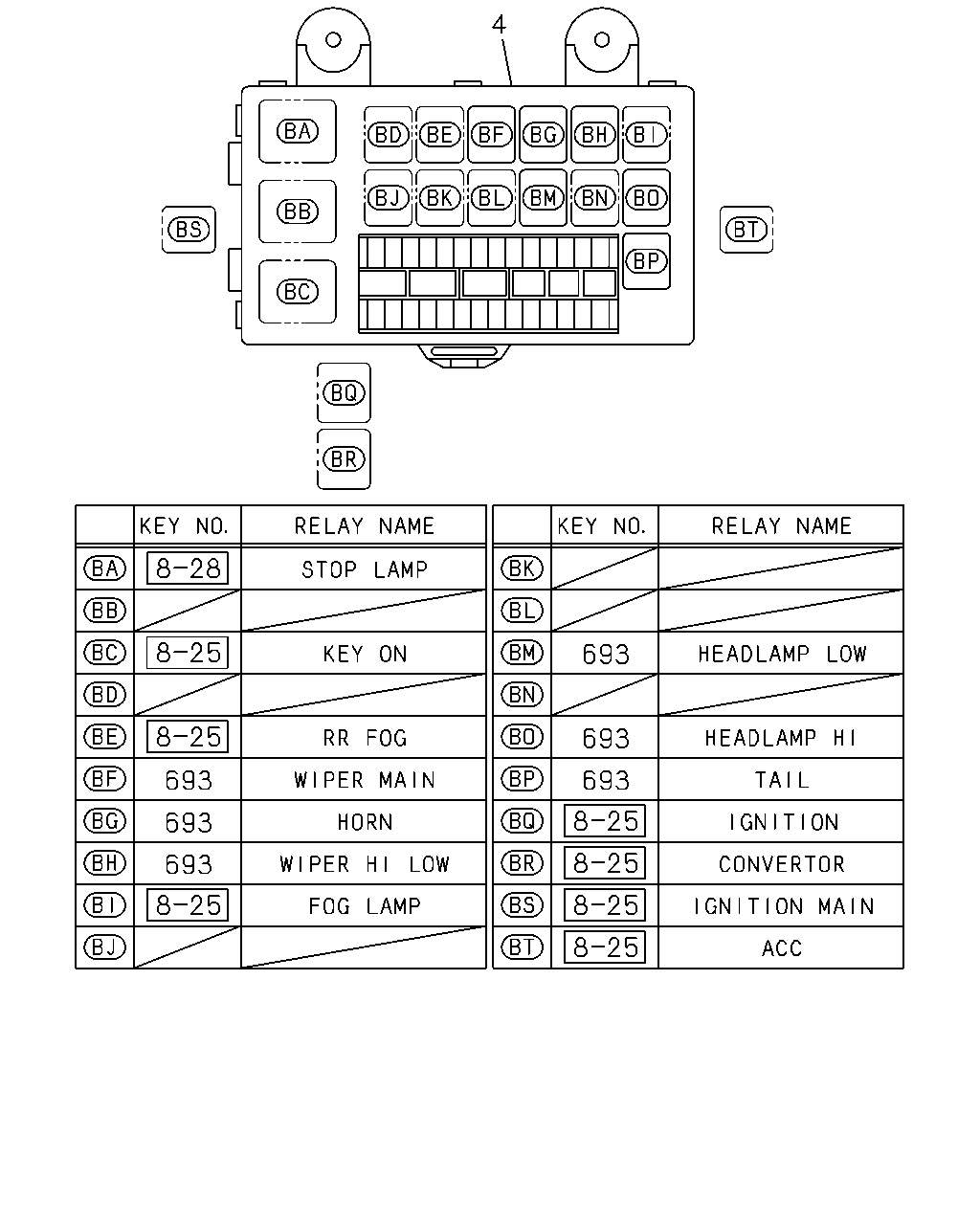

[810A] '12/5- RELAY;CAB HARNESS (2 parça)
[810A] OTHER PARTS (4 parça)
▶
8
35
174
94
453
387
27
453
184
525
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)
8-98113-869-6
01
1
1108-1407
8
02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)
8-98276-762-0
01
1
1408-1409
8
02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)
8-98293-970-0
01
1
1410-
8
02.480 HARNESS; FRAME,FRT
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98153-892-3
01
1
1108-1407
8
02.480 HARNESS; FRAME,FRT
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98276-763-0
01
1
1408-1409
8
02.480 HARNESS; FRAME,FRT
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98293-971-0
01
1
1410-
8
02.480 HARNESS; FRAME,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)
8-98146-873-5
01
1
1108-1407
8
02.480 HARNESS; FRAME,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)
8-98276-761-0
01
1
1408-1409
8
02.480 HARNESS; FRAME,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)
8-98293-969-0
01
1
1410-
27
08.965 FUSE UNIT
02.485 10A RED
8-98054-257-0
AR
1
1108-
27
08.965 FUSE UNIT
02.485 15A BLUE
8-98054-258-0
AR
1
1108-
35
02.530 BOX; RELAY & FUSE
8-98030-763-0
01
1
1108-
94
02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A
8-94422-639-1
AR
1
1108-
94
02.483 DIODE; FRAME HARNESS
3.0A
8-98005-936-0
AR
1
1108-
174
08.965 FUSE; SLOW BLOW
30A PINK
8-98079-191-0
AR
1
1108-
174
08.965 FUSE; SLOW BLOW
40A GREEN
8-98079-192-0
AR
1
1108-
174
08.965 FUSE; SLOW BLOW
50A RED
8-98079-193-0
AR
1
1108-
174
08.965 FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
AR
1
1108-
184
02.559 COVER; RELAY & FUSE BOX
8-98030-766-0
01
1
1108-
387
02.483 COVER; RELAY BOX
8-98081-367-0
01
1
1108-
453
02.483 PROTECTOR; HARNESS
(C)
8-94417-716-0
06
1
1108-
453
02.483 PROTECTOR; HARNESS
(B)
8-98031-620-1
01
1
1108-
453
02.483 PROTECTOR; HARNESS
(A)
8-98057-647-0
01
1
1108-
525
08.919 NUT; CLIP
01.062 M8 FLANGE
0-91180-108-0
02
1
1108-
1
29
431
41
5
431
693
314
28
4
453
293
479
479
694
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.480 HARNESS; CAB
8-98147-444-1
01
1
1108-1204
1
02.480 HARNESS; CAB
8-98207-579-0
01
1
1205-
4
02.483 BOX ASM; FUSE,HARNESS
8-98067-619-1
01
1
1108-
5
02.485 FUSE; FACIA HARNESS
10A RED
8-98054-257-0
AR
1
1108-
5
02.485 FUSE; FACIA HARNESS
15A BLUE
8-98054-258-0
AR
1
1108-
5
02.485 FUSE; FACIA HARNESS
20A YELLOW
8-98054-259-0
AR
1
1108-
28
02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
01
1
1108-1212
28
02.483 SCREW; FUSE BOX
16.090 T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1301-
29
02.483 COVER; FUSE BOX
8-98056-968-0
01
1
1108-
41
08.821 PULLER; FUSE
8-98054-260-0
01
1
1108-
293
02.559 NUT
01.062 M6 FLANGE
0-91180-106-0
04
1
1108-
314
02.510 RESISTOR; HARNESS
BLUE
1-82691-204-0
01
1
1108-1204
431
02.530 CONNECTOR; JOINT
(A) 10P
8-97077-943-0
02
1
1108-1204
431
02.530 CONNECTOR; JOINT
(B)
8-98046-206-0
01
1
1108-
453
02.483 PROTECTOR; HARNESS
(C)
8-94417-716-0
06
1
1108-
453
02.483 PROTECTOR; HARNESS
(B)
8-98031-620-1
01
1
1108-
453
02.483 PROTECTOR; HARNESS
(A)
8-98057-647-0
01
1
1108-
479
02.530 CAP; CONNECTOR
(A)
8-98108-678-0
01
1
1108-
479
02.530 CAP; CONNECTOR
(B)
8-98108-679-0
01
1
1108-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
1108-
694
02.483 BOX ASM; CONNECTOR
8-98057-640-0
01
1
1108-1204
694
02.483 BOX ASM; CONNECTOR
8-98190-772-0
01
1
1205-
4
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
02.483 BOX ASM; FUSE,HARNESS
8-98067-619-1
01
1
1108-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
1108-
13
161
329
626
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
02.525 HARNESS; ENG
HYDRO BRAKE BOOSTER(7QQ)
8-98157-698-0
01
1
1108-
13
02.525 HARNESS; ENG
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-98157-697-0
01
1
1108-
161
02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE
0-28050-816-0
01
1
1108-
228
02.559 HARNESS; GEN
HYDRO BRAKE BOOSTER(7QQ)
8-98164-722-0
01
1
1108-
228
02.559 HARNESS; GEN
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-98113-872-2
01
1
1108-
329
02.480 CABLE; ENG TO FRAME
8-98123-064-0
01
1
1108-
626
02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5>
8-97253-968-1
01
1
1108-
626
02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5>
8-97253-969-1
01
1
1108-
8
9
9
171
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)
8-98113-869-6
01
1
1108-1407
8
02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)
8-98276-762-0
01
1
1408-1409
8
02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)
8-98293-970-0
01
1
1410-
8
02.480 HARNESS; FRAME,FRT
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98153-892-3
01
1
1108-1407
8
02.480 HARNESS; FRAME,FRT
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98276-763-0
01
1
1408-1409
8
02.480 HARNESS; FRAME,FRT
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98293-971-0
01
1
1410-
8
02.480 HARNESS; FRAME,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)
8-98146-873-5
01
1
1108-1407
8
02.480 HARNESS; FRAME,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)
8-98276-761-0
01
1
1408-1409
8
02.480 HARNESS; FRAME,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)
8-98293-969-0
01
1
1410-
9
02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98117-254-0
01
1
1108-
9
02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98117-249-0
01
1
1108-
9
02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98117-255-0
01
1
1108-
9
02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98117-250-0
01
1
1108-
171
02.596 HARNESS; CABLE,TAIL LAMP
RR FOG LAMP<T79>
8-98156-025-0
01
1
1108-
171
02.596 HARNESS; CABLE,TAIL LAMP
EXC. RR FOG LAMP<T79>
8-98156-028-0
01
1
1108-
204
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
204
02.559 HARNESS; CABLE,FLOOR
8-98070-799-5
01
1
1108-
4
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
02.483 BOX ASM; FUSE,HARNESS
8-98067-619-1
01
1
1108-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
1108-
374
57
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.480 HARNESS; CAB
8-98147-444-1
01
1
1108-1204
1
02.480 HARNESS; CAB
8-98207-579-0
01
1
1205-
57
02.483 FILTER; FUSE BOX
8-98211-338-0
01
1
1205-
374
02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK
8-98031-126-0
01
1
1108-
