◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51381 - NPR BUS CNG(LHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#79993) — 11 parça
çizim 132616
5 5 4 4
BalonParca AdiParca NoAdetTipApplied Date
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-98160-105-0 01 1 1108-
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-98145-345-0 01 1 1108-1203
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-98209-490-0 01 1 1204-
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1108-
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1108-

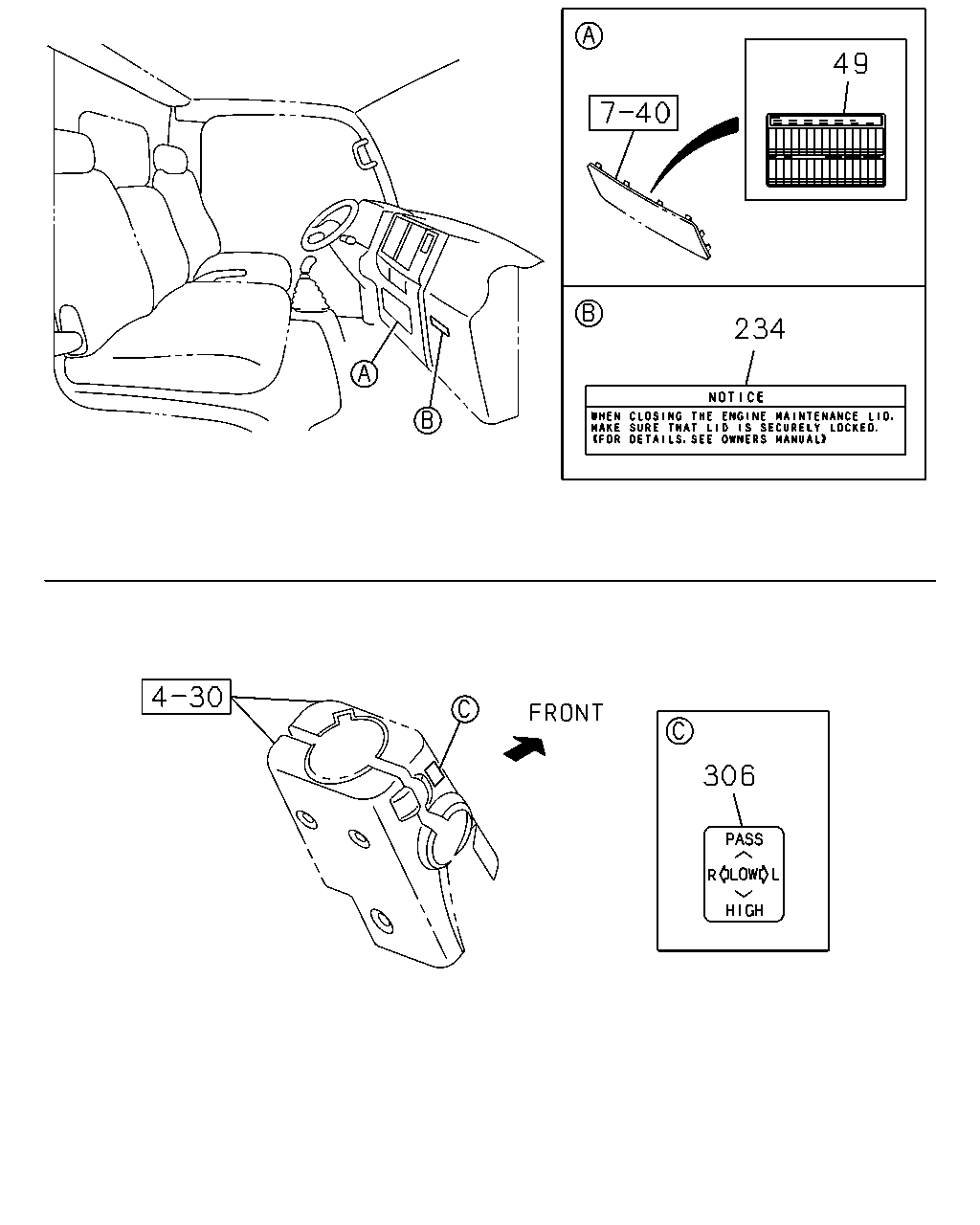

çizim 132813
49 234 306
BalonParca AdiParca NoAdetTipApplied Date
49 08.808 PLATE; CAUTION,FUSE BOX 8-98114-062-0 01 1 1108-
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 1108-
234 08.808 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1108-
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1108-

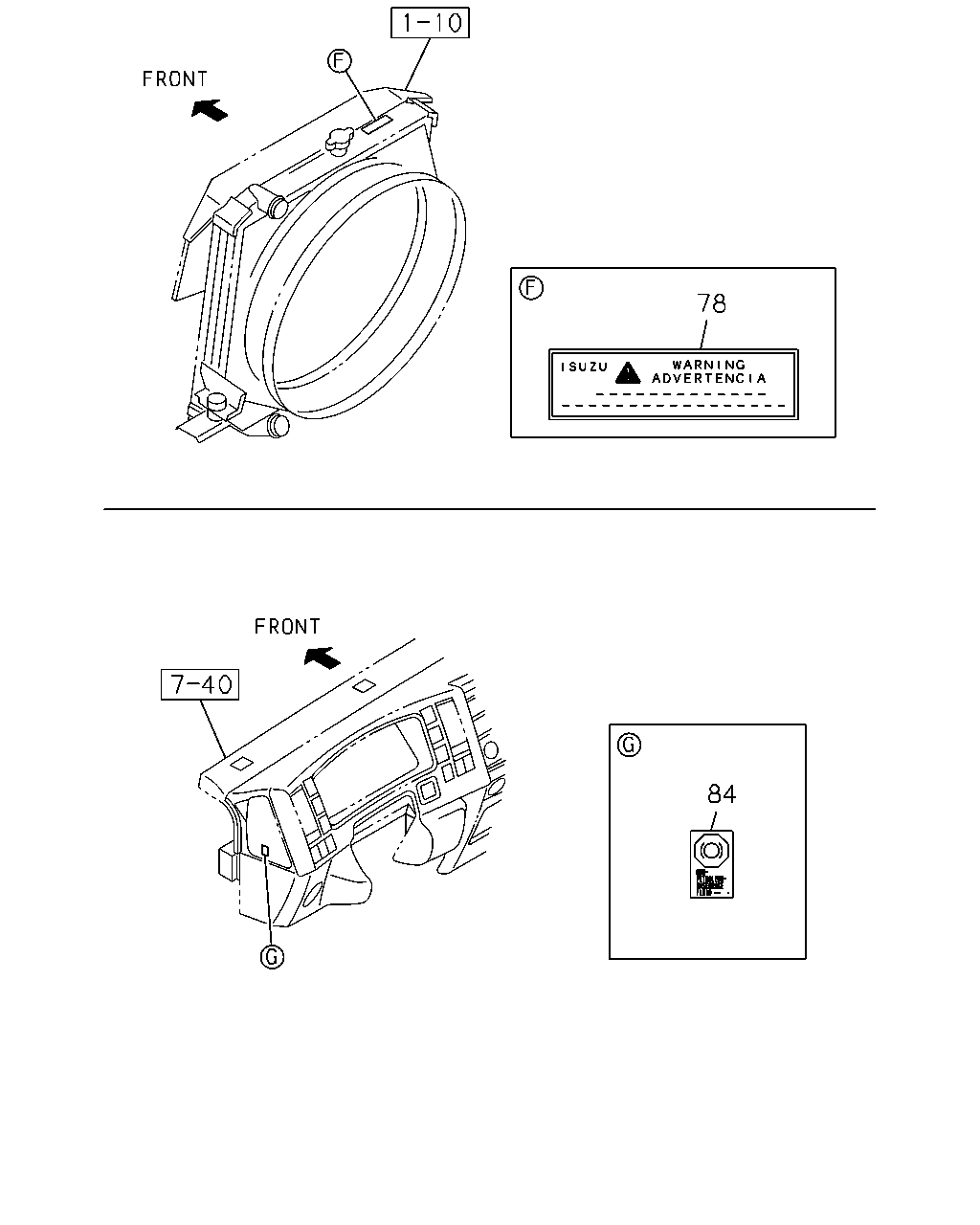

çizim 182459
78 84
BalonParca AdiParca NoAdetTipApplied Date
78 08.808 PLATE; CAUTION,ENG COOLAN 8-98141-782-0 01 1 1108-
84 08.808 PLATE; CAUTION,BRAKE FLUID
HYDRO BRAKE BOOSTER(7QQ) 		8-98022-836-1 01 1 1108-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
