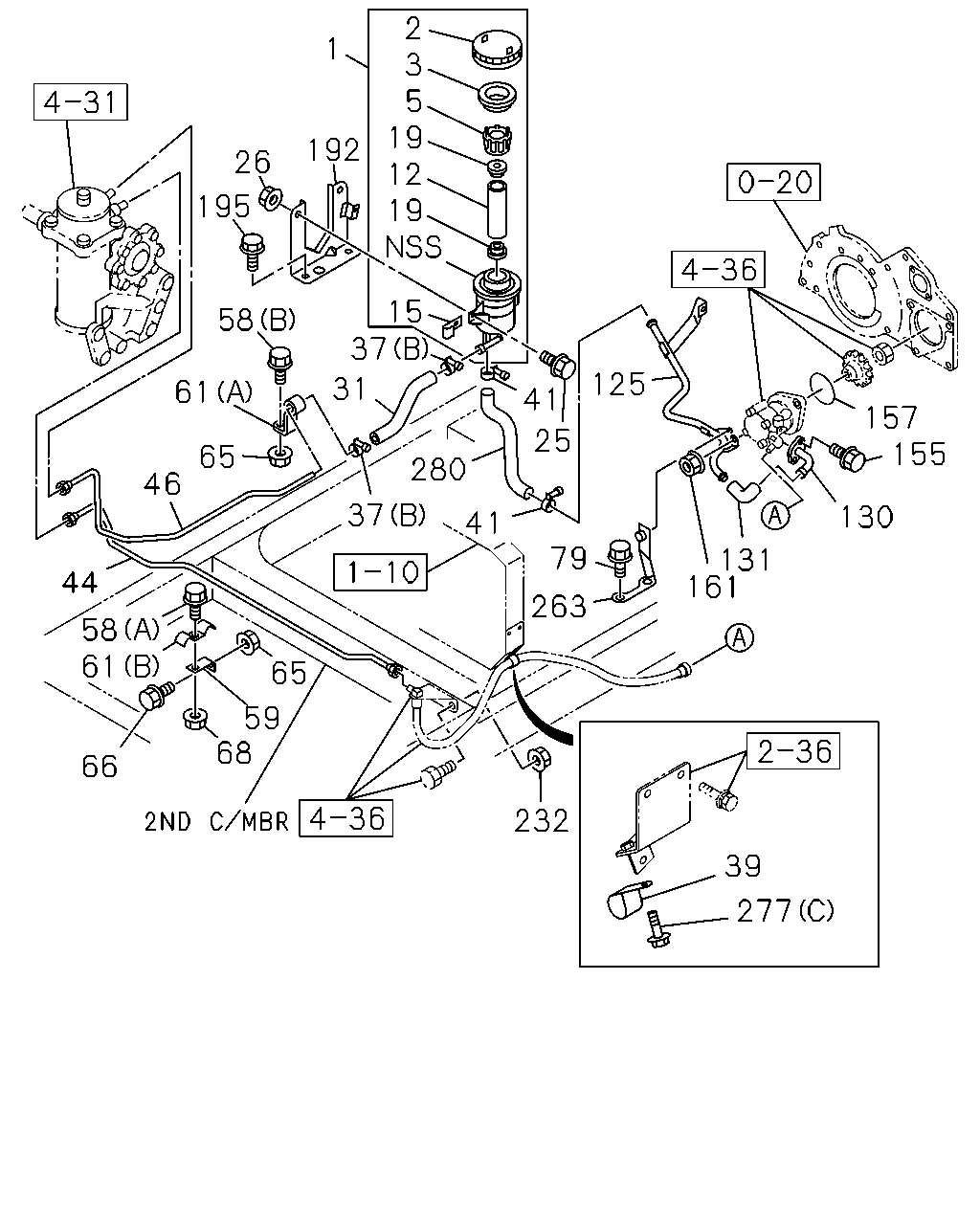

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#7998) — 462 parça

2 3 5 19 12 19 1 192 26 195 15 37 58 125 31 61 41 157 155 25 280 65 37 46 130 41 79 131 161 44 263 58 61 65 59 68 66 232 39 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; OIL,P/S 6HE1 TC ENG(57L)	1-21210-205-0	01	1	0005-0210	●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	1-21210-205-0	01	1	0303-0508	●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	1-21210-238-1	01	1	0509-1006	●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	8-98166-928-0	01	1	1007-	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	1-21210-152-6	01	1	0005-0011	●	●	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	1-21210-152-6	01	1	0012-0508	●	●	●	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	1-21210-237-2	01	1	0509-1006	●	●	●	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	8-98166-927-0	01	1	1007-	●	●	●	●
2	CAP; OIL TANK,P/S	1-21241-004-3	01	1	0005-0011	●	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0012-1006	●	●	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0005-0011	●	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0012-	●	●	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0005-0011	●	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0012-	●	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S 6HE1 TC ENG(57L)	1-21235-011-0	01	1	0005-0210	●
12	FILTER; MICROBON,OIL TANK,P/S 6HK1 TCS ENG(80L)	1-21235-011-0	01	1	0303-	●
12	FILTER; MICROBON,OIL TANK,P/S 6SD1 TCN ENG(31L)	1-21235-004-1	01	1	0005-0011	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S 6SD1 TCN ENG(31L)	1-21235-004-1	01	1	0012-	●	●	●	●
15	PLATE; FILTER,OIL TANK 6HE1 TC ENG(57L)	1-21249-007-1	02	1	0005-0210	●
15	PLATE; FILTER,OIL TANK 6HK1 TCS ENG(80L)	1-21249-007-1	02	1	0303-0508	●
15	PLATE; FILTER,OIL TANK 6HK1 TCS ENG(80L)	1-21249-016-0	02	1	0509-	●
15	PLATE; FILTER,OIL TANK 6SD1 TCN ENG(31L)	1-21249-007-1	04	1	0005-0011	●	●	●
15	PLATE; FILTER,OIL TANK 6SD1 TCN ENG(31L)	1-21249-007-1	04	1	0012-0508	●	●	●	●
15	PLATE; FILTER,OIL TANK 6SD1 TCN ENG(31L)	1-21249-016-0	04	1	0509-	●	●	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0005-0011	●	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0012-	●	●	●	●
25	BOLT; OIL TANK BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●
25	BOLT; OIL TANK BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28680-825-0	02	1	0303-0512	●
25	BOLT; OIL TANK BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
25	BOLT; OIL TANK BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	0005-0011	●	●	●
25	BOLT; OIL TANK BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	0012-0512	●	●	●	●
25	BOLT; OIL TANK BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●	●
26	NUT; OIL TANK TO BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
26	NUT; OIL TANK TO BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	0303-0602	●
26	NUT; OIL TANK TO BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
26	NUT; OIL TANK TO BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	0005-0011	●	●	●
26	NUT; OIL TANK TO BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	0012-0602	●	●	●	●
26	NUT; OIL TANK TO BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●
31	HOSE; P/S OIL TANK,INL 6HE1 TC ENG(57L)	1-21113-590-0	01	1	0005-0210	●
31	HOSE; P/S OIL TANK,INL 6HK1 TCS ENG(80L)	1-21113-590-0	01	1	0303-	●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L) A/T<X9D>	1-21116-787-0	01	1	0005-0210	●
31	HOSE; P/S OIL TANK,INL A/T<X9D>	1-21116-787-0	01	1	0005-0210		●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-21115-465-2	01	1	0005-0011	●
31	HOSE; P/S OIL TANK,INL EXC. A/T<X9D>	1-21115-465-2	01	1	0005-0011		●
31	HOSE; P/S OIL TANK,INL	1-21115-465-2	01	1	0005-0011			●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-21115-465-2	01	1	0012-0210	●
31	HOSE; P/S OIL TANK,INL EXC. A/T<X9D>	1-21115-465-2	01	1	0012-0210		●
31	HOSE; P/S OIL TANK,INL	1-21115-465-2	01	1	0012-0210			●	●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L)	1-21116-974-0	01	1	0211-	●	●	●	●
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	0005-0011	●	●	●
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	0012-	●	●	●	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0005-0011	●	●	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0012-	●	●	●	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) (C) ID=24 L=24	1-09701-001-1	01	1	0211-	●	●	●	●
39	CLIP; FLEX HOSE 6HE1 TC ENG(57L) ID=40	8-94226-553-0	01	1	0005-0210	●
39	CLIP; FLEX HOSE 6HK1 TCS ENG(80L) ID=40	8-94226-553-0	01	1	0303-	●
39	CLIP; FLEX HOSE 6SD1 TCN ENG(31L) A/T<X9D> ID=18 L=28	1-09701-067-0	01	1	0005-0210	●
39	CLIP; FLEX HOSE A/T<X9D> ID=18 L=28	1-09701-067-0	01	1	0005-0210		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0005-0011	●	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0012-	●	●	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HE1 TC ENG(57L)	1-21115-902-0	01	1	0005-0210	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1 TCS ENG(80L) L=965	1-21117-226-0	01	1	0303-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21117-912-0	01	1	0610-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HE1 TC ENG(57L) L=786	1-21115-336-0	01	1	0005-0210	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1 TCS ENG(80L) L=786	1-21115-336-0	01	1	0303-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) A/T<X9D>	1-21116-785-0	01	1	0005-0110	●
46	PIPE; OIL,P/S UNIT TO OIL TANK A/T<X9D>	1-21116-785-0	01	1	0005-0110		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) A/T<X9D>	1-21117-179-0	01	1	0111-0210	●
46	PIPE; OIL,P/S UNIT TO OIL TANK A/T<X9D>	1-21117-179-0	01	1	0111-0210		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L)	1-21117-296-0	01	1	0211-0609	●	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21117-296-0	01	1	0610-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21117-296-0	01	1	0610-			●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-21116-786-0	01	1	0005-0011	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. A/T<X9D>	1-21116-786-0	01	1	0005-0011		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-786-0	01	1	0005-0011			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-21116-786-0	01	1	0012-0210	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. A/T<X9D>	1-21116-786-0	01	1	0012-0210		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-786-0	01	1	0012-0210			●	●
58	BOLT; CLIP 6HE1 TC ENG(57L) (A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
58	BOLT; CLIP 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28680-820-0	01	1	0303-0512	●
58	BOLT; CLIP 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0609	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14> (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-	●	●
58	BOLT; CLIP 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) A/T<X9D> (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0210	●
58	BOLT; CLIP A/T<X9D> (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0210		●
58	BOLT; CLIP 6SD1 TCN ENG(31L) A/T<X9D> (C) M8X45 FLANGE	0-28080-845-0	01	1	0211-0512	●	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) A/T<X9D> (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) EXC. A/T<X9D> (C) M8X45 FLANGE	0-28080-845-0	02	1	0005-0011	●
58	BOLT; CLIP EXC. A/T<X9D> (C) M8X45 FLANGE	0-28080-845-0	02	1	0005-0011		●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28080-845-0	02	1	0005-0011			●
58	BOLT; CLIP 6SD1 TCN ENG(31L) EXC. A/T<X9D> (C) M8X45 FLANGE	0-28080-845-0	02	1	0012-0210	●
58	BOLT; CLIP EXC. A/T<X9D> (C) M8X45 FLANGE	0-28080-845-0	02	1	0012-0210		●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28080-845-0	02	1	0012-0210			●	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) EXC. A/T<X9D> (C) M8X45 FLANGE	0-28080-845-0	02	1	0211-0512	●	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) (C) M8X45 FLANGE	0-28080-845-0	02	1	0211-0512			●	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) EXC. A/T<X9D> (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-			●	●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	0005-0011	●	●	●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	0012-0512	●	●	●	●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●	●	●
59	BRACKET; CLIP,OIL PIPE 6HE1 TC ENG(57L) L=60	1-47475-455-0	01	1	0005-0210	●
59	BRACKET; CLIP,OIL PIPE 6HK1 TCS ENG(80L) L=60	1-47475-455-0	01	1	0303-	●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D>	1-47475-427-1	01	1	0005-0210	●
59	BRACKET; CLIP,OIL PIPE A/T<X9D>	1-47475-427-1	01	1	0005-0210		●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D>	1-47475-427-1	01	1	0211-	●	●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-47475-427-1	02	1	0005-0011	●
59	BRACKET; CLIP,OIL PIPE EXC. A/T<X9D>	1-47475-427-1	02	1	0005-0011		●
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	0005-0011			●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-47475-427-1	02	1	0012-0210	●
59	BRACKET; CLIP,OIL PIPE EXC. A/T<X9D>	1-47475-427-1	02	1	0012-0210		●
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	0012-0210			●	●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-47475-427-1	02	1	0211-	●	●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L)	1-47475-427-1	02	1	0211-			●	●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0210	●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0005-0210	●
61	CLIP; OIL PIPE 6HK1 TCS ENG(80L) (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0303-	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0005-0210	●
61	CLIP; OIL PIPE A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0005-0210		●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0211-0302	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0303-0609	●	●
61	CLIP; OIL PIPE 6HK1 TCS ENG(80L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0303-0609	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14> A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0610-	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0610-	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0610-			●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0005-0011	●
61	CLIP; OIL PIPE EXC. A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0005-0011		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0005-0011			●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0012-0210	●
61	CLIP; OIL PIPE EXC. A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0012-0210		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0012-0210			●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0211-0609	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0211-0609			●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D> EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0610-	●	●
61	CLIP; OIL PIPE 6HK1 TCS ENG(80L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0610-	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (C) ID=16 L=40	9-09525-576-0	01	1	0005-0011	●	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (C) ID=16 L=40	9-09525-576-0	01	1	0012-0606	●	●	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (C) ID=16 L=40	0-95235-576-0	01	1	0607-	●	●	●	●
65	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0005-0011	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0011		●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0012-0210	●	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0011	●	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0012-0210				●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0012-0210	●	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0211-0302	●	●	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0303-0602	●	●	●	●
65	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	01	1	0303-0602	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
65	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	0603-	●
66	BOLT; BRKT,OIL PIPE 6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
66	BOLT; BRKT,OIL PIPE 6HK1 TCS ENG(80L) M8X20 FLANGE	0-28680-820-0	01	1	0303-0512	●
66	BOLT; BRKT,OIL PIPE 6HK1 TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D> M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
68	NUT; CLIP,OIL PIPE 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
68	NUT; CLIP,OIL PIPE A/T<X9D> M8 FLANGE	0-91150-108-0	01	1	0005-0210		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-0609	●	●	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0610-	●	●	●	●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14> M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D> M8 FLANGE	0-91150-108-0	02	1	0005-0011	●
68	NUT; CLIP,OIL PIPE EXC. A/T<X9D> M8 FLANGE	0-91150-108-0	02	1	0005-0011		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0011			●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D> M8 FLANGE	0-91150-108-0	02	1	0012-0210	●
68	NUT; CLIP,OIL PIPE EXC. A/T<X9D> M8 FLANGE	0-91150-108-0	02	1	0012-0210		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0012-0210			●	●
79	BOLT; BRKT 6HE1 TC ENG(57L) M8X12 FLANGE	0-28080-812-0	02	1	0005-0210	●
79	BOLT; BRKT 6HK1 TCS ENG(80L) M8X12 FLANGE	0-28080-812-0	02	1	0303-0512	●
79	BOLT; BRKT 6HK1 TCS ENG(80L) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28080-825-0	02	1	0005-0011	●	●	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28080-825-0	02	1	0012-0512	●	●	●	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●	●	●	●
125	CONNECTOR; P/S PUMP 6HE1 TC ENG(57L)	8-94390-584-1	01	1	0005-0210	●
125	CONNECTOR; P/S PUMP 6HK1 TCS ENG(80L)	8-94390-584-1	01	1	0303-	●
125	CONNECTOR; P/S PUMP 6SD1 TCN ENG(31L)	1-21122-019-2	01	1	0005-0011	●	●	●
125	CONNECTOR; P/S PUMP 6SD1 TCN ENG(31L)	1-21122-019-2	01	1	0012-0210	●	●	●	●
130	ADAPTER; P/S PUMP 6HE1 TC ENG(57L)	8-94390-583-0	01	1	0005-0210	●
130	ADAPTER; P/S PUMP 6HK1 TCS ENG(80L)	8-94390-583-0	01	1	0303-	●
131	HOSE; RUBBER,P/S 6HE1 TC ENG(57L)	8-94396-331-1	01	1	0005-0210	●
131	HOSE; RUBBER,P/S 6HK1 TCS ENG(80L)	8-94396-331-1	01	1	0303-	●
155	BOLT; CONNECTOR 6HE1 TC ENG(57L) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
155	BOLT; CONNECTOR 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28080-816-0	02	1	0303-0512	●
155	BOLT; CONNECTOR 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
155	BOLT; CONNECTOR 6SD1 TCN ENG(31L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0005-0011	●	●	●
155	BOLT; CONNECTOR 6SD1 TCN ENG(31L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0012-0210	●	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L) ID=96.4	1-09623-178-0	01	1	0005-0210	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1 TCS ENG(80L) ID=96.4	1-09623-178-0	01	1	0303-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6SD1 TCN ENG(31L) ID=77	1-09623-143-0	01	1	0210-	●	●	●	●
161	NUT; P/S PIPE 6HK1 TCS ENG(80L) M10 FLANGE	0-91150-110-0	02	1	0303-0602	●
161	NUT; P/S PIPE 6HK1 TCS ENG(80L) M10 FLANGE	0-91180-110-0	02	1	0603-	●
161	NUT; P/S PIPE 6HE1 TC ENG(57L) M10 FLANGE	0-91150-110-0	01	1	0005-0210	●
192	BRACKET; P/S OIL TANK 6HE1 TC ENG(57L)	1-21119-142-1	01	1	0005-0210	●
192	BRACKET; P/S OIL TANK 6HK1 TCS ENG(80L)	1-21119-142-1	01	1	0303-	●
192	BRACKET; P/S OIL TANK 6SD1 TCN ENG(31L)	1-21219-093-2	01	1	0005-0011	●	●	●
192	BRACKET; P/S OIL TANK 6SD1 TCN ENG(31L)	1-21219-093-2	01	1	0012-	●	●	●	●
195	BOLT; BRKT 6HE1 TC ENG(57L) M10X30 FLANGE	0-28681-030-0	02	1	0005-0210	●
195	BOLT; BRKT 6HK1 TCS ENG(80L) M10X30 FLANGE	0-28681-030-0	02	1	0303-0512	●
195	BOLT; BRKT 6HK1 TCS ENG(80L) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28681-025-0	03	1	0005-0011	●	●	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28681-025-0	03	1	0012-0406	●	●	●	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28081-025-0	03	1	0407-0512	●	●	●	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28051-025-0	03	1	0601-	●	●	●	●
232	NUT; BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
232	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	0303-0602	●
232	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
263	BRACKET; P/S PIPE 6HE1 TC ENG(57L)	8-97600-117-0	01	1	0005-0210	●
263	BRACKET; P/S PIPE 6HK1 TCS ENG(80L)	8-97600-117-0	01	1	0303-	●
277	BOLT; HOSE CLIP 6HE1 TC ENG(57L) (C) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
277	BOLT; HOSE CLIP 6HK1 TCS ENG(80L) (C) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512	●
277	BOLT; HOSE CLIP 6HK1 TCS ENG(80L) (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) A/T<X9D> (B) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
277	BOLT; HOSE CLIP A/T<X9D> (B) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210		●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0011	●	●	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) (A) M8X25 FLANGE	0-28680-825-0	01	1	0012-0210	●	●	●	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●
280	HOSE; P/S OIL PUMP,INL 6HE1 TC ENG(57L)	1-21116-721-0	01	1	0005-0210	●
280	HOSE; P/S OIL PUMP,INL 6HK1 TCS ENG(80L)	1-21116-721-0	01	1	0303-	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21115-048-1	01	1	0005-0011	●	●	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21115-048-1	01	1	0012-0210	●	●	●	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21116-804-0	01	1	0211-	●	●	●	●

2 15 3 19 46 15 12 31 15 48 19 15 5 1 277 278 278 239 79 58 31 37 61 58 79 61 37 31 37 59 65 81 48 68 239 46 277 1 192 25 277 41 26 37 282 39 287 42 31 280 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; OIL,P/S 6HE1 TC ENG(57L)	1-21210-205-0	01	1	0005-0210	●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	1-21210-205-0	01	1	0303-0508	●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	1-21210-238-1	01	1	0509-1006	●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	8-98166-928-0	01	1	1007-	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	1-21210-152-6	01	1	0005-0011	●	●	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	1-21210-152-6	01	1	0012-0508	●	●	●	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	1-21210-237-2	01	1	0509-1006	●	●	●	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	8-98166-927-0	01	1	1007-	●	●	●	●
2	CAP; OIL TANK,P/S	1-21241-004-3	01	1	0005-0011	●	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0012-1006	●	●	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0005-0011	●	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0012-	●	●	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0005-0011	●	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0012-	●	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S 6HE1 TC ENG(57L)	1-21235-011-0	01	1	0005-0210	●
12	FILTER; MICROBON,OIL TANK,P/S 6HK1 TCS ENG(80L)	1-21235-011-0	01	1	0303-	●
12	FILTER; MICROBON,OIL TANK,P/S 6SD1 TCN ENG(31L)	1-21235-004-1	01	1	0005-0011	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S 6SD1 TCN ENG(31L)	1-21235-004-1	01	1	0012-	●	●	●	●
15	PLATE; FILTER,OIL TANK 6HE1 TC ENG(57L)	1-21249-007-1	02	1	0005-0210	●
15	PLATE; FILTER,OIL TANK 6HK1 TCS ENG(80L)	1-21249-007-1	02	1	0303-0508	●
15	PLATE; FILTER,OIL TANK 6HK1 TCS ENG(80L)	1-21249-016-0	02	1	0509-	●
15	PLATE; FILTER,OIL TANK 6SD1 TCN ENG(31L)	1-21249-007-1	04	1	0005-0011	●	●	●
15	PLATE; FILTER,OIL TANK 6SD1 TCN ENG(31L)	1-21249-007-1	04	1	0012-0508	●	●	●	●
15	PLATE; FILTER,OIL TANK 6SD1 TCN ENG(31L)	1-21249-016-0	04	1	0509-	●	●	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0005-0011	●	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0012-	●	●	●	●
25	BOLT; OIL TANK BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●
25	BOLT; OIL TANK BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28680-825-0	02	1	0303-0512	●
25	BOLT; OIL TANK BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
25	BOLT; OIL TANK BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	0005-0011	●	●	●
25	BOLT; OIL TANK BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	0012-0512	●	●	●	●
25	BOLT; OIL TANK BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●	●
26	NUT; OIL TANK TO BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
26	NUT; OIL TANK TO BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	0303-0602	●
26	NUT; OIL TANK TO BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
26	NUT; OIL TANK TO BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	0005-0011	●	●	●
26	NUT; OIL TANK TO BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	0012-0602	●	●	●	●
26	NUT; OIL TANK TO BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●
31	HOSE; P/S OIL TANK,INL 6HE1 TC ENG(57L)	1-21113-590-0	01	1	0005-0210	●
31	HOSE; P/S OIL TANK,INL 6HK1 TCS ENG(80L)	1-21113-590-0	01	1	0303-	●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L) A/T<X9D>	1-21116-787-0	01	1	0005-0210	●
31	HOSE; P/S OIL TANK,INL A/T<X9D>	1-21116-787-0	01	1	0005-0210		●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-21115-465-2	01	1	0005-0011	●
31	HOSE; P/S OIL TANK,INL EXC. A/T<X9D>	1-21115-465-2	01	1	0005-0011		●
31	HOSE; P/S OIL TANK,INL	1-21115-465-2	01	1	0005-0011			●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-21115-465-2	01	1	0012-0210	●
31	HOSE; P/S OIL TANK,INL EXC. A/T<X9D>	1-21115-465-2	01	1	0012-0210		●
31	HOSE; P/S OIL TANK,INL	1-21115-465-2	01	1	0012-0210			●	●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L)	1-21116-974-0	01	1	0211-	●	●	●	●
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	0005-0011	●	●	●
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	0012-	●	●	●	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0005-0011	●	●	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0012-	●	●	●	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) (C) ID=24 L=24	1-09701-001-1	01	1	0211-	●	●	●	●
39	CLIP; FLEX HOSE 6HE1 TC ENG(57L) ID=40	8-94226-553-0	01	1	0005-0210	●
39	CLIP; FLEX HOSE 6HK1 TCS ENG(80L) ID=40	8-94226-553-0	01	1	0303-	●
39	CLIP; FLEX HOSE 6SD1 TCN ENG(31L) A/T<X9D> ID=18 L=28	1-09701-067-0	01	1	0005-0210	●
39	CLIP; FLEX HOSE A/T<X9D> ID=18 L=28	1-09701-067-0	01	1	0005-0210		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0005-0011	●	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0012-	●	●	●	●
42	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) L=250	1-09707-126-0	01	1	0005-0011	●	●	●
42	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) L=250	1-09707-126-0	01	1	0012-	●	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21117-912-0	01	1	0610-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HE1 TC ENG(57L) L=786	1-21115-336-0	01	1	0005-0210	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1 TCS ENG(80L) L=786	1-21115-336-0	01	1	0303-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) A/T<X9D>	1-21116-785-0	01	1	0005-0110	●
46	PIPE; OIL,P/S UNIT TO OIL TANK A/T<X9D>	1-21116-785-0	01	1	0005-0110		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) A/T<X9D>	1-21117-179-0	01	1	0111-0210	●
46	PIPE; OIL,P/S UNIT TO OIL TANK A/T<X9D>	1-21117-179-0	01	1	0111-0210		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L)	1-21117-296-0	01	1	0211-0609	●	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21117-296-0	01	1	0610-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21117-296-0	01	1	0610-			●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-21116-786-0	01	1	0005-0011	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. A/T<X9D>	1-21116-786-0	01	1	0005-0011		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-786-0	01	1	0005-0011			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-21116-786-0	01	1	0012-0210	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. A/T<X9D>	1-21116-786-0	01	1	0012-0210		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-786-0	01	1	0012-0210			●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21117-913-0	01	1	0610-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L) A/T<X9D>	1-21116-047-0	01	1	0005-0210	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT A/T<X9D>	1-21116-047-0	01	1	0005-0210		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L)	1-21117-234-0	01	1	0211-0609	●	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L) EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21117-234-0	01	1	0610-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21117-234-0	01	1	0610-			●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-21115-563-0	01	1	0005-0011	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. A/T<X9D>	1-21115-563-0	01	1	0005-0011		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-563-0	01	1	0005-0011			●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-21115-563-0	01	1	0012-0210	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. A/T<X9D>	1-21115-563-0	01	1	0012-0210		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-563-0	01	1	0012-0210			●	●
58	BOLT; CLIP 6HE1 TC ENG(57L) (A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
58	BOLT; CLIP 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28680-820-0	01	1	0303-0512	●
58	BOLT; CLIP 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0609	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14> (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-	●	●
58	BOLT; CLIP 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) A/T<X9D> (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0210	●
58	BOLT; CLIP A/T<X9D> (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0210		●
58	BOLT; CLIP 6SD1 TCN ENG(31L) A/T<X9D> (C) M8X45 FLANGE	0-28080-845-0	01	1	0211-0512	●	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) A/T<X9D> (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) EXC. A/T<X9D> (C) M8X45 FLANGE	0-28080-845-0	02	1	0005-0011	●
58	BOLT; CLIP EXC. A/T<X9D> (C) M8X45 FLANGE	0-28080-845-0	02	1	0005-0011		●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28080-845-0	02	1	0005-0011			●
58	BOLT; CLIP 6SD1 TCN ENG(31L) EXC. A/T<X9D> (C) M8X45 FLANGE	0-28080-845-0	02	1	0012-0210	●
58	BOLT; CLIP EXC. A/T<X9D> (C) M8X45 FLANGE	0-28080-845-0	02	1	0012-0210		●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28080-845-0	02	1	0012-0210			●	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) EXC. A/T<X9D> (C) M8X45 FLANGE	0-28080-845-0	02	1	0211-0512	●	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) (C) M8X45 FLANGE	0-28080-845-0	02	1	0211-0512			●	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) EXC. A/T<X9D> (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-			●	●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	0005-0011	●	●	●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	0012-0512	●	●	●	●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●	●	●
59	BRACKET; CLIP,OIL PIPE 6HE1 TC ENG(57L) L=60	1-47475-455-0	01	1	0005-0210	●
59	BRACKET; CLIP,OIL PIPE 6HK1 TCS ENG(80L) L=60	1-47475-455-0	01	1	0303-	●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D>	1-47475-427-1	01	1	0005-0210	●
59	BRACKET; CLIP,OIL PIPE A/T<X9D>	1-47475-427-1	01	1	0005-0210		●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D>	1-47475-427-1	01	1	0211-	●	●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-47475-427-1	02	1	0005-0011	●
59	BRACKET; CLIP,OIL PIPE EXC. A/T<X9D>	1-47475-427-1	02	1	0005-0011		●
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	0005-0011			●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-47475-427-1	02	1	0012-0210	●
59	BRACKET; CLIP,OIL PIPE EXC. A/T<X9D>	1-47475-427-1	02	1	0012-0210		●
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	0012-0210			●	●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-47475-427-1	02	1	0211-	●	●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L)	1-47475-427-1	02	1	0211-			●	●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0210	●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0005-0210	●
61	CLIP; OIL PIPE 6HK1 TCS ENG(80L) (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0303-	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0005-0210	●
61	CLIP; OIL PIPE A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0005-0210		●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0211-0302	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0303-0609	●	●
61	CLIP; OIL PIPE 6HK1 TCS ENG(80L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0303-0609	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14> A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0610-	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0610-	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0610-			●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0005-0011	●
61	CLIP; OIL PIPE EXC. A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0005-0011		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0005-0011			●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0012-0210	●
61	CLIP; OIL PIPE EXC. A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0012-0210		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0012-0210			●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0211-0609	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0211-0609			●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D> EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0610-	●	●
61	CLIP; OIL PIPE 6HK1 TCS ENG(80L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0610-	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (C) ID=16 L=40	9-09525-576-0	01	1	0005-0011	●	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (C) ID=16 L=40	9-09525-576-0	01	1	0012-0606	●	●	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (C) ID=16 L=40	0-95235-576-0	01	1	0607-	●	●	●	●
65	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0005-0011	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0011		●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0012-0210	●	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0011	●	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0012-0210				●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0012-0210	●	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0211-0302	●	●	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0303-0602	●	●	●	●
65	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	01	1	0303-0602	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
65	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	0603-	●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D> M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
68	NUT; CLIP,OIL PIPE 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
68	NUT; CLIP,OIL PIPE A/T<X9D> M8 FLANGE	0-91150-108-0	01	1	0005-0210		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-0609	●	●	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0610-	●	●	●	●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14> M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D> M8 FLANGE	0-91150-108-0	02	1	0005-0011	●
68	NUT; CLIP,OIL PIPE EXC. A/T<X9D> M8 FLANGE	0-91150-108-0	02	1	0005-0011		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0011			●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D> M8 FLANGE	0-91150-108-0	02	1	0012-0210	●
68	NUT; CLIP,OIL PIPE EXC. A/T<X9D> M8 FLANGE	0-91150-108-0	02	1	0012-0210		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0012-0210			●	●
79	BOLT; BRKT 6HE1 TC ENG(57L) M8X12 FLANGE	0-28080-812-0	02	1	0005-0210	●
79	BOLT; BRKT 6HK1 TCS ENG(80L) M8X12 FLANGE	0-28080-812-0	02	1	0303-0512	●
79	BOLT; BRKT 6HK1 TCS ENG(80L) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28080-825-0	02	1	0005-0011	●	●	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28080-825-0	02	1	0012-0512	●	●	●	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●	●	●	●
81	WASHER; LK,FLEX HOSE 6SD1 TCN ENG(31L) ID=20.2	9-09150-520-0	01	1	0005-0011	●	●	●
81	WASHER; LK,FLEX HOSE 6SD1 TCN ENG(31L) ID=20.2	9-09150-520-0	01	1	0012-0603	●	●	●	●
81	WASHER; LK,FLEX HOSE 6SD1 TCN ENG(31L) ID=20.2	0-91510-520-0	01	1	0604-	●	●	●	●
192	BRACKET; P/S OIL TANK 6HE1 TC ENG(57L)	1-21119-142-1	01	1	0005-0210	●
192	BRACKET; P/S OIL TANK 6HK1 TCS ENG(80L)	1-21119-142-1	01	1	0303-	●
192	BRACKET; P/S OIL TANK 6SD1 TCN ENG(31L)	1-21219-093-2	01	1	0005-0011	●	●	●
192	BRACKET; P/S OIL TANK 6SD1 TCN ENG(31L)	1-21219-093-2	01	1	0012-	●	●	●	●
195	BOLT; BRKT 6HE1 TC ENG(57L) M10X30 FLANGE	0-28681-030-0	02	1	0005-0210	●
195	BOLT; BRKT 6HK1 TCS ENG(80L) M10X30 FLANGE	0-28681-030-0	02	1	0303-0512	●
195	BOLT; BRKT 6HK1 TCS ENG(80L) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28681-025-0	03	1	0005-0011	●	●	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28681-025-0	03	1	0012-0406	●	●	●	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28081-025-0	03	1	0407-0512	●	●	●	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28051-025-0	03	1	0601-	●	●	●	●
239	BRACKET; FLEX HOSE 6SD1 TCN ENG(31L) (A)	1-47477-639-0	01	1	0005-0011	●	●	●
239	BRACKET; FLEX HOSE 6SD1 TCN ENG(31L) (A)	1-47477-639-0	01	1	0012-0210	●	●	●	●
239	BRACKET; FLEX HOSE 6SD1 TCN ENG(31L) (B)	1-47479-427-0	01	1	0211-	●	●	●	●
277	BOLT; HOSE CLIP 6HE1 TC ENG(57L) (C) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
277	BOLT; HOSE CLIP 6HK1 TCS ENG(80L) (C) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512	●
277	BOLT; HOSE CLIP 6HK1 TCS ENG(80L) (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) A/T<X9D> (B) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
277	BOLT; HOSE CLIP A/T<X9D> (B) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210		●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0011	●	●	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) (A) M8X25 FLANGE	0-28680-825-0	01	1	0012-0210	●	●	●	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●
278	NUT; HOSE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0005-0011	●	●	●
278	NUT; HOSE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0012-0210	●	●	●	●
278	NUT; HOSE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●	●
278	NUT; HOSE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
280	HOSE; P/S OIL PUMP,INL 6HE1 TC ENG(57L)	1-21116-721-0	01	1	0005-0210	●
280	HOSE; P/S OIL PUMP,INL 6HK1 TCS ENG(80L)	1-21116-721-0	01	1	0303-	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21115-048-1	01	1	0005-0011	●	●	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21115-048-1	01	1	0012-0210	●	●	●	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21116-804-0	01	1	0211-	●	●	●	●
282	SLEEVE; RUBBER,PIPE 6SD1 TCN ENG(31L) ID=32 OD=36 L=50	1-09337-023-0	01	1	0005-0011	●	●	●
282	SLEEVE; RUBBER,PIPE 6SD1 TCN ENG(31L) ID=32 OD=36 L=50	1-09337-023-0	01	1	0012-	●	●	●	●
287	NUT; CLIP 6SD1 TCN ENG(31L) A/T<X9D> M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
287	NUT; CLIP A/T<X9D> M8 FLANGE	0-91150-108-0	01	1	0005-0210		●

205 207 41 155 207 280 125 157 280 41 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0005-0011	●	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0012-	●	●	●	●
125	CONNECTOR; P/S PUMP 6HE1 TC ENG(57L)	8-94390-584-1	01	1	0005-0210	●
125	CONNECTOR; P/S PUMP 6HK1 TCS ENG(80L)	8-94390-584-1	01	1	0303-	●
125	CONNECTOR; P/S PUMP 6SD1 TCN ENG(31L)	1-21122-019-2	01	1	0005-0011	●	●	●
125	CONNECTOR; P/S PUMP 6SD1 TCN ENG(31L)	1-21122-019-2	01	1	0012-0210	●	●	●	●
155	BOLT; CONNECTOR 6HE1 TC ENG(57L) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
155	BOLT; CONNECTOR 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28080-816-0	02	1	0303-0512	●
155	BOLT; CONNECTOR 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
155	BOLT; CONNECTOR 6SD1 TCN ENG(31L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0005-0011	●	●	●
155	BOLT; CONNECTOR 6SD1 TCN ENG(31L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0012-0210	●	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L) ID=96.4	1-09623-178-0	01	1	0005-0210	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1 TCS ENG(80L) ID=96.4	1-09623-178-0	01	1	0303-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6SD1 TCN ENG(31L) ID=77	1-09623-143-0	01	1	0210-	●	●	●	●
205	BOLT; EYE,FLEX HOSE,P/S 6SD1 TCN ENG(31L) M18X36	1-09675-205-0	01	1	0005-0011	●	●	●
205	BOLT; EYE,FLEX HOSE,P/S 6SD1 TCN ENG(31L) M18X36	1-09675-205-0	01	1	0012-0210	●	●	●	●
207	GASKET; FLEX HOSE,P/S PUMP 6SD1 TCN ENG(31L) ID=18	9-09571-418-0	02	1	0005-0011	●	●	●
207	GASKET; FLEX HOSE,P/S PUMP 6SD1 TCN ENG(31L) ID=18	9-09571-418-0	02	1	0012-0210	●	●	●	●
280	HOSE; P/S OIL PUMP,INL 6HE1 TC ENG(57L)	1-21116-721-0	01	1	0005-0210	●
280	HOSE; P/S OIL PUMP,INL 6HK1 TCS ENG(80L)	1-21116-721-0	01	1	0303-	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21115-048-1	01	1	0005-0011	●	●	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21115-048-1	01	1	0012-0210	●	●	●	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21116-804-0	01	1	0211-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
