Isuzu WW
▶
TRUCKS
▶
NPR
▶
51381 - NPR BUS CNG(LHD)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

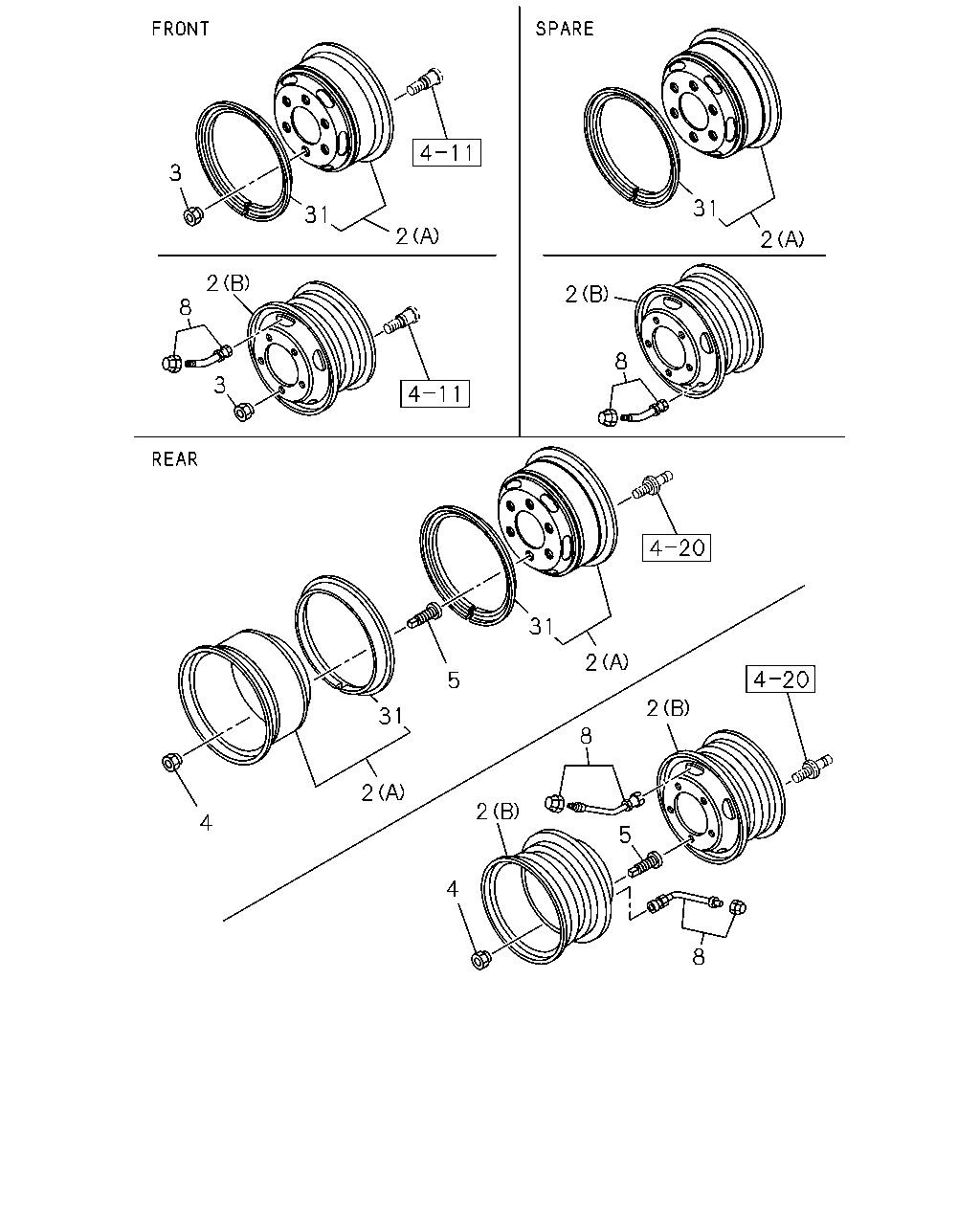

4-80 — ROAD WHEEL
(#79976) — 14 parça
3
31
2
2
8
3
31
2
2
8
2
31
5
31
2
4
4
2
8
2
5
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
01
1
1108-
2
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (A) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
06
1
1108-
2
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (B) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
01
1
1108-
2
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (B) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
06
1
1108-
3
05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD
8-97359-807-0
06
1
1108-
3
05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD
8-97359-808-0
06
1
1108-
4
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
1108-
4
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
1108-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
1108-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
1108-
8
05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) SPARE
8-98221-112-0
01
1
1108-
8
05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) FRONT,REAR
8-98221-112-0
06
1
1108-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) SPARE 16X6.00GS STAMP, BLACK
8-94412-585-0
01
1
1108-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRONT,REAR 16X6.00GS STAMP, BLACK
8-94412-585-0
06
1
1108-
