Sayfa 2-26A - Isuzu EPC

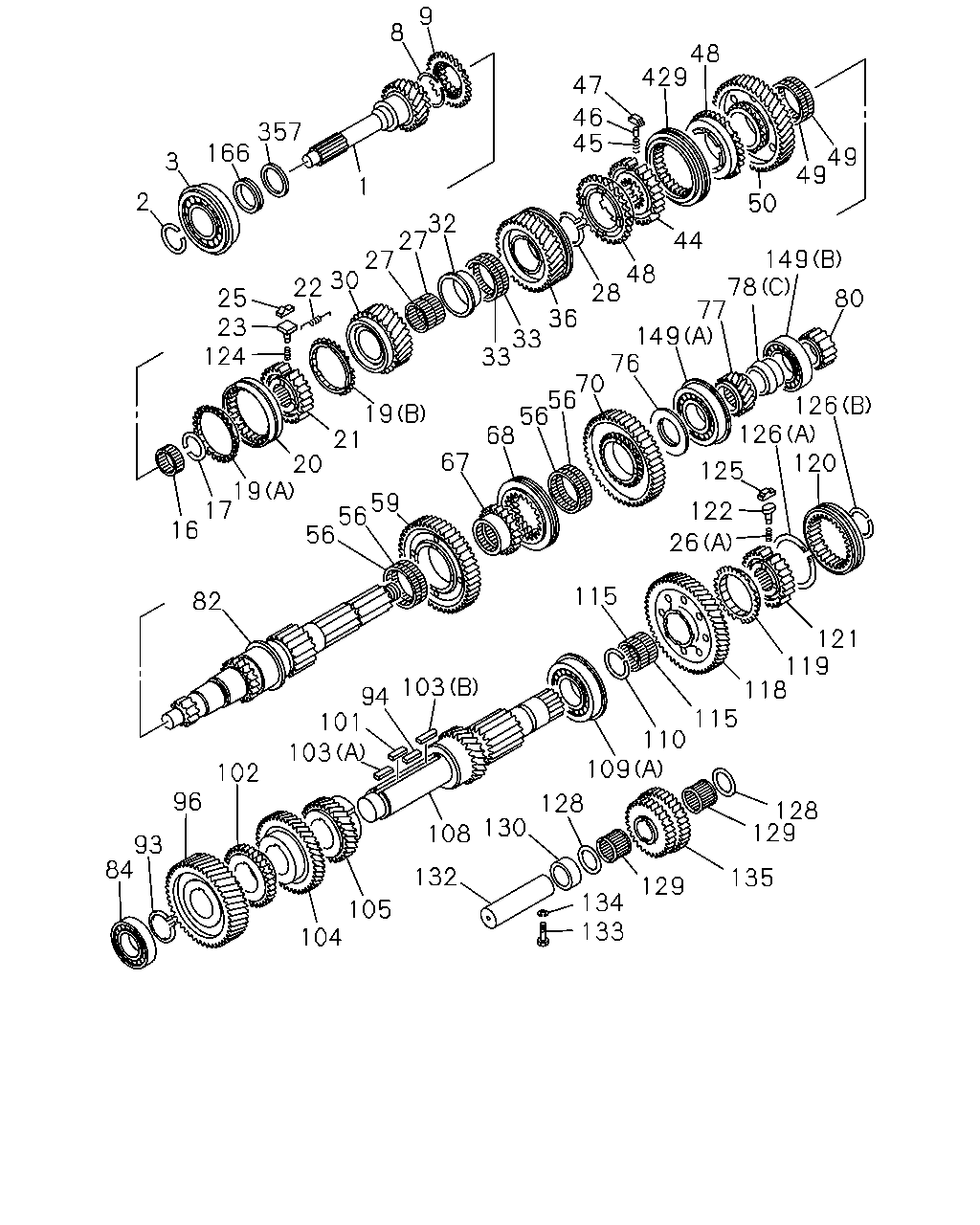

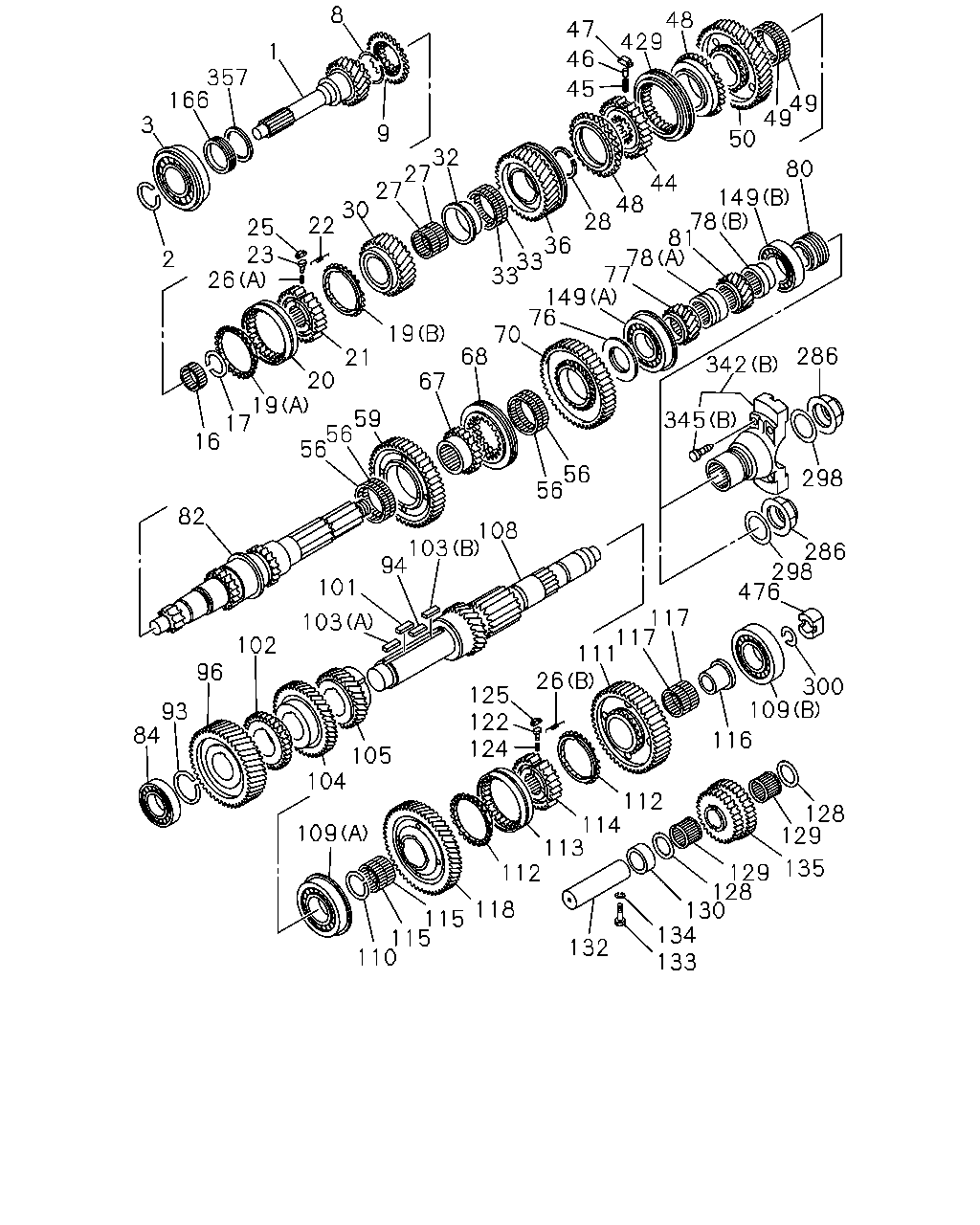

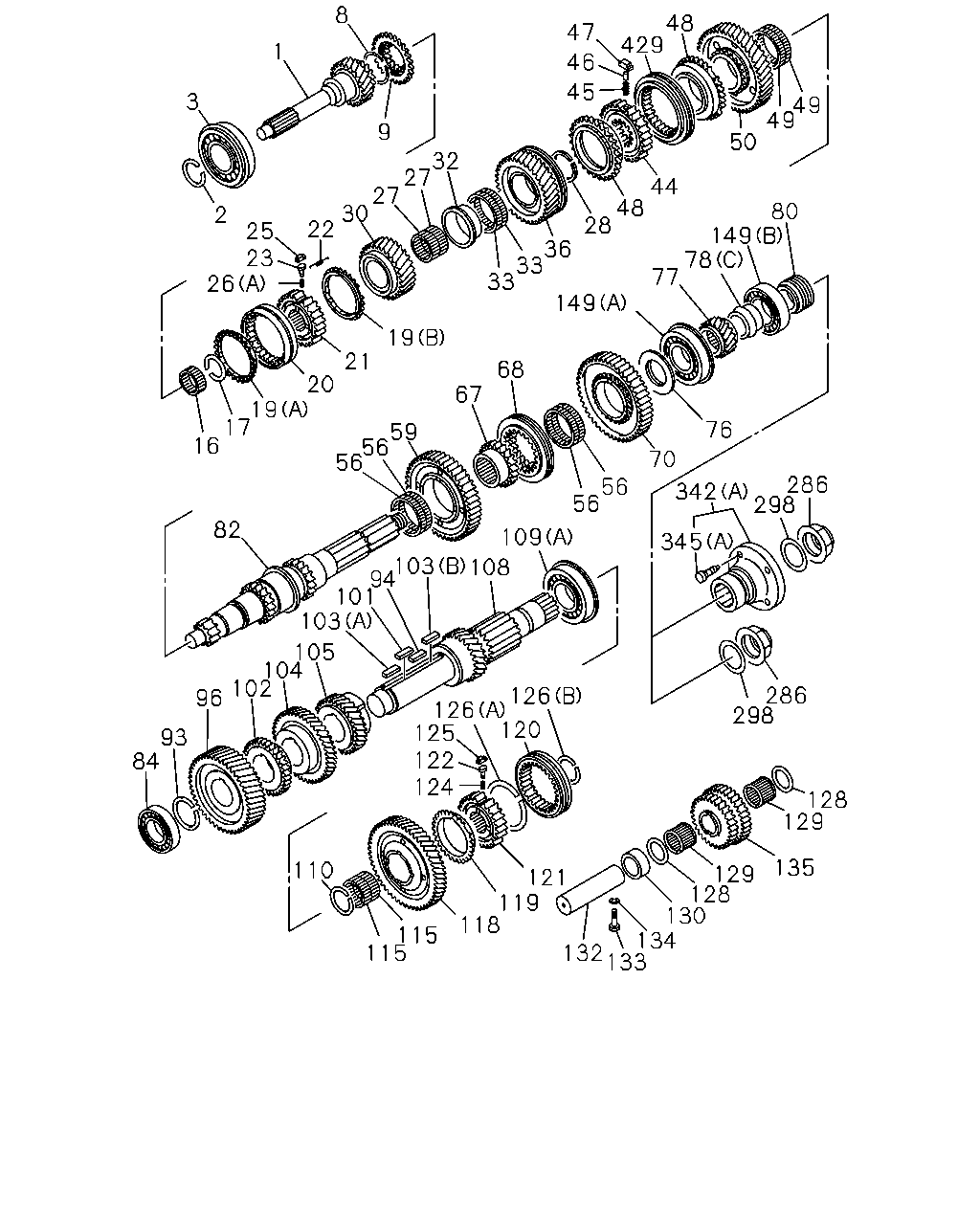

2-26A — MANUAL TRANSMISSION GEAR (#7997) — 677 parça

8 48 429 47 1 46 45 3 49 49 50 9 32 27 27 30 22 44 48 28 80 149 78 77 2 25 23 26 36 33 33 149 19 21 68 20 67 19 17 16 76 59 56 56 70 286 298 56 56 342 82 109 345 94 101 103 105 104 102 286 298 126 120 96 126 125 122 124 93 84 128 129 135 110 129 128 130 134 132 133 121 119 118 115 115 103 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-609-0	01	1	0012-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-861-1	01	1	0012-		●
1	SHAFT; TOP GEAR,TRANS 6SD1 TC-S(83L) Z=22	1-33211-699-1	01	1	0211-			●
1	SHAFT; TOP GEAR,TRANS 6WA1 TC-C(55L) Z=22	1-33211-825-1	01	1	0204-			●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0012-0203	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0204-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0012-0203	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0204-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0012-0203	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0204-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0012-0203	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0204-	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0012-0210	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0211-	●
3	BEARING; TOP GEAR SHAFT 6SD1 TC-S(83L) NTN	1-09810-164-0	01	1	0211-			●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0012-0210	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0211-	●
3	BEARING; TOP GEAR SHAFT 6SD1 TC-S(83L) NSK	1-09810-185-0	01	1	0211-			●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-220-2	01	1	0012-0203		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-220-2	01	1	0204-0210		●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-220-2	01	1	0211-		●
3	BEARING; TOP GEAR SHAFT 6WA1 TC-C(55L) NTN	1-09810-220-2	01	1	0211-			●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-237-1	01	1	0012-0203		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-237-1	01	1	0204-0210		●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-237-1	01	1	0211-		●
3	BEARING; TOP GEAR SHAFT 6WA1 TC-C(55L) NSK	1-09810-237-1	01	1	0211-			●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0012-0203	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0204-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0012-0203	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0204-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0012-0203	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0204-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0012-0203	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0204-	●	●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0012-0203	●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0204-	●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	0012-0203	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	0204-	●	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	0012-0203	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-1	01	1	0204-	●	●	●
20	SLEEVE	1-33262-097-1	01	1	0012-0203	●	●
20	SLEEVE	1-33262-097-1	01	1	0204-	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0012-0203	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0204-	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0012-0203	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0204-	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0012-0203	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0204-	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0012-0203	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0204-	●	●	●
26	SPRING; BLOCK,INSERT (A) D=6.2	1-09580-091-1	03	1	0012-0203	●	●
26	SPRING; BLOCK,INSERT (A) D=6.2	1-09580-091-1	03	1	0204-	●	●	●
26	SPRING; BLOCK,INSERT (B)	1-09583-171-0	03	1	0012-		●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	0012-0203	●	●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	0204-	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	0012-0203	●	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	0204-	●	●	●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	0012-0203	●	●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	0204-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-606-0	01	1	0012-	●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-604-0	01	1	0012-0203		●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-604-0	01	1	0204-		●	●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	0012-0203	●	●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	0204-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0012-0203	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0204-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0012-0203	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0204-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	0012-0203	●	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	0204-	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0012-0203	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0204-	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0012-0203	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0204-	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0012-0203	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0204-	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0012-0203	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0204-	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0012-0203	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0204-0407	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0408-	●	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0012-0203	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0204-	●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0012-0203	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0204-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	0012-0203	●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	0204-	●		●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	0012-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	0012-0203	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	0204-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	0012-0203	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	0204-	●	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0012-0203	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0204-	●	●	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0012-0203	●	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0204-	●	●	●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0012-0203	●	●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0204-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0012-0203	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0204-	●	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	0012-0203	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	0204-	●	●	●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-333-2	01	1	0012-	●
77	GEAR; 6TH,MAINSHAFT Z=19	1-33253-474-0	01	1	0012-		●
77	GEAR; 6TH,MAINSHAFT Z=21	1-33253-445-2	01	1	0204-			●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-074-0	01	1	0012-0203	●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-074-0	01	1	0204-	●		●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-082-1	01	1	0012-		●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33235-100-0	01	1	0012-		●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0012-0203	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0204-	●	●	●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	0012-0210	●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	0211-	●
82	SHAFT; MAIN,TRANS 6SD1 TC-S(83L) Z=28-28-37-18	1-33231-306-0	01	1	0211-			●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-309-0	01	1	0012-		●
82	SHAFT; MAIN,TRANS 6WA1 TC-C(55L) Z=28-28-37-18	1-33231-307-0	01	1	0204-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0012-0203	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0204-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0012-0203	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0204-	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0012-0203	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0204-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0012-0203	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0204-	●	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-193-0	01	1	0012-	●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-195-0	01	1	0204-			●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0012-0203	●	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0204-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0012-0203	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0204-	●	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	0012-0203	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	0204-	●	●	●
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	0012-0203	●	●
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	0204-	●	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-291-0	01	1	0012-	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-290-0	01	1	0012-0203		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-290-0	01	1	0204-		●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	0012-0203	●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	0204-	●	●	●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	0012-0203	●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	0204-	●		●
108	SHAFT; COUNTER Z=22-13	1-33311-264-1	01	1	0012-		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-021-1	01	1	0012-0203	●	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-021-1	01	1	0204-	●	●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-163-0	01	1	0012-0203	●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-163-0	01	1	0204-	●	●	●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0012-		●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0012-		●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0012-0203	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0204-	●	●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	0012-0203	●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	0204-	●	●	●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	0012-0203	●	●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	0204-	●	●	●
118	GEAR; 6TH,COUNTER Z=45	1-33338-304-0	01	1	0012-	●
118	GEAR; 6TH,COUNTER Z=44	1-33338-307-0	01	1	0012-		●
118	GEAR; 6TH,COUNTER Z=54	1-33338-306-0	01	1	0204-			●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	0012-0203	●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	0204-	●		●
120	SLEEVE	1-33262-098-2	01	1	0012-0203	●
120	SLEEVE	1-33262-098-2	01	1	0204-	●		●
121	HUB; CLU,6TH	1-33261-189-2	01	1	0012-0203	●
121	HUB; CLU,6TH	1-33261-189-2	01	1	0204-	●		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0012-0203	●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0204-	●	●	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0012-0203	●	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0204-	●	●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	0012-0203	●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	0204-	●	●	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	0012-0203	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	0204-	●		●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0012-0203	●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0204-	●		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0012-0203	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0204-	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0012-0203	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0204-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0012-0203	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0204-	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0012-0203	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0204-	●	●	●
132	SHAFT; REV	1-33351-012-2	01	1	0012-0203	●	●
132	SHAFT; REV	1-33351-012-2	01	1	0204-	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0012-0203	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0204-	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	0012-0203	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	0204-0603	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	0-91510-508-0	01	1	0604-	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0012-0203	●	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0204-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0012-0203	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0204-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0012-0203	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0204-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0012-0203	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0204-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0012-0203	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0204-	●	●	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0012-0203	●	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0204-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0012-0203	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0204-	●	●	●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-37243-361-0	01	1	0107-0210	●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-37243-361-0	01	1	0211-	●		●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-37243-282-0	01	1	0107-		●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-37243-361-0	01	1	0012-0106	●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-37243-282-0	01	1	0012-0106		●
342	FLANGE; OUTPUT 6WA1 TC-C(55L) EXC. BRAKE SYSTEM RETARDER<RE2> (C)	1-37243-347-0	01	1	0204-			●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5	1-09046-013-0	04	1	0107-0210	●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> (A) M14X48.5	1-09046-013-0	04	1	0211-	●		●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M12X75	1-09046-012-0	04	1	0107-0203		●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> (B) M12X75	1-09046-012-0	04	1	0204-		●
345	BOLT; FLANGE TO YOKE 6WA1 TC-C(55L) EXC. BRAKE SYSTEM RETARDER<RE2> (B) M12X75	1-09046-012-0	04	1	0204-			●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> (A) M14X48.5	1-09046-013-0	04	1	0012-0106	●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> (B) M12X75	1-09046-012-0	04	1	0012-0106		●
345	BOLT; FLANGE TO YOKE 6WA1 TC-C(55L) EXC. BRAKE SYSTEM RETARDER<RE2> (C) M12X43	1-09046-005-0	04	1	0204-			●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0012-0203	●	●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0204-	●	●	●

8 48 429 47 1 46 357 166 45 49 49 50 3 9 32 27 27 30 22 80 44 48 28 149 78 81 78 77 149 76 70 68 25 23 26 36 33 33 2 19 286 21 342 20 67 19 17 16 59 56 56 345 56 56 298 82 108 103 94 286 298 476 101 117 117 111 26 103 102 96 300 109 125 122 124 93 84 116 105 104 112 114 113 112 128 129 109 135 129 128 130 134 133 118 115 115 110 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-609-0	01	1	0012-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-861-1	01	1	0012-		●
1	SHAFT; TOP GEAR,TRANS 6SD1 TC-S(83L) Z=22	1-33211-699-1	01	1	0211-			●
1	SHAFT; TOP GEAR,TRANS 6WA1 TC-C(55L) Z=22	1-33211-825-1	01	1	0204-			●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0012-0203	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0204-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0012-0203	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0204-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0012-0203	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0204-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0012-0203	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0204-	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0012-0210	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0211-	●
3	BEARING; TOP GEAR SHAFT 6SD1 TC-S(83L) NTN	1-09810-164-0	01	1	0211-			●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0012-0210	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0211-	●
3	BEARING; TOP GEAR SHAFT 6SD1 TC-S(83L) NSK	1-09810-185-0	01	1	0211-			●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-220-2	01	1	0012-0203		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-220-2	01	1	0204-0210		●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-220-2	01	1	0211-		●
3	BEARING; TOP GEAR SHAFT 6WA1 TC-C(55L) NTN	1-09810-220-2	01	1	0211-			●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-237-1	01	1	0012-0203		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-237-1	01	1	0204-0210		●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-237-1	01	1	0211-		●
3	BEARING; TOP GEAR SHAFT 6WA1 TC-C(55L) NSK	1-09810-237-1	01	1	0211-			●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0012-0203	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0204-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0012-0203	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0204-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0012-0203	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0204-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0012-0203	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0204-	●	●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0012-0203	●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0204-	●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	0012-0203	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	0204-	●	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	0012-0203	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-1	01	1	0204-	●	●	●
20	SLEEVE	1-33262-097-1	01	1	0012-0203	●	●
20	SLEEVE	1-33262-097-1	01	1	0204-	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0012-0203	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0204-	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0012-0203	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0204-	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0012-0203	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0204-	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0012-0203	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0204-	●	●	●
26	SPRING; BLOCK,INSERT (A) D=6.2	1-09580-091-1	03	1	0012-0203	●	●
26	SPRING; BLOCK,INSERT (A) D=6.2	1-09580-091-1	03	1	0204-	●	●	●
26	SPRING; BLOCK,INSERT (B)	1-09583-171-0	03	1	0012-		●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	0012-0203	●	●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	0204-	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	0012-0203	●	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	0204-	●	●	●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	0012-0203	●	●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	0204-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-606-0	01	1	0012-	●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-604-0	01	1	0012-0203		●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-604-0	01	1	0204-		●	●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	0012-0203	●	●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	0204-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0012-0203	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0204-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0012-0203	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0204-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	0012-0203	●	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	0204-	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0012-0203	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0204-	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0012-0203	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0204-	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0012-0203	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0204-	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0012-0203	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0204-	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0012-0203	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0204-0407	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0408-	●	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0012-0203	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0204-	●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0012-0203	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0204-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	0012-0203	●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	0204-	●		●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	0012-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	0012-0203	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	0204-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	0012-0203	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	0204-	●	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0012-0203	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0204-	●	●	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0012-0203	●	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0204-	●	●	●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0012-0203	●	●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0204-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0012-0203	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0204-	●	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	0012-0203	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	0204-	●	●	●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-333-2	01	1	0012-	●
77	GEAR; 6TH,MAINSHAFT Z=19	1-33253-474-0	01	1	0012-		●
77	GEAR; 6TH,MAINSHAFT Z=21	1-33253-445-2	01	1	0204-			●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-074-0	01	1	0012-0203	●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-074-0	01	1	0204-	●		●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-082-1	01	1	0012-		●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33235-100-0	01	1	0012-		●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0012-0203	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0204-	●	●	●
81	GEAR; 7TH,MAIN Z=22	1-33254-011-0	01	1	0012-		●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	0012-0210	●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	0211-	●
82	SHAFT; MAIN,TRANS 6SD1 TC-S(83L) Z=28-28-37-18	1-33231-306-0	01	1	0211-			●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-309-0	01	1	0012-		●
82	SHAFT; MAIN,TRANS 6WA1 TC-C(55L) Z=28-28-37-18	1-33231-307-0	01	1	0204-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0012-0203	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0204-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0012-0203	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0204-	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0012-0203	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0204-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0012-0203	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0204-	●	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-193-0	01	1	0012-	●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-195-0	01	1	0204-			●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0012-0203	●	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0204-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0012-0203	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0204-	●	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	0012-0203	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	0204-	●	●	●
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	0012-0203	●	●
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	0204-	●	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-291-0	01	1	0012-	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-290-0	01	1	0012-0203		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-290-0	01	1	0204-		●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	0012-0203	●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	0204-	●	●	●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	0012-0203	●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	0204-	●		●
108	SHAFT; COUNTER Z=22-13	1-33311-264-1	01	1	0012-		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-021-1	01	1	0012-0203	●	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-021-1	01	1	0204-	●	●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-163-0	01	1	0012-0203	●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-163-0	01	1	0204-	●	●	●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0012-		●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0012-		●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0012-0203	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0204-	●	●	●
111	GEAR; 7TH COUNTER SHAFT Z=55	1-33338-295-0	01	1	0012-		●
112	RING; BLOCK,7TH SYN Z=54	1-33265-356-0	02	1	0012-		●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-097-1	01	1	0012-		●
114	HUB; CLU,7TH	1-33261-188-2	01	1	0012-		●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	0012-0203	●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	0204-	●	●	●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	0012-0203	●	●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	0204-	●	●	●
116	COLLAR; DIST,COUNTER SHAFT	1-33314-028-0	01	1	0012-		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-355-0	02	1	0012-		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-402-0	02	1	0012-		●
118	GEAR; 6TH,COUNTER Z=45	1-33338-304-0	01	1	0012-	●
118	GEAR; 6TH,COUNTER Z=44	1-33338-307-0	01	1	0012-		●
118	GEAR; 6TH,COUNTER Z=54	1-33338-306-0	01	1	0204-			●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0012-0203	●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0204-	●	●	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0012-0203	●	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0204-	●	●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	0012-0203	●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	0204-	●	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0012-0203	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0204-	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0012-0203	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0204-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0012-0203	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0204-	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0012-0203	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0204-	●	●	●
132	SHAFT; REV	1-33351-012-2	01	1	0012-0203	●	●
132	SHAFT; REV	1-33351-012-2	01	1	0204-	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0012-0203	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0204-	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	0012-0203	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	0204-0603	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	0-91510-508-0	01	1	0604-	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0012-0203	●	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0204-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0012-0203	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0204-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0012-0203	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0204-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0012-0203	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0204-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0012-0203	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0204-	●	●	●
166	PIECE; DIST	1-33363-033-1	01	1	0012-0203		●
166	PIECE; DIST	1-33363-033-1	01	1	0204-0210		●	●
166	PIECE; DIST	1-33363-033-1	01	1	0211-		●
166	PIECE; DIST 6WA1 TC-C(55L)	1-33363-033-1	01	1	0211-			●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0012-0203	●	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0204-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0012-0203	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0204-	●	●	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=41.9	1-09588-075-1	01	1	0012-		●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-37243-361-0	01	1	0107-0210	●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-37243-361-0	01	1	0211-	●		●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-37243-282-0	01	1	0107-		●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-37243-361-0	01	1	0012-0106	●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-37243-282-0	01	1	0012-0106		●
342	FLANGE; OUTPUT 6WA1 TC-C(55L) EXC. BRAKE SYSTEM RETARDER<RE2> (C)	1-37243-347-0	01	1	0204-			●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5	1-09046-013-0	04	1	0107-0210	●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> (A) M14X48.5	1-09046-013-0	04	1	0211-	●		●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M12X75	1-09046-012-0	04	1	0107-0203		●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> (B) M12X75	1-09046-012-0	04	1	0204-		●
345	BOLT; FLANGE TO YOKE 6WA1 TC-C(55L) EXC. BRAKE SYSTEM RETARDER<RE2> (B) M12X75	1-09046-012-0	04	1	0204-			●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> (A) M14X48.5	1-09046-013-0	04	1	0012-0106	●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> (B) M12X75	1-09046-012-0	04	1	0012-0106		●
345	BOLT; FLANGE TO YOKE 6WA1 TC-C(55L) EXC. BRAKE SYSTEM RETARDER<RE2> (C) M12X43	1-09046-005-0	04	1	0204-			●
357	RING	1-31349-015-0	01	1	0012-0203		●
357	RING	1-31349-015-0	01	1	0204-0210		●	●
357	RING	1-31349-015-0	01	1	0211-		●
357	RING 6WA1 TC-C(55L)	1-31349-015-0	01	1	0211-			●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0012-0203	●	●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0204-	●	●	●
476	ADAPTER; PUMP DRIVE Z=36	1-33339-029-1	01	1	0012-0210		●
476	ADAPTER; PUMP DRIVE 6SD1 TC(32L) Z=36	1-33339-029-1	01	1	0211-0308		●
476	ADAPTER; PUMP DRIVE 6SD1 TC-S(83L)	1-33339-066-0	01	1	0211-0308		●
476	ADAPTER; PUMP DRIVE	1-33339-066-0	01	1	0309-		●

9 8 48 429 47 46 45 357 166 49 49 3 1 2 50 32 27 27 30 22 44 149 78 77 149 76 70 56 56 68 48 28 25 23 124 80 36 33 33 126 126 120 19 21 67 20 125 19 17 16 59 56 56 122 26 115 82 121 119 118 115 110 109 103 94 101 103 102 96 128 128 129 130 108 93 84 132 135 129 134 133 105 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-609-0	01	1	0012-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-861-1	01	1	0012-		●
1	SHAFT; TOP GEAR,TRANS 6SD1 TC-S(83L) Z=22	1-33211-699-1	01	1	0211-			●
1	SHAFT; TOP GEAR,TRANS 6WA1 TC-C(55L) Z=22	1-33211-825-1	01	1	0204-			●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0012-0203	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0204-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0012-0203	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0204-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0012-0203	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0204-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0012-0203	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0204-	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0012-0210	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0211-	●
3	BEARING; TOP GEAR SHAFT 6SD1 TC-S(83L) NTN	1-09810-164-0	01	1	0211-			●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0012-0210	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0211-	●
3	BEARING; TOP GEAR SHAFT 6SD1 TC-S(83L) NSK	1-09810-185-0	01	1	0211-			●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-220-2	01	1	0012-0203		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-220-2	01	1	0204-0210		●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-220-2	01	1	0211-		●
3	BEARING; TOP GEAR SHAFT 6WA1 TC-C(55L) NTN	1-09810-220-2	01	1	0211-			●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-237-1	01	1	0012-0203		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-237-1	01	1	0204-0210		●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-237-1	01	1	0211-		●
3	BEARING; TOP GEAR SHAFT 6WA1 TC-C(55L) NSK	1-09810-237-1	01	1	0211-			●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0012-0203	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0204-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0012-0203	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0204-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0012-0203	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0204-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0012-0203	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0204-	●	●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0012-0203	●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0204-	●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	0012-0203	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	0204-	●	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	0012-0203	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-1	01	1	0204-	●	●	●
20	SLEEVE	1-33262-097-1	01	1	0012-0203	●	●
20	SLEEVE	1-33262-097-1	01	1	0204-	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0012-0203	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0204-	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0012-0203	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0204-	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0012-0203	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0204-	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0012-0203	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0204-	●	●	●
26	SPRING; BLOCK,INSERT (A) D=6.2	1-09580-091-1	03	1	0012-0203	●	●
26	SPRING; BLOCK,INSERT (A) D=6.2	1-09580-091-1	03	1	0204-	●	●	●
26	SPRING; BLOCK,INSERT (B)	1-09583-171-0	03	1	0012-		●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	0012-0203	●	●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	0204-	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	0012-0203	●	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	0204-	●	●	●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	0012-0203	●	●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	0204-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-606-0	01	1	0012-	●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-604-0	01	1	0012-0203		●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-604-0	01	1	0204-		●	●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	0012-0203	●	●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	0204-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0012-0203	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0204-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0012-0203	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0204-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	0012-0203	●	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	0204-	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0012-0203	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0204-	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0012-0203	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0204-	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0012-0203	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0204-	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0012-0203	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0204-	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0012-0203	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0204-0407	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0408-	●	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0012-0203	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0204-	●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0012-0203	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0204-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	0012-0203	●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	0204-	●		●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	0012-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	0012-0203	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	0204-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	0012-0203	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	0204-	●	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0012-0203	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0204-	●	●	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0012-0203	●	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0204-	●	●	●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0012-0203	●	●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0204-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0012-0203	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0204-	●	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	0012-0203	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	0204-	●	●	●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-333-2	01	1	0012-	●
77	GEAR; 6TH,MAINSHAFT Z=19	1-33253-474-0	01	1	0012-		●
77	GEAR; 6TH,MAINSHAFT Z=21	1-33253-445-2	01	1	0204-			●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-074-0	01	1	0012-0203	●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-074-0	01	1	0204-	●		●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-082-1	01	1	0012-		●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33235-100-0	01	1	0012-		●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0012-0203	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0204-	●	●	●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	0012-0210	●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	0211-	●
82	SHAFT; MAIN,TRANS 6SD1 TC-S(83L) Z=28-28-37-18	1-33231-306-0	01	1	0211-			●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-309-0	01	1	0012-		●
82	SHAFT; MAIN,TRANS 6WA1 TC-C(55L) Z=28-28-37-18	1-33231-307-0	01	1	0204-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0012-0203	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0204-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0012-0203	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0204-	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0012-0203	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0204-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0012-0203	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0204-	●	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-193-0	01	1	0012-	●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-195-0	01	1	0204-			●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0012-0203	●	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0204-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0012-0203	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0204-	●	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	0012-0203	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	0204-	●	●	●
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	0012-0203	●	●
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	0204-	●	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-291-0	01	1	0012-	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-290-0	01	1	0012-0203		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-290-0	01	1	0204-		●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	0012-0203	●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	0204-	●	●	●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	0012-0203	●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	0204-	●		●
108	SHAFT; COUNTER Z=22-13	1-33311-264-1	01	1	0012-		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-021-1	01	1	0012-0203	●	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-021-1	01	1	0204-	●	●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-163-0	01	1	0012-0203	●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-163-0	01	1	0204-	●	●	●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0012-		●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0012-		●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0012-0203	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0204-	●	●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	0012-0203	●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	0204-	●	●	●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	0012-0203	●	●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	0204-	●	●	●
118	GEAR; 6TH,COUNTER Z=45	1-33338-304-0	01	1	0012-	●
118	GEAR; 6TH,COUNTER Z=44	1-33338-307-0	01	1	0012-		●
118	GEAR; 6TH,COUNTER Z=54	1-33338-306-0	01	1	0204-			●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	0012-0203	●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	0204-	●		●
120	SLEEVE	1-33262-098-2	01	1	0012-0203	●
120	SLEEVE	1-33262-098-2	01	1	0204-	●		●
121	HUB; CLU,6TH	1-33261-189-2	01	1	0012-0203	●
121	HUB; CLU,6TH	1-33261-189-2	01	1	0204-	●		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0012-0203	●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0204-	●	●	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0012-0203	●	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0204-	●	●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	0012-0203	●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	0204-	●	●	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	0012-0203	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	0204-	●		●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0012-0203	●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0204-	●		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0012-0203	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0204-	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0012-0203	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0204-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0012-0203	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0204-	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0012-0203	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0204-	●	●	●
132	SHAFT; REV	1-33351-012-2	01	1	0012-0203	●	●
132	SHAFT; REV	1-33351-012-2	01	1	0204-	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0012-0203	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0204-	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	0012-0203	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	0204-0603	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	0-91510-508-0	01	1	0604-	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0012-0203	●	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0204-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0012-0203	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0204-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0012-0203	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0204-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0012-0203	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0204-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0012-0203	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0204-	●	●	●
166	PIECE; DIST	1-33363-033-1	01	1	0012-0203		●
166	PIECE; DIST	1-33363-033-1	01	1	0204-0210		●	●
166	PIECE; DIST	1-33363-033-1	01	1	0211-		●
166	PIECE; DIST 6WA1 TC-C(55L)	1-33363-033-1	01	1	0211-			●
357	RING	1-31349-015-0	01	1	0012-0203		●
357	RING	1-31349-015-0	01	1	0204-0210		●	●
357	RING	1-31349-015-0	01	1	0211-		●
357	RING 6WA1 TC-C(55L)	1-31349-015-0	01	1	0211-			●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0012-0203	●	●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0204-	●	●	●

342 465 383 345 345 286 298 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0012-0203	●	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0204-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0012-0203	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0204-	●	●	●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-37243-361-0	01	1	0107-0210	●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-37243-361-0	01	1	0211-	●		●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-37243-282-0	01	1	0107-		●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-37243-361-0	01	1	0012-0106	●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-37243-282-0	01	1	0012-0106		●
342	FLANGE; OUTPUT 6WA1 TC-C(55L) EXC. BRAKE SYSTEM RETARDER<RE2> (C)	1-37243-347-0	01	1	0204-			●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5	1-09046-013-0	04	1	0107-0210	●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> (A) M14X48.5	1-09046-013-0	04	1	0211-	●		●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M12X75	1-09046-012-0	04	1	0107-0203		●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> (B) M12X75	1-09046-012-0	04	1	0204-		●
345	BOLT; FLANGE TO YOKE 6WA1 TC-C(55L) EXC. BRAKE SYSTEM RETARDER<RE2> (B) M12X75	1-09046-012-0	04	1	0204-			●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> (A) M14X48.5	1-09046-013-0	04	1	0012-0106	●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> (B) M12X75	1-09046-012-0	04	1	0012-0106		●
345	BOLT; FLANGE TO YOKE 6WA1 TC-C(55L) EXC. BRAKE SYSTEM RETARDER<RE2> (C) M12X43	1-09046-005-0	04	1	0204-			●
383	WASHER; LK 6WA1 TC-C(55L) EXC. BRAKE SYSTEM RETARDER<RE2> ID=12.2	9-09150-612-0	04	1	0204-0603			●
383	WASHER; LK 6WA1 TC-C(55L) EXC. BRAKE SYSTEM RETARDER<RE2> ID=12.2	0-91510-612-0	04	1	0604-			●
465	NUT; FLANGE 6WA1 TC-C(55L) EXC. BRAKE SYSTEM RETARDER<RE2> M12	9-99110-512-0	04	1	0204-0512			●
465	NUT; FLANGE 6WA1 TC-C(55L) EXC. BRAKE SYSTEM RETARDER<RE2> M12	0-91110-512-0	04	1	0601-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
