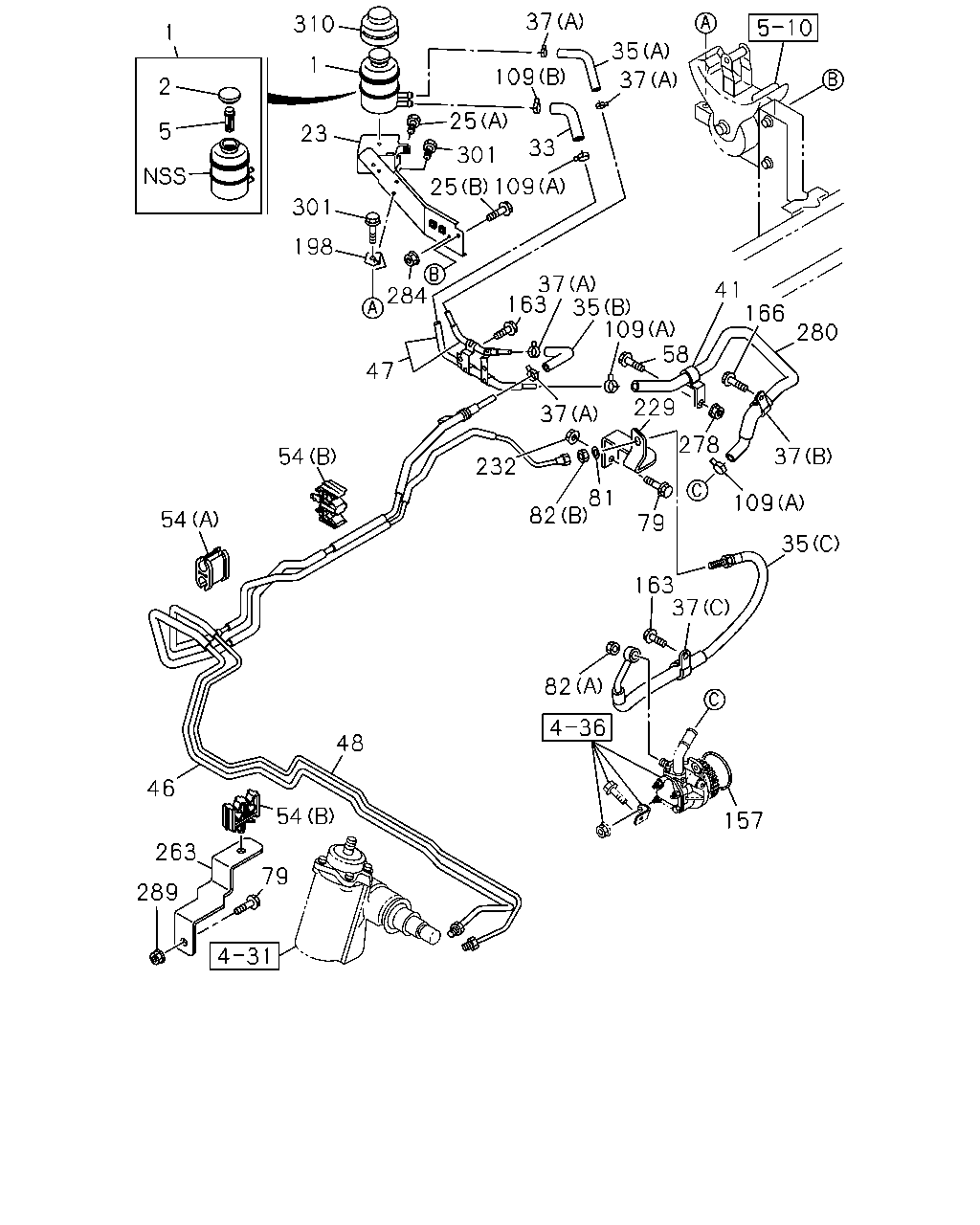

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#79967) — 45 parça

37 310 1 35 1 109 37 2 25 5 23 33 301 301 198 284 37 163 35 109 58 41 166 280 47 229 37 278 54 37 232 81 82 109 54 79 35 163 37 82 48 46 54 157 263 79 289 25 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1108-
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1108-
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1108-
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1108-
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1108-
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1108-
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1108-
35	06.671 HOSE; RETURN,P/S TANK HYDRO BRAKE BOOSTER(7QQ) (C)	8-98162-690-0	01	1	1108-
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1108-
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1108-
35	06.671 HOSE; RETURN,P/S TANK EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98162-602-0	01	1	1108-
37	01.762 CLIP; HOSE,P/S HYDRO BRAKE BOOSTER(7QQ) 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1108-
37	01.762 CLIP; HOSE,P/S (C) ID=26 L=26	1-09701-236-0	01	1	1108-
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1108-
41	06.672 CLIP; HOSE,P/S HYDRO BRAKE BOOSTER(7QQ)	8-98074-004-0	01	1	1108-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> L=2610	8-98135-831-0	01	1	1108-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EXC. FRONT WIDE TREAD<7GV> L=2651	8-98131-674-0	01	1	1108-
47	06.671 PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98033-896-4	01	1	1108-
47	06.671 PIPE; RETURN EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98083-166-1	01	1	1108-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> L=2809	8-98135-829-0	01	1	1108-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRONT WIDE TREAD<7GV> L=2846	8-98131-673-0	01	1	1108-
54	06.672 CLIP; OIL PIPE (A) ID=10X2 H=22	8-94252-455-2	01	1	1108-
54	06.672 CLIP; OIL PIPE 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	02	1	1108-
54	06.672 CLIP; OIL PIPE 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	02	1	1108-
58	06.672 BOLT; CLIP HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1108-
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1108-
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1108-
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	1108-
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1108-
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1108-
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	03	1	1108-
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1108-
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1108-
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1108-
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1108-
229	06.606 BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	1108-
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1108-
263	06.672 BRACKET; P/S PIPE	8-98034-113-0	01	1	1108-
278	06.670 NUT; HOSE CLIP HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1108-
280	06.672 HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-98111-788-0	01	1	1108-
280	06.672 HOSE; P/S OIL PUMP,INL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98111-786-0	01	1	1108-
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1108-
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1108-
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1108-
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1108-
