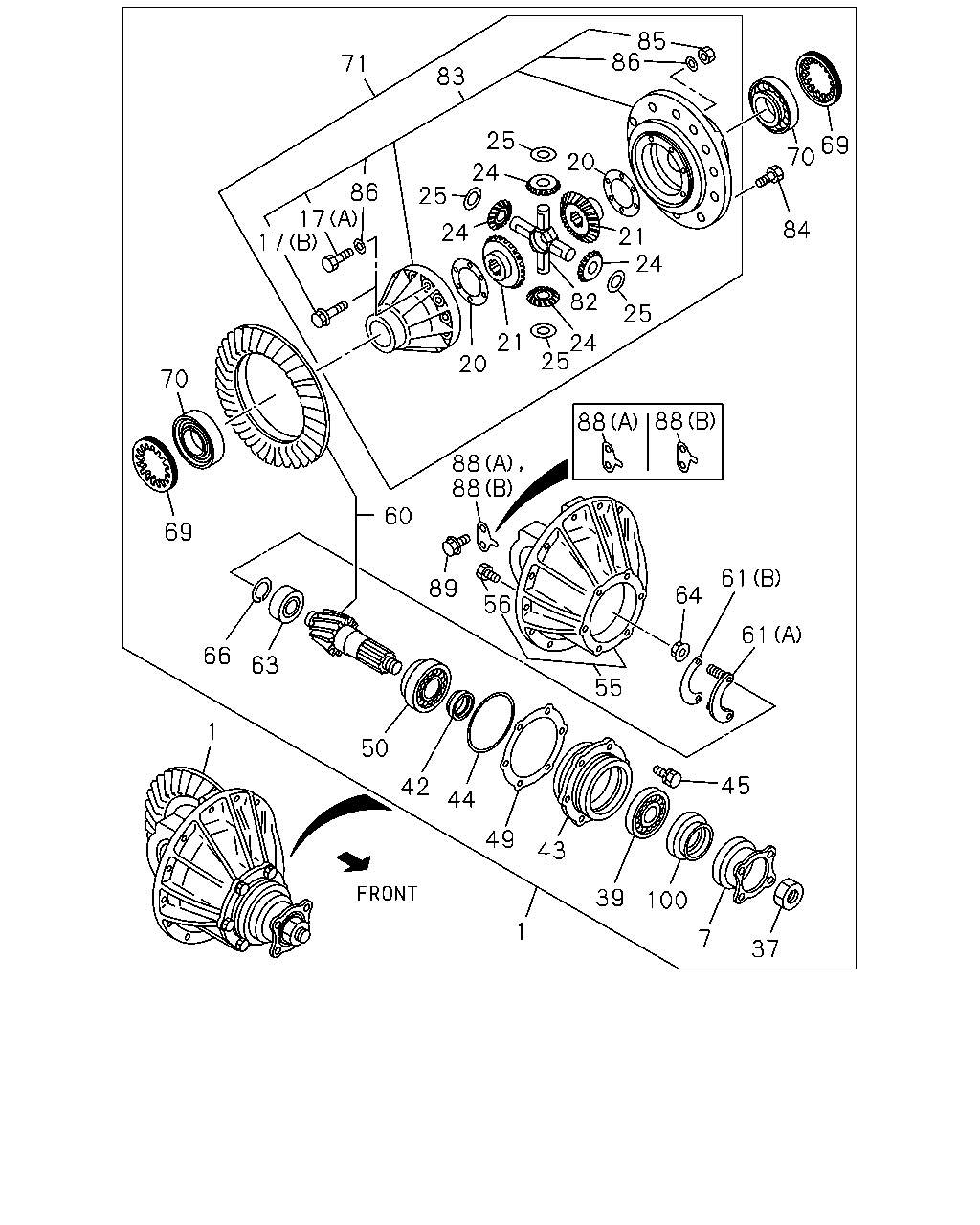

4-25 — REAR FINAL DRIVE (#79963) — 58 parça

71 83 86 85 69 70 84 24 21 20 25 82 21 20 24 25 25 24 25 24 86 17 17 70 88 88 88 88 60 89 56 61 64 61 55 45 37 7 100 39 43 1 49 44 42 50 1 63 66 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97388-709-0	01	1	1108-
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97388-708-0	01	1	1108-
7	05.545 FLANGE; FINAL	8-97073-802-2	01	1	1108-
17	05.510 BOLT; DIFF CAGE SETTING (A)	8-97047-295-0	12	1	1108-1208
17	05.510 BOLT; DIFF CAGE SETTING (B)	8-98219-448-0	12	1	1209-
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1108-
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1108-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1108-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1108-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1108-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1108-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1108-
21	05.528 GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1108-
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1108-
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	1108-
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	1108-
39	05.484 BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1108-
39	05.484 BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1108-
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	1108-
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	1108-
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	1108-
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	1108-1209
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	1108-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	1108-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	1108-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	1108-
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	1108-
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	1108-
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1108-
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	1108-
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1108-
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	1108-
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97061-850-0	01	1	1108-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	1108-
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	1108-
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	1108-
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	1108-
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1108-
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	1108-
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	1108-
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1108-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1)	8-97047-100-4	01	1	1108-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 43/9(S2J)	8-97047-099-4	01	1	1108-
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1108-1309
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	1310-
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1)	8-97047-117-2	01	1	1108-1208
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1)	8-98219-707-0	01	1	1209-
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 43/9(S2J)	8-97047-101-2	01	1	1108-1208
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 43/9(S2J)	8-98219-705-0	01	1	1209-
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	1108-
85	05.510 NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	1108-
86	05.510 WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	24	1	1108-1208
86	05.510 WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-
88	05.506 PLATE; LK,ADJ NUT (B)	8-97087-821-0	AR	1	1108-
88	05.506 PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	1108-
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1108-
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1108-
