◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51381 - NPR BUS CNG(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#79959) — 24 parça

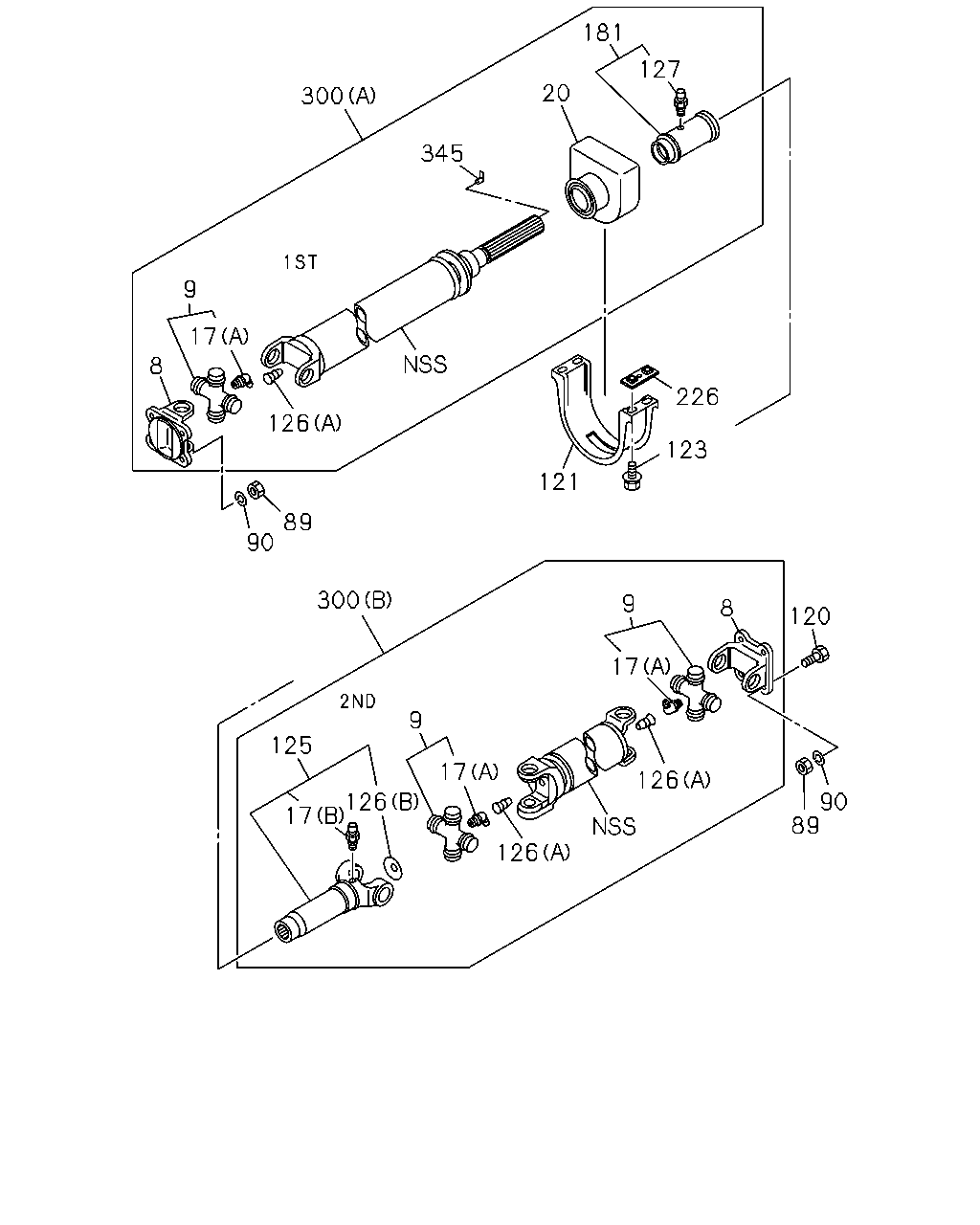

çizim 122421
181 127 20 300 345 9 17 8 226 126 123 121 89 90 300 9 8 120 17 9 125 17 126 126 17 90 89 126
BalonParca AdiParca NoAdetTipApplied Date
8 05.544 YOKE; FLANGE,PROP SHAFT 8-97322-663-0 01 1 1108-
8 05.544 YOKE; FLANGE,PROP SHAFT 8-97322-663-0 01 1 1108-
9 05.548 JOURNAL ASM; PROP SHAFT 8-98033-605-1 01 1 1108-
9 05.548 JOURNAL ASM; PROP SHAFT 8-98033-605-1 02 1 1108-
17 05.601 NIPPLE; GREASE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 02 1 1108-
17 05.601 NIPPLE; GREASE,PROP SHAFT
08.984 (A) PT1/8 ELBOW 		0-90301-610-0 01 1 1108-
17 05.601 NIPPLE; GREASE,PROP SHAFT
08.984 (A) PT1/8 ELBOW 		0-90301-610-0 02 1 1108-
20 05.600 BEARING ASM; CTR,PROP SHAFT 8-98033-936-0 01 1 1108-
89 05.586 NUT; YOKE TO RR AXLE
M12 		8-97365-450-1 08 1 1108-
90 05.586 WASHER; LK,YOKE TO RR AXLE
07.347 ID=12.2 		0-91510-812-0 08 1 1108-
120 05.586 BOLT; YOKE TO RR AXLE
M12X35 		8-97365-451-1 04 1 1108-
121 05.598 RETAINER; CUSHION RUBBER 8-97035-623-1 01 1 1108-
123 05.601 BOLT; RET
M10X25 W/LK&PL WASHER 		0-50641-025-0 04 1 1108-
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
L=183 		8-98033-647-2 01 1 1108-
126 05.556 PLUG; SPLINED YOKE
(A) 		1-09600-023-0 01 1 1108-
126 05.556 PLUG; SPLINED YOKE
(A) 		1-09600-023-0 02 1 1108-
126 05.556 PLUG; SPLINED YOKE
(B) 		8-94366-900-0 01 1 1108-
127 05.586 NIPPLE; GREASE,SPLINED YOKE
05.601 M6 STRAIGHT 		0-90301-406-0 01 1 1108-1304
181 05.586 COVER; BRG,PROP SHAFT 8-98046-526-0 01 1 1108-
226 05.586 PLATE; LK,CENTER BRG 8-97371-572-0 02 1 1108-
300 05.544 SHAFT ASM; PROP,RR
WHEEL BASE 3800MM(38W) (B) L=1036 		8-98107-140-2 01 1 1108-
300 05.544 SHAFT ASM; PROP,RR
WHEEL BASE 4100MM(41W) (B) L=1396 		8-98107-143-2 01 1 1108-
300 05.544 SHAFT ASM; PROP,RR
(A) L=1185 		8-98113-043-1 01 1 1108-
345 05.600 PLUG; PROP SHAFT 8-98042-692-0 01 1 1108-
