Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#79958) — 183 parça

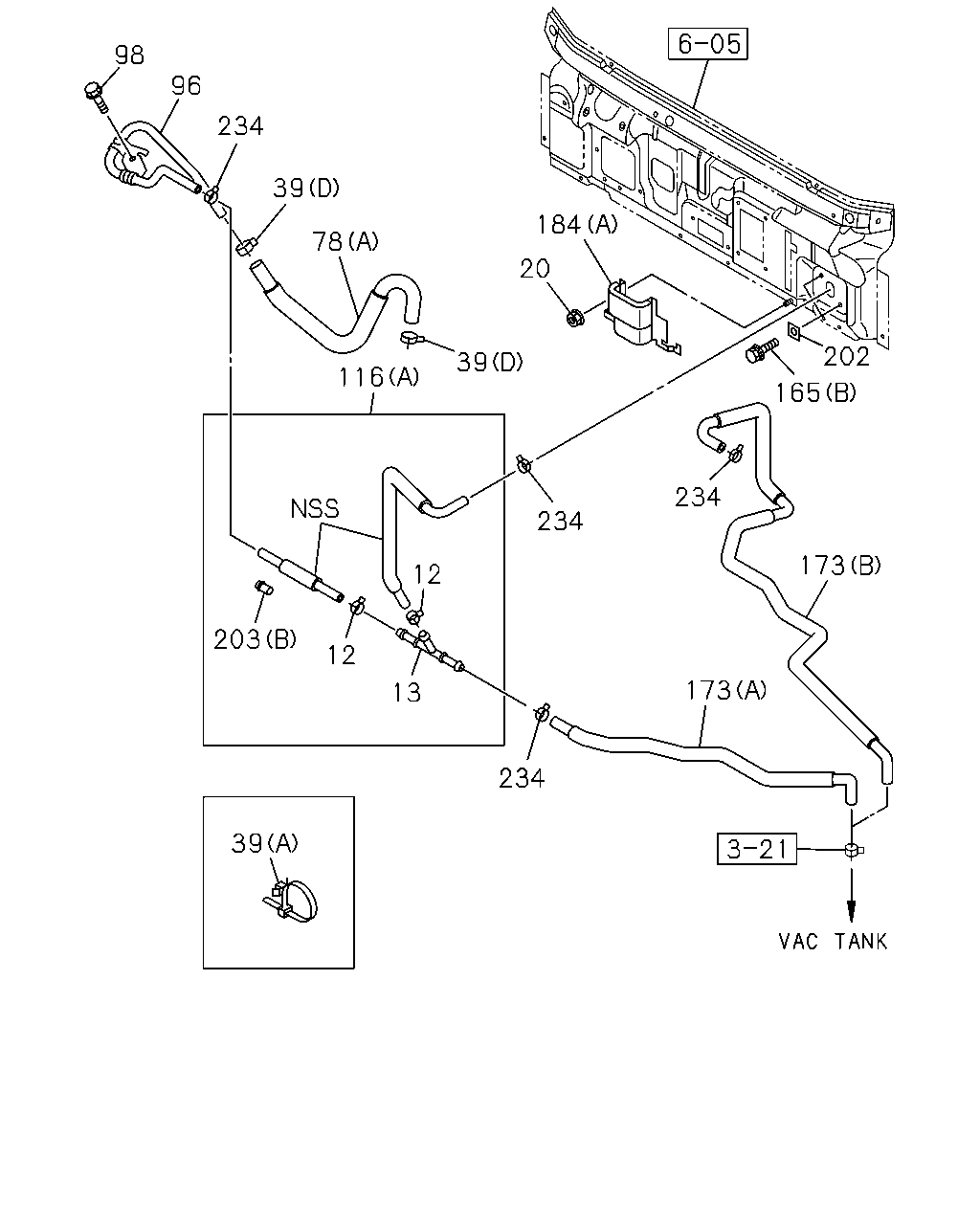

98 96 234 39 184 78 20 202 39 116 165 234 234 173 12 203 12 173 13 234 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1108-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1108-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1108-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	06	1	1108-
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	02	1	1108-
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1108-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1108-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1108-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1108-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1108-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1108-1205
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1108-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1108-
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1108-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1108-
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1108-
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (D)	8-98136-614-0	01	1	1108-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98162-691-0	01	1	1108-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-106-0	01	1	1108-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98082-321-0	01	1	1108-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-322-0	01	1	1108-
98	04.931 BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1108-
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1108-
98	04.931 BOLT; VAC PIPE FIX HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1108-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1108-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1108-
116	04.931 HOSE; VAC,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1108-
116	04.931 HOSE; VAC,M/VAC (C)	8-98124-755-1	01	1	1108-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98113-001-0	01	1	1108-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1108-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1108-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98047-184-2	01	1	1108-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98031-774-1	01	1	1108-
184	04.685 BRACKET; UNION FIX (G)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98183-465-1	01	1	1108-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98255-536-0	01	1	1312-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-471-1	01	1	1108-1311
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (H)	8-98255-538-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	1108-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-466-1	01	1	1108-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98255-537-0	01	1	1312-
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1108-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1108-
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-94386-540-0	01	1	1108-
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	03	1	1108-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	03	1	1108-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	04	1	1108-

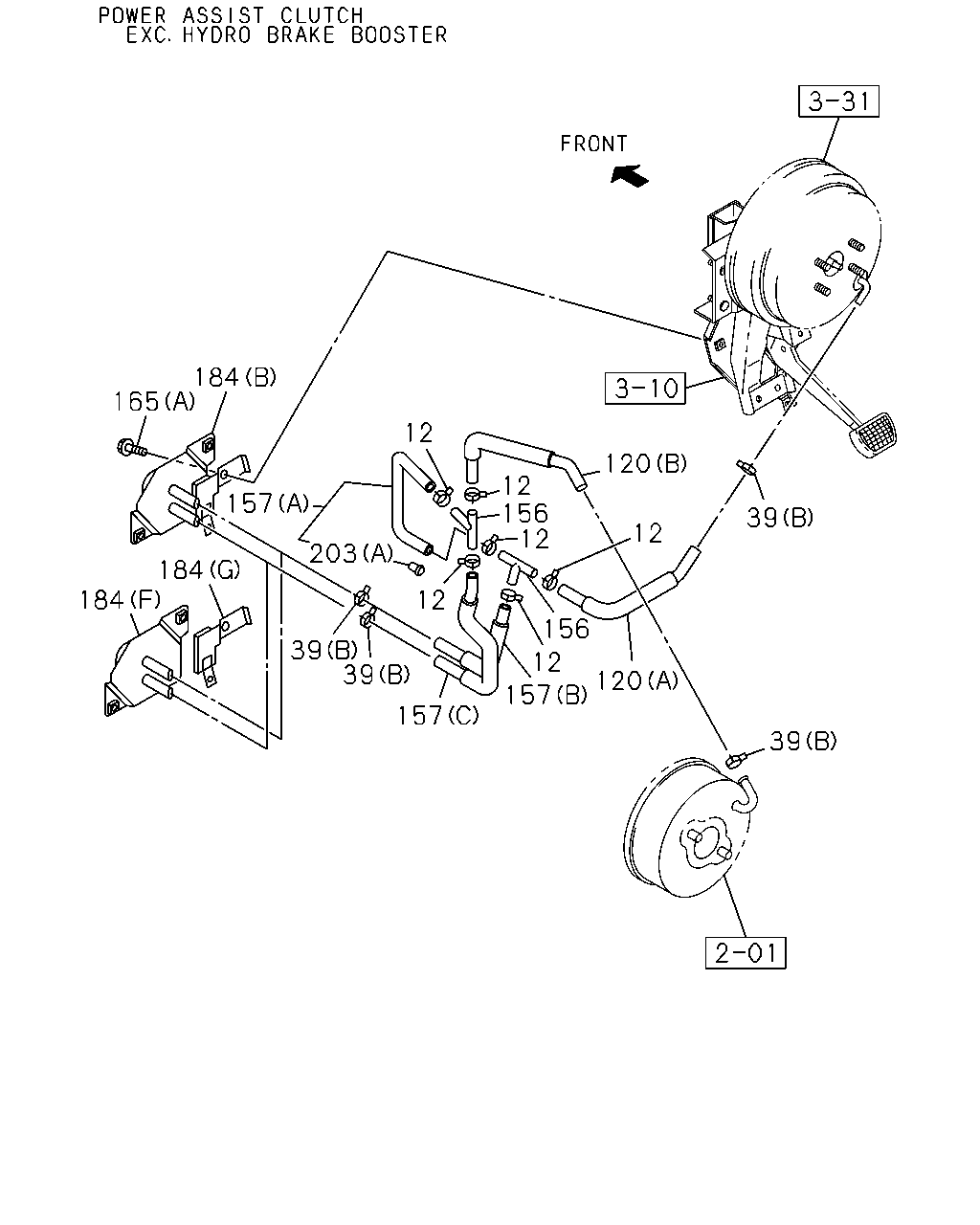

165 184 184 157 203 39 39 157 157 120 12 156 12 156 12 12 39 120 12 184 39 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1108-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1108-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1108-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	06	1	1108-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1108-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1108-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1108-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1108-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1108-1205
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1108-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1108-
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1108-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	1108-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-856-2	01	1	1108-
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681	8-98035-106-0	02	1	1108-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1108-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-858-1	01	1	1108-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98060-859-2	01	1	1108-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1108-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1108-
184	04.685 BRACKET; UNION FIX (G)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98183-465-1	01	1	1108-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98255-536-0	01	1	1312-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-471-1	01	1	1108-1311
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (H)	8-98255-538-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	1108-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-466-1	01	1	1108-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98255-537-0	01	1	1312-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1108-
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-94386-540-0	01	1	1108-

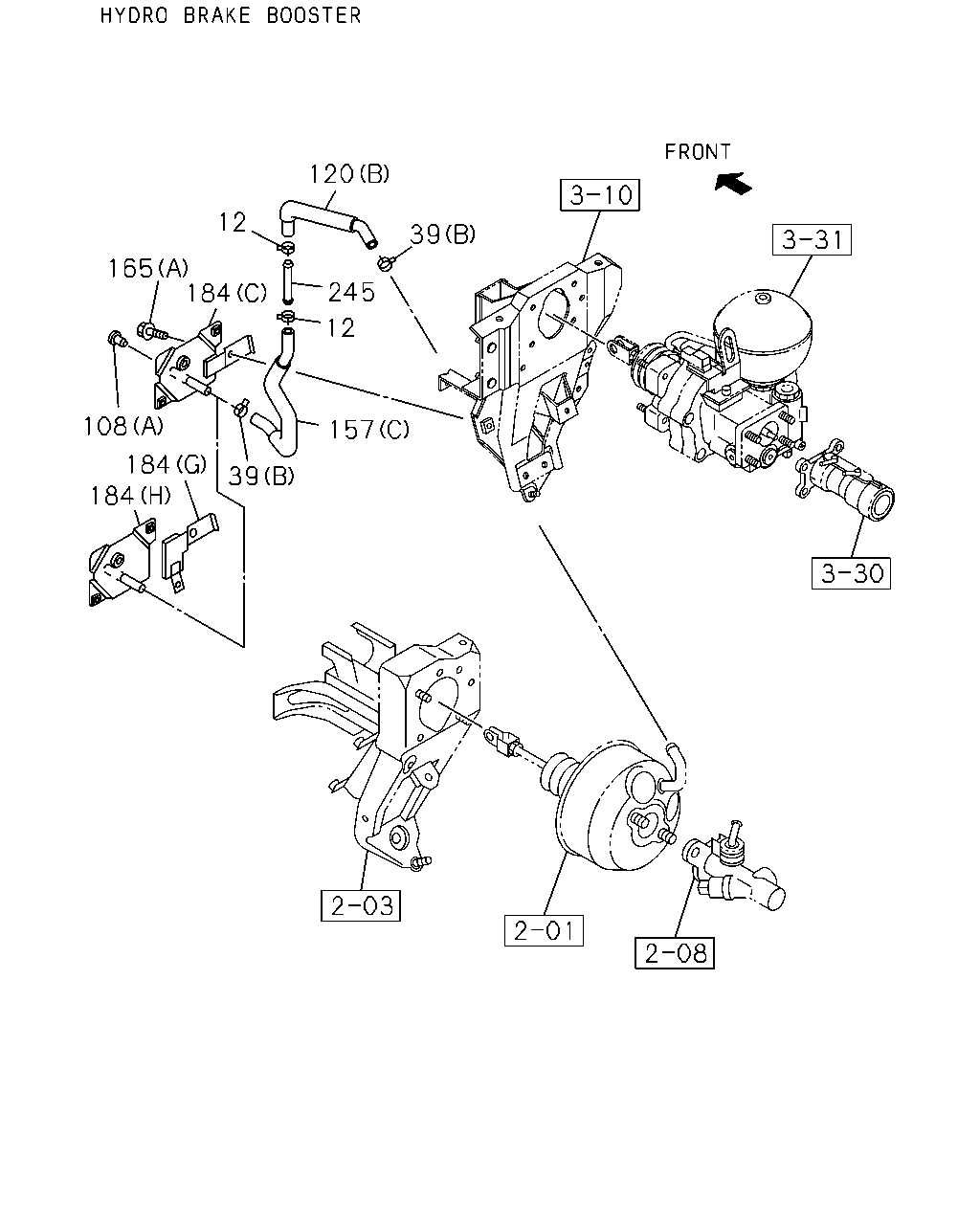

120 12 165 108 184 245 39 157 39 184 184 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1108-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1108-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1108-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	06	1	1108-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1108-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1108-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1108-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1108-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1108-1205
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1108-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1108-
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1108-
108	04.931 GROMMET; PIPE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1108-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	1108-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	1108-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-856-2	01	1	1108-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1108-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-858-1	01	1	1108-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98060-859-2	01	1	1108-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1108-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1108-
184	04.685 BRACKET; UNION FIX (G)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98183-465-1	01	1	1108-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98255-536-0	01	1	1312-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-471-1	01	1	1108-1311
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (H)	8-98255-538-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	1108-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-466-1	01	1	1108-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98255-537-0	01	1	1312-
245	04.931 JOINT; 2 WAY POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681	8-98048-075-0	01	1	1108-

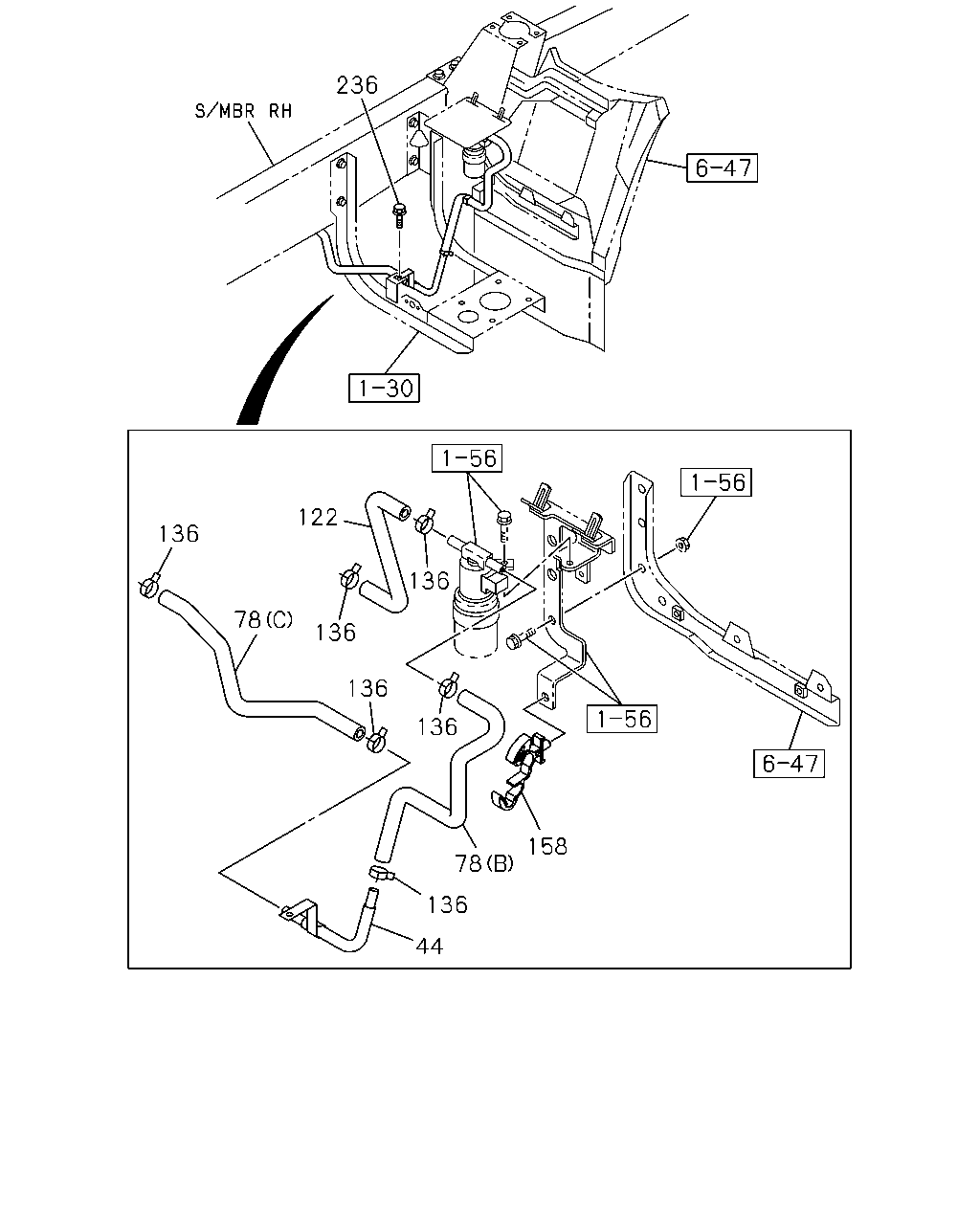

236 122 136 136 78 136 136 136 158 78 136 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.930 PIPE; VAC,MAG VLV	8-98034-281-1	01	1	1108-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1108-
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1108-
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (D)	8-98136-614-0	01	1	1108-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98162-691-0	01	1	1108-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-106-0	01	1	1108-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-104-0	01	1	1108-
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1108-
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1108-
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1108-

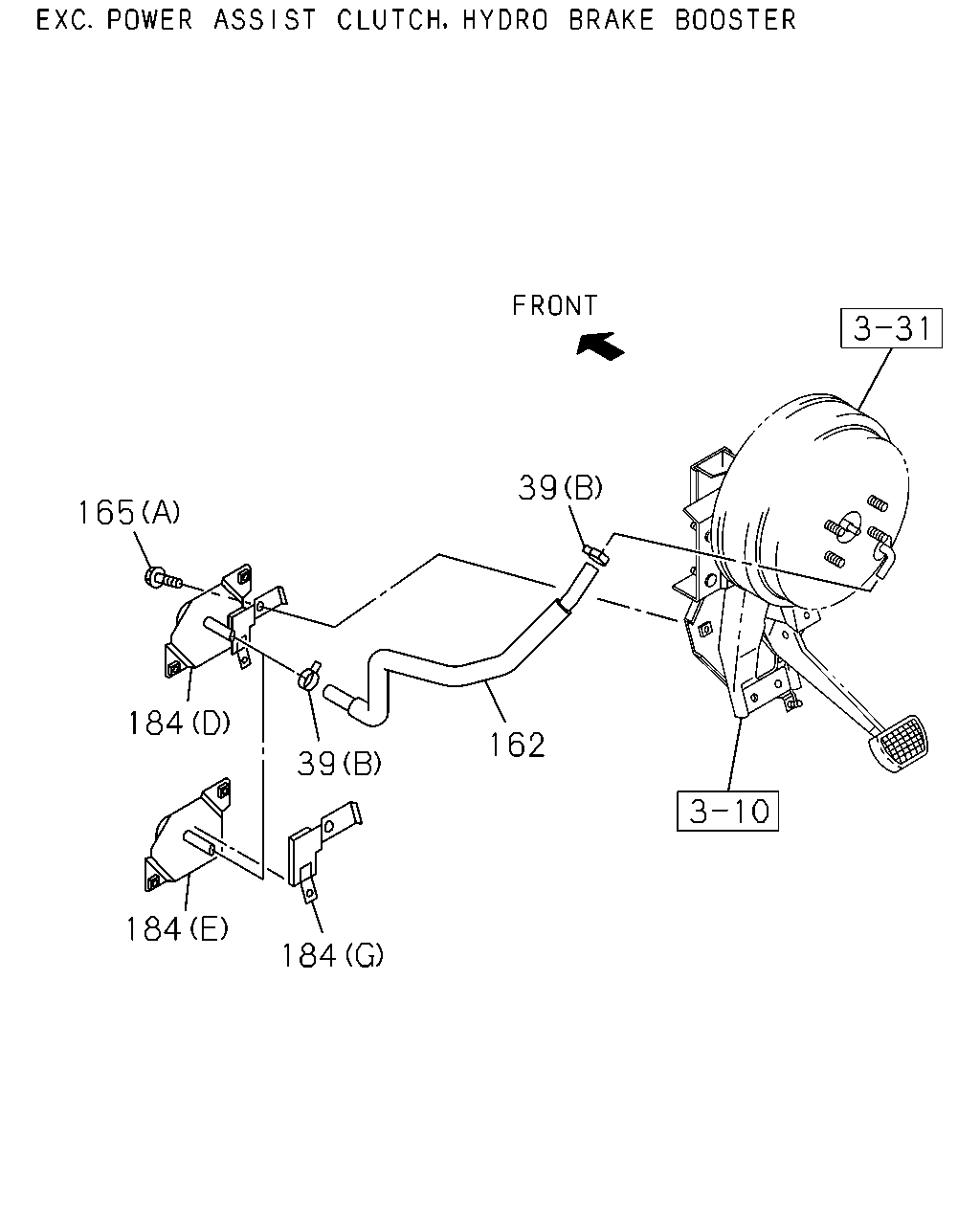

162 39 39 184 184 184 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1108-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1108-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1108-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1108-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1108-1205
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1108-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1108-
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1108-
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98034-154-2	01	1	1108-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1108-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1108-
184	04.685 BRACKET; UNION FIX (G)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98183-465-1	01	1	1108-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98255-536-0	01	1	1312-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-471-1	01	1	1108-1311
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (H)	8-98255-538-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	1108-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-466-1	01	1	1108-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98255-537-0	01	1	1312-

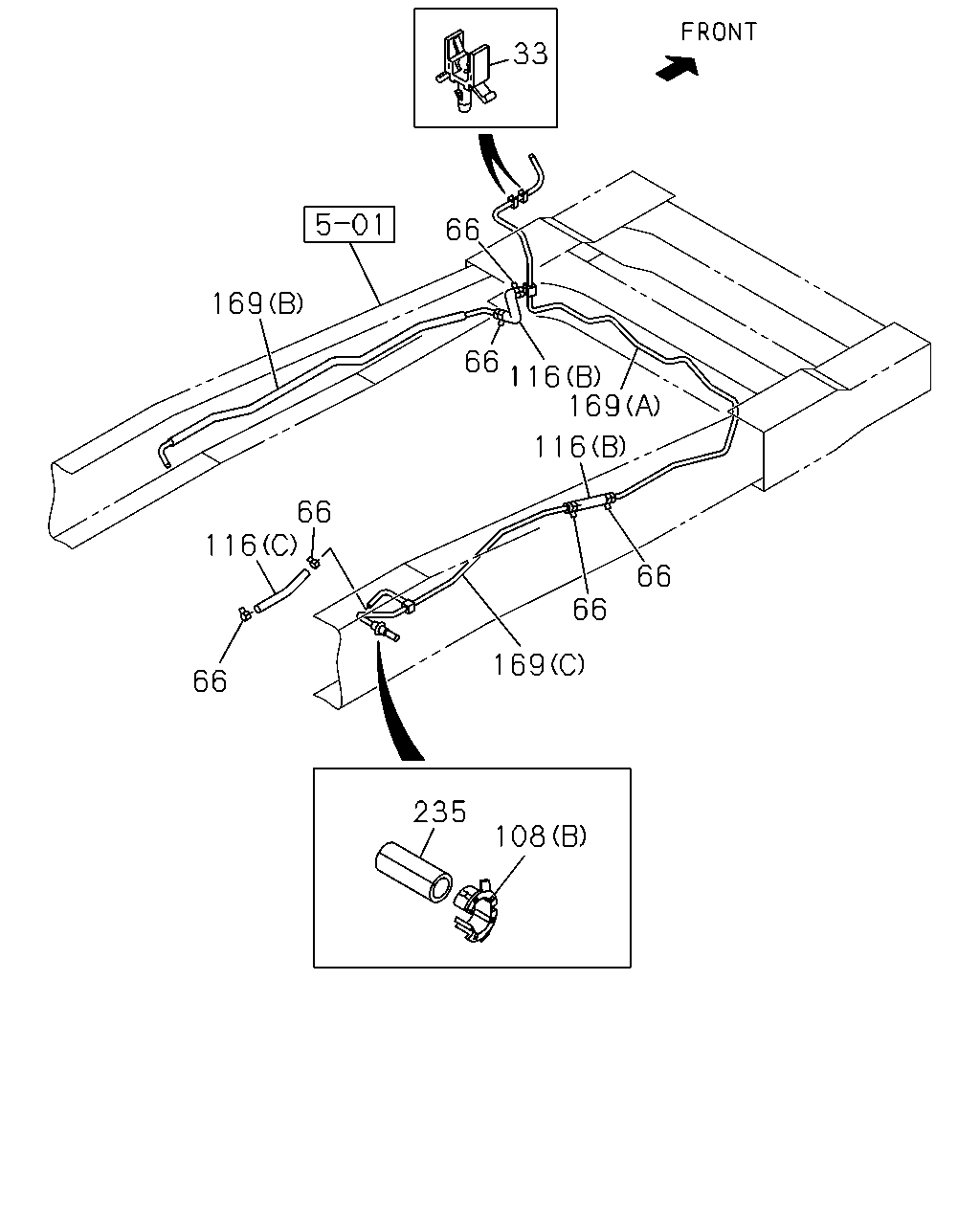

33 66 169 66 116 169 116 66 116 66 66 169 66 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	1108-
33	04.930 CLIP; VAC PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	1108-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1108-
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 ID=16	8-98008-098-0	02	1	1108-
66	04.930 CLIP; VAC HOSE,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 ID=16	8-98008-098-0	02	1	1108-
108	04.931 GROMMET; PIPE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1108-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	1108-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1108-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1108-
116	04.931 HOSE; VAC,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1108-
116	04.931 HOSE; VAC,M/VAC (C)	8-98124-755-1	01	1	1108-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98113-001-0	01	1	1108-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98082-404-1	01	1	1108-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98082-404-1	01	1	1108-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98132-683-1	01	1	1108-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98132-683-1	01	1	1108-
169	04.930 PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98082-405-1	01	1	1108-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1108-

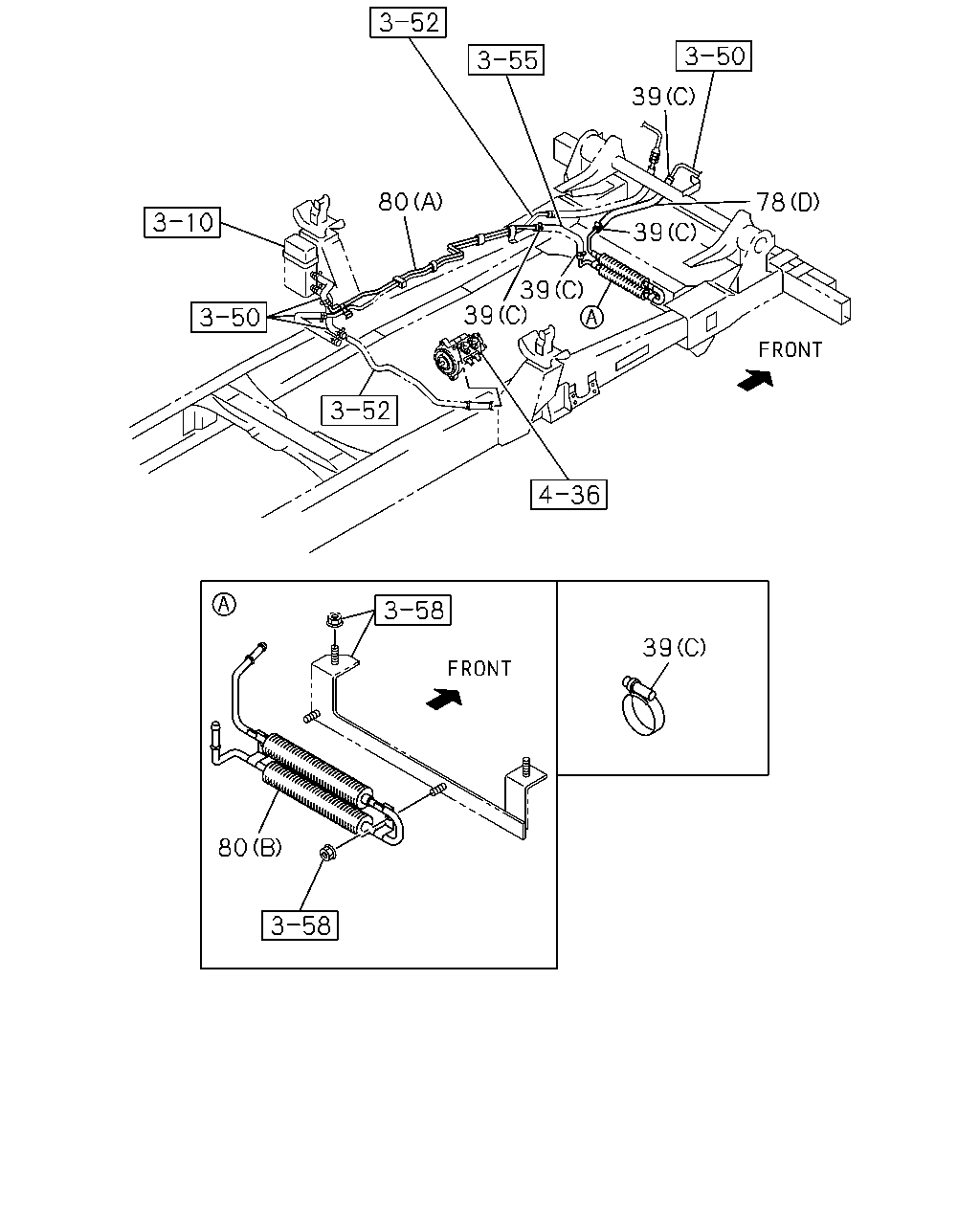

39 80 78 39 39 39 39 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1108-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1108-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1108-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1108-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1108-1205
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1108-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1108-
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1108-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1108-
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1108-
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (D)	8-98136-614-0	01	1	1108-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98162-691-0	01	1	1108-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-106-0	01	1	1108-
80	04.930 PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98039-753-0	01	1	1108-
80	04.930 PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-788-0	01	1	1108-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
