◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51381 - NPR BUS CNG(LHD) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#79955) — 49 parça

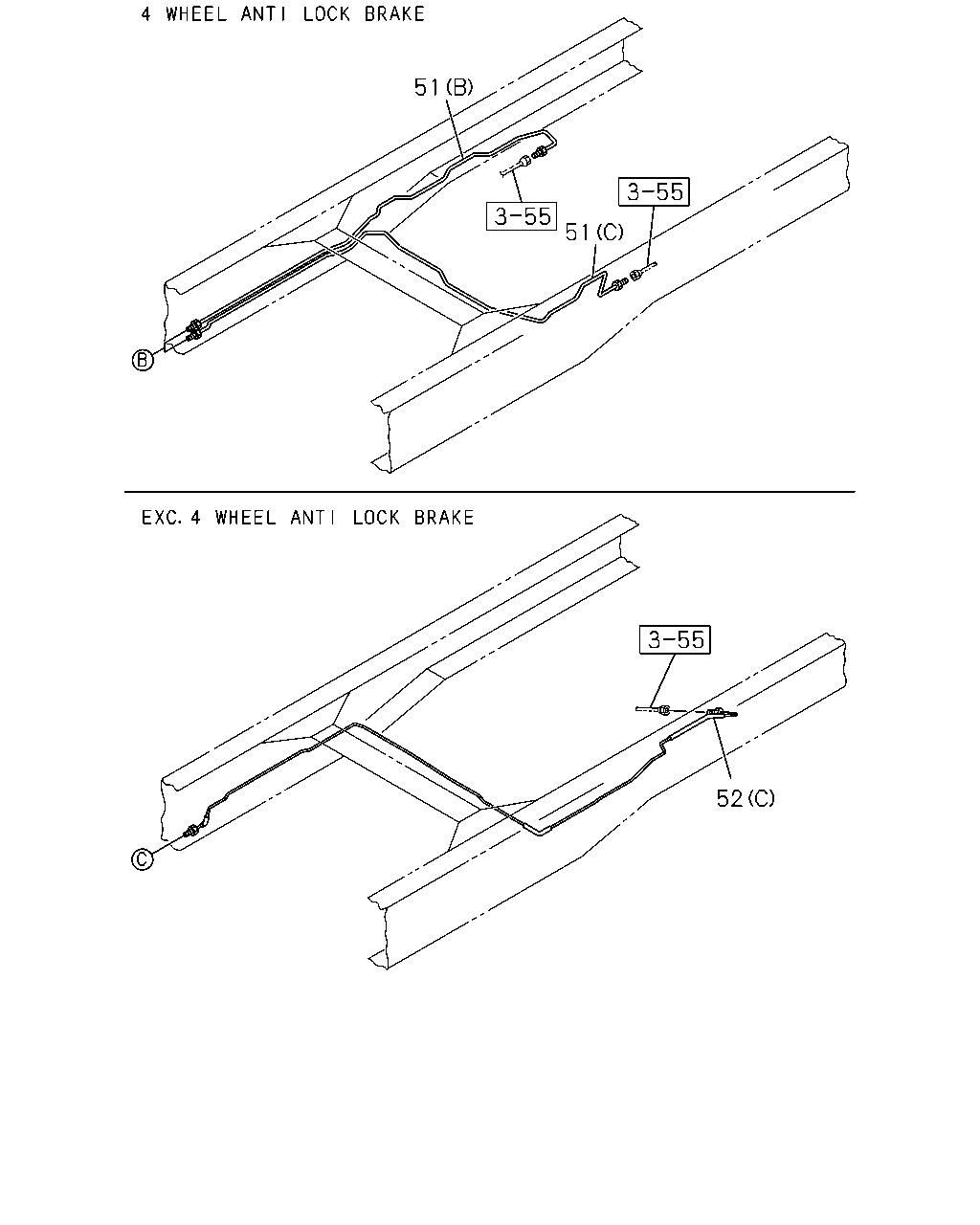

çizim 119720
51 51 52
BalonParca AdiParca NoAdetTipApplied Date
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 1108-
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 1108-
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 1108-
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 1108-
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 1108-
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 1108-
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 1108-
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 1108-
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 1108-
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 1108-
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 1108-
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-263-0 01 1 1108-
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (C) 2WAY TO REAR 		8-98057-264-0 01 1 1108-
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (D) L=363 		8-98126-497-2 01 1 1108-

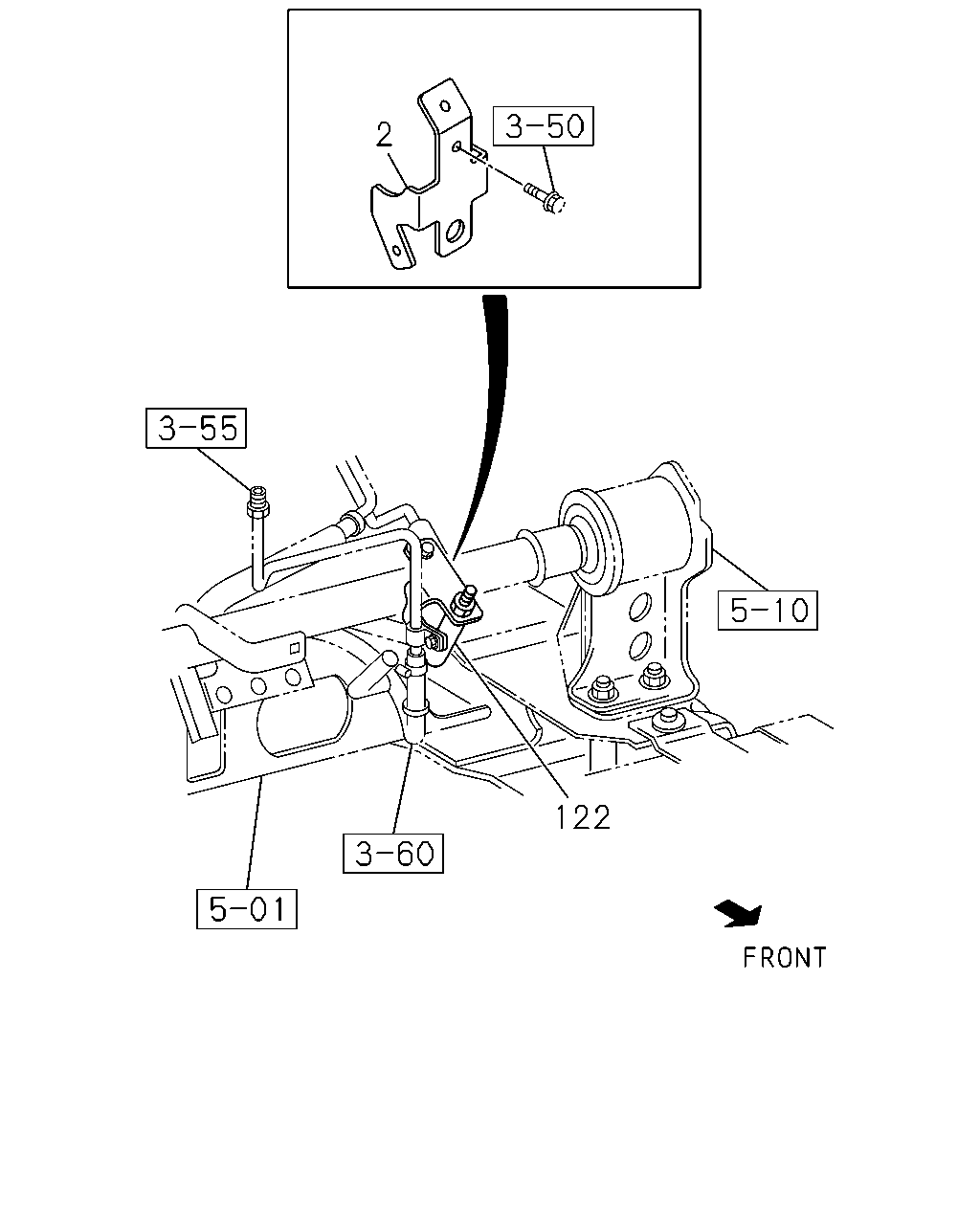

çizim 119817
2 122
BalonParca AdiParca NoAdetTipApplied Date
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98136-578-0 01 1 1108-
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1253 		8-98136-817-0 01 1 1108-1205
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98214-083-0 01 1 1206-
çizim 119920
1 9 9 71
BalonParca AdiParca NoAdetTipApplied Date
1 04.680 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV> 		8-97115-907-0 02 1 1108-
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 1108-
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1108-
71 04.686 GROMMET; OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.002 		8-97044-742-1 02 1 1108-

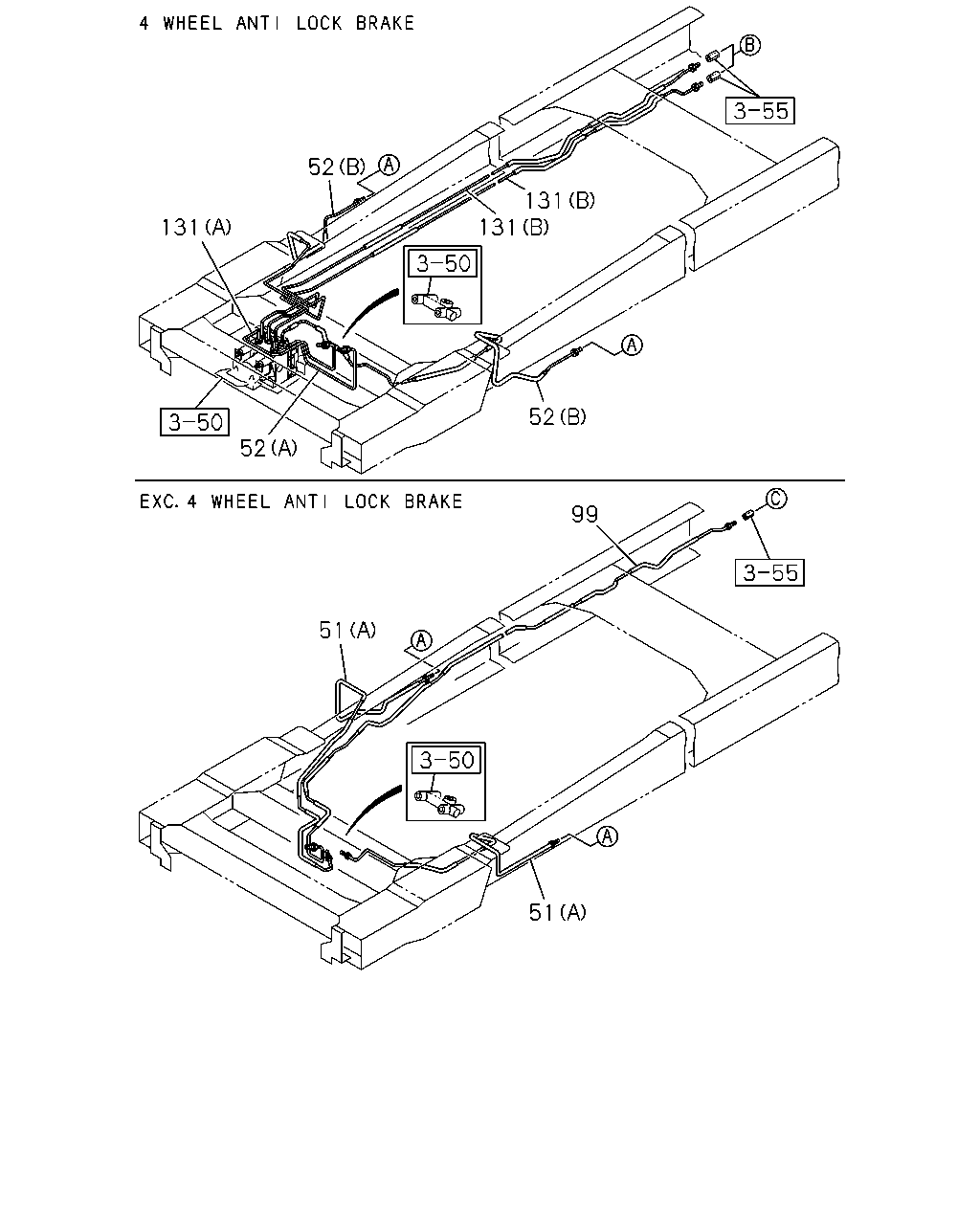

çizim 182419
52 131 131 131 52 52 99 51 51
BalonParca AdiParca NoAdetTipApplied Date
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 1108-
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 1108-
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 1108-
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 1108-
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 1108-
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 1108-
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 1108-
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 1108-
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 1108-
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 1108-
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 1108-
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-263-0 01 1 1108-
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (C) 2WAY TO REAR 		8-98057-264-0 01 1 1108-
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (D) L=363 		8-98126-497-2 01 1 1108-
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98162-343-0 01 1 1108-
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,REAR 		8-97389-372-2 01 1 1108-
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98111-761-2 01 1 1108-
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98111-762-1 01 1 1108-

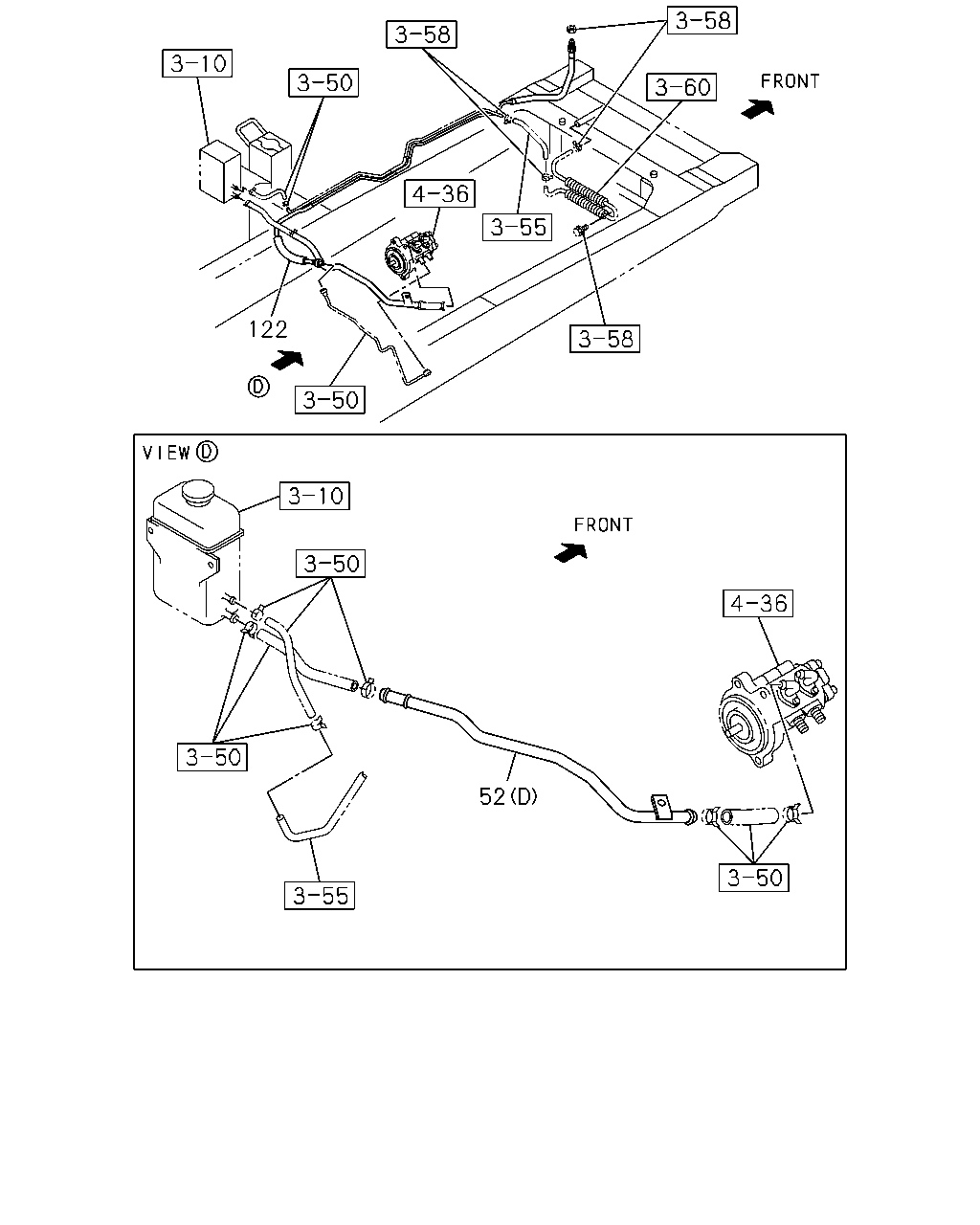

çizim 182424
122 52
BalonParca AdiParca NoAdetTipApplied Date
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 1108-
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 1108-
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 1108-
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 1108-
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 1108-
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-263-0 01 1 1108-
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (C) 2WAY TO REAR 		8-98057-264-0 01 1 1108-
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (D) L=363 		8-98126-497-2 01 1 1108-
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1253 		8-98136-817-0 01 1 1108-1205
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98214-083-0 01 1 1206-
