Isuzu WW
▶
TRUCKS
▶
NPR
▶
51381 - NPR BUS CNG(LHD)
▶
3 - Brakes, Brake System
▶
3-21 - VACUUM TANK
▶

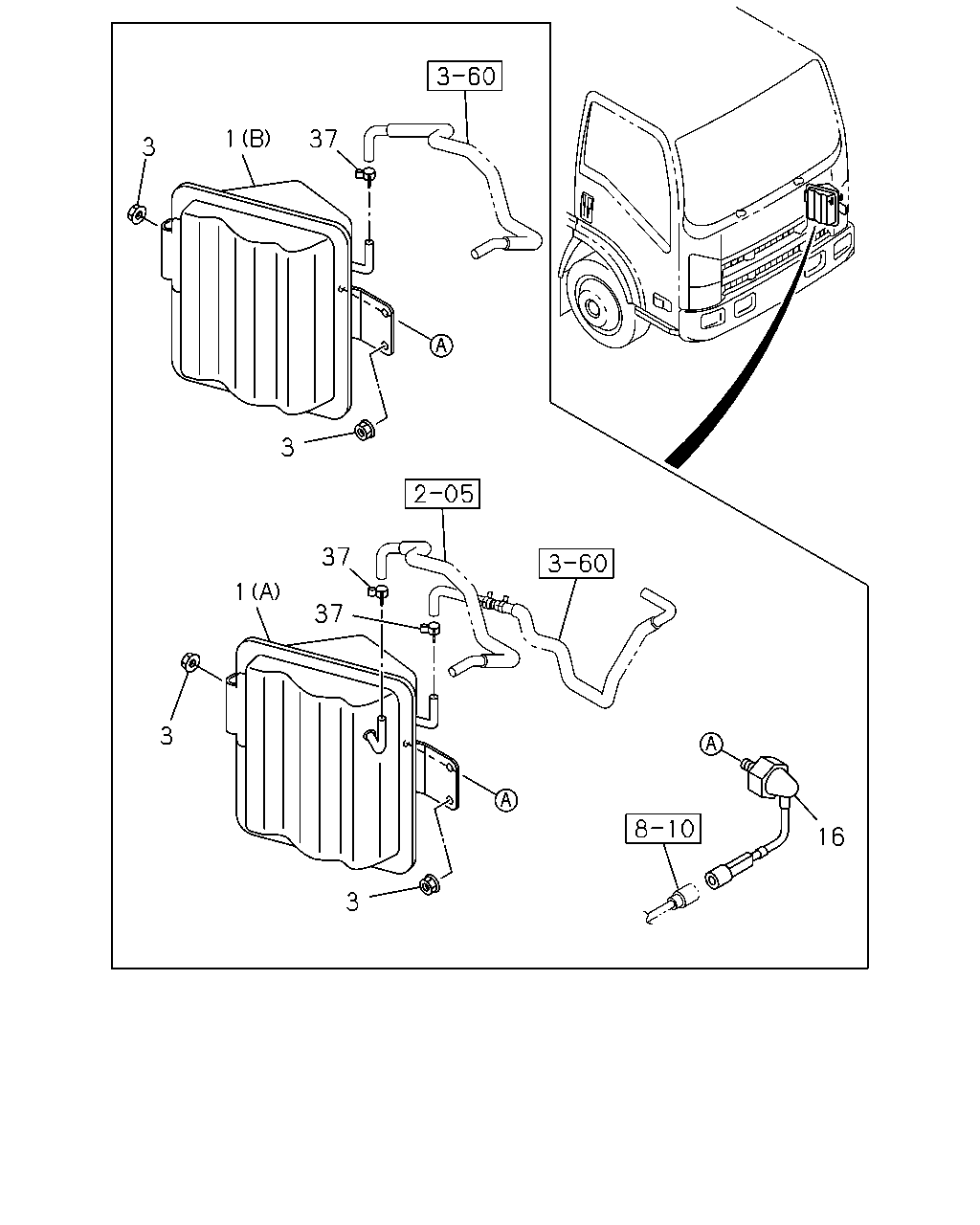

3-21 — VACUUM TANK
(#79951) — 15 parça
◀
[321A] EXC.HYDRO BRAKE BOOSTER (8 parça)
[321A] HYDRO BRAKE BOOSTER (7 parça)
▶
1
37
3
3
37
1
37
3
16
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)
8-98032-292-0
01
1
1108-
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)
8-98009-123-0
01
1
1108-
1
04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)
8-98009-124-1
01
1
1108-
3
04.902 NUT; VAC TANK TO BRKT
04.785
8-98008-071-0
03
1
1108-
16
04.906 SWITCH; VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-98049-417-0
01
1
1108-
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
01
1
1108-
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
01
1
1108-
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
02
1
1108-
37
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)
8-98032-292-0
01
1
1108-
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)
8-98009-123-0
01
1
1108-
1
04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)
8-98009-124-1
01
1
1108-
3
04.902 NUT; VAC TANK TO BRKT
04.785
8-98008-071-0
03
1
1108-
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
01
1
1108-
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
01
1
1108-
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
02
1
1108-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
