Isuzu WW
▶
TRUCKS
▶
NPR
▶
51381 - NPR BUS CNG(LHD)
▶
3 - Brakes, Brake System
▶
3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.)
▶
3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.)
(#79950) — 38 parça
◀

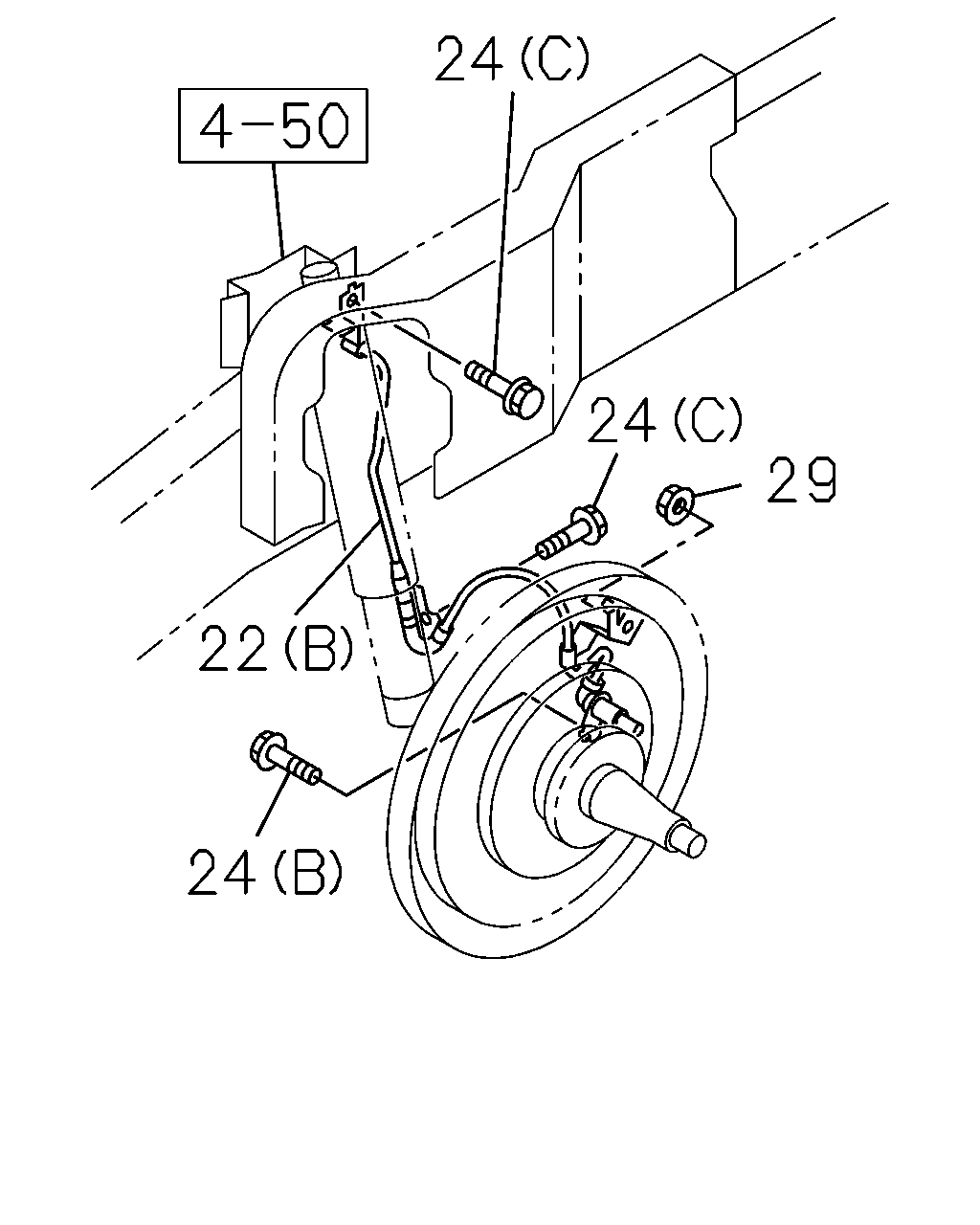

[315A] FRONT (19 parça)
[315A] REAR (19 parça)
▶
24
24
29
22
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (A)
8-98002-215-1
02
1
1108-1401
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 04.110 (A)
8-98219-354-0
02
1
1402-
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)
8-98132-211-2
01
1
1108-
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)
8-98132-212-2
01
1
1108-
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)
8-98006-186-0
01
1
1108-1406
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)
8-98219-393-0
01
1
1407-
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)
8-98006-187-0
01
1
1108-1406
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)
8-98219-394-0
01
1
1407-
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE
0-28050-610-0
02
1
1108-1401
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE
0-28050-616-0
02
1
1402-
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE
0-28050-610-0
02
1
1108-1310
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE
0-28050-616-0
02
1
1311-
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE
0-28650-825-0
04
1
1108-1111
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 (C) M8X16 FLANGE
0-28050-816-0
02
1
1112-
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 02.343 (C) M8X12 FLANGE
0-28050-812-0
02
1
1108-
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE
0-28650-825-0
02
1
1108-1111
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE
0-28650-825-0
02
1
1112-
29
04.730 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE
0-91180-108-0
04
1
1108-
29
04.730 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE
0-91180-108-0
02
1
1108-
24
22
2
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
04.730 BRACKET; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98002-440-1
02
1
1108-
20
04.710 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5>
8-97206-775-3
02
1
1108-
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (A)
8-98002-215-1
02
1
1108-1401
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 04.110 (A)
8-98219-354-0
02
1
1402-
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)
8-98132-211-2
01
1
1108-
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)
8-98132-212-2
01
1
1108-
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)
8-98006-186-0
01
1
1108-1406
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)
8-98219-393-0
01
1
1407-
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)
8-98006-187-0
01
1
1108-1406
22
04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)
8-98219-394-0
01
1
1407-
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE
0-28050-610-0
02
1
1108-1401
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE
0-28050-616-0
02
1
1402-
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE
0-28050-610-0
02
1
1108-1310
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE
0-28050-616-0
02
1
1311-
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE
0-28650-825-0
04
1
1108-1111
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 (C) M8X16 FLANGE
0-28050-816-0
02
1
1112-
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 02.343 (C) M8X12 FLANGE
0-28050-812-0
02
1
1108-
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE
0-28650-825-0
02
1
1108-1111
24
04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE
0-28650-825-0
02
1
1112-
