◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25A - SPEEDOMETER DRIVEN GEAR ▶
2-25A — SPEEDOMETER DRIVEN GEAR (#7995) — 36 parça

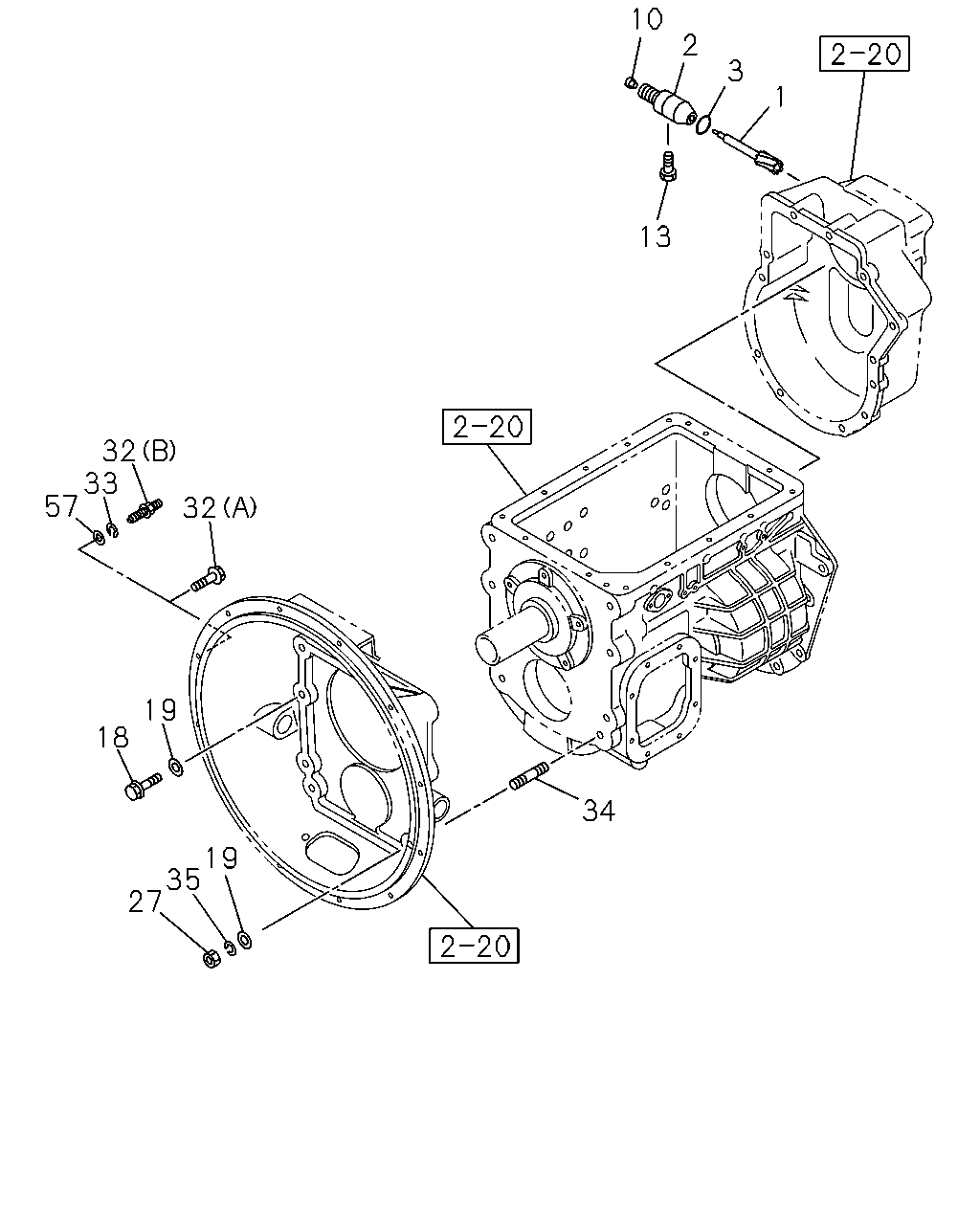

çizim 44160
10 2 3 1 13 32 33 57 32 19 18 34 19 35 27
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-147-4 01 1 0012-0203 ● ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-147-4 01 1 0204- ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-077-0 01 1 0012-0203 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-077-0 01 1 0204- ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 0012-0203 ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 0204- ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0012-0203 ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0204- ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 0012-0203 ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 0204-0805 ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0806- ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X50 W/LK&PL WASHER 		0-50151-650-0 06 1 0012-0203 ● ●
18 BOLT; CLU HSG TO TRANS
M16X50 W/LK&PL WASHER 		0-50151-650-0 06 1 0204-0512 ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X50 W/LK&PL WASHER 		0-50651-650-0 06 1 0601- ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 0012-0203 ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 0204-0605 ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 OD=30 		0-91610-516-0 02 1 0606- ● ● ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 0012-0203 ● ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 0204-0512 ● ● ●
27 NUT; CLU HSG TO TRANS
M16 		0-91110-516-0 02 1 0601- ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE 		0-28781-235-0 12 1 0012-0210 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE 		0-28781-235-0 12 1 0211-0512 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6SD1 TC-S(83L) (A) M12X35 FLANGE 		0-28781-235-0 12 1 0211-0512 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE 		0-28751-235-0 12 1 0601- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6SD1 TC-S(83L) (A) M12X35 FLANGE 		0-28751-235-0 12 1 0601- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE 		0-28781-235-0 06 1 0204-0512 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE 		0-28751-235-0 06 1 0601- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X35 L=59 		1-09029-031-1 06 1 0204- ●
33 WASHER; LK,CLU HSG
ID=12.2 		9-09150-612-0 06 1 0204-0603 ●
33 WASHER; LK,CLU HSG
ID=12.2 		0-91510-612-0 06 1 0604- ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 0012-0203 ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 0204- ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 0012-0203 ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 0204-0603 ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		0-91510-516-0 02 1 0604- ● ● ●
57 WASHER; PL,CLU HSG
ID=12.5 		9-09164-512-0 06 1 0204- ●
