3-05 — REAR WHEEL BRAKE (#79946) — 59 parça

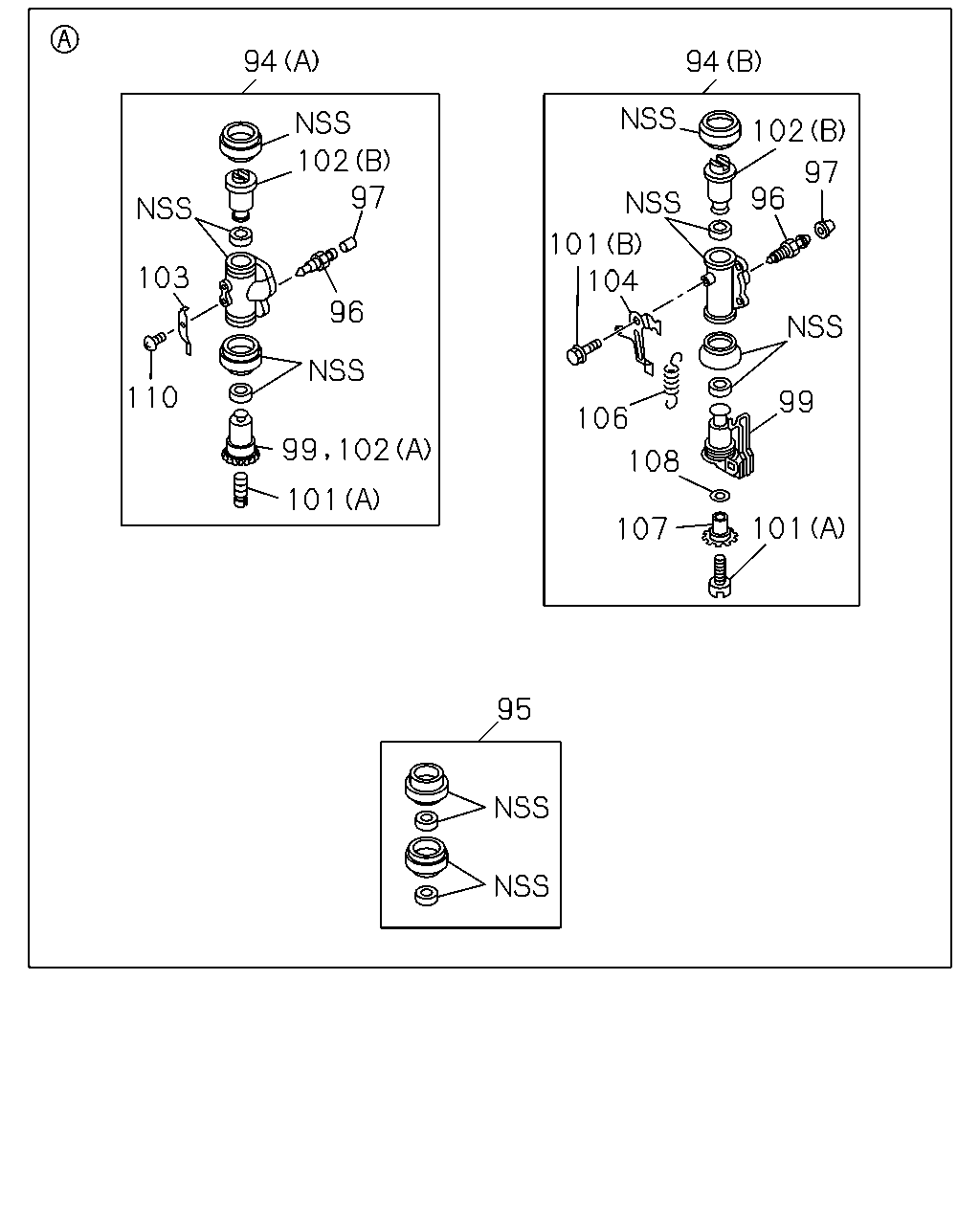

94 94 102 102 97 97 96 101 104 103 96 110 99 106 108 101 101 107 95 99 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
94	04.665 CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97358-878-0	01	1	1108-
94	04.665 CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97358-879-0	01	1	1108-
94	04.665 CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT	8-97358-880-0	01	1	1108-
94	04.665 CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT	8-97358-881-0	01	1	1108-
94	04.665 CYLINDER; WHEEL,RR BRK HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97353-570-0	02	1	1108-
94	04.665 CYLINDER; WHEEL,RR BRK HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR	8-97353-571-0	01	1	1108-
94	04.665 CYLINDER; WHEEL,RR BRK HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97353-572-0	01	1	1108-
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (A) FRONT	8-97332-222-0	01	1	1108-
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (A) REAR	8-97332-223-0	01	1	1108-
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (A)	8-97332-224-0	02	1	1108-
95	04.665 CUP SET; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	5-87832-051-0	02	1	1108-
95	04.665 CUP SET; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	5-87832-051-0	02	1	1108-
95	04.665 CUP SET; RR WHEEL CYL HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-080-0	02	1	1108-
96	04.666 SCREW; BLEEDER,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-477-0	02	1	1108-
96	04.666 SCREW; BLEEDER,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-477-0	01	1	1108-
97	04.666 CAP; BLEEDER,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-479-0	02	1	1108-
97	04.666 CAP; BLEEDER,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-479-0	01	1	1108-
99	04.668 PISTON; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-731-0	02	1	1108-
99	04.668 PISTON; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-732-0	02	1	1108-
99	04.668 PISTON; RR WHEEL CYL HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97353-579-0	03	1	1108-
99	04.668 PISTON; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-97332-229-0	03	1	1108-
101	04.666 SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97349-741-0	02	1	1108-
101	04.666 SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97349-742-0	02	1	1108-
101	04.666 SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97349-747-0	04	1	1108-
101	04.666 SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-94414-702-0	04	1	1108-
102	04.668 PISTON; REAR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B)	8-97332-043-0	04	1	1108-
102	04.668 PISTON; REAR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (B)	8-97332-043-0	04	1	1108-
102	04.668 PISTON; REAR WHEEL CYL HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97353-578-0	04	1	1108-
102	04.668 PISTON; REAR WHEEL CYL HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97353-579-0	01	1	1108-
102	04.668 PISTON; REAR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (A)	8-97332-229-0	01	1	1108-
103	05.107 SPRING; LK,RR WHEEL CYL,ADJ HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-486-0	04	1	1108-
103	05.107 SPRING; LK,RR WHEEL CYL,ADJ EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-97122-877-0	04	1	1108-
104	05.103 LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-743-0	02	1	1108-
104	05.103 LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-744-0	02	1	1108-
106	05.107 SPRING; ADJ LEVER 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-745-0	04	1	1108-
107	05.110 GEAR; ADJ,RR W/CYL 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665	8-97358-894-0	02	1	1108-
107	05.110 GEAR; ADJ,RR W/CYL 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665	8-97358-895-0	02	1	1108-
108	05.110 WASHER; THRUST,GEAR ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-736-0	04	1	1108-
110	05.107 SCREW; LOCK SPRING,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-727-0	04	1	1108-

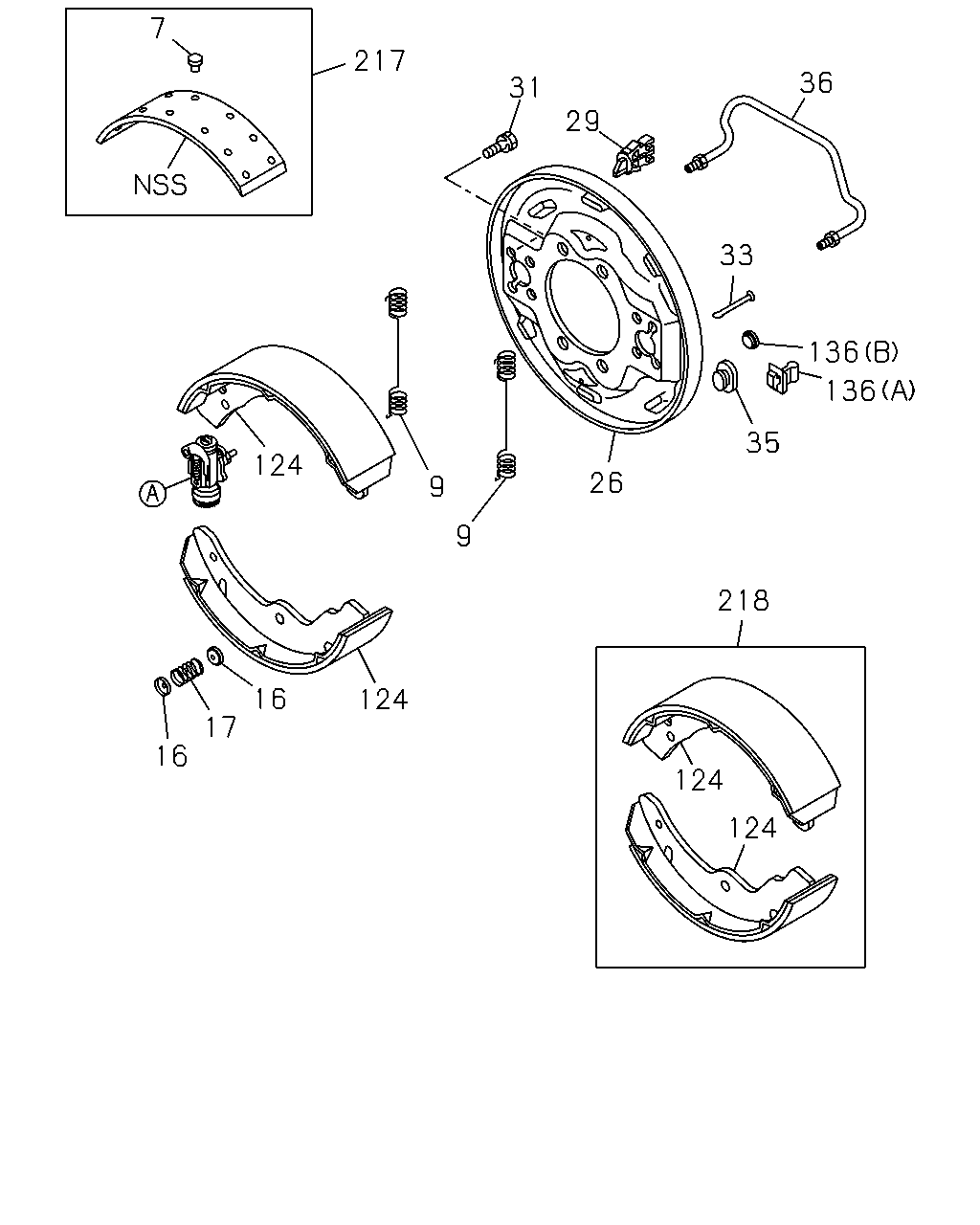

7 217 36 31 29 33 136 136 35 124 26 9 9 218 16 124 17 16 124 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	05.019 RIVET; LINING,RR BRK	1-09732-029-0	64	1	1108-
9	05.026 SPRING; RETURN,BRK SHOE	8-97122-869-0	04	1	1108-
16	05.043 CUP; SHOE HOLDING	9-47165-096-0	08	1	1108-
17	04.043 SPRING; SHOE HOLD DOWN 05.043	5-09580-101-1	04	1	1108-
26	05.001 PLATE; BACK,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97207-157-0	01	1	1108-
26	05.001 PLATE; BACK,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97207-158-0	01	1	1108-
26	05.001 PLATE; BACK,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97134-731-0	01	1	1108-
26	05.001 PLATE; BACK,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97134-732-0	01	1	1108-
29	04.685 CLIP; PIPE,BRK	8-97022-086-0	02	1	1108-
31	04.665 BOLT; RR WHEEL CYL	8-97081-305-0	16	1	1108-
33	05.043 PIN; SHOE HOLD DOWN	8-97122-870-0	04	1	1108-
35	05.002 GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97017-507-0	06	1	1108-
35	05.002 GROMMET; CHECK HOLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97017-507-0	02	1	1108-
36	04.685 PIPE; OIL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97192-215-0	02	1	1108-
36	04.685 PIPE; OIL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97079-847-0	02	1	1108-
124	05.017 SHOE ASM; BRK,RR	8-97188-455-0	04	1	1108-
136	05.002 GROMMET 4 WHEEL ANTI LOCK BRAKE<JE5> 04.670 (B)	1-47154-008-0	04	1	1108-
136	05.002 GROMMET EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97044-742-1	04	1	1108-
217	05.018 LINING KIT; RR BRK	5-87831-692-0	01	1	1108-
218	05.017 SHOE KIT; BRK,RR	5-87831-693-0	01	1	1108-
