2-25 — SPEEDOMETER DRIVEN GEAR (#79940) — 13 parça

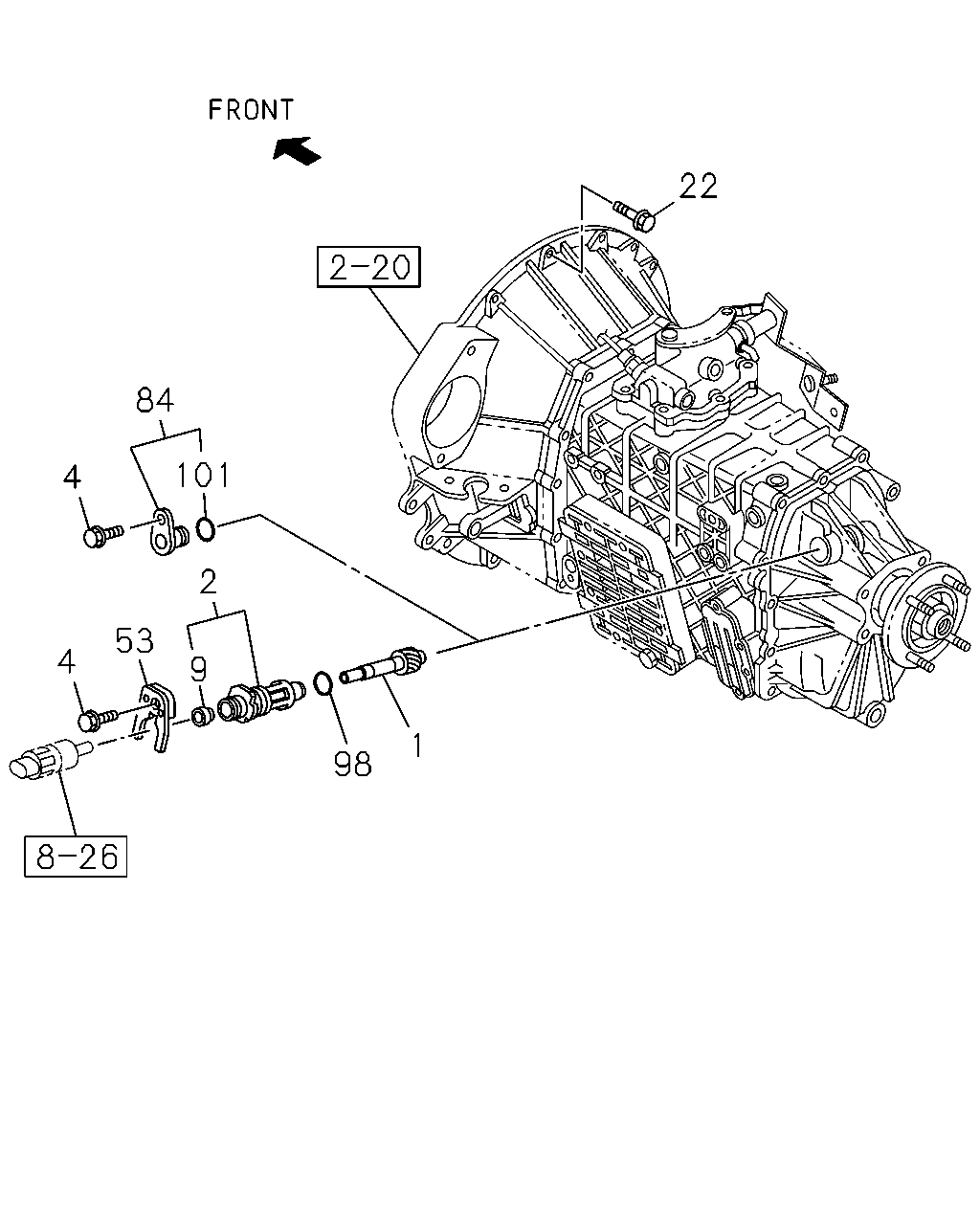

çizim 109819
22 84 101 4 2 53 4 9 1 98
BalonParca AdiParca NoAdetTipApplied Date
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=13 		8-97253-562-1 01 1 1108-
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=12 		8-97253-563-1 01 1 1108-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> MARK "12,13,14,15" 		8-97253-125-0 01 1 1108-
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1108-
9 04.338 SEAL; OIL,DRIVEN GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK 		8-97131-328-1 01 1 1108-
22 00.685 BOLT; TRANS CASE TO ENG
03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1108-
22 00.685 BOLT; TRANS CASE TO ENG
00.683 M10X55 FLANGE 		8-97365-449-0 02 1 1108-
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M10X30 FLANGE 		0-28151-030-0 02 1 1108-
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M10X30 FLANGE 		0-28151-030-0 02 1 1108-
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 1108-
84 04.104 CAP; BUSH,SPEEDOMETER GEAR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98035-151-1 01 1 1108-
98 04.338 SEAL; OIL,BUSH
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.439 		9-09561-324-0 01 1 1108-
101 04.338 GASKET; CAP
4 WHEEL ANTI LOCK BRAKE<JE5> 04.439 		9-09561-324-0 01 1 1108-
