Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#7994) — 371 parça

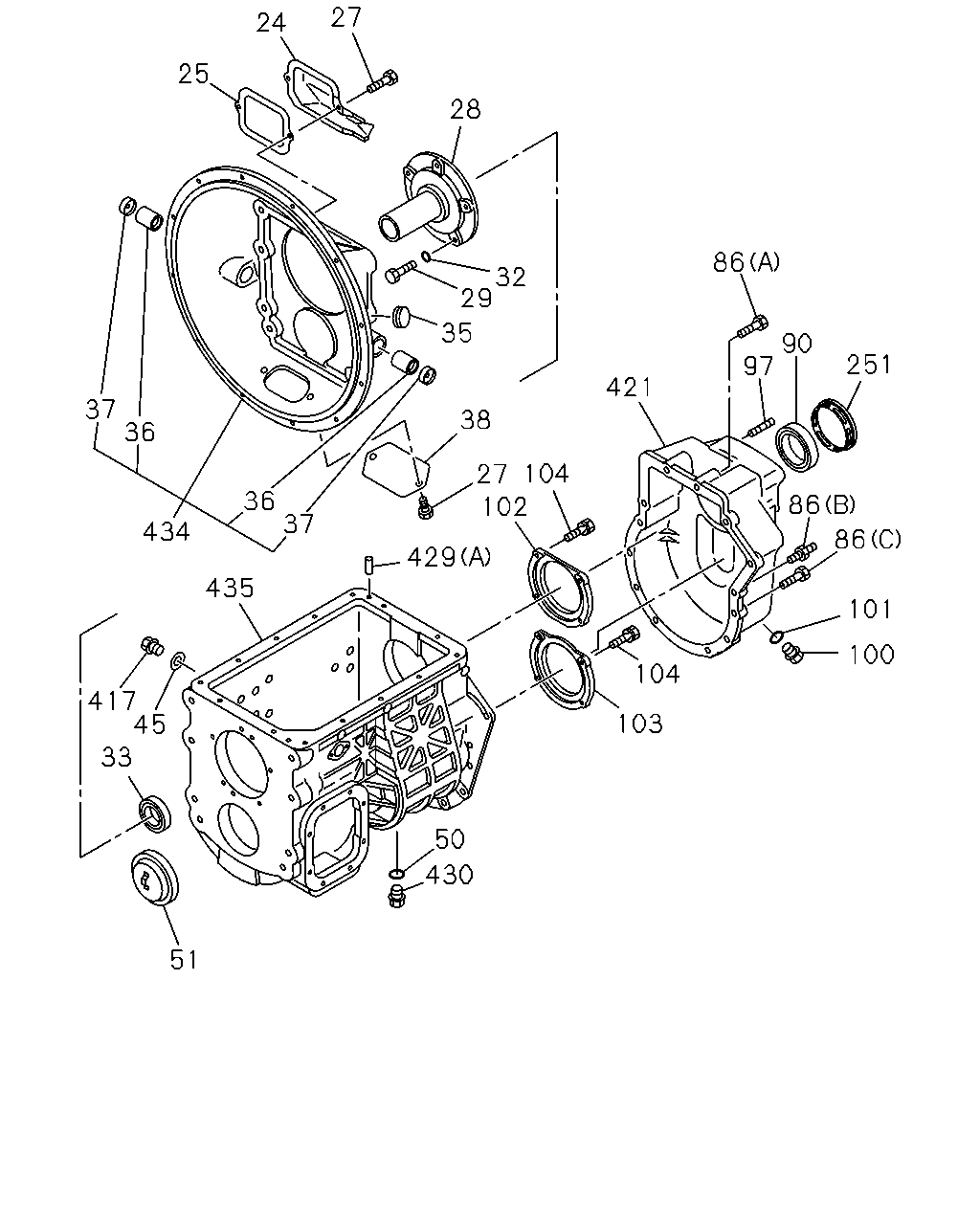

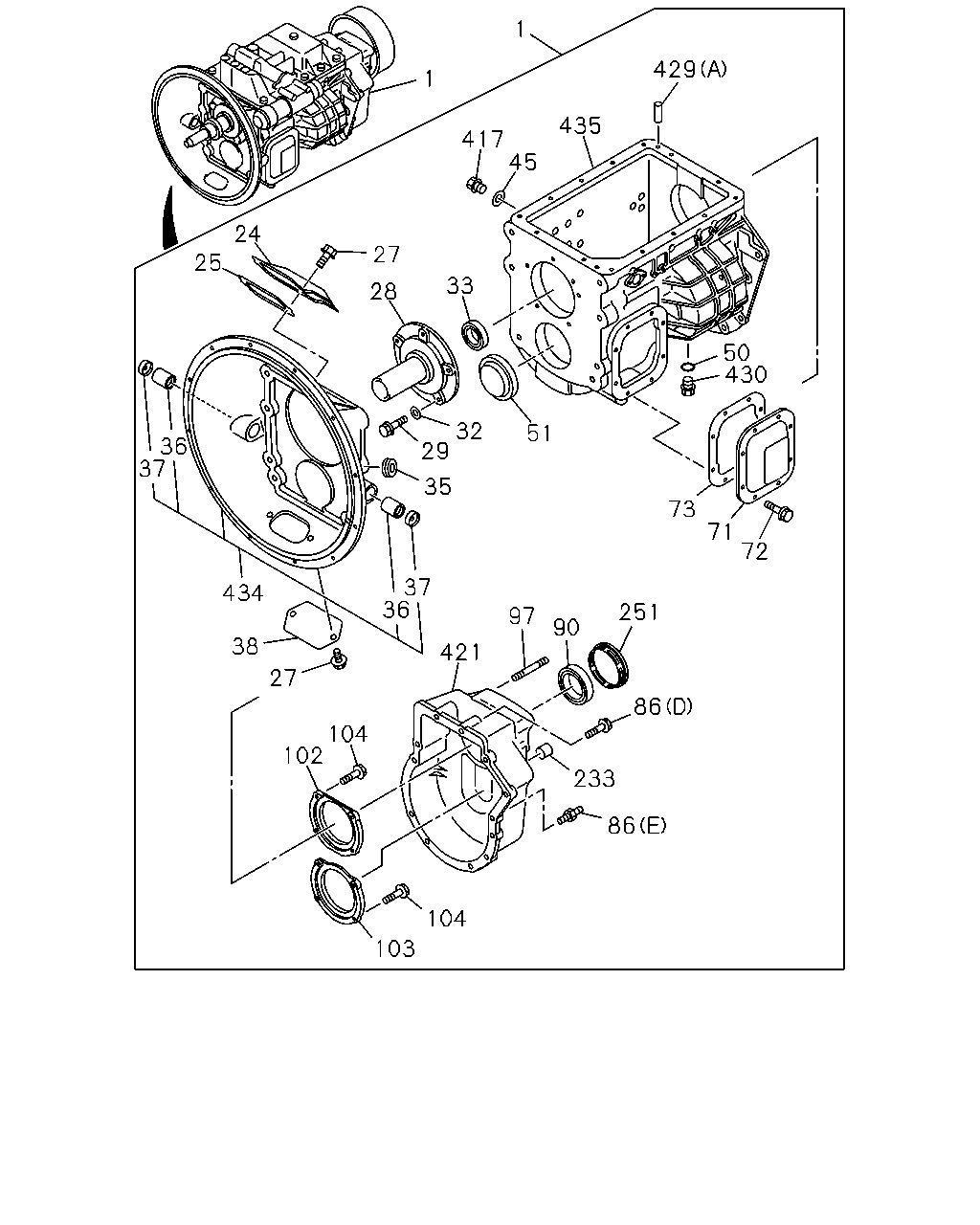

27 24 25 28 86 32 29 35 90 97 251 421 37 36 38 104 27 86 36 37 102 434 86 429 435 101 100 104 417 45 33 103 50 430 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0012-0203	●	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0204-	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0012-0203	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0204-	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0012-0104	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0105-0203	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0204-0512	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	0012-0210	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	0211-	●
28	COVER; FRT,TRANS CASE 6SD1 TC-S(83L)	1-33121-063-2	01	1	0211-			●
28	COVER; FRT,TRANS CASE	1-33121-123-1	01	1	0012-0203		●
28	COVER; FRT,TRANS CASE	1-33121-123-1	01	1	0204-0210		●	●
28	COVER; FRT,TRANS CASE	1-33121-123-1	01	1	0211-		●
28	COVER; FRT,TRANS CASE 6WA1 TC-C(55L)	1-33121-123-1	01	1	0211-			●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	0012-0203	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	0204-0805	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	05	1	0806-	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0012-0203	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0204-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0012-0203	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0204-	●	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0012-0203	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0204-	●	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0012-0203	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0204-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0012-0203	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0204-	●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0012-0203	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0204-	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0012-0203	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0204-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0012-0203	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0204-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-0	01	1	0012-0203	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	0204-	●	●	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0012-0203	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0204-	●		●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0012-0203	●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0204-	●		●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0012-0203	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0204-	●		●
86	BOLT; RR COVER (D) M12X65 FLANGE	1-09044-113-0	10	1	0012-		●
86	BOLT; RR COVER (E) M10X16,M12X65 L=92.7	1-09049-017-0	03	1	0012-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	0012-0203	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	0204-	●	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0012-0203	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0204-	●	●	●
97	STUD; PARKING BRK BRAKE SYSTEM RETARDER<RE2> M16X51 L=72	1-09302-002-0	03	1	0012-0203	●	●
97	STUD; PARKING BRK BRAKE SYSTEM RETARDER<RE2> M16X51 L=72	1-09302-002-0	03	1	0204-	●	●	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	0012-0210	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	0211-	●
100	PLUG; DRAIN RR COVER 6SD1 TC-S(83L) M24X17 FLANGE	1-09604-023-0	01	1	0211-			●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0012-0210	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09623-058-0	01	1	0211-	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TC-S(83L) ID=26.8	1-09623-058-0	01	1	0211-			●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	0012-0203	●	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	0204-	●	●	●
103	RETAINER; BRG	9-33151-014-0	01	1	0012-0203	●	●
103	RETAINER; BRG	9-33151-014-0	01	1	0204-	●	●	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0012-0203	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0204-	●		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0012-		●
251	RETAINER; OIL,PARKING BRK	1-33139-116-0	01	1	0012-0203	●	●
251	RETAINER; OIL,PARKING BRK	1-33139-116-0	01	1	0204-	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	0012-0201	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-0203	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0204-	●	●	●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-193-2	01	1	0107-0210	●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-193-2	01	1	0211-	●		●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-191-2	01	1	0107-0210	●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-191-2	01	1	0211-1002	●		●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-192-2	01	1	1003-	●		●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-193-2	01	1	0012-0106	●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-191-2	01	1	0012-0106	●
421	COVER; RR,TRANS	1-33131-233-1	01	1	0012-		●
429	PIN; STRAIGHT (A) OD=8 L=16	9-08150-816-0	02	1	0012-0203	●	●
429	PIN; STRAIGHT (A) OD=8 L=16	9-08150-816-0	02	1	0204-	●	●	●
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	02	1	0012-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0012-0203	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0204-	●	●	●
434	HOUSING; CLU	1-31110-179-2	01	1	0012-0203	●	●
434	HOUSING; CLU	1-31110-179-3	01	1	0204-	●	●	●
435	CASE; TRANS	1-33111-260-0	01	1	0012-0202	●
435	CASE; TRANS	1-33111-330-0	01	1	0203-0210	●
435	CASE; TRANS	1-33111-330-0	01	1	0211-	●
435	CASE; TRANS 6SD1 TC-S(83L)	1-33111-330-0	01	1	0211-			●
435	CASE; TRANS	1-33111-237-2	01	1	0012-0202		●
435	CASE; TRANS	1-33111-328-0	01	1	0203-0203		●
435	CASE; TRANS	1-33111-328-0	01	1	0204-0210		●	●
435	CASE; TRANS	1-33111-328-0	01	1	0211-		●
435	CASE; TRANS 6WA1 TC-C(55L)	1-33111-328-0	01	1	0211-			●

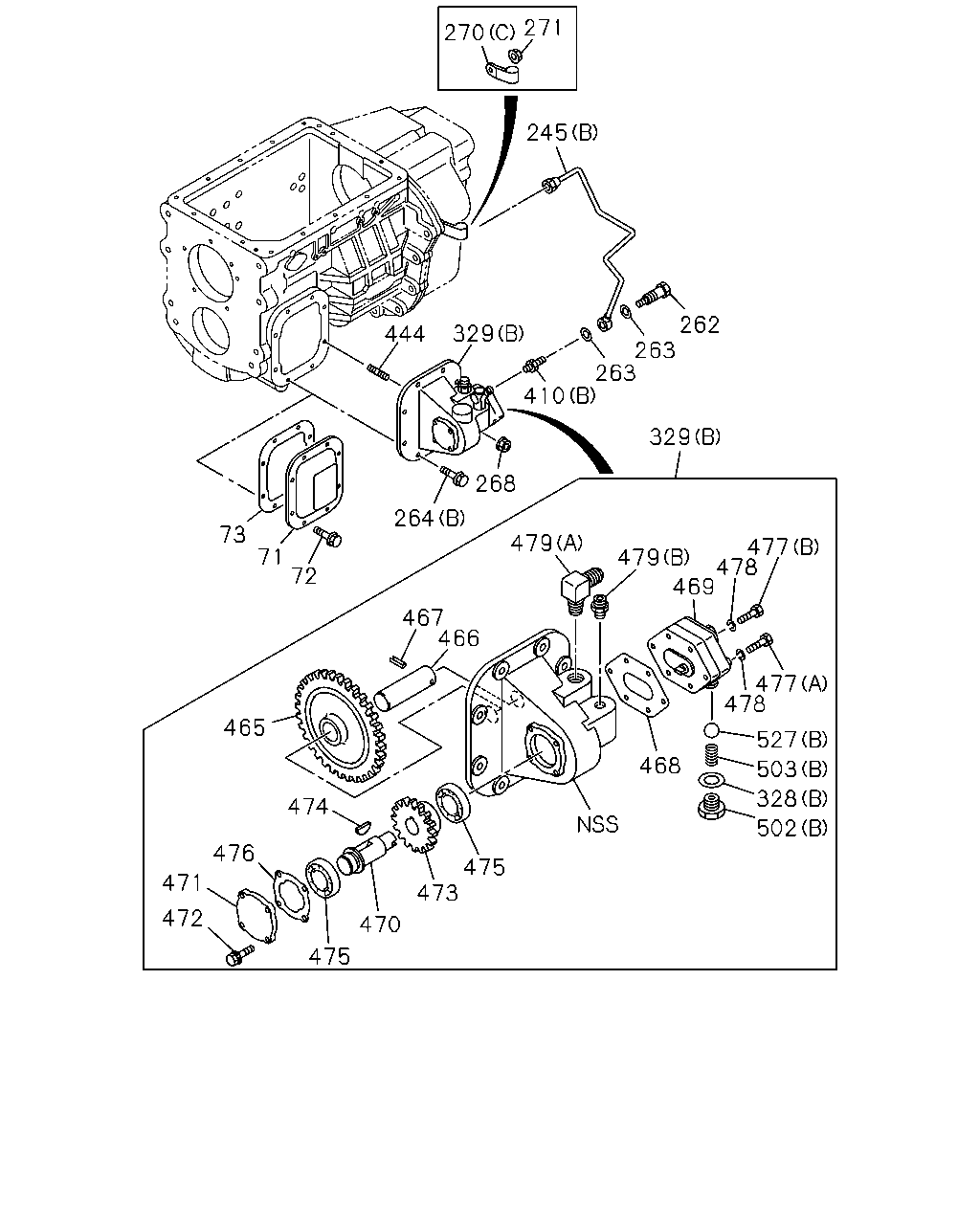

271 270 245 444 262 263 263 410 329 329 268 264 73 479 477 478 469 71 479 72 467 466 477 478 465 527 468 503 328 474 502 476 475 473 471 472 470 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
71	COVER; SIDE,TRANS CASE	1-33141-030-1	01	1	0012-0210	●	●
71	COVER; SIDE,TRANS CASE	1-33141-030-1	01	1	0211-	●	●
71	COVER; SIDE,TRANS CASE 6SD1 TC-S(83L)	1-33141-030-1	01	1	0211-			●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0012-0210	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0211-0512	●	●
72	BOLT; SIDE COVER 6SD1 TC-S(83L) M10X16 FLANGE	0-28181-016-0	08	1	0211-0512			●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●
72	BOLT; SIDE COVER 6SD1 TC-S(83L) M10X16 FLANGE	0-28151-016-0	08	1	0601-			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-043-0	01	1	0012-0210	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-043-0	01	1	0211-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TC-S(83L)	1-33142-043-0	01	1	0211-			●
245	PIPE; OIL (A)	1-49164-607-0	01	1	0012-0210		●
245	PIPE; OIL 6SD1 TC(32L) (A)	1-49164-607-0	01	1	0211-		●
245	PIPE; OIL 6SD1 TC-S(83L) (A)	1-49164-606-0	01	1	0211-		●
245	PIPE; OIL 6WA1 TC-C(55L) (B)	1-49161-051-0	01	1	0204-			●
262	STRAINER; OIL PUMP 6WA1 TC-C(55L)	1-34159-039-1	01	1	0204-			●
263	GASKET; STRAINER ALSO INCLUDED IN GASKET SET(M/T). 6WA1 TC-C(55L)	1-09630-090-0	02	1	0204-			●
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28181-030-0	08	1	0012-0512		●
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28151-030-0	08	1	0601-		●
264	BOLT; OIL PUMP 6WA1 TC-C(55L) (B) M10X22 FLANGE	0-28181-022-0	06	1	0204-			●
268	NUT 6WA1 TC-C(55L) M10 FLANGE	0-91150-210-0	02	1	0204-0602			●
268	NUT 6WA1 TC-C(55L) M10 FLANGE	0-91180-210-0	02	1	0603-			●
270	CLIP; OIL PIPE (A) ID=11 H=31 L=43	1-09701-095-0	01	1	0012-		●
270	CLIP; OIL PIPE (B)	1-09701-283-0	01	1	0012-		●
270	CLIP; OIL PIPE 6WA1 TC-C(55L) (C)	1-09701-117-0	01	1	0204-			●
271	NUT; CLIP M10 FLANGE	0-91150-210-0	01	1	0012-0203		●
271	NUT; CLIP M10 FLANGE	0-91150-210-0	01	1	0204-0210		●	●
271	NUT; CLIP M10 FLANGE	0-91150-210-0	01	1	0211-0602		●
271	NUT; CLIP 6WA1 TC-C(55L) M10 FLANGE	0-91150-210-0	01	1	0211-0602			●
271	NUT; CLIP M10 FLANGE	0-91180-210-0	01	1	0603-		●
271	NUT; CLIP 6WA1 TC-C(55L) M10 FLANGE	0-91180-210-0	01	1	0603-			●
328	GASKET; PLUG (A)	8-94244-656-0	01	1	0012-0210		●
328	GASKET; PLUG 6SD1 TC(32L) (A)	8-94244-656-0	01	1	0211-0308		●
328	GASKET; PLUG 6WA1 TC-C(55L) (B) ID=20.5 OD=28.0	9-09571-420-0	01	1	0204-			●
329	PUMP ASM; OIL (A)	1-34150-097-0	01	1	0012-0210		●
329	PUMP ASM; OIL 6SD1 TC(32L) (A)	1-34150-097-0	01	1	0211-0308		●
329	PUMP ASM; OIL 6SD1 TC(32L) (A)	1-34150-114-0	01	1	0309-		●
329	PUMP ASM; OIL 6SD1 TC-S(83L) (A)	1-34150-113-0	01	1	0211-		●
329	PUMP ASM; OIL 6WA1 TC-C(55L) (B)	1-34150-110-2	01	1	0204-			●
410	UNION; OIL PIPE (A) M14 & PT1/4	1-09660-495-0	01	1	0012-		●
410	UNION; OIL PIPE 6SD1 TC-S(83L) (C)	1-09654-355-3	01	1	0211-		●
410	UNION; OIL PIPE 6SD1 TC-S(83L) (D)	1-09654-401-1	01	1	0211-		●
410	UNION; OIL PIPE (B) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0204-0210			●
410	UNION; OIL PIPE 6SD1 TC-S(83L) (B) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0211-0305		●
410	UNION; OIL PIPE 6WA1 TC-C(55L) (B) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0211-0305			●
410	UNION; OIL PIPE (B) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0306-0505			●
410	UNION; OIL PIPE 6SD1 TC-S(83L) (B) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0506-		●
410	UNION; OIL PIPE 6WA1 TC-C(55L) (B) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0506-			●
444	STUD; OIL PUMP 6WA1 TC-C(55L) M10X25 L=40	9-04411-025-0	02	1	0204-0604			●
444	STUD; OIL PUMP 6WA1 TC-C(55L) M10X25 L=40	0-44011-025-0	02	1	0605-			●
465	GEAR; IDLE,OIL PUMP 6WA1 TC-C(55L) Z=34	1-34159-073-1	01	1	0204-			●
466	SHAFT; IDLE GEAR,OIL PUMP 6WA1 TC-C(55L)	1-34159-072-0	01	1	0204-			●
467	PIN; SPRING,OIL PUMP 6WA1 TC-C(55L) L=16	9-09878-613-0	01	1	0204-			●
468	GASKET; OIL PUMP 6WA1 TC-C(55L)	1-34142-027-0	01	1	0204-			●
469	PUMP; OIL 6WA1 TC-C(55L)	1-34150-083-0	01	1	0204-			●
470	SHAFT; OUTPUT,OIL PUMP 6WA1 TC-C(55L)	1-34159-043-0	01	1	0204-			●
471	COVER; FRT,OIL PUMP 6WA1 TC-C(55L)	1-34159-042-0	01	1	0204-			●
472	BOLT; COVER,OIL PUMP 6WA1 TC-C(55L) M8X16 FLANGE	0-28080-816-0	04	1	0204-			●
473	GEAR; OUTPUT,OIL PUMP 6WA1 TC-C(55L) Z=15	1-34152-011-0	01	1	0204-			●
474	KEY; OUTPUT SHAFT,OIL PUMP 6WA1 TC-C(55L)	9-08055-628-0	01	1	0204-			●
475	BEARING; OUTPUT SHAFT,OIL PUMP 6WA1 TC-C(55L)	1-34159-044-0	02	1	0204-			●
476	GASKET; COVER,OIL PUMP 6WA1 TC-C(55L)	1-34159-045-0	01	1	0204-			●
477	BOLT; OIL PUMP 6WA1 TC-C(55L) (B) M8X50	0-10805-850-0	02	1	0204-			●
477	BOLT; OIL PUMP 6WA1 TC-C(55L) (A) M8X70	0-10805-870-0	02	1	0204-			●
478	WASHER; LK,OIL PUMP 6WA1 TC-C(55L) ID=8.2	9-09150-508-0	04	1	0204-			●
479	CONNECTOR; OIL PUMP 6WA1 TC-C(55L) (A) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0204-			●
479	CONNECTOR; OIL PUMP 6WA1 TC-C(55L) (B) PT 1/4 & M16	9-09220-608-0	01	1	0204-			●
502	PLUG; OIL PUMP (A)	8-94244-655-0	01	1	0012-0210		●
502	PLUG; OIL PUMP 6SD1 TC(32L) (A)	8-94244-655-0	01	1	0211-0308		●
502	PLUG; OIL PUMP 6WA1 TC-C(55L) (B)	9-09862-175-0	01	1	0204-			●
503	SPRING; OIL PUMP (A)	1-34159-083-0	01	1	0012-0210		●
503	SPRING; OIL PUMP 6SD1 TC(32L) (A)	1-34159-083-0	01	1	0211-0308		●
503	SPRING; OIL PUMP 6WA1 TC-C(55L) (B)	1-38121-007-0	01	1	0204-			●
527	BALL; OIL PUMP (A)	9-00097-531-0	01	1	0012-0210		●
527	BALL; OIL PUMP 6SD1 TC(32L) (A)	9-00097-531-0	01	1	0211-0308		●
527	BALL; OIL PUMP 6WA1 TC-C(55L) (B)	9-00097-013-0	01	1	0204-			●

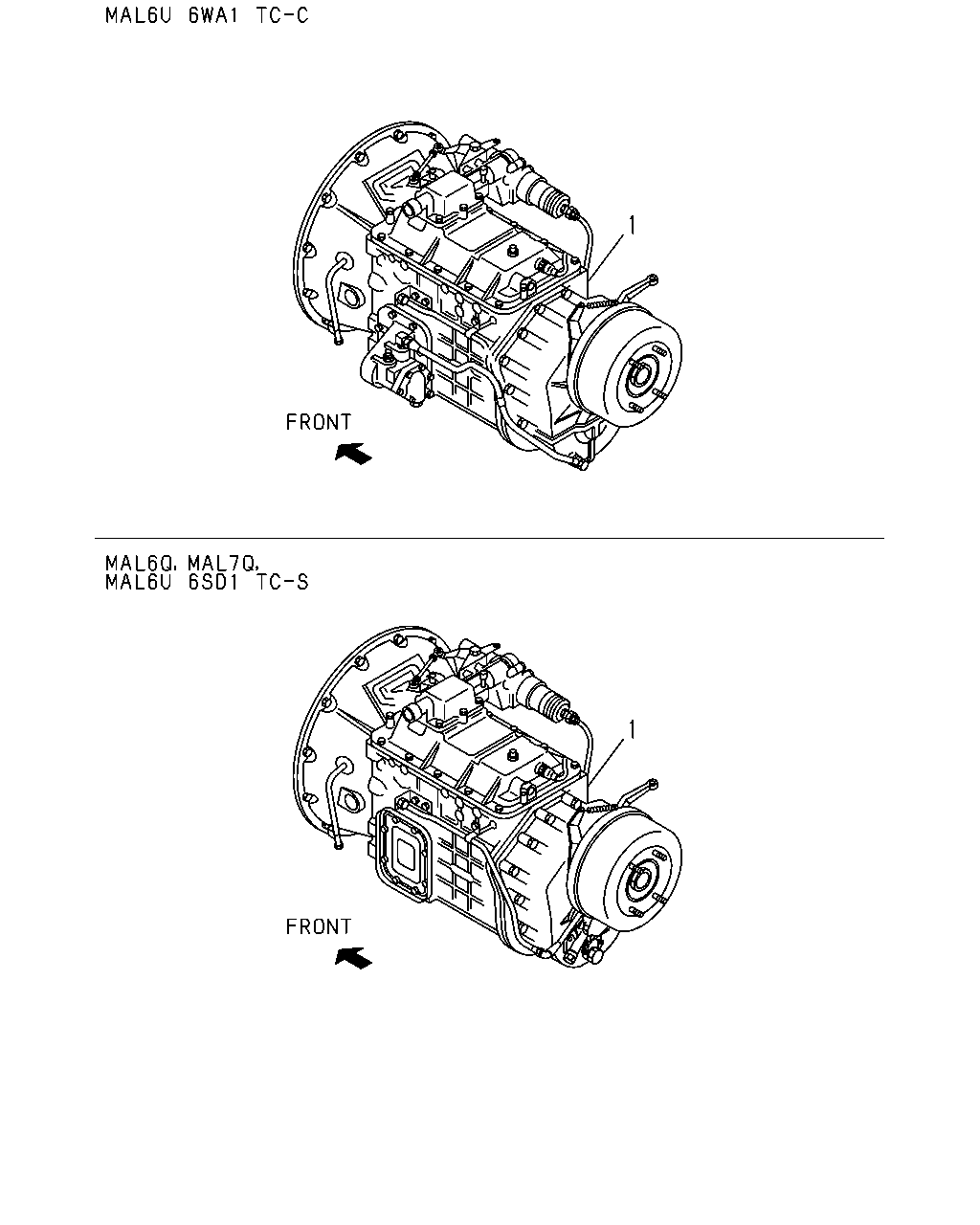

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2>	1-33043-187-0	01	1	0012-0210	●
1	TRANSMISSION ASM; MANUAL 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2>	1-33043-187-0	01	1	0211-	●
1	TRANSMISSION ASM; MANUAL EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-188-0	01	1	0012-0210	●
1	TRANSMISSION ASM; MANUAL 6SD1 TC(32L) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-188-0	01	1	0211-	●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2>	1-33043-102-0	01	1	0012-0210		●
1	TRANSMISSION ASM; MANUAL 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2>	1-33043-102-0	01	1	0211-		●
1	TRANSMISSION ASM; MANUAL EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-185-0	01	1	0012-0210		●
1	TRANSMISSION ASM; MANUAL 6SD1 TC(32L) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-185-0	01	1	0211-		●
1	TRANSMISSION ASM; MANUAL 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2>	1-33043-389-0	01	1	0211-		●
1	TRANSMISSION ASM; MANUAL 6SD1 TC-S(83L) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-390-0	01	1	0211-		●
1	TRANSMISSION ASM; MANUAL 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2>	1-33043-391-0	01	1	0211-			●
1	TRANSMISSION ASM; MANUAL 6SD1 TC-S(83L) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-392-0	01	1	0211-			●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2>	1-33043-186-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-C(55L) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-103-0	01	1	0204-			●

1 429 1 435 417 45 24 27 25 33 28 50 430 32 29 51 36 37 35 73 71 72 37 36 434 251 97 90 38 421 27 86 104 102 233 86 104 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2>	1-33043-187-0	01	1	0012-0210	●
1	TRANSMISSION ASM; MANUAL 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2>	1-33043-187-0	01	1	0211-	●
1	TRANSMISSION ASM; MANUAL EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-188-0	01	1	0012-0210	●
1	TRANSMISSION ASM; MANUAL 6SD1 TC(32L) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-188-0	01	1	0211-	●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2>	1-33043-102-0	01	1	0012-0210		●
1	TRANSMISSION ASM; MANUAL 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2>	1-33043-102-0	01	1	0211-		●
1	TRANSMISSION ASM; MANUAL EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-185-0	01	1	0012-0210		●
1	TRANSMISSION ASM; MANUAL 6SD1 TC(32L) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-185-0	01	1	0211-		●
1	TRANSMISSION ASM; MANUAL 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2>	1-33043-389-0	01	1	0211-		●
1	TRANSMISSION ASM; MANUAL 6SD1 TC-S(83L) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-390-0	01	1	0211-		●
1	TRANSMISSION ASM; MANUAL 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2>	1-33043-391-0	01	1	0211-			●
1	TRANSMISSION ASM; MANUAL 6SD1 TC-S(83L) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-392-0	01	1	0211-			●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2>	1-33043-186-0	01	1	0204-			●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-C(55L) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-103-0	01	1	0204-			●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0012-0203	●	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0204-	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0012-0203	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0204-	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0012-0104	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0105-0203	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0204-0512	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	0012-0210	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	0211-	●
28	COVER; FRT,TRANS CASE 6SD1 TC-S(83L)	1-33121-063-2	01	1	0211-			●
28	COVER; FRT,TRANS CASE	1-33121-123-1	01	1	0012-0203		●
28	COVER; FRT,TRANS CASE	1-33121-123-1	01	1	0204-0210		●	●
28	COVER; FRT,TRANS CASE	1-33121-123-1	01	1	0211-		●
28	COVER; FRT,TRANS CASE 6WA1 TC-C(55L)	1-33121-123-1	01	1	0211-			●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	0012-0203	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	0204-0805	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	05	1	0806-	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0012-0203	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0204-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0012-0203	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0204-	●	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0012-0203	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0204-	●	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0012-0203	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0204-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0012-0203	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0204-	●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0012-0203	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0204-	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0012-0203	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0204-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0012-0203	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0204-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-0	01	1	0012-0203	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	0204-	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-030-1	01	1	0012-0210	●	●
71	COVER; SIDE,TRANS CASE	1-33141-030-1	01	1	0211-	●	●
71	COVER; SIDE,TRANS CASE 6SD1 TC-S(83L)	1-33141-030-1	01	1	0211-			●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0012-0210	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0211-0512	●	●
72	BOLT; SIDE COVER 6SD1 TC-S(83L) M10X16 FLANGE	0-28181-016-0	08	1	0211-0512			●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●
72	BOLT; SIDE COVER 6SD1 TC-S(83L) M10X16 FLANGE	0-28151-016-0	08	1	0601-			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-043-0	01	1	0012-0210	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-043-0	01	1	0211-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TC-S(83L)	1-33142-043-0	01	1	0211-			●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0012-0203	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0204-	●		●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0012-0203	●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0204-	●		●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0012-0203	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0204-	●		●
86	BOLT; RR COVER (D) M12X65 FLANGE	1-09044-113-0	10	1	0012-		●
86	BOLT; RR COVER (E) M10X16,M12X65 L=92.7	1-09049-017-0	03	1	0012-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	0012-0203	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	0204-	●	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0012-0203	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0204-	●	●	●
97	STUD; PARKING BRK BRAKE SYSTEM RETARDER<RE2> M16X51 L=72	1-09302-002-0	03	1	0012-0203	●	●
97	STUD; PARKING BRK BRAKE SYSTEM RETARDER<RE2> M16X51 L=72	1-09302-002-0	03	1	0204-	●	●	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	0012-0203	●	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	0204-	●	●	●
103	RETAINER; BRG	9-33151-014-0	01	1	0012-0203	●	●
103	RETAINER; BRG	9-33151-014-0	01	1	0204-	●	●	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0012-0203	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0204-	●		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0012-		●
233	COVER; SHIFT ROD,RR COVER OD=24 L=31	9-33545-011-1	01	1	0012-		●
251	RETAINER; OIL,PARKING BRK	1-33139-116-0	01	1	0012-0203	●	●
251	RETAINER; OIL,PARKING BRK	1-33139-116-0	01	1	0204-	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	0012-0201	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-0203	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0204-	●	●	●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-193-2	01	1	0107-0210	●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-193-2	01	1	0211-	●		●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-191-2	01	1	0107-0210	●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-191-2	01	1	0211-1002	●		●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-192-2	01	1	1003-	●		●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-193-2	01	1	0012-0106	●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-191-2	01	1	0012-0106	●
421	COVER; RR,TRANS	1-33131-233-1	01	1	0012-		●
429	PIN; STRAIGHT (A) OD=8 L=16	9-08150-816-0	02	1	0012-0203	●	●
429	PIN; STRAIGHT (A) OD=8 L=16	9-08150-816-0	02	1	0204-	●	●	●
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	02	1	0012-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0012-0203	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0204-	●	●	●
434	HOUSING; CLU	1-31110-179-2	01	1	0012-0203	●	●
434	HOUSING; CLU	1-31110-179-3	01	1	0204-	●	●	●
435	CASE; TRANS	1-33111-260-0	01	1	0012-0202	●
435	CASE; TRANS	1-33111-330-0	01	1	0203-0210	●
435	CASE; TRANS	1-33111-330-0	01	1	0211-	●
435	CASE; TRANS 6SD1 TC-S(83L)	1-33111-330-0	01	1	0211-			●
435	CASE; TRANS	1-33111-237-2	01	1	0012-0202		●
435	CASE; TRANS	1-33111-328-0	01	1	0203-0203		●
435	CASE; TRANS	1-33111-328-0	01	1	0204-0210		●	●
435	CASE; TRANS	1-33111-328-0	01	1	0211-		●
435	CASE; TRANS 6WA1 TC-C(55L)	1-33111-328-0	01	1	0211-			●

175 410 410 179 178 439 264 245 429 329 496 332 410 404 404 329 405 164 245 265 410 319 498 500 499 270 86 527 503 328 502 270 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0012-0203	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0204-	●		●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0012-0203	●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0204-	●		●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0012-0203	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0204-	●		●
86	BOLT; RR COVER (D) M12X65 FLANGE	1-09044-113-0	10	1	0012-		●
86	BOLT; RR COVER (E) M10X16,M12X65 L=92.7	1-09049-017-0	03	1	0012-		●
164	CONNECTOR; ELBOW M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0012-0210		●
164	CONNECTOR; ELBOW 6SD1 TC(32L) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0211-0607		●
164	CONNECTOR; ELBOW 6SD1 TC(32L) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0608-		●
175	BRACKET; UNION 6SD1 TC-S(83L)	1-32579-018-0	01	1	0211-		●
178	NUT; UNION 6SD1 TC-S(83L) M16	9-99111-516-0	01	1	0211-0512		●
178	NUT; UNION 6SD1 TC-S(83L) M16	0-91111-516-0	01	1	0601-		●
179	WASHER; LK,UNION 6SD1 TC-S(83L) ID=16.2	9-09150-516-0	01	1	0211-0603		●
179	WASHER; LK,UNION 6SD1 TC-S(83L) ID=16.2	0-91510-516-0	01	1	0604-		●
245	PIPE; OIL (A)	1-49164-607-0	01	1	0012-0210		●
245	PIPE; OIL 6SD1 TC(32L) (A)	1-49164-607-0	01	1	0211-		●
245	PIPE; OIL 6SD1 TC-S(83L) (A)	1-49164-606-0	01	1	0211-		●
245	PIPE; OIL 6WA1 TC-C(55L) (B)	1-49161-051-0	01	1	0204-			●
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28181-030-0	08	1	0012-0512		●
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28151-030-0	08	1	0601-		●
264	BOLT; OIL PUMP 6WA1 TC-C(55L) (B) M10X22 FLANGE	0-28181-022-0	06	1	0204-			●
265	BOLT; CLIP M10X16 FLANGE	0-28181-016-0	01	1	0012-0512		●
265	BOLT; CLIP M10X16 FLANGE	0-28151-016-0	01	1	0601-		●
270	CLIP; OIL PIPE (A) ID=11 H=31 L=43	1-09701-095-0	01	1	0012-		●
270	CLIP; OIL PIPE (B)	1-09701-283-0	01	1	0012-		●
270	CLIP; OIL PIPE 6WA1 TC-C(55L) (C)	1-09701-117-0	01	1	0204-			●
271	NUT; CLIP M10 FLANGE	0-91150-210-0	01	1	0012-0203		●
271	NUT; CLIP M10 FLANGE	0-91150-210-0	01	1	0204-0210		●	●
271	NUT; CLIP M10 FLANGE	0-91150-210-0	01	1	0211-0602		●
271	NUT; CLIP 6WA1 TC-C(55L) M10 FLANGE	0-91150-210-0	01	1	0211-0602			●
271	NUT; CLIP M10 FLANGE	0-91180-210-0	01	1	0603-		●
271	NUT; CLIP 6WA1 TC-C(55L) M10 FLANGE	0-91180-210-0	01	1	0603-			●
319	BOLT; COVER	1-34159-075-0	04	1	0012-0210		●
319	BOLT; COVER 6SD1 TC(32L)	1-34159-075-0	04	1	0211-0308		●
328	GASKET; PLUG (A)	8-94244-656-0	01	1	0012-0210		●
328	GASKET; PLUG 6SD1 TC(32L) (A)	8-94244-656-0	01	1	0211-0308		●
328	GASKET; PLUG 6WA1 TC-C(55L) (B) ID=20.5 OD=28.0	9-09571-420-0	01	1	0204-			●
329	PUMP ASM; OIL (A)	1-34150-097-0	01	1	0012-0210		●
329	PUMP ASM; OIL 6SD1 TC(32L) (A)	1-34150-097-0	01	1	0211-0308		●
329	PUMP ASM; OIL 6SD1 TC(32L) (A)	1-34150-114-0	01	1	0309-		●
329	PUMP ASM; OIL 6SD1 TC-S(83L) (A)	1-34150-113-0	01	1	0211-		●
329	PUMP ASM; OIL 6WA1 TC-C(55L) (B)	1-34150-110-2	01	1	0204-			●
332	FILTER; OIL	1-34159-050-1	01	1	0012-		●
404	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0012-		●
405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0012-		●
410	UNION; OIL PIPE (A) M14 & PT1/4	1-09660-495-0	01	1	0012-		●
410	UNION; OIL PIPE 6SD1 TC-S(83L) (C)	1-09654-355-3	01	1	0211-		●
410	UNION; OIL PIPE 6SD1 TC-S(83L) (D)	1-09654-401-1	01	1	0211-		●
410	UNION; OIL PIPE (B) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0204-0210			●
410	UNION; OIL PIPE 6SD1 TC-S(83L) (B) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0211-0305		●
410	UNION; OIL PIPE 6WA1 TC-C(55L) (B) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0211-0305			●
410	UNION; OIL PIPE (B) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0306-0505			●
410	UNION; OIL PIPE 6SD1 TC-S(83L) (B) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0506-		●
410	UNION; OIL PIPE 6WA1 TC-C(55L) (B) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0506-			●
429	PIN; STRAIGHT (A) OD=8 L=16	9-08150-816-0	02	1	0012-0203	●	●
429	PIN; STRAIGHT (A) OD=8 L=16	9-08150-816-0	02	1	0204-	●	●	●
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	02	1	0012-		●
439	BOLT; BRKT 6SD1 TC-S(83L) M10X16 FLANGE	0-28181-016-0	02	1	0211-0512		●
439	BOLT; BRKT 6SD1 TC-S(83L) M10X16 FLANGE	0-28151-016-0	02	1	0601-		●
496	GASKET; OIL FILTER	1-09630-090-0	01	1	0012-		●
498	COVER; ROTER,OIL PUMP	1-34159-057-0	01	1	0012-0210		●
498	COVER; ROTER,OIL PUMP 6SD1 TC(32L)	1-34159-057-0	01	1	0211-0308		●
499	ROTOR; INNER,OIL PUMP	1-34159-053-0	01	1	0012-0210		●
499	ROTOR; INNER,OIL PUMP 6SD1 TC(32L)	1-34159-053-0	01	1	0211-0308		●
500	ROTOR; OUTER,OIL PUMP	1-34159-054-0	01	1	0012-0210		●
500	ROTOR; OUTER,OIL PUMP 6SD1 TC(32L)	1-34159-054-0	01	1	0211-0308		●
502	PLUG; OIL PUMP (A)	8-94244-655-0	01	1	0012-0210		●
502	PLUG; OIL PUMP 6SD1 TC(32L) (A)	8-94244-655-0	01	1	0211-0308		●
502	PLUG; OIL PUMP 6WA1 TC-C(55L) (B)	9-09862-175-0	01	1	0204-			●
503	SPRING; OIL PUMP (A)	1-34159-083-0	01	1	0012-0210		●
503	SPRING; OIL PUMP 6SD1 TC(32L) (A)	1-34159-083-0	01	1	0211-0308		●
503	SPRING; OIL PUMP 6WA1 TC-C(55L) (B)	1-38121-007-0	01	1	0204-			●
527	BALL; OIL PUMP (A)	9-00097-531-0	01	1	0012-0210		●
527	BALL; OIL PUMP 6SD1 TC(32L) (A)	9-00097-531-0	01	1	0211-0308		●
527	BALL; OIL PUMP 6WA1 TC-C(55L) (B)	9-00097-013-0	01	1	0204-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
