Isuzu WW
▶
TRUCKS
▶
NPR
▶
51381 - NPR BUS CNG(LHD)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶

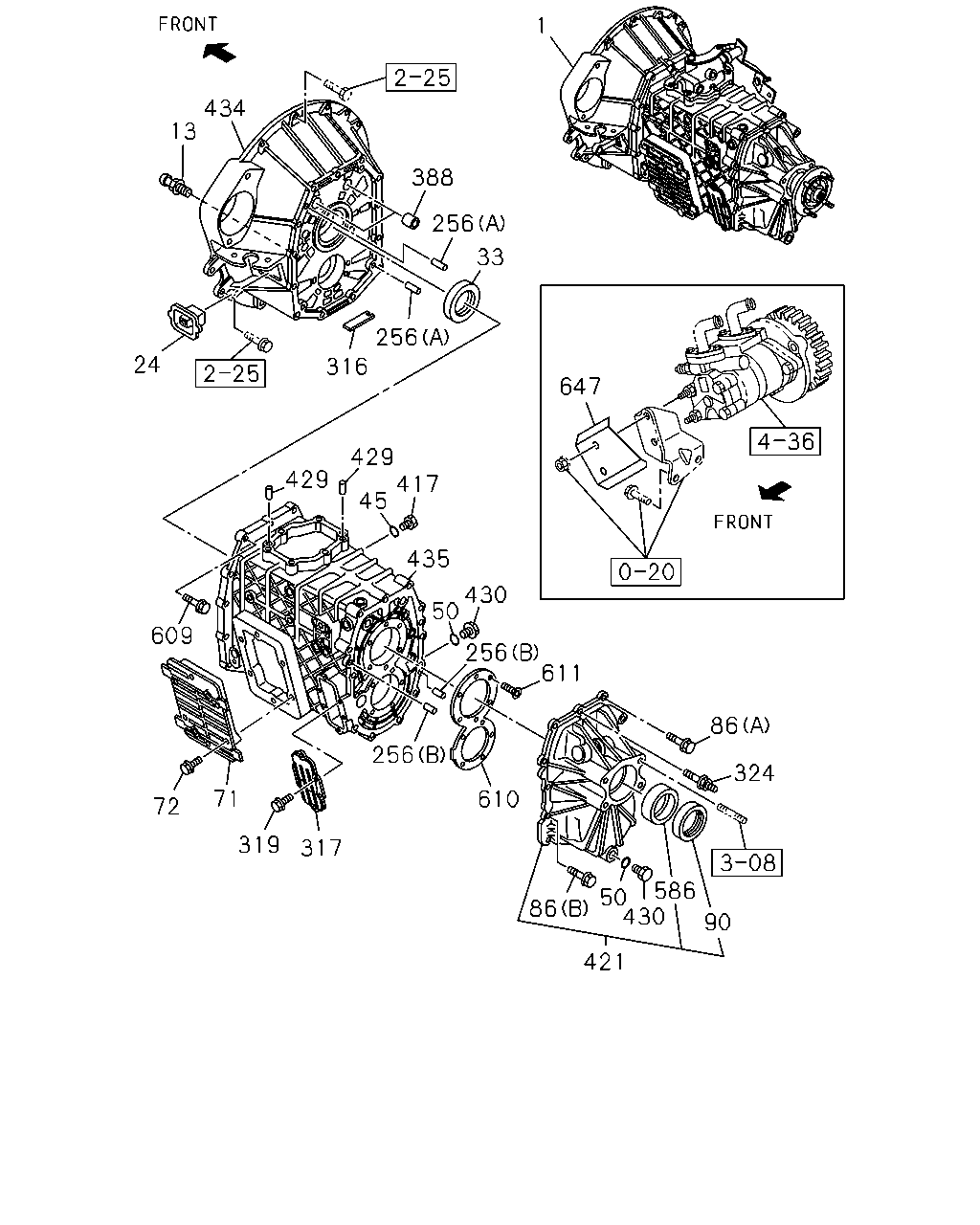

2-20 — MANUAL TRANSMISSION ASM AND CASE
(#79939) — 31 parça
1
434
13
388
256
33
256
24
316
647
429
417
45
429
435
430
50
609
256
611
256
86
324
71
610
72
319
317
586
50
430
86
90
421
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.003 TRANSMISSION ASM; MANUAL
8-98110-205-0
01
1
1108-
13
04.302 SUPPORT; SHIFT FORK
8-97255-384-1
01
1
1108-
24
00.797 COVER; CHECK HOLE,DUST
8-97255-201-0
01
1
1108-
33
04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
8-97253-550-0
01
1
1108-
45
04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
1108-
50
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
02
1
1108-
71
04.439 COVER; SIDE,TRANS CASE
8-97252-625-0
01
1
1108-
72
04.439 BOLT; SIDE COVER
00.206 M10X20 FLANGE
8-98014-142-0
06
1
1108-
86
04.317 BOLT; RR COVER
09.171 (A) M10X40 FLANGE
0-28151-040-0
10
1
1108-1405
86
04.317 BOLT; RR COVER
09.171 (A) M10X40 FLANGE
0-28151-040-0
09
1
1406-
86
04.317 BOLT; RR COVER
04.510 (B) M10X40 FLANGE
8-97365-377-0
02
1
1108-
90
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK
8-97253-552-1
01
1
1108-
256
04.317 PIN; KNOCK
04.510 (A) OD=10 L=20
8-97135-423-0
02
1
1108-
256
04.317 PIN; KNOCK
00.862 (B) ID=6 L=12
9-08160-612-0
02
1
1108-
316
04.105 MAGNET; TRANS CASE
8-94249-524-2
01
1
1108-
317
04.109 COVER; CASE
8-97252-626-0
01
1
1108-
319
04.109 BOLT; COVER
04.338 M8X20 FLANGE
0-28050-820-0
06
1
1108-
324
04.319 STUD; RR COVER
04.510 M10X15,M10X40 L=65
8-97365-379-0
01
1
1108-1405
324
04.319 STUD; RR COVER
04.510 M10X15,M10X40 L=65
8-97365-379-0
02
1
1406-
388
00.683 BUSHING; CLU HSG
8-97241-326-2
02
1
1108-
417
04.105 PLUG; OIL FILLER,TRANS
8-97365-373-0
01
1
1108-
421
04.317 COVER; RR,TRANS
8-98020-028-0
01
1
1108-
429
04.105 PIN; STRAIGHT
04.510 OD=10 L=20
8-97135-423-0
02
1
1108-
430
04.105 PLUG; OIL DRAIN
8-97365-374-0
02
1
1108-
434
00.683 HOUSING; CLU
8-97237-099-5
01
1
1108-
435
04.103 CASE; TRANS
8-97379-374-0
01
1
1108-
586
00.683 BEARING; NEEDLE
8-97253-109-0
01
1
1108-
609
04.104 BOLT; HSG TO CASE
09.171 M10X40 FLANGE
0-28151-040-0
13
1
1108-
610
04.412 RETAINER; BRG
8-97241-315-1
01
1
1108-
611
04.104 SCREW
M10X27 TORQUES
8-97365-354-0
11
1
1108-
647
00.782 PROTECTOR; HEAT
HYDRO BRAKE BOOSTER(7QQ)
8-98107-580-1
01
1
1108-
