Isuzu WW
▶
TRUCKS
▶
NPR
▶
51381 - NPR BUS CNG(LHD)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶

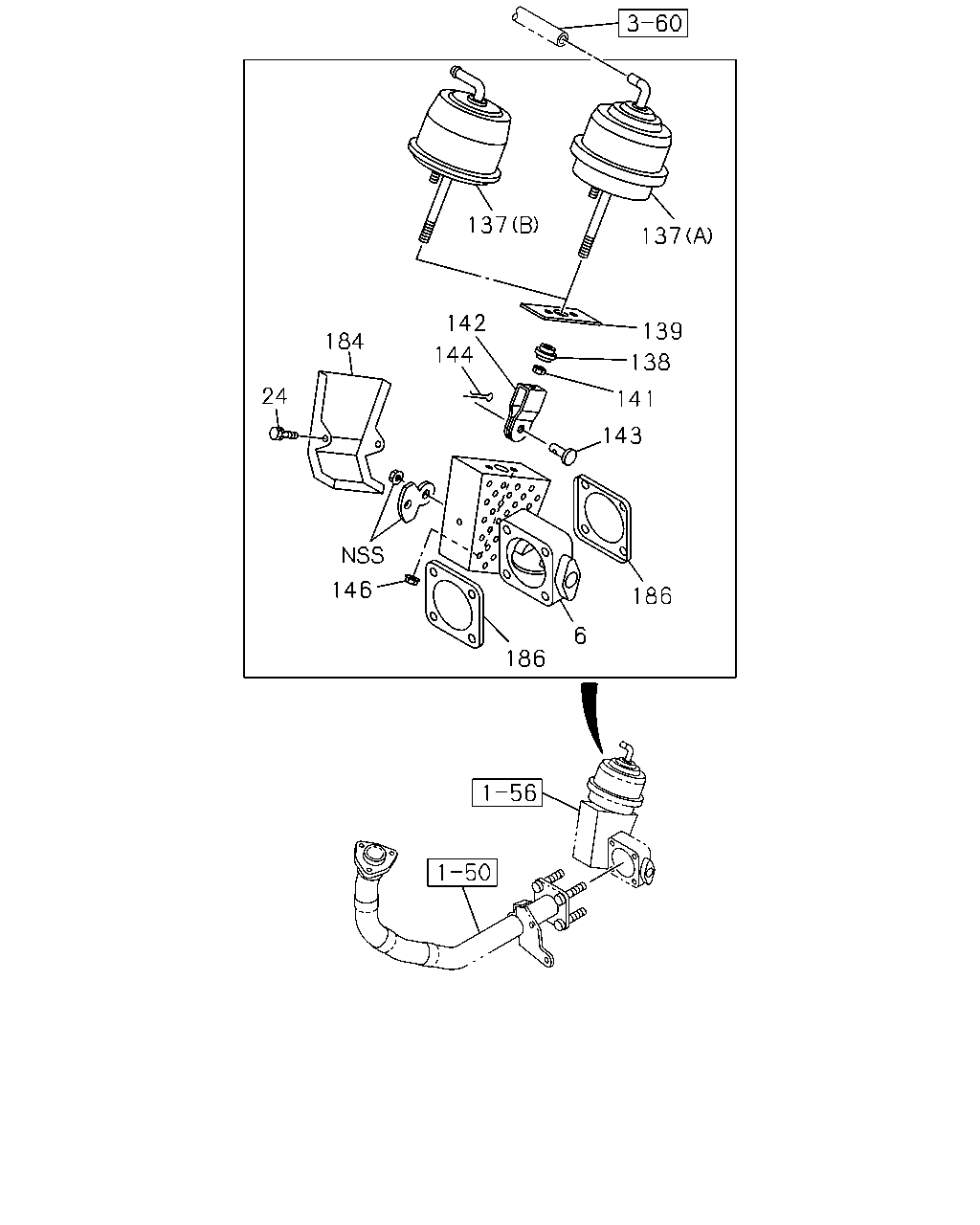

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#79930) — 17 parça
6
186
186
146
24
184
144
142
137
139
138
141
143
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
03.632 VALVE; EXH BRAKE
8-98069-291-0
01
1
1108-
24
03.634 BOLT; COVER
03.444
8-97065-029-0
02
1
1108-
137
03.634 CHAMBER; POWER
(A)
8-98043-596-0
01
1
1108-1212
137
03.634 CHAMBER; POWER
(B)
8-98229-058-0
01
1
1301-
138
03.634 BEARING; EXH BRK VLV
5-22189-004-0
01
1
1108-1212
138
03.634 BEARING; EXH BRK VLV
8-98231-608-0
01
1
1301-
139
03.634 GASKET; EXH BRK VLV
8-94328-234-0
01
1
1108-
141
03.636 NUT; CLEVIS,EXH BRK VLV
05.122
8-94311-428-0
01
1
1108-
142
03.636 CLEVIS; EXH BRK VLV
8-97177-311-0
01
1
1108-1212
142
03.636 CLEVIS; EXH BRK VLV
8-98231-609-0
01
1
1301-
143
03.636 PIN; EXH BRK VLV
8-94311-452-0
01
1
1108-1212
143
03.636 PIN; EXH BRK VLV
8-98231-610-0
01
1
1301-
144
03.636 PIN; SPLIT,EXH BRK VLV
8-97029-428-0
01
1
1108-1212
144
03.636 PIN; SPLIT,EXH BRK VLV
8-97985-124-0
01
1
1301-
146
03.634 NUT; EXH BRK VLV
01.062 M8 FLANGE
0-91180-108-0
02
1
1108-
184
03.634 COVER; BRKT
8-97370-068-0
01
1
1108-
186
03.611 GASKET; EXH BRK VLV,BODY
8-98022-713-0
02
1
1108-
