1-50 — EXHAUST PIPE AND SILENCER (#79929) — 120 parça

2 36 1 44 8 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH HYDRO BRAKE BOOSTER(7QQ)	8-98130-180-0	01	1	1108-
1	03.609 PIPE; EXH EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98168-208-0	01	1	1108-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	1108-
8	03.704 BRACKET; EXH PIPE 03.613	8-98020-555-0	01	1	1108-
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1108-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1108-
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1108-
44	03.613 BOLT; BRKT 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1108-
44	03.613 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1108-

165 166 164 162 81 70 125 137 95 104 97 137 124 144 94 143 94 105 357 126 126 88 126 14 38 3 84 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3800MM(38W)	8-98113-771-0	01	1	1108-
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4100MM(41W)	8-98150-326-0	01	1	1108-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	1108-
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1108-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1108-
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1108-
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1108-
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1108-
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1108-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1108-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1108-
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1108-
94	03.704 BOLT; CLAMP WHEEL BASE 4100MM(41W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1108-
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1108-
95	03.708 BOLT; BRKT WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1108-
95	03.708 BOLT; BRKT WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1108-
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1108-
104	03.704 NUT; BRKT WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1108-
104	03.704 NUT; BRKT WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1108-
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1108-
105	03.704 NUT; CLAMP WHEEL BASE 4100MM(41W) 00.833 M10	0-91110-510-0	01	1	1108-
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1108-
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1108-
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1108-
126	03.705 PIPE; EXH,RR WHEEL BASE 3800MM(38W)	8-98113-793-0	01	1	1108-
126	03.705 PIPE; EXH,RR WHEEL BASE 4100MM(41W)	8-98150-330-0	01	1	1108-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3800MM(38W) (A)	8-97116-588-2	01	1	1108-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3800MM(38W) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98090-280-0	01	1	1108-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3800MM(38W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98160-940-0	01	1	1108-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 4100MM(41W) 03.613 (D)	8-97096-651-0	01	1	1108-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 4100MM(41W) (C)	8-97185-801-0	01	1	1108-
143	03.704 RUBBER; SUPPORT	8-98034-767-0	01	1	1108-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1108-
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1108-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 4100MM(41W) L=115	8-98034-765-0	01	1	1108-
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1108-
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1108-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 4100MM(41W) M10X70 FLANGE	0-28051-070-0	01	1	1108-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1108-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 4100MM(41W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1108-
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1108-
357	03.708 WASHER; PL,CLAMP WHEEL BASE 4100MM(41W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1108-

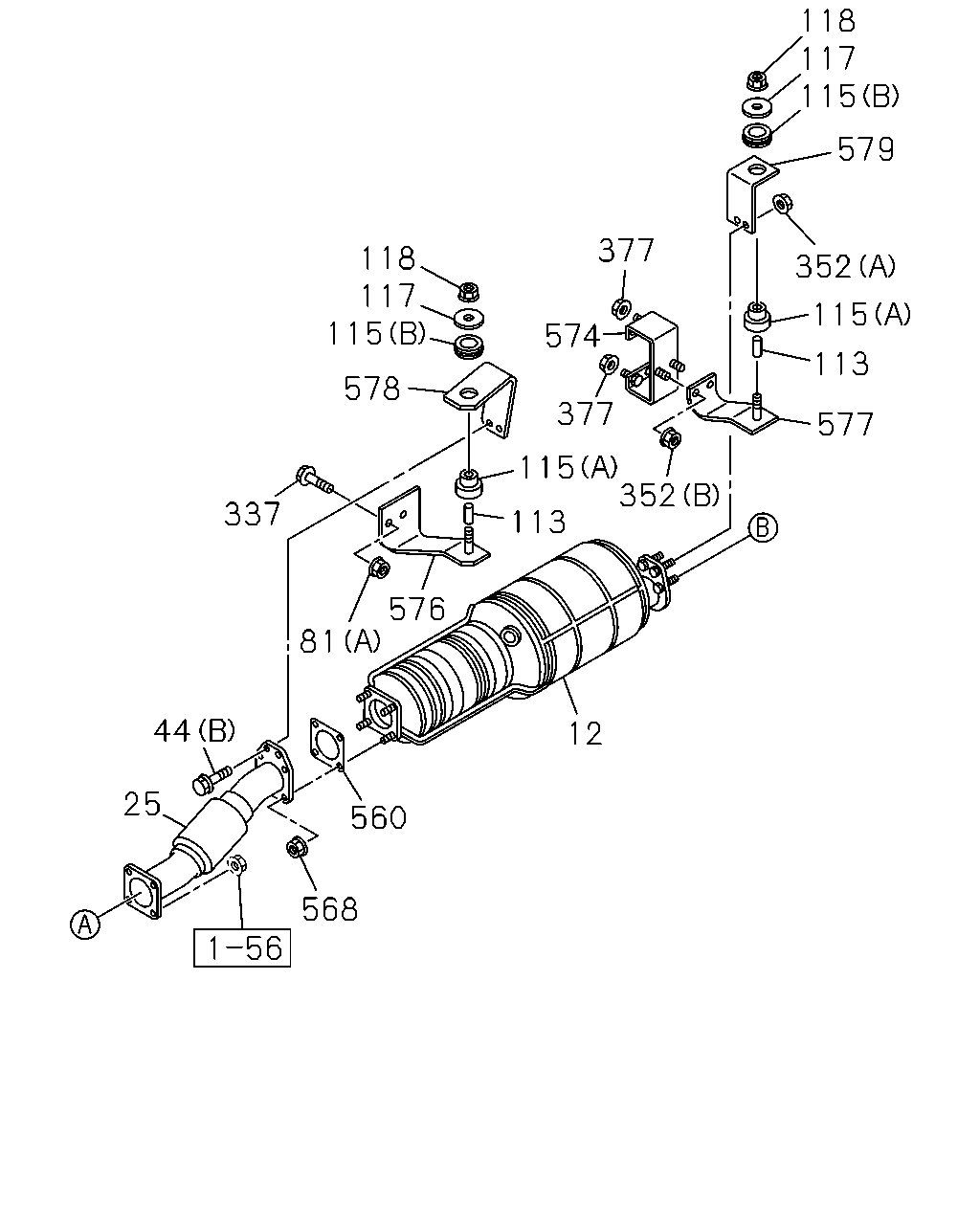

118 117 115 579 377 118 117 115 352 115 574 113 578 377 577 115 352 337 113 576 81 44 12 25 560 568

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH	8-98113-764-2	01	1	1108-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98113-732-0	01	1	1108-
44	03.613 BOLT; BRKT 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1108-
44	03.613 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1108-
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1108-
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1108-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1108-
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-927-0	02	1	1108-
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-882-0	02	1	1108-
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-882-0	02	1	1108-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1108-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1108-
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1108-
352	03.613 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1108-
352	03.613 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1108-
377	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1108-
560	03.611 GASKET; DPD ID=64	8-97373-108-0	01	1	1108-
568	03.704 NUT; DPD 01.062 M8 FLANGE	0-91180-108-0	04	1	1108-
574	03.706 SPACER; DPD	8-98044-774-0	01	1	1108-
576	03.706 BRACKET; DPD FRT TO FRAME	8-98072-142-0	01	1	1108-
577	03.706 BRACKET; DPD RR TO FRAME	8-98059-404-0	01	1	1108-
578	03.706 BRACKET; DPD FRT	8-98113-757-0	01	1	1108-
579	03.704 BRACKET; DPD RR	8-97307-868-1	01	1	1108-

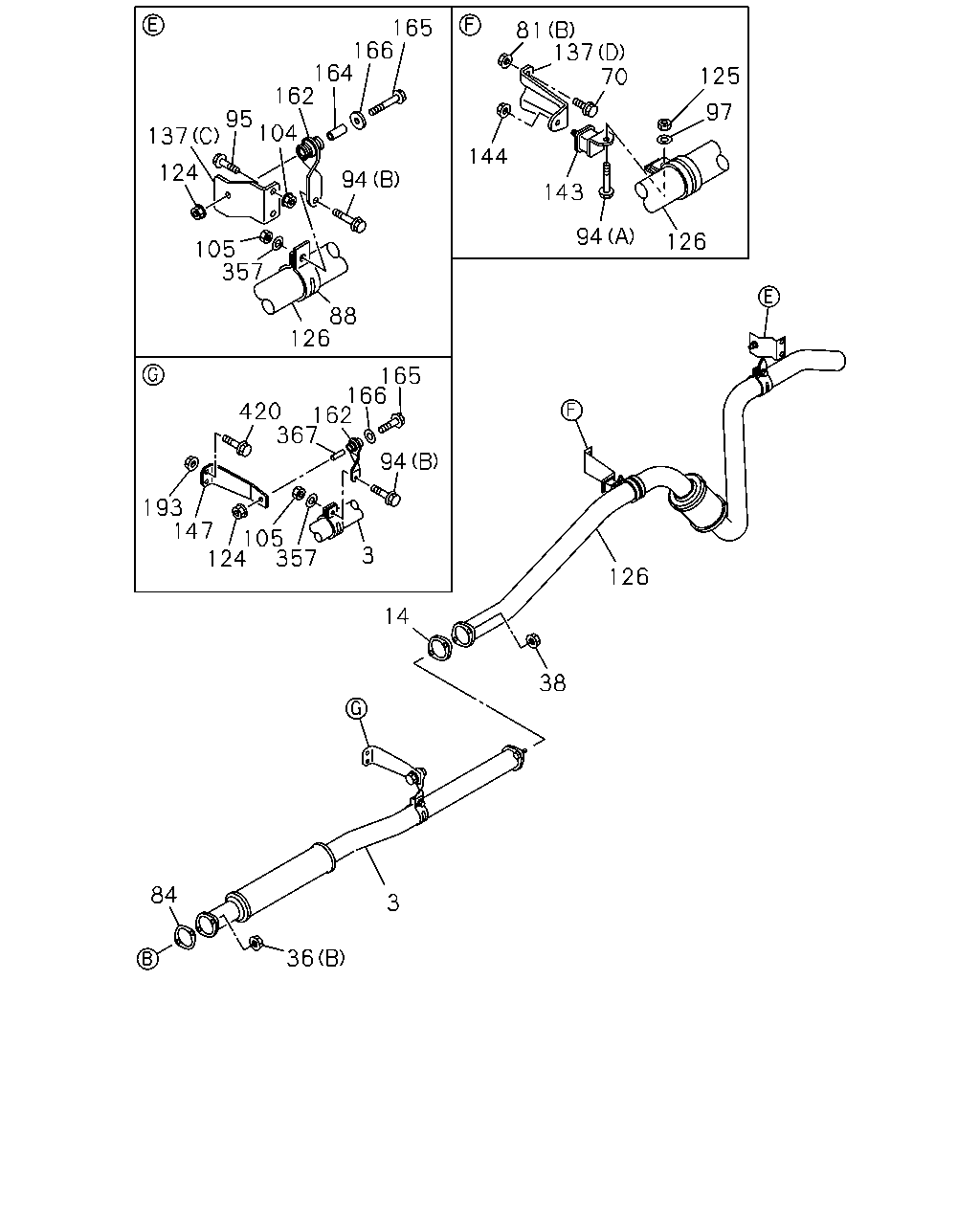

165 166 164 162 81 137 70 125 97 95 137 104 144 124 94 143 94 126 105 357 88 126 165 166 420 162 367 94 193 147 105 3 126 14 38 84 3 36 124 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3800MM(38W)	8-98113-771-0	01	1	1108-
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4100MM(41W)	8-98150-326-0	01	1	1108-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	1108-
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1108-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1108-
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1108-
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1108-
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1108-
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1108-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1108-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1108-
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1108-
94	03.704 BOLT; CLAMP WHEEL BASE 4100MM(41W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1108-
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1108-
95	03.708 BOLT; BRKT WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1108-
95	03.708 BOLT; BRKT WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1108-
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1108-
104	03.704 NUT; BRKT WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1108-
104	03.704 NUT; BRKT WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1108-
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1108-
105	03.704 NUT; CLAMP WHEEL BASE 4100MM(41W) 00.833 M10	0-91110-510-0	01	1	1108-
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1108-
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1108-
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1108-
126	03.705 PIPE; EXH,RR WHEEL BASE 3800MM(38W)	8-98113-793-0	01	1	1108-
126	03.705 PIPE; EXH,RR WHEEL BASE 4100MM(41W)	8-98150-330-0	01	1	1108-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3800MM(38W) (A)	8-97116-588-2	01	1	1108-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3800MM(38W) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98090-280-0	01	1	1108-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3800MM(38W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98160-940-0	01	1	1108-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 4100MM(41W) 03.613 (D)	8-97096-651-0	01	1	1108-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 4100MM(41W) (C)	8-97185-801-0	01	1	1108-
143	03.704 RUBBER; SUPPORT	8-98034-767-0	01	1	1108-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1108-
147	03.704 BRACKET; VERTICAL PIPE WHEEL BASE 4100MM(41W)	8-98117-604-0	01	1	1108-
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1108-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 4100MM(41W) L=115	8-98034-765-0	01	1	1108-
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1108-
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1108-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 4100MM(41W) M10X70 FLANGE	0-28051-070-0	01	1	1108-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1108-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 4100MM(41W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1108-
193	03.704 NUT; BRKT,VERTICAL PIPE WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1108-
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1108-
357	03.708 WASHER; PL,CLAMP WHEEL BASE 4100MM(41W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1108-
367	03.704 COLLAR; DIST,SUPPORT RUBBER WHEEL BASE 4100MM(41W) 03.706 L=37.5	9-22151-217-0	01	1	1108-
420	03.704 BOLT; BRKT,VERTICAL PIPE WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1108-
