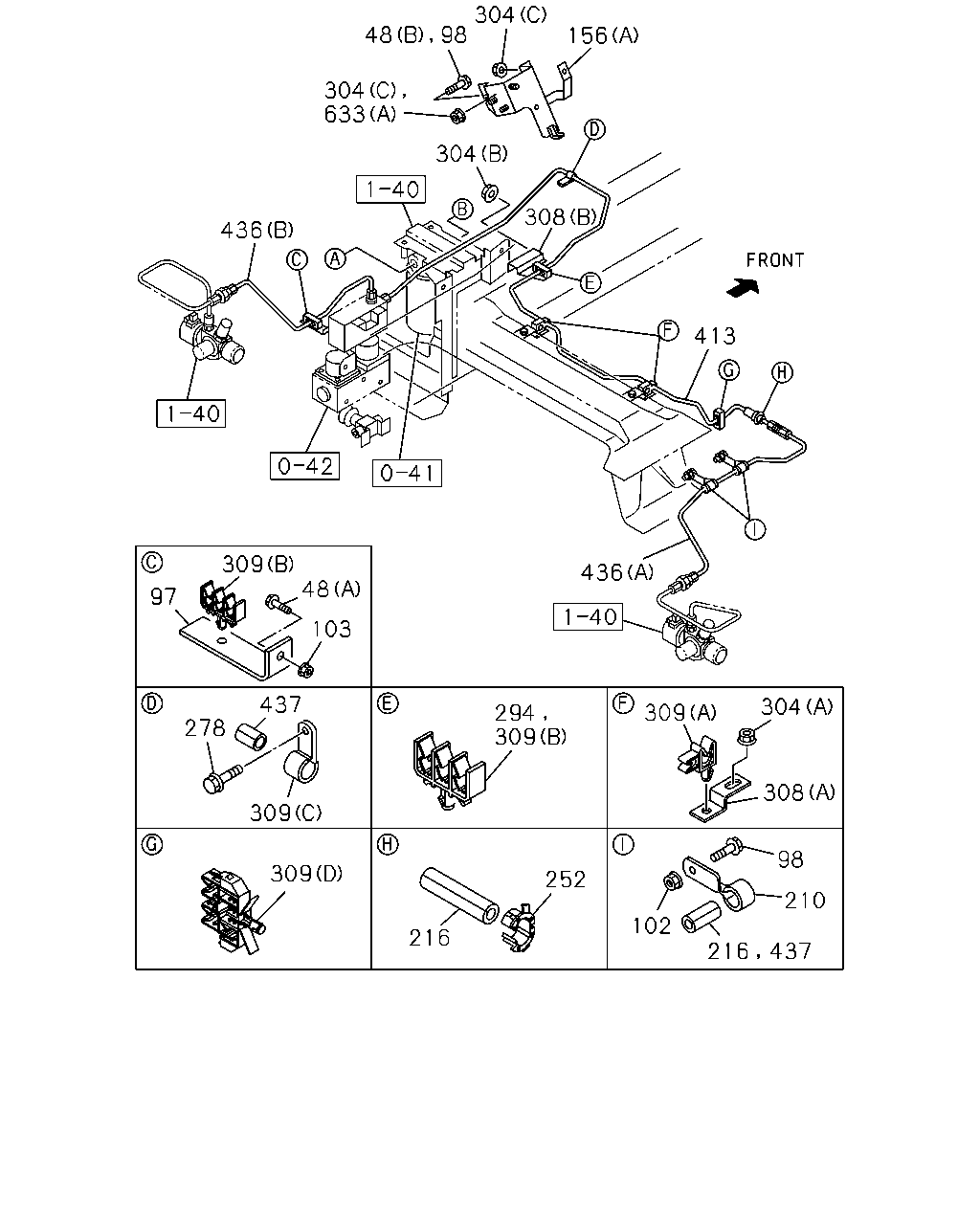

1-41 — FUEL PIPING; CHASSIS (#79928) — 86 parça

304 156 304 633 304 308 436 413 309 48 436 97 103 437 304 309 294 309 278 308 309 98 309 252 210 102 216 48 98 216 437

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	03.162 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1108-
48	03.162 BOLT; BRKT 03.023 (A) M10X35 FLANGE	0-28661-035-0	01	1	1108-
97	03.162 BRACKET; CLIP	8-98052-405-1	01	1	1108-
98	03.162 BOLT; BRKT,FUEL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1108-
102	03.162 NUT; CLIP,FUEL PIPE 00.787 M10	0-91111-510-0	01	1	1108-
102	03.162 NUT; CLIP,FUEL PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	1108-
103	03.130 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	1108-
156	03.162 BRACKET; FUEL HOSE (A)	8-98147-981-0	01	1	1108-
156	03.162 BRACKET; FUEL HOSE (B)	8-98164-028-1	01	1	1108-
210	03.162 CLIP; FEED PIPE 01.166 ID=13 L=50	1-09700-027-1	02	1	1108-
216	03.163 INSULATION; FUEL PIPE 03.162 OD=15 L=50	8-97066-274-0	01	1	1108-
216	03.163 INSULATION; FUEL PIPE 03.162 OD=16 L=20	8-97254-836-0	01	1	1108-
252	03.162 GROMMET 02.343 ID=17	8-94128-319-2	01	1	1108-
278	03.890 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1108-
294	03.900 CLIP; FUEL PIPE 03.162 ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1108-
304	03.130 NUT; BRKT 00.787 (A) M10	0-91111-510-0	02	1	1108-
304	03.130 NUT; BRKT 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	1108-
304	03.130 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1108-
308	03.162 BRACKET; FUEL PIPE (A)	8-98034-748-1	02	1	1108-
308	03.162 BRACKET; FUEL PIPE (B)	8-98136-437-0	01	1	1108-
309	03.162 CLIP; PIPE 01.540 (C) ID=13 L=28	0-95235-255-0	01	1	1108-
309	03.162 CLIP; PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	1108-
309	03.162 CLIP; PIPE (B) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	1108-
309	03.162 CLIP; PIPE 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1108-
413	03.163 PIPE; FUEL,CENTER	8-98114-245-1	01	1	1108-
436	03.163 PIPE; FUEL,REGULATOR (B) L=829	8-98142-156-0	01	1	1108-
436	03.163 PIPE; FUEL,REGULATOR (A) L=840	8-98151-503-1	01	1	1108-
437	03.163 RUBBER; INSULATOR 03.162 OD=16 L=20	8-97254-836-0	02	1	1108-
633	03.162 NUT; FUEL HOSE (C)	8-98050-055-0	03	1	1110-
633	03.162 NUT; FUEL HOSE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1108-
633	03.162 NUT; FUEL HOSE 02.042 (B) M12 FLANGE	0-91180-112-0	02	1	1108-

343 172 172 633 132 340 343 633 172 172 29 132 132 340 156 633 24 24 343 340 132 625 343 29 30 30 340 633 172 172 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	03.162 CLIP; FUEL HOSE (B) ID=15.5 & 19.5	8-98137-046-0	01	1	1108-
24	03.162 CLIP; FUEL HOSE (A) ID=14 L=20	8-98144-944-0	01	1	1108-
29	03.163 HOSE; FUEL (C)	8-98161-992-0	01	1	1110-
29	03.163 HOSE; FUEL (B)	8-98144-592-0	01	1	1108-1109
29	03.163 HOSE; FUEL (D)	8-98144-557-0	01	1	1110-
29	03.163 HOSE; FUEL (A)	8-98161-990-0	01	1	1108-1109
29	03.163 HOSE; FUEL (E)	8-98161-991-0	01	1	1110-
30	03.163 INSULATOR; FUEL HOSE (A)	8-98136-615-0	01	1	1110-
30	03.163 INSULATOR; FUEL HOSE (B)	8-98201-064-0	01	1	1110-
132	03.162 BOLT; FUEL HOSE 01.428 (B) M6X25 FLANGE	0-28050-625-0	01	1	1108-
132	03.162 BOLT; FUEL HOSE 03.314 (C) M6X60 FLANGE	0-28050-660-0	01	1	1108-
132	03.162 BOLT; FUEL HOSE 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1108-
132	03.162 BOLT; FUEL HOSE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1108-
132	03.162 BOLT; FUEL HOSE 09.003 (D) M12X35 FLANGE	0-28651-235-0	02	1	1108-
156	03.162 BRACKET; FUEL HOSE (A)	8-98147-981-0	01	1	1108-
156	03.162 BRACKET; FUEL HOSE (B)	8-98164-028-1	01	1	1108-
172	03.162 CONNECTOR; FUEL HOSE TO HOSE (A)	8-98050-056-0	03	1	1110-
172	03.162 CONNECTOR; FUEL HOSE TO HOSE (B)	8-98050-057-0	03	1	1110-
340	03.163 CONNECTOR; CNG (B)	8-98127-020-1	01	1	1110-
340	03.163 CONNECTOR; CNG (C)	8-98127-022-0	01	1	1110-
340	03.163 CONNECTOR; CNG (A)	8-98144-429-0	01	1	1108-1109
340	03.163 CONNECTOR; CNG (A)	8-98144-429-0	02	1	1110-
343	03.163 UNION; ELBOW (B)	8-98161-993-0	02	1	1110-
343	03.163 UNION; ELBOW (A)	8-98144-428-0	01	1	1108-1109
343	03.163 UNION; ELBOW (A)	8-98144-428-0	02	1	1110-
625	03.163 HOSE; FUEL,CNG	8-98154-037-0	01	1	1110-
633	03.162 NUT; FUEL HOSE (C)	8-98050-055-0	03	1	1110-
633	03.162 NUT; FUEL HOSE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1108-
633	03.162 NUT; FUEL HOSE 02.042 (B) M12 FLANGE	0-91180-112-0	02	1	1108-

343 29 132 429 156 633 132 132 132 24 429 29 24 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	03.162 CLIP; FUEL HOSE (B) ID=15.5 & 19.5	8-98137-046-0	01	1	1108-
24	03.162 CLIP; FUEL HOSE (A) ID=14 L=20	8-98144-944-0	01	1	1108-
29	03.163 HOSE; FUEL (C)	8-98161-992-0	01	1	1110-
29	03.163 HOSE; FUEL (B)	8-98144-592-0	01	1	1108-1109
29	03.163 HOSE; FUEL (D)	8-98144-557-0	01	1	1110-
29	03.163 HOSE; FUEL (A)	8-98161-990-0	01	1	1108-1109
29	03.163 HOSE; FUEL (E)	8-98161-991-0	01	1	1110-
132	03.162 BOLT; FUEL HOSE 01.428 (B) M6X25 FLANGE	0-28050-625-0	01	1	1108-
132	03.162 BOLT; FUEL HOSE 03.314 (C) M6X60 FLANGE	0-28050-660-0	01	1	1108-
132	03.162 BOLT; FUEL HOSE 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1108-
132	03.162 BOLT; FUEL HOSE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1108-
132	03.162 BOLT; FUEL HOSE 09.003 (D) M12X35 FLANGE	0-28651-235-0	02	1	1108-
156	03.162 BRACKET; FUEL HOSE (A)	8-98147-981-0	01	1	1108-
156	03.162 BRACKET; FUEL HOSE (B)	8-98164-028-1	01	1	1108-
340	03.163 CONNECTOR; CNG (B)	8-98127-020-1	01	1	1110-
340	03.163 CONNECTOR; CNG (C)	8-98127-022-0	01	1	1110-
340	03.163 CONNECTOR; CNG (A)	8-98144-429-0	01	1	1108-1109
340	03.163 CONNECTOR; CNG (A)	8-98144-429-0	02	1	1110-
343	03.163 UNION; ELBOW (B)	8-98161-993-0	02	1	1110-
343	03.163 UNION; ELBOW (A)	8-98144-428-0	01	1	1108-1109
343	03.163 UNION; ELBOW (A)	8-98144-428-0	02	1	1110-
429	03.162 GASKET; JOINT (A)	8-98005-350-0	01	1	1108-1109
429	03.162 GASKET; JOINT (B)	8-98140-336-0	01	1	1108-1109
633	03.162 NUT; FUEL HOSE (C)	8-98050-055-0	03	1	1110-
633	03.162 NUT; FUEL HOSE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1108-
633	03.162 NUT; FUEL HOSE 02.042 (B) M12 FLANGE	0-91180-112-0	02	1	1108-
