Isuzu WW
▶
TRUCKS
▶
NPR
▶
51381 - NPR BUS CNG(LHD)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#79923) — 32 parça
◀
[110A] FIXING (19 parça)
[110A] COMPONENT (13 parça)
▶

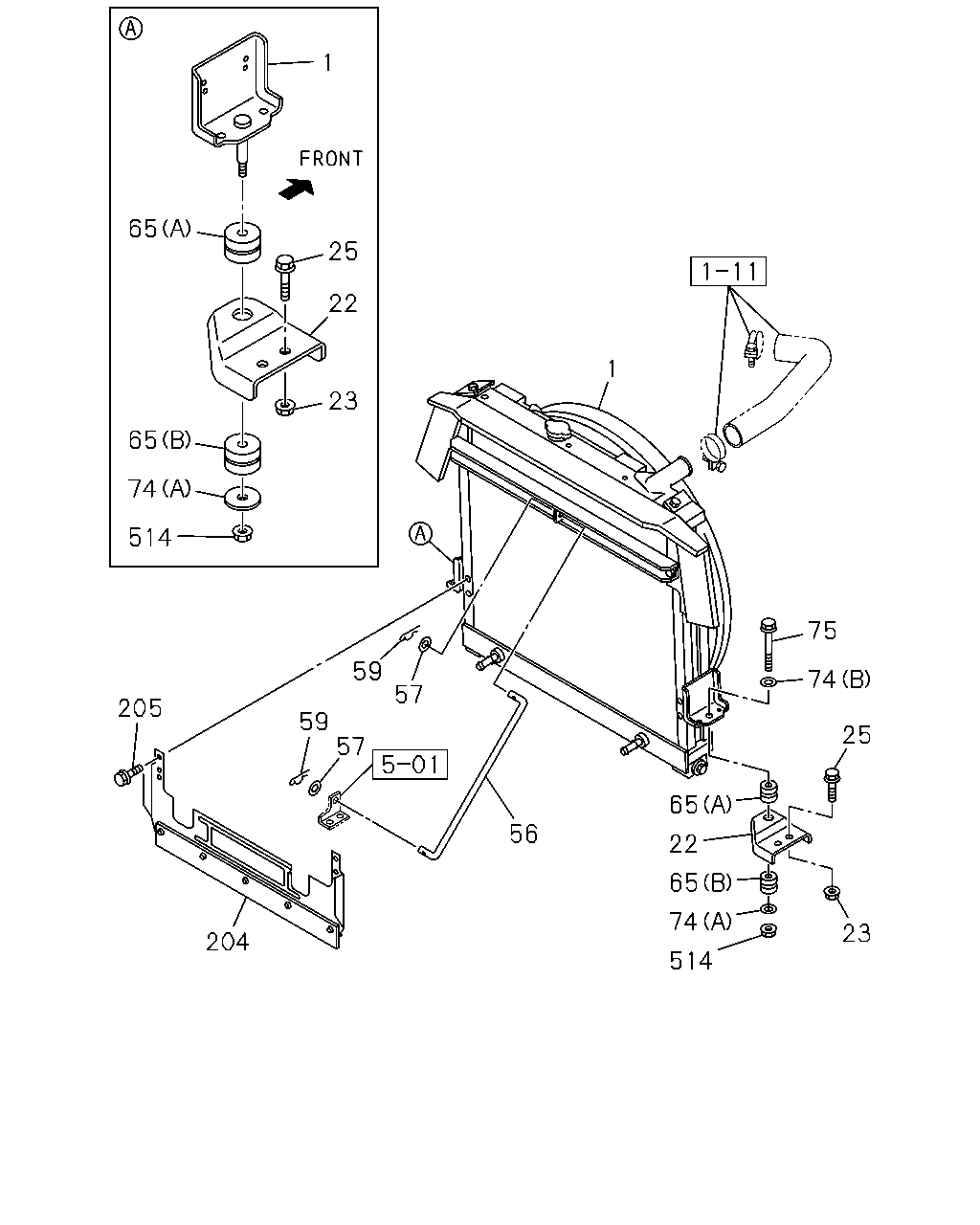

1
65
25
22
1
23
65
74
514
75
59
74
57
205
59
57
25
65
56
22
65
74
23
204
514
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
8-98112-735-3
01
1
1108-1410
1
01.219 RADIATOR ASM
8-98259-860-0
01
1
1411-
22
01.270 BRACKET; RAD MTG
IDENTIFICATION LABEL FOR KD<6UT>
8-98112-737-2
01
1
1108-
22
01.270 BRACKET; RAD MTG
8-98112-736-2
01
1
1108-
23
01.271 NUT; RAD MTG
IDENTIFICATION LABEL FOR KD<6UT> 03.162 M10 FLANGE
0-91180-110-0
04
1
1108-
23
01.271 NUT; RAD MTG
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.162 M10 FLANGE
0-91180-110-0
02
1
1108-
25
01.271 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> 00.029 M10X30 FLANGE
0-28651-030-0
04
1
1108-
25
01.271 BOLT; BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.029 M10X30 FLANGE
0-28651-030-0
02
1
1108-
56
01.270 STAY; RAD
8-98112-740-0
01
1
1108-
57
01.271 WASHER; PL,STAY
17.198 ID=10.5
0-91610-510-0
02
1
1108-
59
01.271 PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1108-
65
01.271 INSULATOR; RAD
01.270 (A)
8-94249-346-0
02
1
1108-
65
01.271 INSULATOR; RAD
01.270 (B)
8-94249-347-0
02
1
1108-
74
01.270 WASHER; PL,CUSHION RUBBER
(B) ID=10.5
0-91610-710-0
01
1
1108-
74
01.270 WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36
8-97359-049-1
02
1
1108-
75
01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63
8-94249-446-0
01
1
1108-
204
01.267 GUIDE ASM; AIR
8-98081-417-1
01
1
1108-
205
01.267 BOLT; AIR GUIDE
03.162 M6X12 FLANGE
0-28050-612-0
02
1
1108-
514
01.276 NUT; RAD
01.062 M8 FLANGE
0-91180-108-0
02
1
1108-

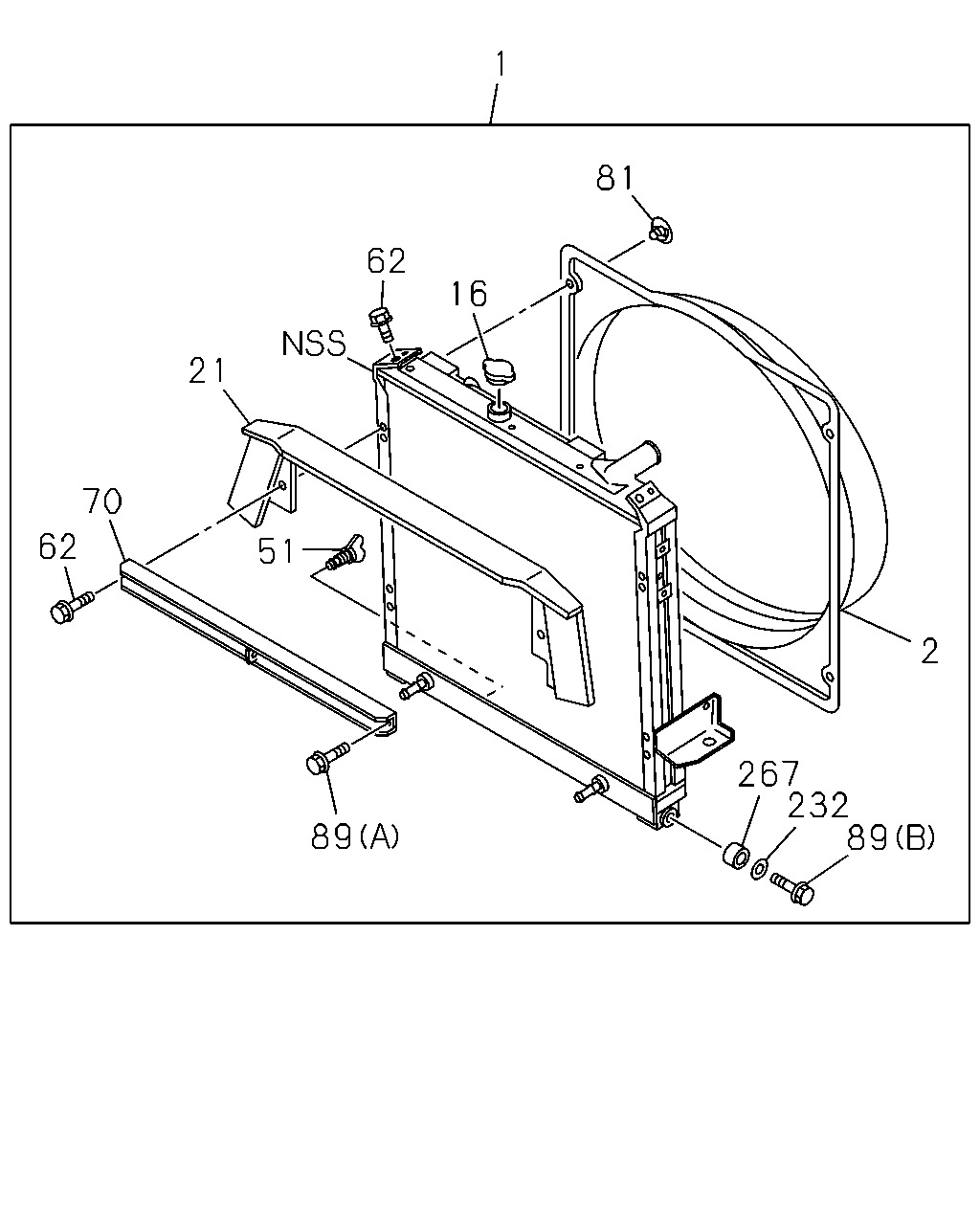

1
81
62
16
21
70
62
51
2
267
232
89
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
8-98112-735-3
01
1
1108-1410
1
01.219 RADIATOR ASM
8-98259-860-0
01
1
1411-
2
01.277 GUIDE; FAN
8-98089-894-0
01
1
1108-
16
01.203 CAP; RAD
8-97241-152-0
01
1
1108-
21
01.276 SEAL; RAD
8-98128-143-0
01
1
1108-
51
08.951 PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1108-
62
01.271 BOLT; STAY
02.343 M8X12 FLANGE
0-28050-812-0
02
1
1108-
70
01.271 STAY; RAD
8-97073-125-0
01
1
1108-
81
01.277 SCREW; FAN GUIDE,RAD
8-97088-810-0
02
1
1108-
89
01.277 BOLT
02.343 (A) M8X12 FLANGE
0-28050-812-0
02
1
1108-
89
01.277 BOLT
01.271 (B) M8X25
1-21469-153-0
02
1
1108-
232
01.540 COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
1108-
267
01.277 RUBBER; CUSHION
1-21467-023-0
02
1
1108-
