◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51381 - NPR BUS CNG(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#79919) — 31 parça

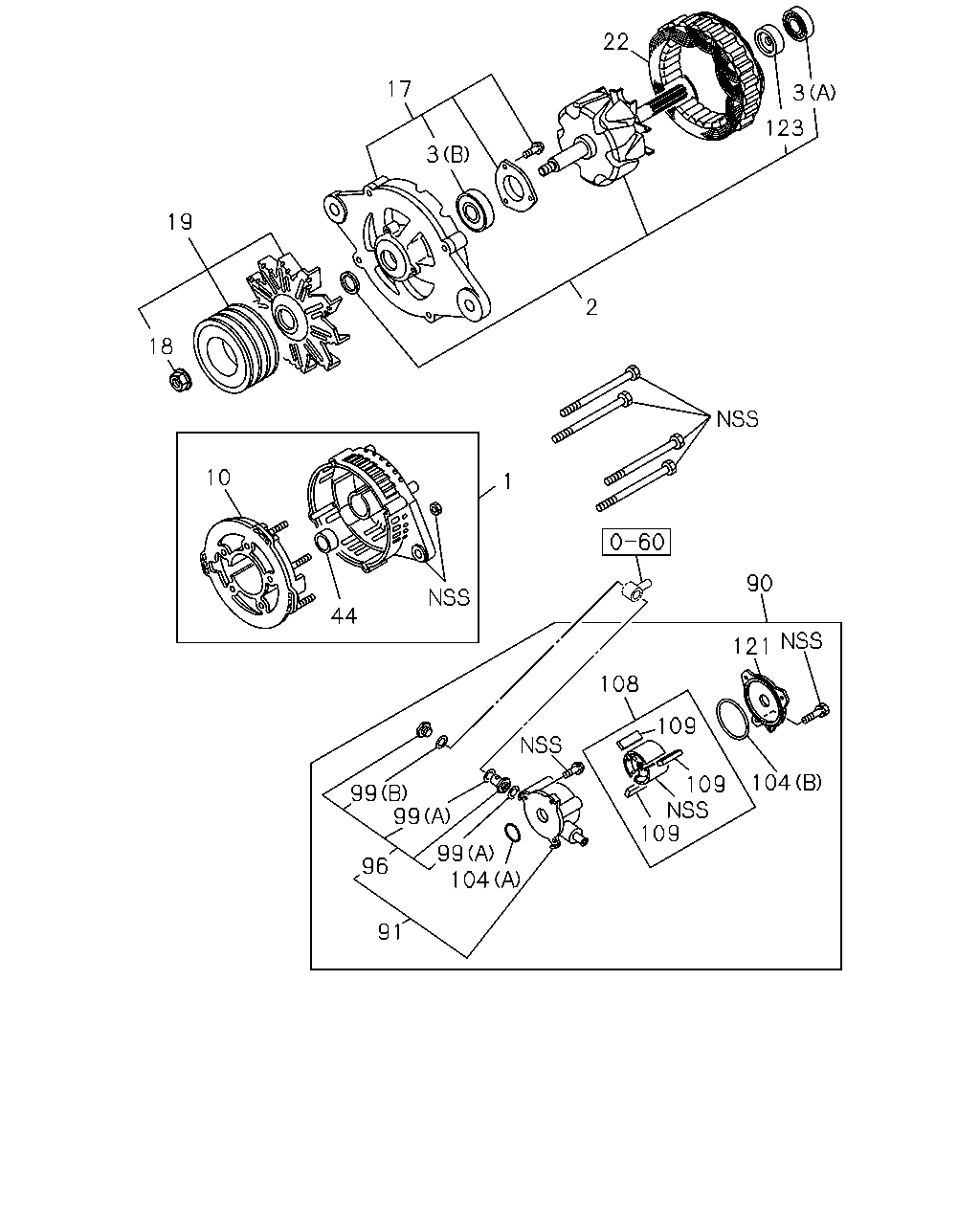

çizim 84363
22 17 3 123 3 19 2 18 10 1 90 44 121 108 109 104 109 109 99 99 99 104 96 91
BalonParca AdiParca NoAdetTipApplied Date
1 02.297 COVER ASM; RR,GEN
ASM PART: B = 8-97351-574-1, 97351574 		8-97249-332-0 01 1 -1208
1 02.297 COVER ASM; RR,GEN
ASM PART: A = 8-97351-573-0, 97351573 		8-97302-702-0 01 1 -1208
1 02.297 COVER ASM; RR,GEN
ASM PART: A = 8-97351-573-0, 97351573 		8-98230-321-0 01 1 1209-
1 02.297 COVER ASM; RR,GEN
ASM PART: B = 8-97351-574-1, 97351574 		8-98230-322-0 01 1 1209-
2 02.279 ROTOR; GEN
ASM PART: B = 8-97351-574-1, 97351574 		8-97249-330-1 01 1 -
2 02.279 ROTOR; GEN
ASM PART: A = 8-97351-573-0, 97351573 		8-97302-700-0 01 1 -
3 02.306 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574 		8-97062-744-0 01 1 -
3 02.306 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574 		8-98146-442-0 01 1 -
10 02.319 RECTIFIER; GEN
ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574 		8-97249-333-0 01 1 -1208
10 02.319 RECTIFIER; GEN
ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574 		8-98230-331-0 01 1 1209-
17 02.305 COVER ASM; FRT,GEN
ASM PART: B = 8-97351-574-1, 97351574 		8-97249-334-0 01 1 -
17 02.305 COVER ASM; FRT,GEN
ASM PART: A = 8-97351-573-0, 97351573 		8-97302-703-0 01 1 -
18 02.274 NUT; PULLEY,GEN
ASM PART: A = 8-97351-573-0, 97351573 		8-97083-293-0 01 1 -
19 02.274 PULLEY; GEN
ASM PART: A = 8-97351-573-0, 97351573 		8-97083-292-0 01 1 -
19 02.274 PULLEY; GEN
ASM PART: B = 8-97351-574-1, 97351574 		8-97249-335-0 01 1 -
22 02.310 STATOR; GEN
ASM PART: B = 8-97351-574-1, 97351574 		8-97249-331-1 01 1 -
22 02.310 STATOR; GEN
ASM PART: A = 8-97351-573-0, 97351573 		8-97302-701-0 01 1 -
44 02.298 SEAL; RR COVER,GEN
ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574 		8-94156-589-0 01 1 -
90 03.280 PUMP ASM; VAC,GEN
ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574 		8-97351-707-0 01 1 -
91 03.280 BODY; VAC PUMP
ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574 		8-97148-117-0 01 1 -
96 03.280 VALVE ASM; VAC PUMP
02.307 ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574 		8-97148-118-0 01 1 -
99 03.280 GASKET; VAC PUMP
(A), ID=18 OD=24 ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574 		5-19679-002-0 02 1 -
99 03.280 GASKET; VAC PUMP
(B), ID=12 OD=24 ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574 		5-19679-003-0 01 1 -
104 03.280 GASKET; FRT COVER,VAC PUMP
04.830, (A) ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574 		8-94156-608-0 01 1 -
104 03.280 GASKET; FRT COVER,VAC PUMP
(B) ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574 		8-97083-304-0 01 1 -
108 03.280 ROTOR; VAC PUMP
ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574 		8-97148-115-1 01 1 -
109 03.280 VANE; VAC PUMP
ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574 		8-97083-298-0 03 1 -
121 02.297 COVER; RR,VAC PUMP
ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574 		8-97148-116-0 01 1 -
123 02.291 GUIDE; BRUSH
ASM PART: A = 8-97351-573-0, 97351573, B = 8-97351-574-1, 97351574 		8-97062-644-0 01 1 -
çizim 182463
24
BalonParca AdiParca NoAdetTipApplied Date
24 02.307 SCREW; RECTIFIER,GEN
ASM PART: A = 8-97351-573-0, 97351573 		8-97131-532-0 01 1 -
24 02.307 SCREW; RECTIFIER,GEN
ASM PART: B = 8-97351-574-1, 97351574 		8-97249-336-0 01 1 -
