0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#79917) — 21 parça

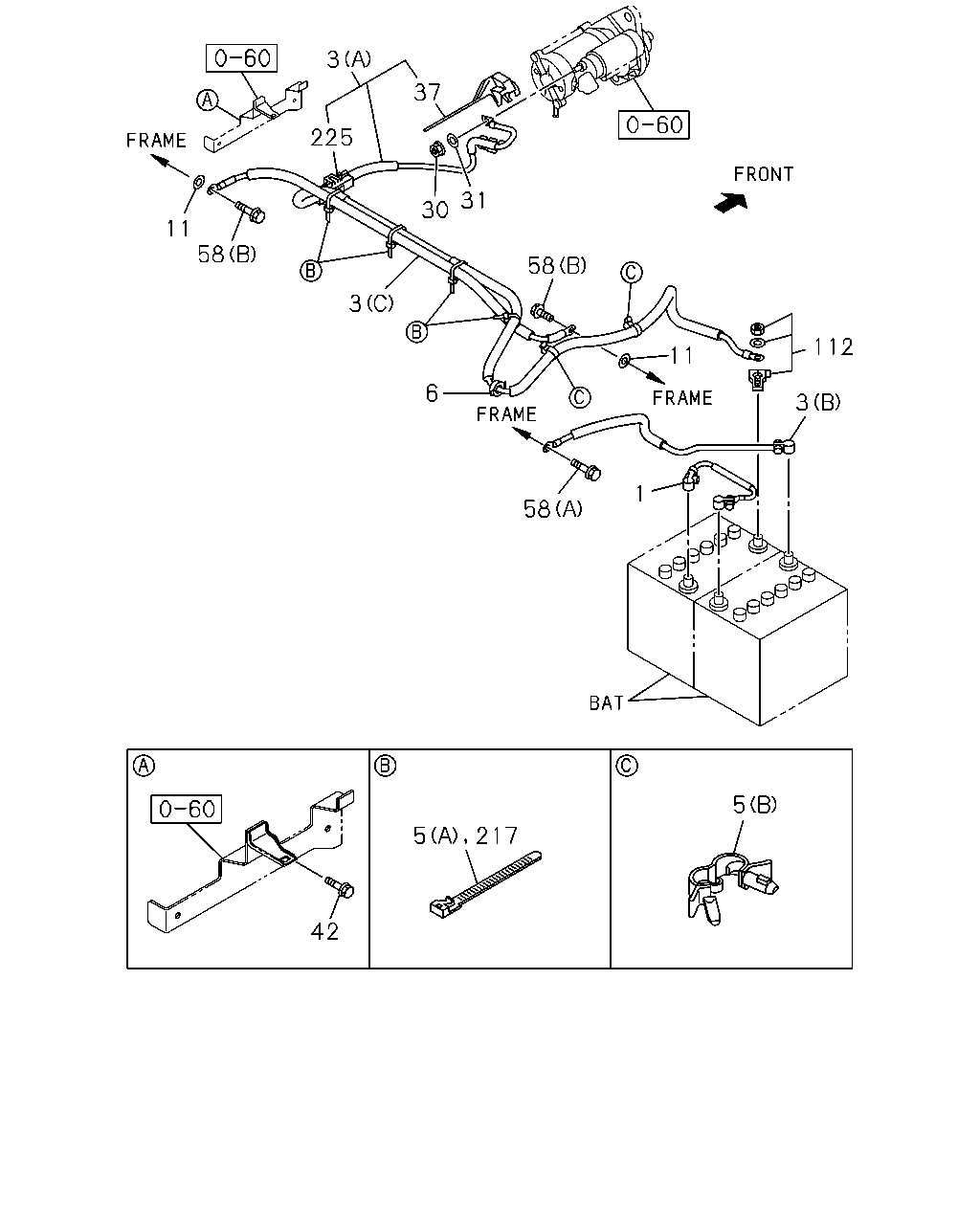

çizim 73592
3 37 225 31 30 11 58 58 3 112 11 6 3 1 58 5 5 217 42
BalonParca AdiParca NoAdetTipApplied Date
1 02.341 CABLE; BATTERY 8-98081-510-0 01 1 1108-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98126-009-0 01 1 1108-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) 		8-98113-881-1 01 1 1108-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) 		8-98162-184-0 01 1 1108-1409
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) 		8-98294-696-0 01 1 1410-
5 02.559 CLIP; BATTERY CABLE TO BODY
IDENTIFICATION LABEL FOR KD<6UT> (A) L=250 		5-09707-030-1 04 1 1108-
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=13-18 L=18 		1-09709-291-0 02 1 1108-
5 02.559 CLIP; BATTERY CABLE TO BODY
03.162 (A) L=140 		5-09707-031-1 01 1 1108-
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 1108-
11 02.343 WASHER; BATTERY CABLE EARTH
IDENTIFICATION LABEL FOR KD<6UT> 		8-98099-007-0 02 1 1108-
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1108-
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1108-
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1108-
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 M6X16 FLANGE 		8-97329-599-0 01 1 1108-
58 02.343 BOLT; CABLE,BATTERY
IDENTIFICATION LABEL FOR KD<6UT> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1108-
58 02.343 BOLT; CABLE,BATTERY
(A) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1108-
112 02.343 TERMINAL; BATTERY 8-97365-770-0 01 1 1108-
217 02.343 CLIP; BAND,CABLE
4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT> 03.162 L=140 		5-09707-031-1 01 1 1108-1410
217 02.343 CLIP; BAND,CABLE
4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT> EXC. SPEED LIMITER 90KM(NMJ) 03.162 L=140 		5-09707-031-1 01 1 1411-
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1108-1409
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410-
