◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10626 - FTR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#799) — 70 parça

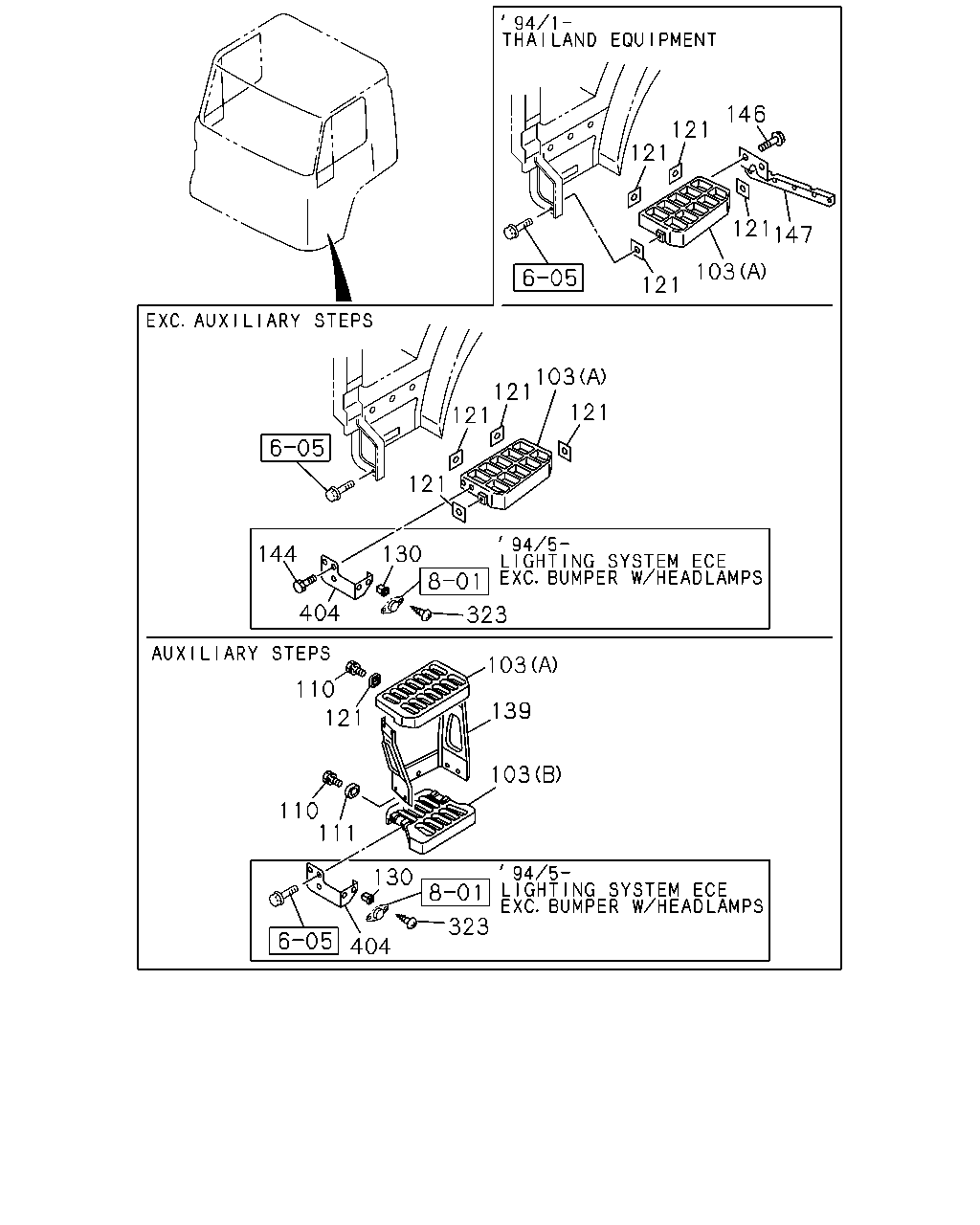

çizim 92521
121 121 146 121 147 121 103 103 121 121 121 121 130 144 404 110 121 103 323 139 103 110 111 130 323 404
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP
AUXILIARY STEPS<E29> (A) 		1-53414-033-0 02 1 9202-9404 ● ●
103 PLATE; STEP
AUXILIARY STEPS<E29> (A) 		1-53414-033-0 02 1 9405- ● ●
103 PLATE; STEP
LIGHTING SYSTEM ECE<SLC> EXC. AUXILIARY STEPS<E29>,BUMPER W/HEADLAMPS<SLB> (A) 		1-53414-033-0 02 1 9405- ●
103 PLATE; STEP
AUXILIARY STEPS<E29> (B) 		1-71998-312-2 02 1 9202-9312 ● ●
103 PLATE; STEP
AUXILIARY STEPS<E29> EXC. THAILAND EQUIPMENT(PM9) (B) 		1-71998-312-2 02 1 9401- ● ●
103 PLATE; STEP
EXC. AUXILIARY STEPS<E29> (A) 		1-53414-033-0 02 1 9202-9404 ● ●
103 PLATE; STEP
EXC. AUXILIARY STEPS<E29> (A) 		1-53414-033-0 02 1 9405- ●
103 PLATE; STEP
EXC. AUXILIARY STEPS<E29>,LIGHTING SYSTEM ECE<SLC> (A) 		1-53414-033-0 02 1 9405- ●
110 BOLT; 1ST STEP PLATE
AUXILIARY STEPS<E29> M8X20 W/LK&PL WASHER 		1-09980-496-0 18 1 9202-9312 ● ●
110 BOLT; 1ST STEP PLATE
AUXILIARY STEPS<E29> EXC. THAILAND EQUIPMENT(PM9) M8X20 W/LK&PL WASHER 		1-09980-496-0 18 1 9401- ● ●
111 COVER; 1ST STEP
AUXILIARY STEPS<E29> 		1-71998-153-0 10 1 9202-9312 ● ●
111 COVER; 1ST STEP
AUXILIARY STEPS<E29> EXC. THAILAND EQUIPMENT(PM9) 		1-71998-153-0 10 1 9401- ● ●
121 COVER; STEP PLATE 1-71998-153-0 08 1 9202- ● ●
130 GROMMET; SCREW,PROTECTOR
LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> M5 		1-09983-116-0 08 1 9405- ●
139 CLOSING; 1ST STEP
AUXILIARY STEPS<E29> 		1-65680-552-2 01 1 9202-9312 ● ●
139 CLOSING; 1ST STEP
AUXILIARY STEPS<E29> EXC. THAILAND EQUIPMENT(PM9) 		1-65680-552-2 01 1 9401- ● ●
139 CLOSING; 1ST STEP
AUXILIARY STEPS<E29> 		1-65680-551-2 01 1 9202-9312 ● ●
139 CLOSING; 1ST STEP
AUXILIARY STEPS<E29> EXC. THAILAND EQUIPMENT(PM9) 		1-65680-551-2 01 1 9401- ● ●
144 BOLT; BRKT
LIGHTING SYSTEM ECE<SLC> EXC. AUXILIARY STEPS<E29>,BUMPER W/HEADLAMPS<SLB> M8X20 W/LK&PL WASHER 		1-09980-496-0 04 1 9405- ●
146 BOLT; STEP BRKT
THAILAND EQUIPMENT(PM9) M8X20 W/LK&PL WASHER 		1-09980-496-0 04 1 9401- ● ●
147 BRACKET; MUD GUARD,RR
THAILAND EQUIPMENT(PM9) 		1-65680-731-0 01 1 9401- ● ●
147 BRACKET; MUD GUARD,RR
THAILAND EQUIPMENT(PM9) 		1-65680-730-0 01 1 9401- ● ●
323 SCREW; SET
LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> M6X16 TAPPING 		1-09981-524-0 08 1 9405- ●
404 BRACKET
AUXILIARY STEPS<E29> LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> 		1-65481-423-0 01 1 9408- ●
404 BRACKET
AUXILIARY STEPS<E29> LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> 		1-65481-421-0 01 1 9408- ●
404 BRACKET
LIGHTING SYSTEM ECE<SLC> EXC. AUXILIARY STEPS<E29>,BUMPER W/HEADLAMPS<SLB> 		1-65481-422-0 01 1 9405- ●
404 BRACKET
LIGHTING SYSTEM ECE<SLC> EXC. AUXILIARY STEPS<E29>,BUMPER W/HEADLAMPS<SLB> 		1-65481-420-0 01 1 9405- ●

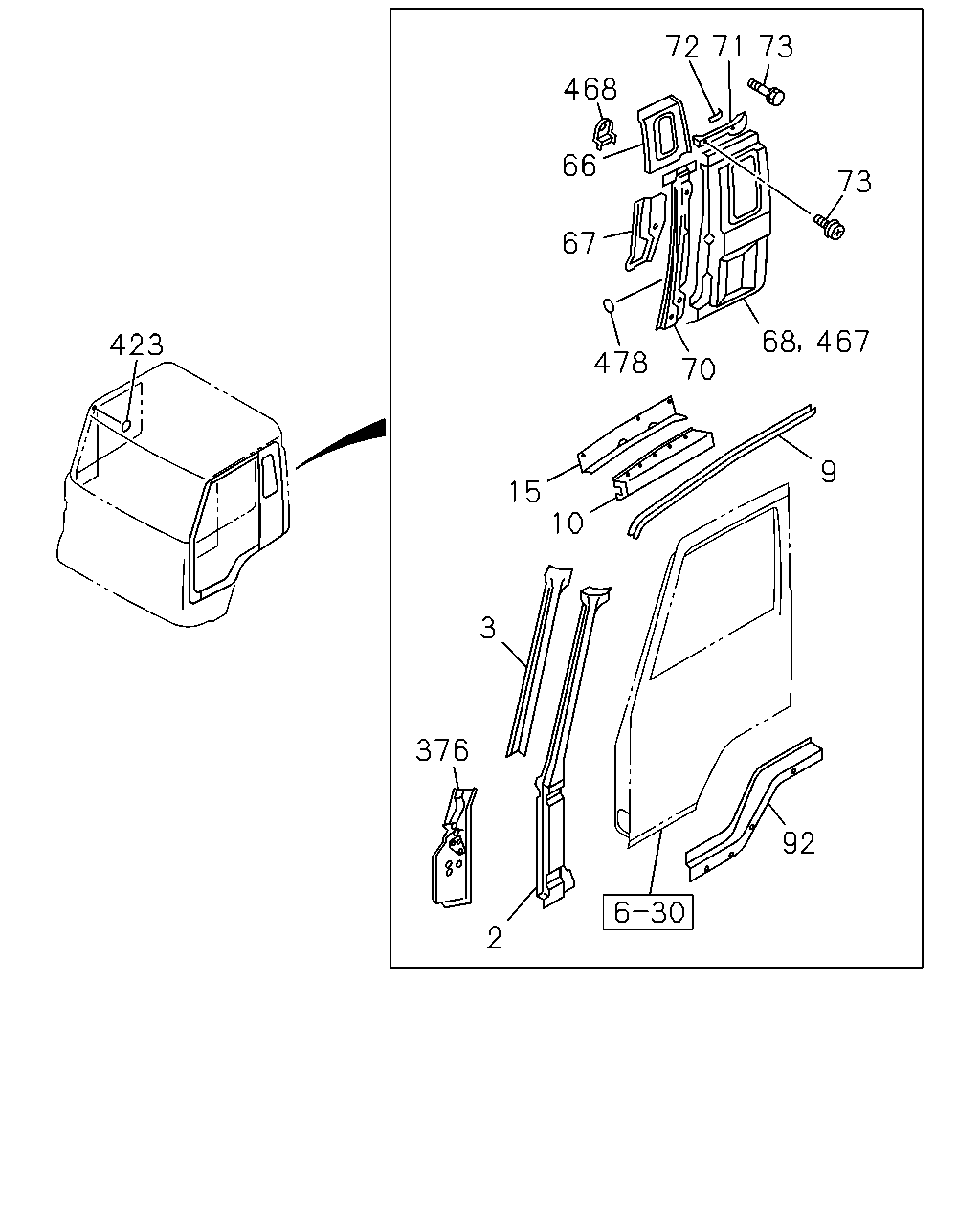

çizim 95400
423 15 10 3 376 2 92 9 70 478 68 467 73 67 66 468 72 71 73
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61270-645-0 01 1 9202- ● ●
2 PILLAR; FRT
MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> 		1-61270-659-2 01 1 9202- ● ●
2 PILLAR; FRT
EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> 		1-61281-016-2 01 1 9202- ● ●
3 PANEL; CLOSING,FRT PILLAR 1-61280-549-2 01 1 9202- ● ●
3 PANEL; CLOSING,FRT PILLAR 1-61280-548-2 01 1 9202- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61270-537-6 01 1 9202- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61270-536-6 01 1 9202- ● ●
10 CLOSING; ROOF SIDE 1-61270-517-2 01 1 9202- ● ●
10 CLOSING; ROOF SIDE 1-61270-516-2 01 1 9202- ● ●
15 PANEL; CANT RAIL SIDE
DELUXE CAB(W14) 		1-61280-830-4 01 1 9202- ● ●
15 PANEL; CANT RAIL SIDE
DELUXE CAB(W14) 		1-61280-562-4 01 1 9202- ● ●
15 PANEL; CANT RAIL SIDE
EXC. DELUXE CAB(W14) 		1-61280-831-2 01 1 9202- ● ●
15 PANEL; CANT RAIL SIDE
EXC. DELUXE CAB(W14) 		1-61280-739-0 01 1 9202- ● ●
66 PANEL; BACK SIDE INNER
DELUXE CAB(W14) 		1-61280-601-3 01 1 9202- ● ●
66 PANEL; BACK SIDE INNER
DELUXE CAB(W14) 		1-61280-600-3 01 1 9202- ● ●
66 PANEL; BACK SIDE INNER
THAILAND EQUIPMENT(PM9) 		1-61280-732-1 01 1 9202-9303 ● ●
66 PANEL; BACK SIDE INNER
THAILAND EQUIPMENT(PM9) 		1-61280-731-1 01 1 9202-9303 ● ●
66 PANEL; BACK SIDE INNER
EXC. THAILAND EQUIPMENT(PM9),DELUXE CAB(W14) 		1-61280-905-1 01 1 9202-9303 ● ●
66 PANEL; BACK SIDE INNER
EXC. DELUXE CAB(W14) 		1-61280-905-1 01 1 9304- ● ●
66 PANEL; BACK SIDE INNER
EXC. THAILAND EQUIPMENT(PM9),DELUXE CAB(W14) 		1-61280-904-1 01 1 9202-9303 ● ●
66 PANEL; BACK SIDE INNER
EXC. DELUXE CAB(W14) 		1-61280-904-1 01 1 9304- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-141-0 01 1 9202- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-049-0 01 1 9202- ● ●
68 PANEL; BACK SIDE OUTER 1-61280-439-5 01 1 9202-9302 ● ●
68 PANEL; BACK SIDE OUTER
W/DOOR SW HOLE 		1-61280-474-5 01 1 9303- ● ●
70 REINFORCEMENT; BACK INNER PANEL 1-61270-746-0 01 1 9202- ● ●
70 REINFORCEMENT; BACK INNER PANEL 1-61281-077-0 01 1 9202- ● ●
71 COVER; SIDE PANEL UPR 1-65471-051-0 01 1 9202- ● ●
71 COVER; SIDE PANEL UPR 1-65471-050-0 01 1 9202- ● ●
72 CUSHION; COVER,SIDE PANEL UPR 1-65470-726-1 02 1 9202- ● ●
73 SCREW; SIDE PANEL COVER 1-09981-385-0 04 1 9202- ● ●
92 PANEL; SIDE SILL,CAB 1-61270-519-5 01 1 9202- ● ●
92 PANEL; SIDE SILL,CAB 1-61270-518-5 01 1 9202- ● ●
376 PANEL ASM; FRT SIDE INNER 1-61470-586-4 01 1 9202- ●
376 PANEL ASM; FRT SIDE INNER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61470-586-4 01 1 9202- ●
376 PANEL ASM; FRT SIDE INNER 1-61470-582-4 01 1 9202- ● ●
376 PANEL ASM; FRT SIDE INNER
AUSTRALIA EQUIPMENT(RR3) 		1-61480-633-3 01 1 9202- ●
423 SEAL; CANTRAIL SIDE
OD=36 WHITE 		1-76778-007-0 01 1 9501- ● ●
467 PANEL; OUTER,BACK CORNER
W/DOOR SW HOLE 		1-61280-438-4 01 1 9202- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
THAILAND EQUIPMENT(PM9) 		1-61270-554-1 01 1 9202-9303 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
THAILAND EQUIPMENT(PM9) EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> 		1-61270-554-1 01 1 9202-9303 ● ●
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 02 1 9202-9302 ● ●
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 03 1 9303- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
